INSTRUCTION MANUAL

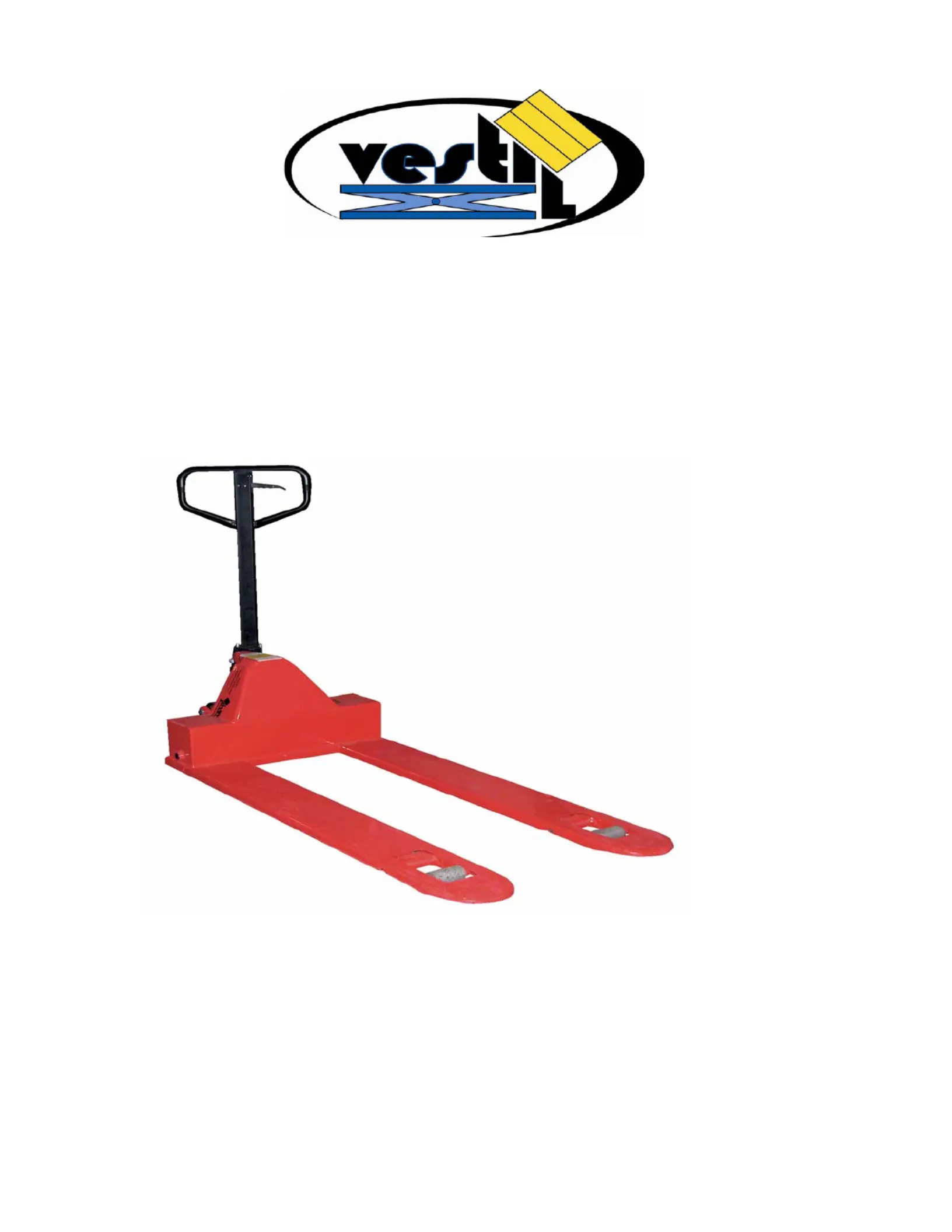

FOR Low Profile 4,000 lbs. Pallet Truck
M
ODELS NUMBER: PM4-xxxx-LP
V
ESTIL MANUFACTURING CORP.
2999 NORTH WAYNE STREET, P.O. BOX 507, ANGOLA, IN 46703
ELEPHONE: (260) 665-7586 -OR- TOLL FREE (800) 348-0868
F
AX: (260) 665-1339
U . . ERL: WWW VESTILMFG COM MAIL: SALES@VESTIL.COM
1
Hand Pallet Truck
Note: Owner and operator MUST read and understand this
operating instructions before use this pallet truck.
Thank you for choosing our pallet truck. For your safety and correct operation, please carefully read
the manual before use.
NOTE: All of the information reported herein is based on data available at the time of printing. The
factory reserves the right to modify its own products at any time without notice or incurring in any
sanction. Please verify with the factory for possible updates.
1. GENERAL SPECIFICATIONS
Capacity (lbs.) 4,000
Max. Fork Height 6”
Min. Fork Height 1 7/8”
Fork Length 48”
Overall Fork Width 20”/27”/33”
Load Wheel Diameter Ø1 ¾” x 3 5/8” Steel – 6003 2RS
Steering Wheel Diameter Ø6 ¼” x 2” Poly on steel – 6204 2RS
Net Weight 228/270/300
2. TO ATTACH HANDLE TO PUMP UNIT
2.1 Remove 3 bolts (D611) from the handle bracket (D151).
2.2 Set handle (D610A, D610B or D610AS) on the bracket (D151), notice to allow the chain (D612)
and the adjusting bolts (D614) assembly to pass through the hole in the center of the bracket (D151)
and shaft (D153).
2.3 Insert the 3 bolts (D611) through the handle into the bracket (D151), then tighten them securely.
2.4 Raise the lever plat (D132) and insert the adjusting bolt (D614) into the front slot, keeping the
adjusting nut (D615) on the under side of the lever plat (D132).
3. TO ADJUST RELEASE DEVICE
On the draw-bar of this pallet truck, you can find the control handle (D608 or D608S) which can be
regulated in three positions:
Raise - handle down
Drive position - handle in center position
Lower - handle up, the lever moves back the drive position when released.
If however they have been changed, you can adjust according to following step:
3.1 If the forks elevate while pumping in the DRIVE position, turn the adjusting nut (D615) on the
adjusting bolt (D614) or adjusting screw (D133) clockwise until pumping action does not raise the
forks and the DRIVE position functions properly.
3.2 If the forks descend while pumping in the position, turn the nut (D615) or adjusting screw DRIVE
