Table of Contents Rev. 6/21/2019 WTJ-HITCH MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Co. Page 1 of 9
Hitch-Mounted Jib Crane Model WTJ-HITCH
Instruction Manual
Receiving instructions:
After delivery, remove the packaging from the product. Inspect the product closely to determine whether it
sustained damage during transport. If damage is discovered, record a complete description of it on the bill of
lading. If the product is undamaged, discard the packaging.
NOTE: The end-user is solely responsible for confirming that product design, use, and maintenance comply
with laws, regulations, codes, and mandatory standards applied where the product is used.
Technical Service Department (TSD) and Replacement Parts:
For answers to questions not addressed in these instructions and to order replacement parts, labels, and
accessories, call our Technical Service and Parts Department at (260) 665-7586. The department can also be
contacted online at http://www.vestilmfg.com/parts_info.htm
.
Table of Contents
Specifications……………...………….…………………..………………………………………………………………………. 2
Signal Words….……………………..……………………………………………………………………………………………. 2
Hazards……………………………………………………………………………………..……………………………………… 3
Labeling Diagram……...………………………………………………………………………………………………………….. 3
Exploded View & Bill of Materials…………..…………………………………………………………………………………… 4
Assembling the Crane……………………………………………………………………………………………………....
5, 6, 7
Post Angle Adjustments……...……….………………………………………………………………………………................ 7
Using the Crane..……………………………………………………………………………………………………………….
7, 8
Record of Normal Condition……………………………………………………………………………………………….......... 8
Inspections & Maintenance………………………………………………………………………………………………………. 8
Limited Warranty…...……………………………………………………………………………………………………………... 9
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
Web: www.vestilmfg.com e-mail: info@vestil.com
Table of Contents Rev. 6/21/2019 WTJ-HITCH MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Co. Page 2 of 9
Specifications:
Dimensions, net weight, and capacity information appear in the diagrams and table below.
Model
Uniform
capacity
Overall width
Overall length
Overall height
Net
weight
A
B
A
B
WTJ-HITCH
600 lb.
272.7kg
19
13
/
16
in.
50.3 cm
40
3
/
16
in.
102.1 cm
44
1
/
2
in.
113.0 cm
84
5
/
8
in.
214.9 cm
74
5
/
16
in.
188.8 cm
133.2 lb.
60.5 kg
SIGNAL WORDS:
This manual uses SIGNAL WORDS to identify hazards that could occur while using this product.
DANGER, WARNING, and CAUTION draw attention to hazards likely to cause personal injuries. Each
signal word implies a specific level of injury. NOTICE is used to indicate hazards likely to result in
property damage. The following are definitions for each word
.
Identifies a hazardous situation which, if not avoided, WILL result in
DEATH or SERIOUS INJURY. Use of this signal word is limited to the
most extreme situations.
Identifies a hazardous situation which, if not avoided, COULD result in
DEATH or SERIOUS INJURY.
Indicates a hazardous situation which, if not avoided, COULD result in
MINOR or MODERATE injury
.
Identifies practices likely to result in product/property damage, such as
operation that might damage the product.
Each person who assembles, installs, uses, or maintains this product should read the entire manual in
advance and fully understand the directions. If after reading the manual you do not
understand an instruction,
ask your supervisor or employer for clarification, because failure to adhere to the directions in this manual
might result in serious personal injury.

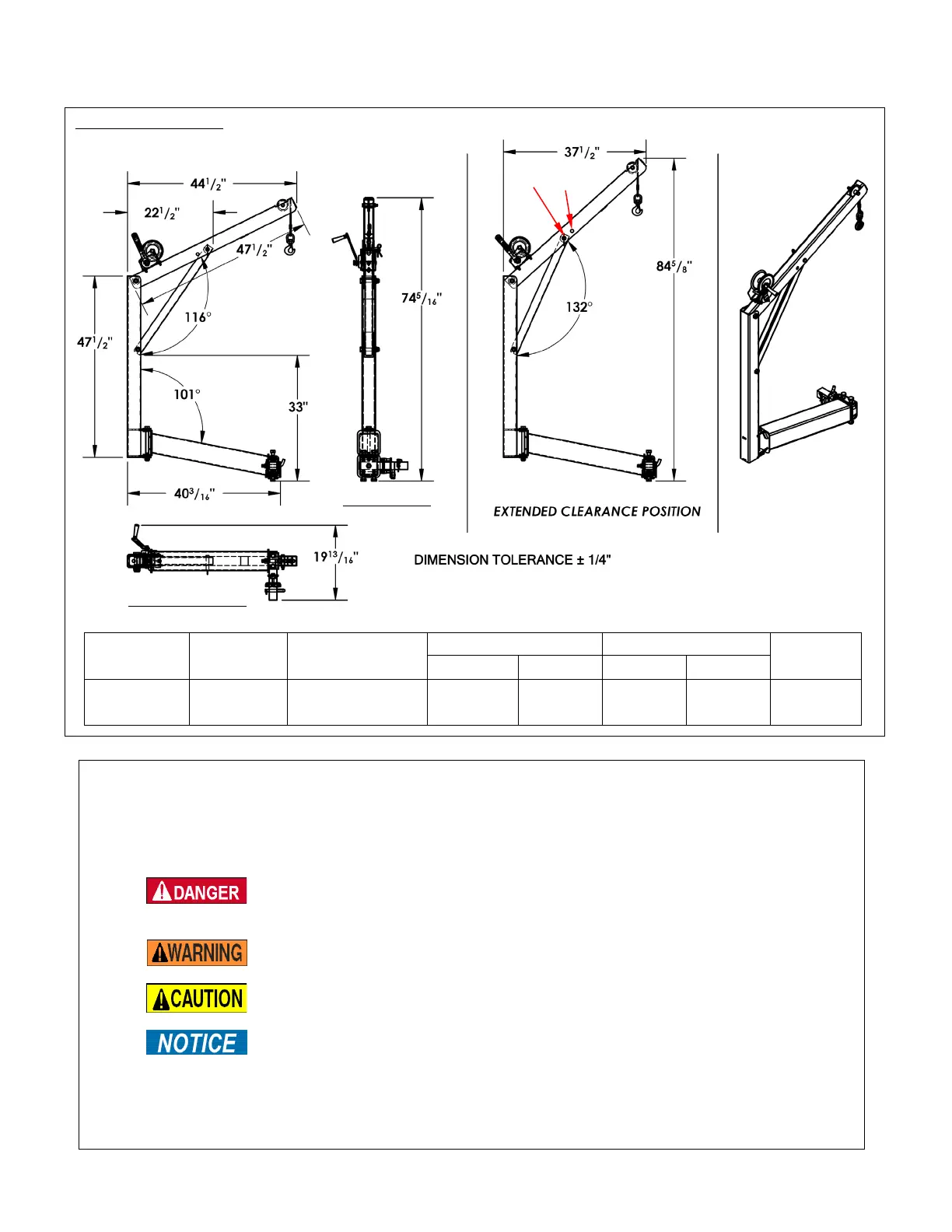

Side and Front Views: Brace connected to boom at either position A or B (see “Step 5” on p. 6)
OVERHEAD VIEW
FRONT VIEW
A
B
