Vivitek D557W Manual

Vivitek videoprojektorer D557W

Læs gratis den danske manual til Vivitek D557W (65 sider) i kategorien videoprojektorer. Denne vejledning er vurderet som hjælpsom af 34 personer og har en gennemsnitlig bedømmelse på 3.7 stjerner ud af 17.5 anmeldelser. Har du et spørgsmål om Vivitek D557W, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/65

This publication, including all photographs, illustrations and software, is protected under international

be reproduced without written consent of the author.

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no

representations or warranties with respect to the contents hereof and specifically disclaims any implied

warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to

revise this publication and to make changes from time to time in the content hereof without obligation of

the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and

pending applications in other countries throughout the world.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or

registered trademarks of HDMI Licensing LLC in the United States and other countries.

All other product names used in this manual are the properties of their respective owners and are

acknowledged.

— — i

DLP Projector—User’s Manual

— — ii

Important Safety Information

Important:

It is strongly recommended that you read this section carefully before using the projector. These

safety and usage instructions will ensure that you enjoy many years of safe use of the projector.

Keep this manual for future reference.

Symbols Used

Warning symbols are used on the unit and in this manual to alert you of hazardous situations.

The following styles are used in this manual to alert you to important information.

Note:

Provides additional information on the topic at hand.

Important:

Provides additional information that should not be overlooked.

Caution:

Alerts you to situations that may damage the unit.

Warning:

Alerts you to situations that may damage the unit, create a hazardous environment, or cause

personal injury.

Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this

example:

“Push the Menu button on the remote control to open the Main menu.”

General Safety Information

 Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in

the unit. For servicing, contact qualified service personnel.

 Follow all warnings and cautions in this manual and on the unit case.

 The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the

lens when the lamp is on.

 Do not place the unit on an unstable surface, cart, or stand.

 Avoid using the system near water, in direct sunlight, or near a heating device.

 Do not place heavy objects such as books or bags on the unit.

Preface

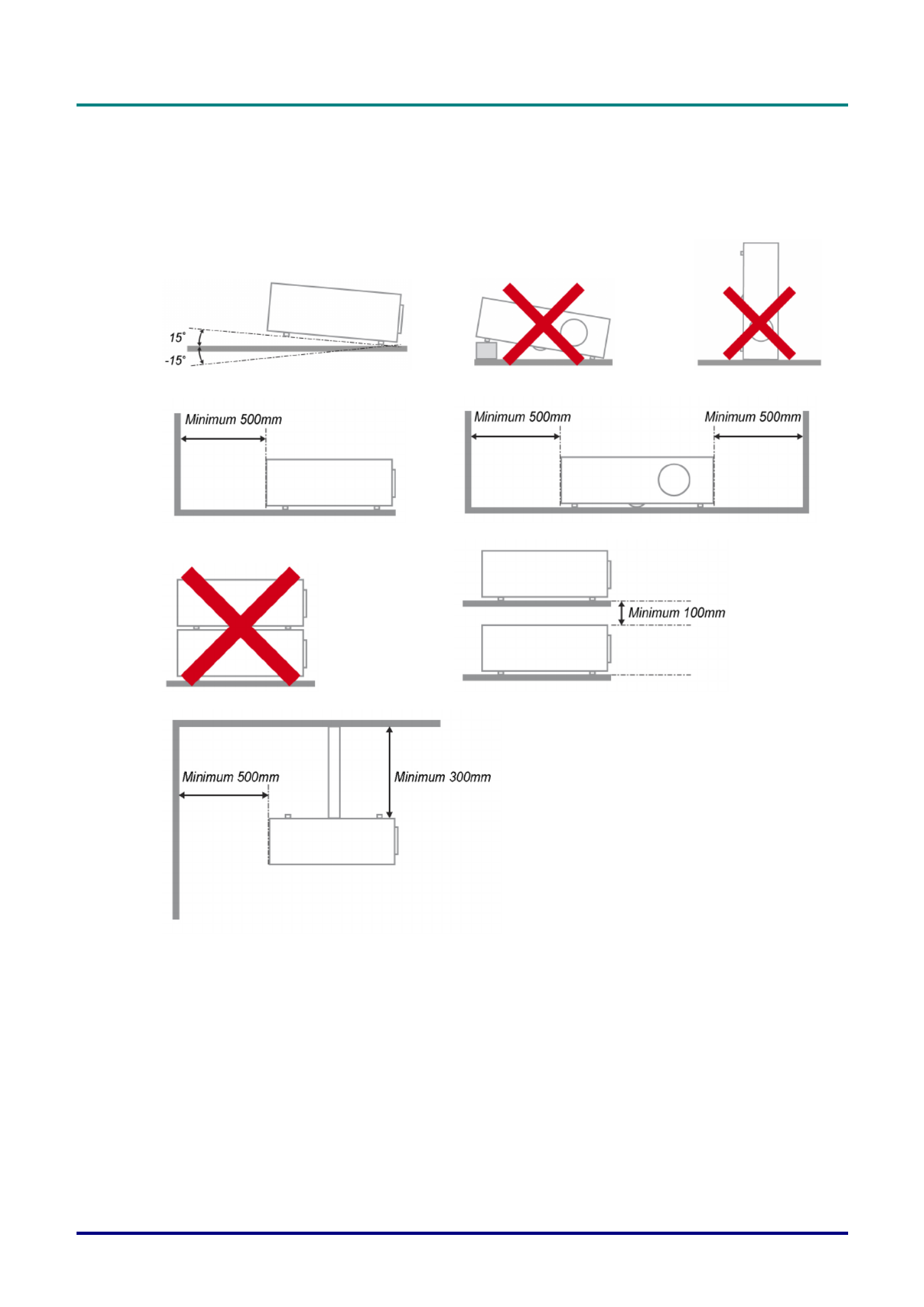

Projector Installation Notice

 Place the projector in a horizontal position

The tilt angle of the projector should not exceed 15 degrees, nor should the projector be

installed in any way other than the desktop and ceiling mount, otherwise lamp life could decrease

dramatically, and may lead to other unpredictable damages.

 Allow at least 50 cm clearance around the exhaust vent.

 Ensure that the intake vents do not recycle hot air from the exhaust vent.

 When operating the projector in an enclosed space, ensure that the surrounding air temperature

within the enclosure does not exceed operation temperature while the projector is running, and the

air intake and exhaust vents are unobstructed.

 All enclosures should pass a certified thermal evaluation to ensure that the projector does not

recycle exhaust air, as this may cause the device to shutdown even if the enclosure temperature is

with the acceptable operation temperature range.

– –iii

DLP Projector—User’s Manual

— — iv

Verify Installation Location

 To supply power, the 3-blade (with earthing lead) socket should be used to ensure proper

grounding and equalized ground potential for all of the equipment in the Projector System.

 The power code provided with the Projector should be used. In case of any missing item, other

qualified 3-blade (with earthing lead) power cord can be used as substitution; however, do not use

2-blade power cord.

 Verify if the voltage is stable, grounded properly and there is no electricity leakage.

 Measure total power consumption which should not higher the safety capacity and avoid safety

issue and short circuit.

 Turn on Altitude Mode when located in high altitude areas

 The projector can only be installed upright or inverted.

 When installation the bracket, make sure the weight limit is not exceed and firmly secured.

 Avoid installing near air conditioner duct or subwoofer.

 Avoid installing at high temperature, insufficient cooling and heavy dust locations.

 Keep your product away from fluorescent lamps to avoid malfunction

caused by IR interference

 The VGA IN connector should be connected to the VGA IN port. Note that it should be inserted

tightly, with the screws on both sides securely fastened to ensure proper connection of the signal

wire for achieving optimal display effect.

 The AUDIO IN connector should be connected to the AUDIO IN port and CANNOT be connected

to AUDIO OUT or other ports like BNC, RCA; otherwise, it will lead to mute output and even

DAMAGE the port.

 Install the projector above 200cm to avoid damage.

 The power cord and signal cable should be connected before power on the projector. During the

projector starting and operating process, DO NOT insert or remove the signal cable or the power

cord to avoid damaging the projector.

Cooling notes

Air outlet

 Make sure the air outlet is 50cm clear of any obstruction to ensure proper cooling.

 Air outlet location should not be in front of the lens of other projector to avoid causing illusions.

 Keep the outlet at least 100cm away from the inlets of other projectors

 The projector generates a massive amount of heat during use. The internal fan dissipates the heat

of the projector when shutting down, and such process may continue for a certain period. After the

project enters STANDBY MODE status, press the AC power button to turn off the projector and

remove the power cord. DO NOT remove the power cord during the shutdown process, as it may

cause damage to the projector. In the meantime, the delayed heat radiating will also affect the

service life of the projector. The shutdown process may vary depending on the model used.

Whatever the case may be, be sure to disconnect the power cord till after the projector enters the

STANDBY status.

Air inlet

 Make sure there is no object blocking air input within 30 cm.

 Keep the inlet away from other heat sources

 Avoided heavy dust area

Preface

– –v

Choosing a Projector

Edge blending application

 Not only brightness, bright balances, lens but stability is important too when choosing a projector.

 A projector need 30 to 60 minutes warm up to adjust properly.

 After lens shift, there should not be any optical distortion such as trapezoidal and barrel shape

distortions.

 Quick dis-assemble lens need to be firmly secured, the electric motor cannot be mistakenly shift.

The screen should not be offset for long time use or during booting up and shutting down the

projector.

 Projector six-axis colors (R,G,B,Y,C,W). Projector adjust functions require: Hue, Saturation, Gain

 Vertical or 360 degree projection application. Needs to VERIFY engineering design of lamp aging

to avoid conflict with client.

HDMI Cable

Edge blending signal needs to use digital transfer, the 4 pairs of TMDS transfer impedance require 100 Ω

diameter as following to maintain signal quality:

 5 M : AWG 26

 10 M : AWG 24

 15 M : AWG 22

 20 M : AWG 22

 25 M : AWG 22

DLP Projector—User’s Manual

Power Safety

 Only use the supplied power cord.

 Do not place anything on the power cord. Place the power cord where it will not be in the way of

foot traffic.

 Remove the batteries from the remote control when storing or not in use for a prolonged period.

Replacing the Lamp

Replacing the lamp can be hazardous if done incorrectly. See Replacing the Projection Lamp on page 33

for clear and safe instructions for this procedure. Before replacing the lamp:

 Unplug the power cord.

 Allow the lamp to cool for about one hour.

Caution:

In rare cases the lamp bulb may burn out during normal operation and cause glass dust or shards

to be discharged outward from the rear exhaust vent.

Do not inhale or do not touch glass dust or shards. Doing so could result in injury.

Always keep your face away from the exhaust vent so that you do not suffer from the gas and

broken shards of the lamp.

Cleaning the Projector

 Unplug the power cord before cleaning. See Cleaning the Projector page 37.

 Allow the lamp to cool for about one hour.

Regulatory Warnings

Before installing and using the projector, read the regulatory notices in the Regulatory Compliance on

page 52.

Important Recycle Instructions:

Lamp(s) inside this product contain mercury. This product may contain other electronic waste that

can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal

Laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG . For lamp

specific disposal information check WWW.LAMPRECYCLE.ORG.

Symbol Explanations

DISPOSAL: Do not use household or municipal waste collection services for

disposal of electrical and electronic equipment. EU countries require the use

of separate recycling collection services.

— — vi

Preface

– –vii

Main Features

 Lightweight unit, easy to pack away and transport.

 Compatible with all major video standards including NTSC, PAL, and SECAM.

 A high brightness rating allows for presentations in daylight or in lit rooms.

 Supports resolutions up to UXGA at 16.7 million colors to deliver crisp, clear images.

 Flexible setup allows for front, rear projections.

 Line-of-vision projections remain square, with advanced keystone correction for angled projections.

 Input source automatically detected.

About this Manual

This manual is intended for end users and describes how to install and operate the DLP projector.

Wherever possible, relevant information—such as an illustration and its description—has been kept on

one page. This printer-friendly format is both for your convenience and to help save paper, thereby

protecting the environment. It is suggested that you only print sections that are relevant to your needs.

DLP Projector—User’s Manual

— — viii

Table of Contents

GETTING STARTED.......................................................................................................................................................... 1

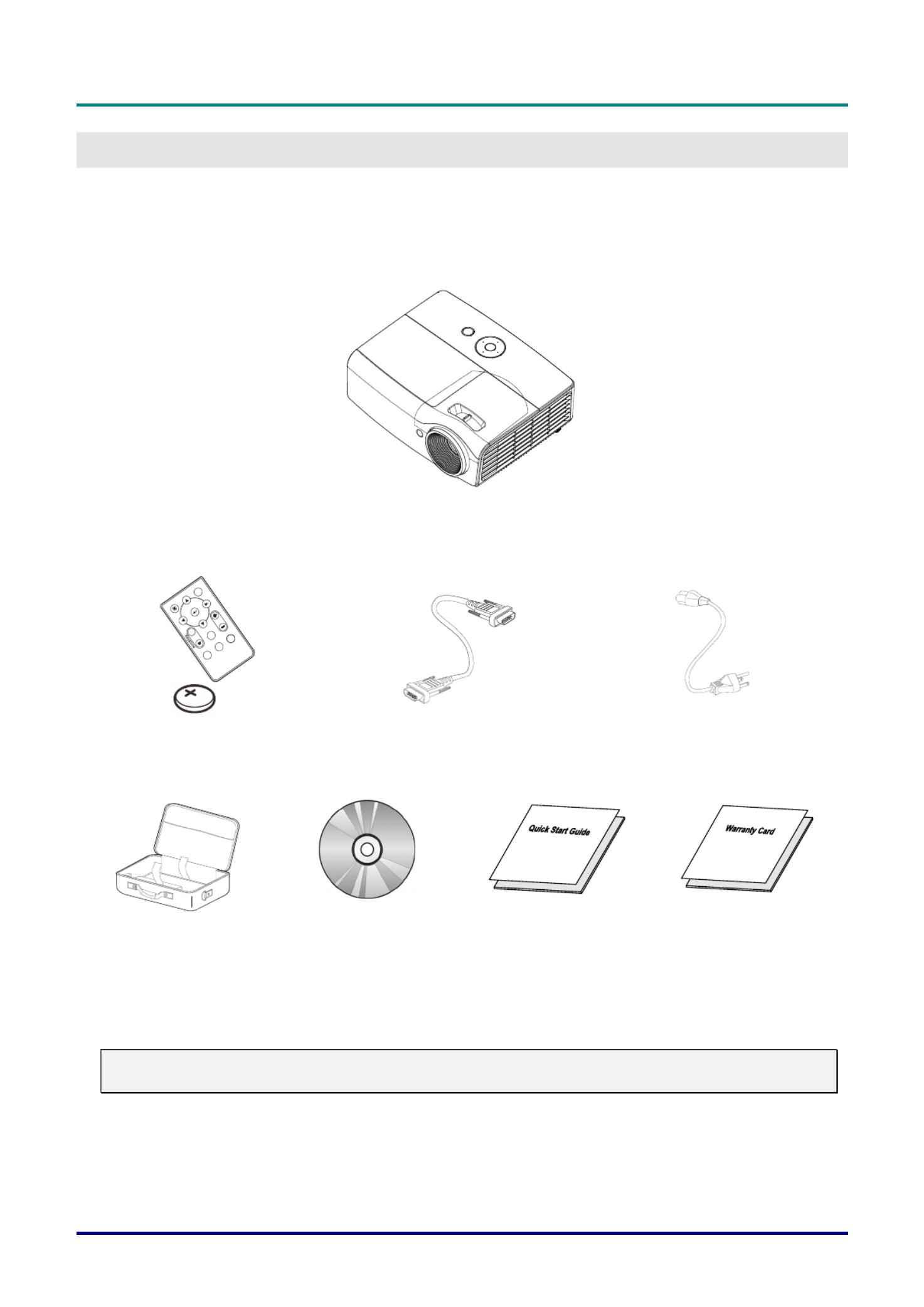

P CACKING HECKLIST ........................................................................................................................................................... 1

V P PIEWS OF ROJECTOR ARTS............................................................................................................................................... 2

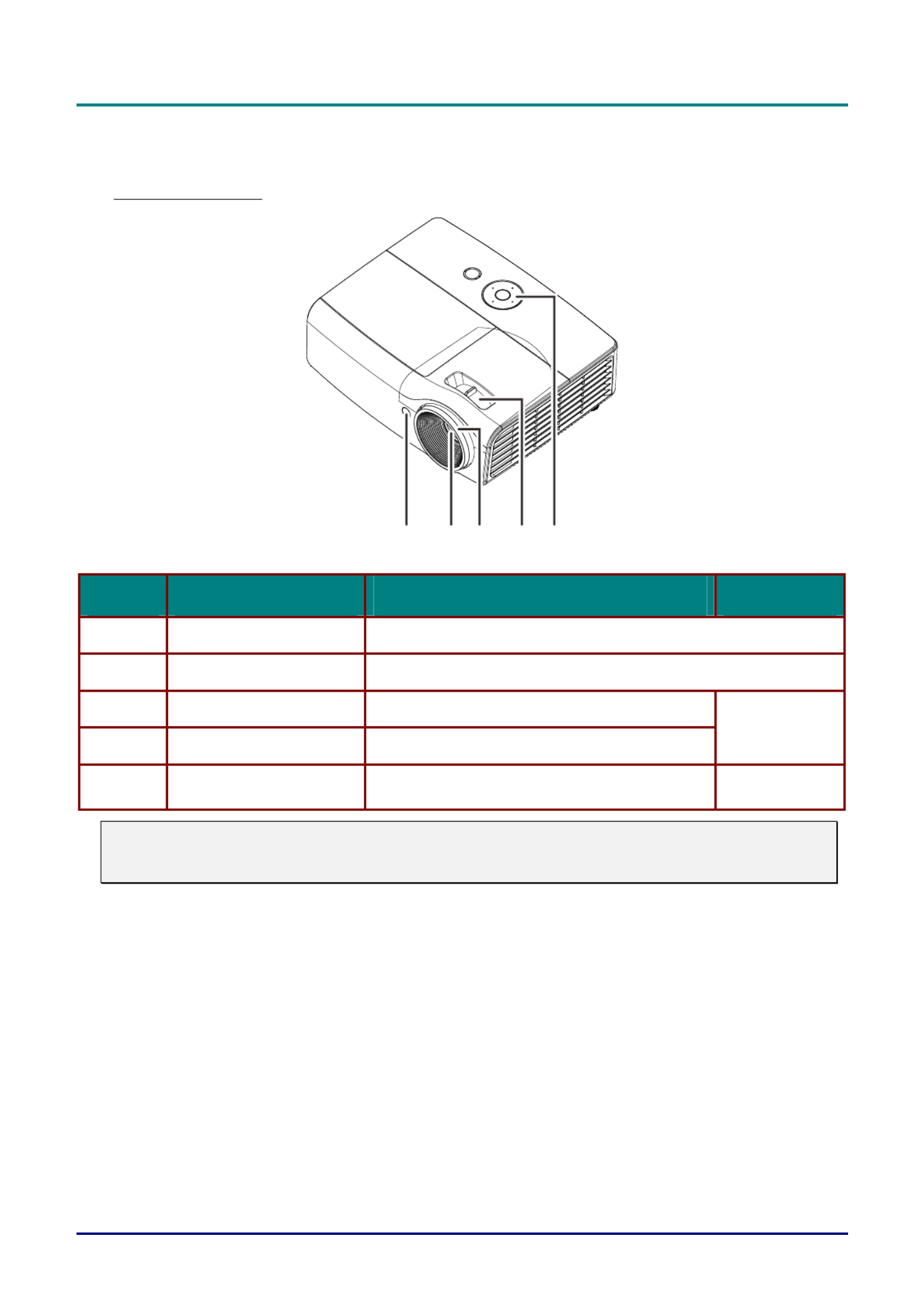

Front-right View ............................................................................................................................................................. 2

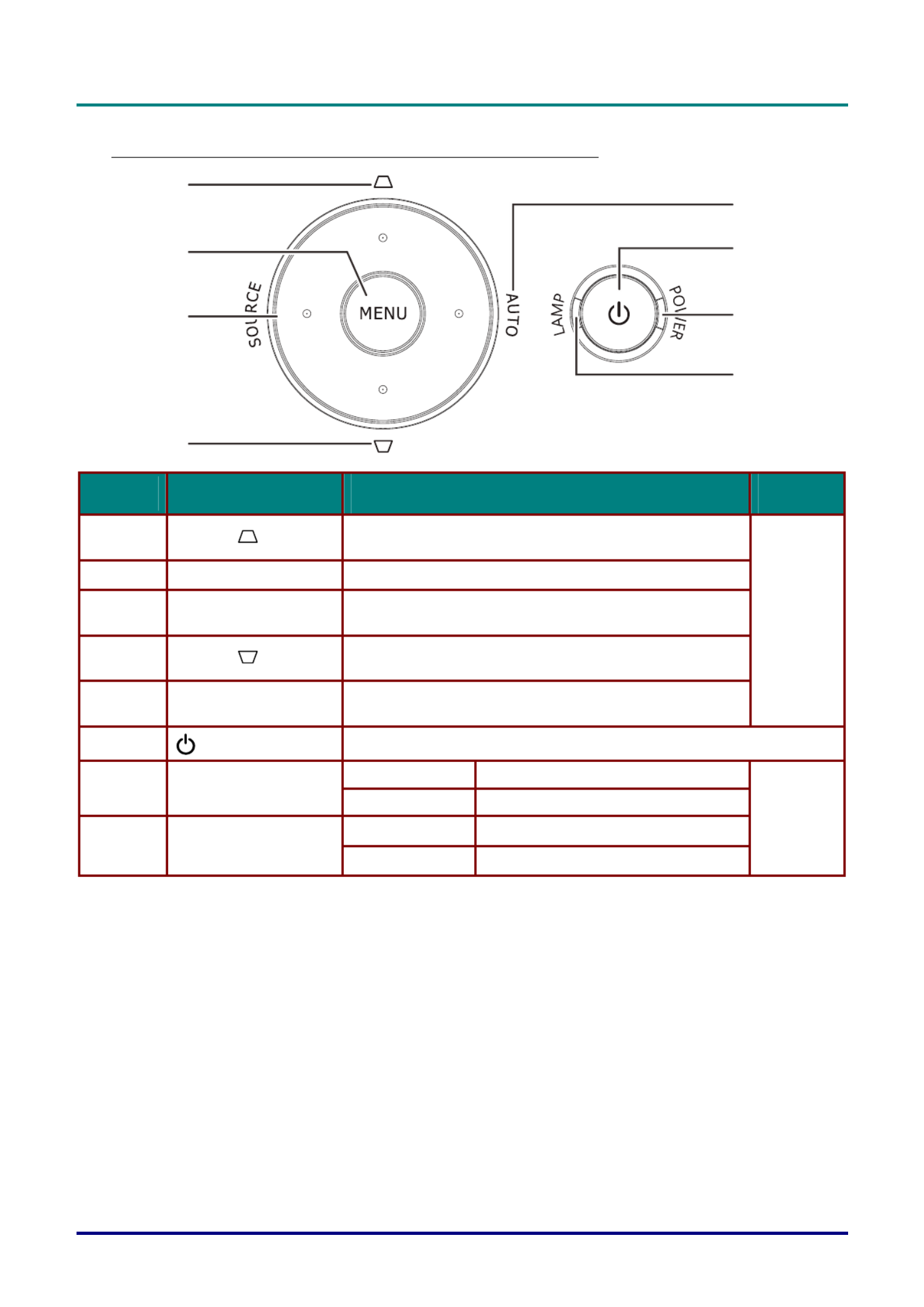

Top view—On-screen Display (OSD) buttons and LEDs ............................................................................................... 3

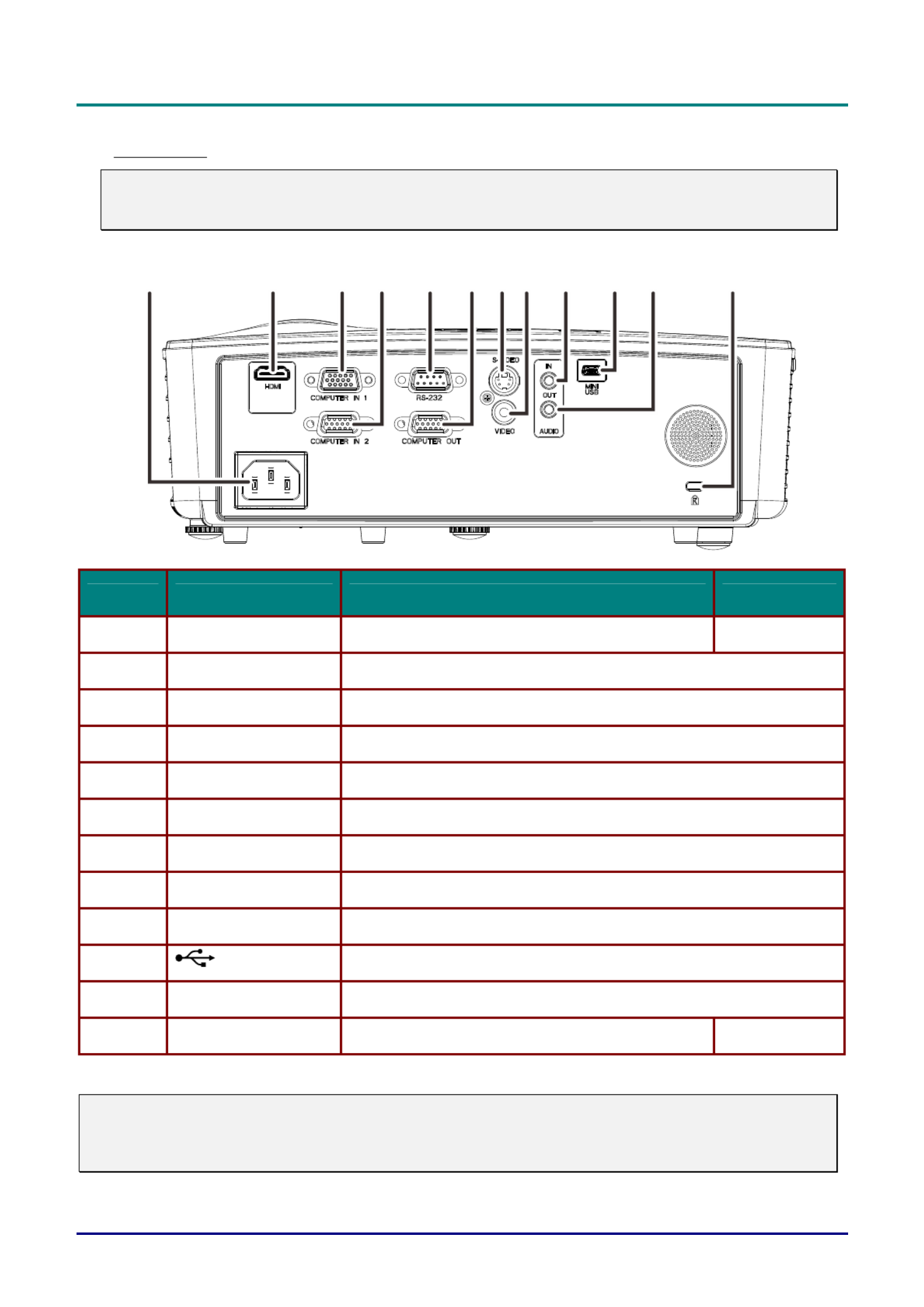

Rear view ........................................................................................................................................................................ 4

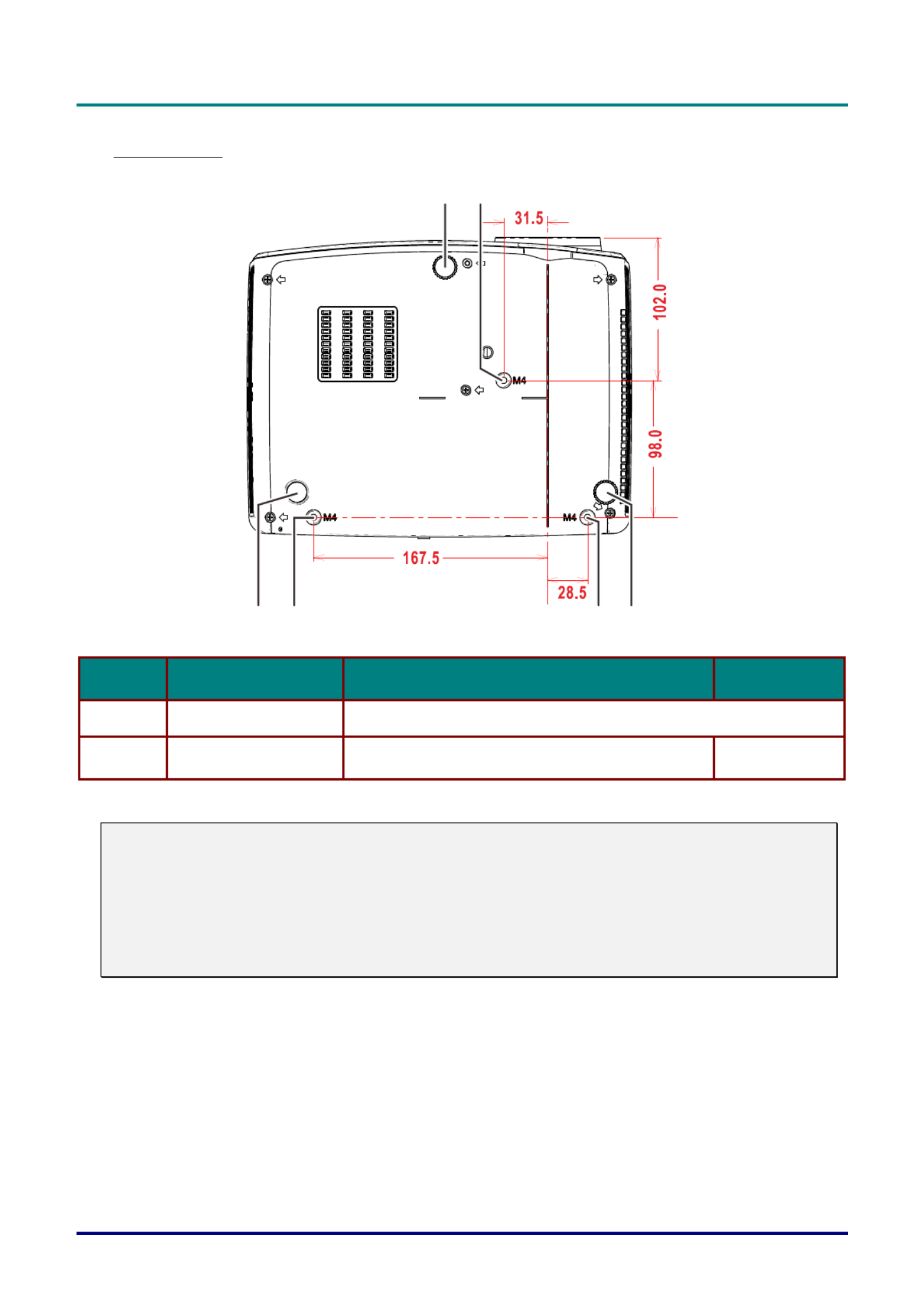

Bottom view..................................................................................................................................................................... 5

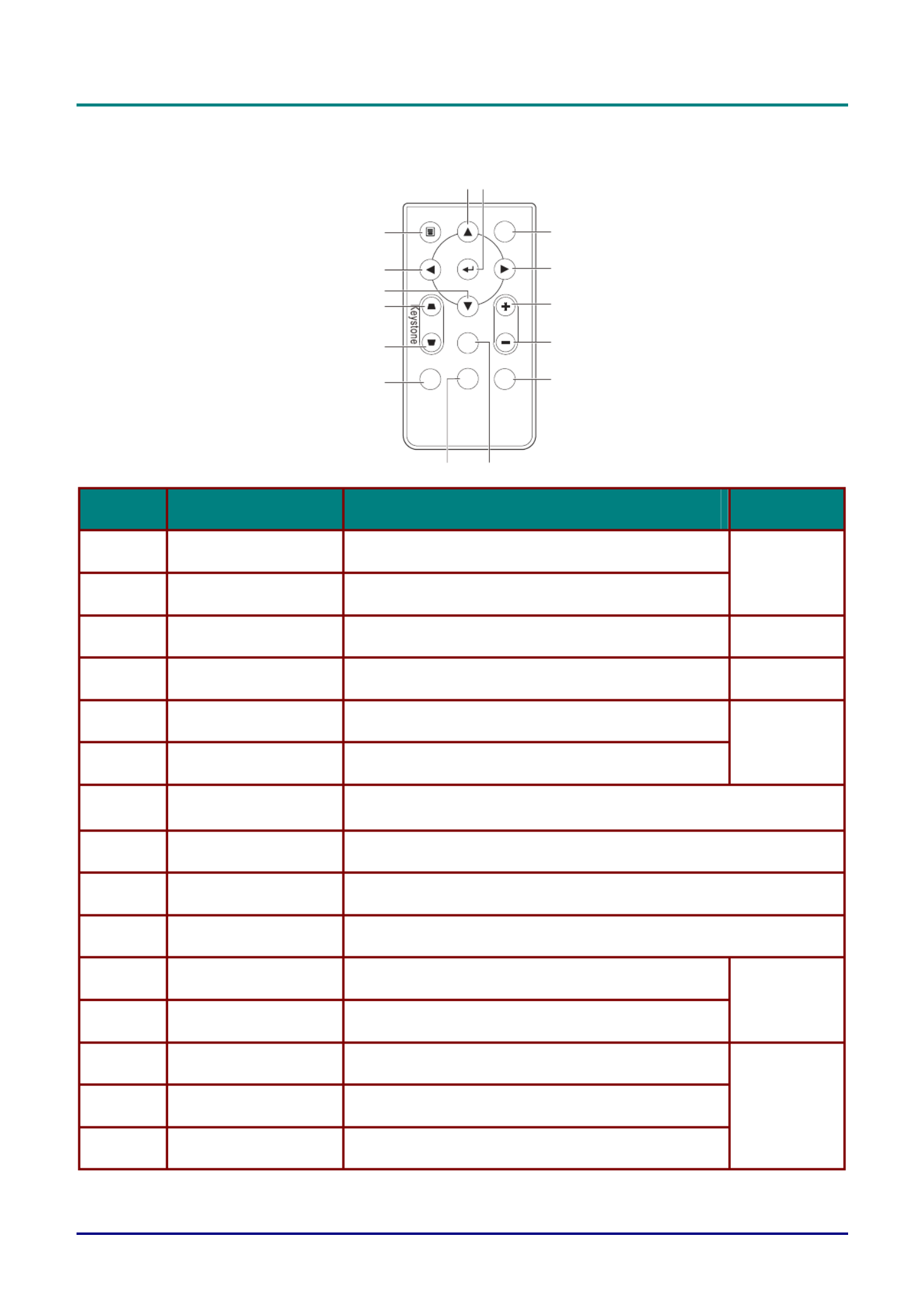

R C PEMOTE ONTROL ARTS ................................................................................................................................................... 6

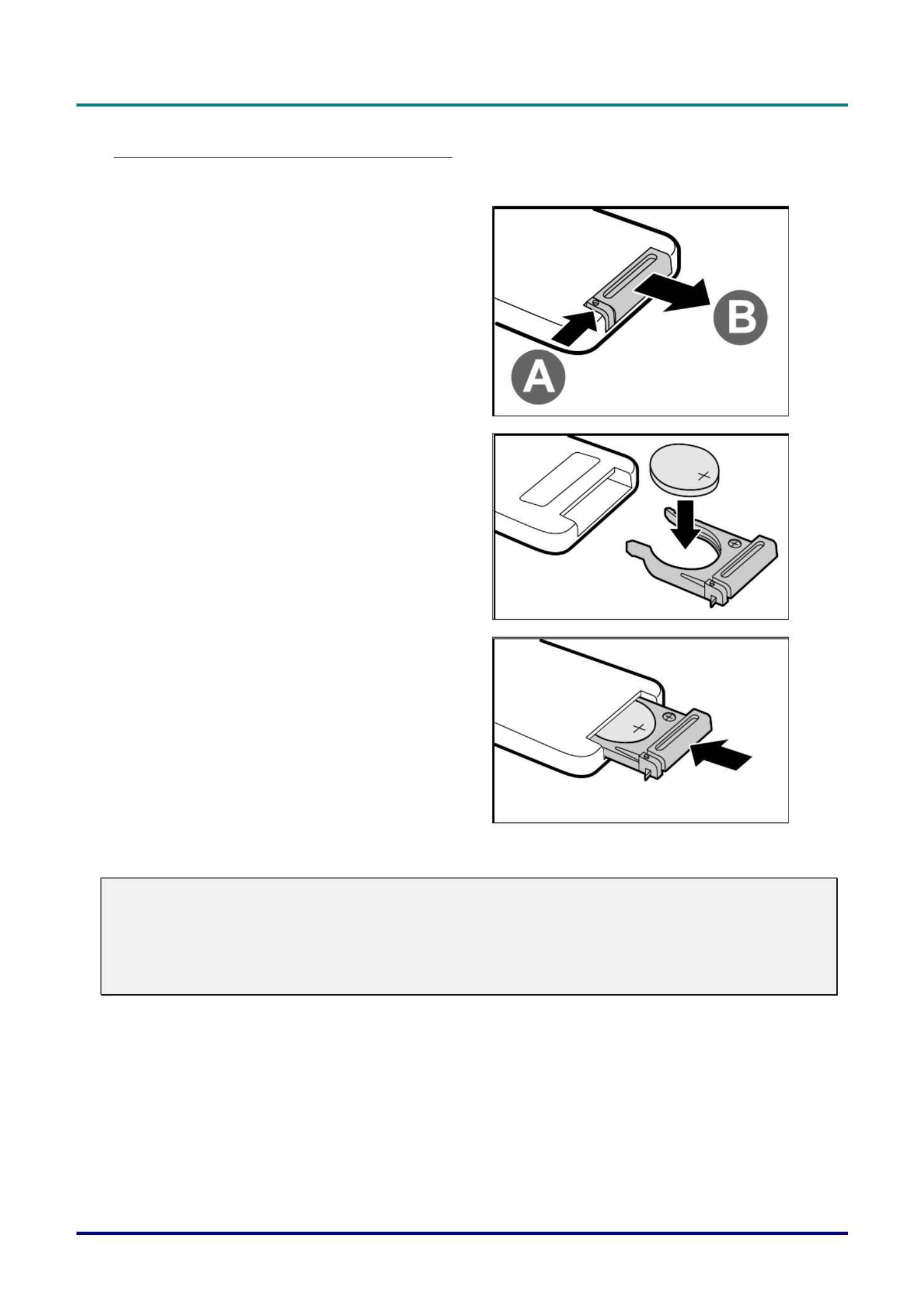

Inserting the Remote Control Batteries........................................................................................................................... 7

R C O R 8EMOTE ONTROL PERATING ANGE ...............................................................................................................................

P R CROJECTOR AND EMOTE ONTROL BUTTONS .................................................................................................................... 8

SETUP AND OPERATION................................................................................................................................................. 9

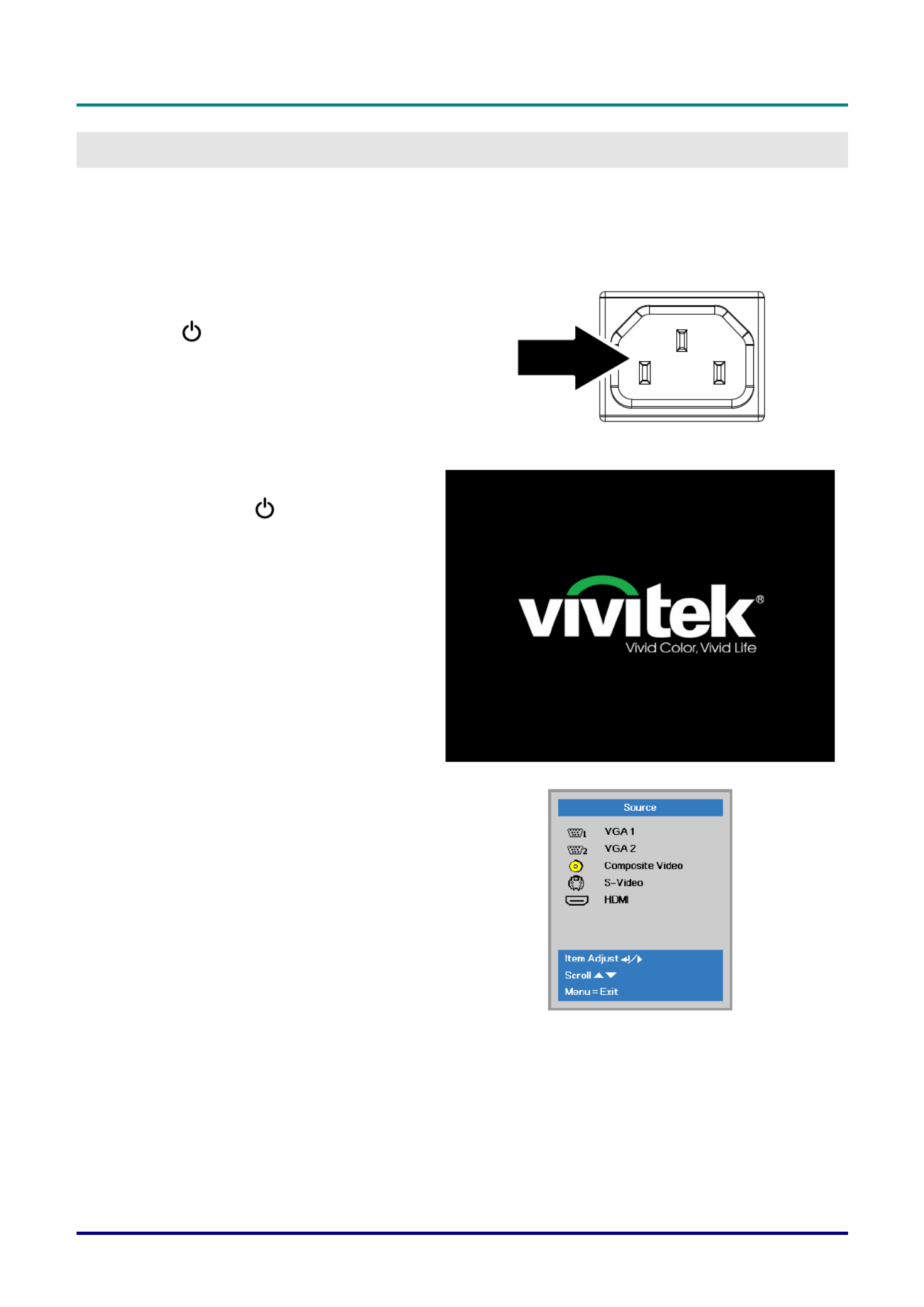

STARTING AND SHUTTING DOWN THE PROJECTOR............................................................................................................... 9

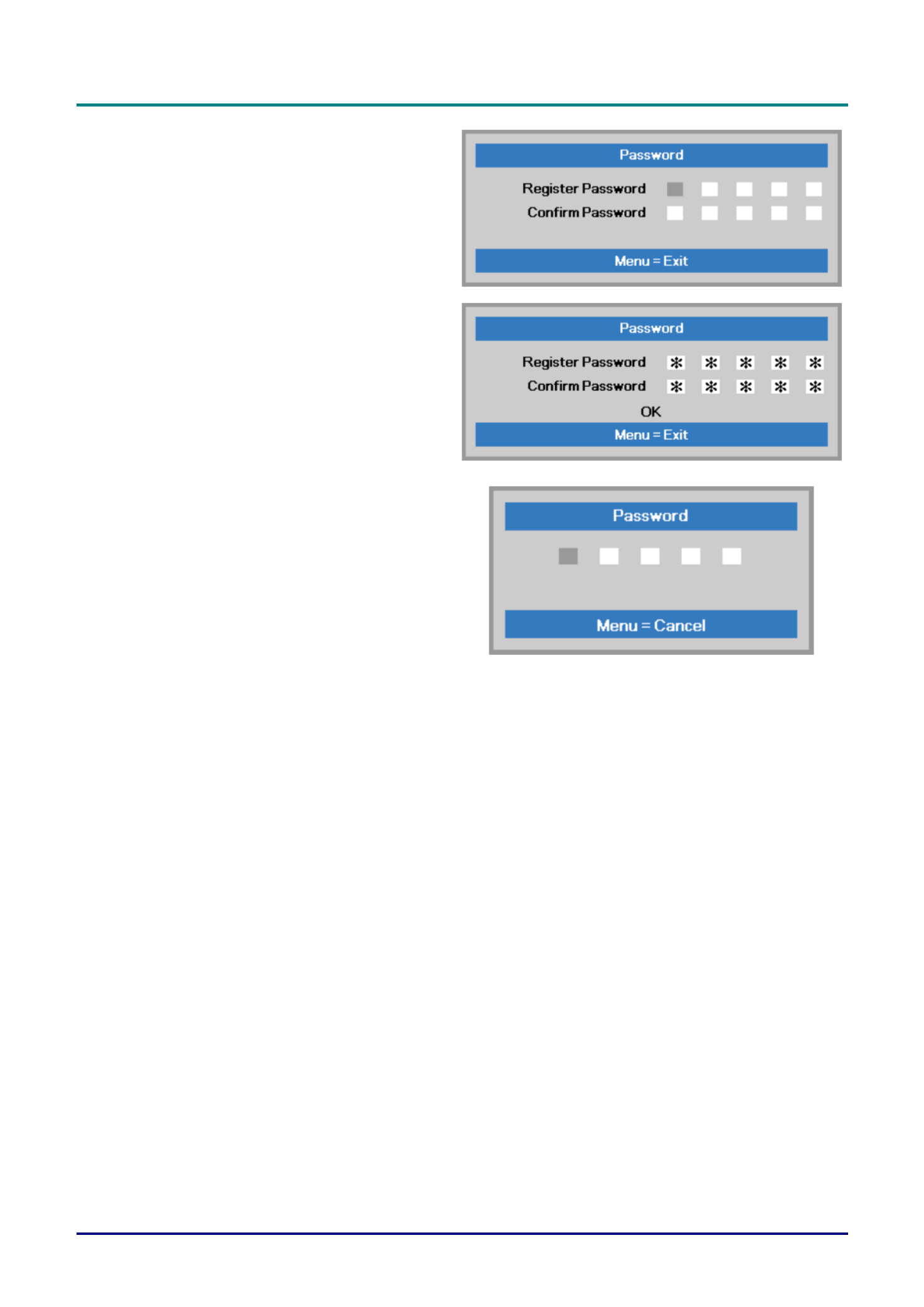

S A P L )ETTING AN CCESS ASSWORD (SECURITY OCK .......................................................................................................... 11

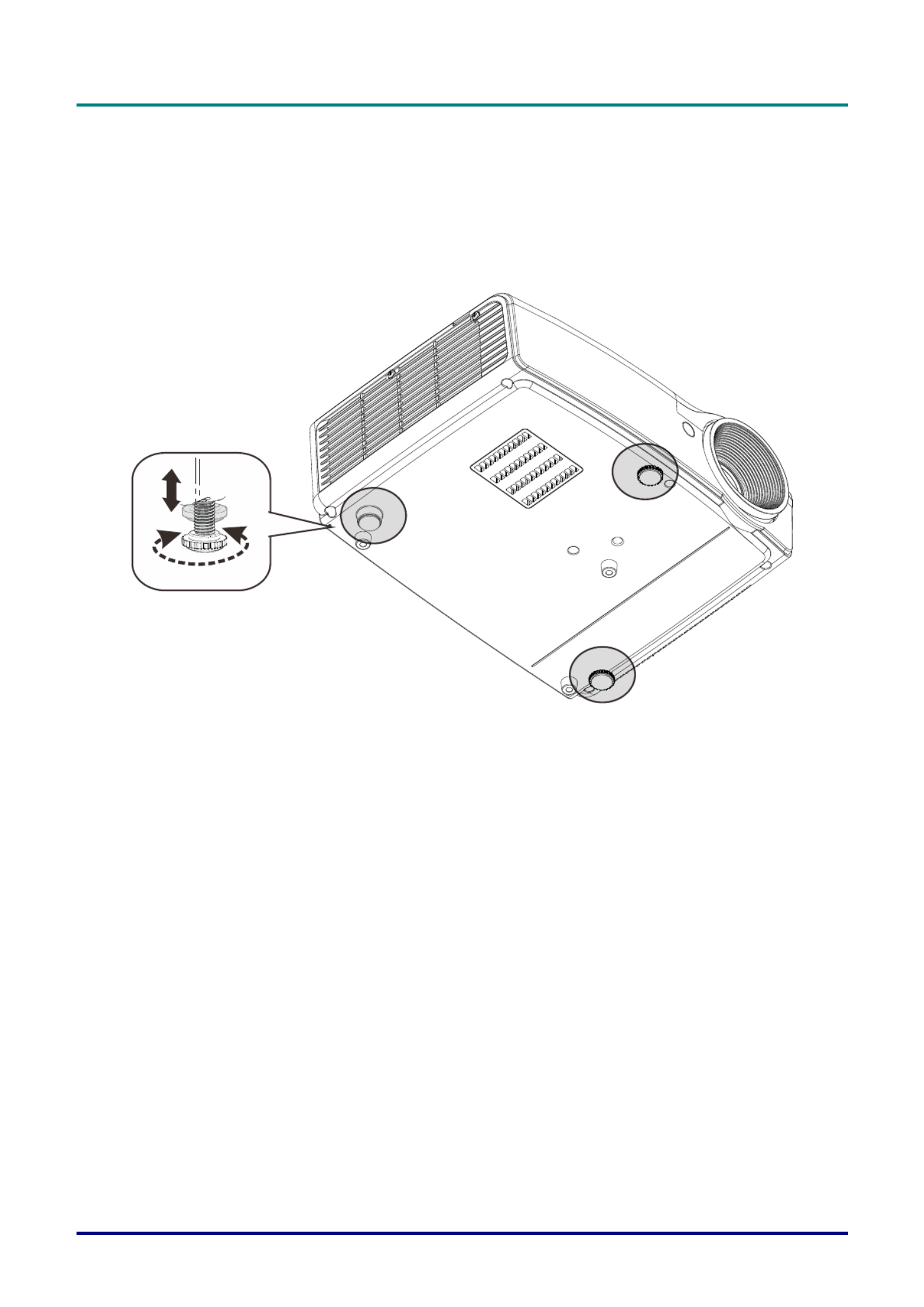

A P LDJUSTING THE ROJECTOR EVEL................................................................................................................................... 13

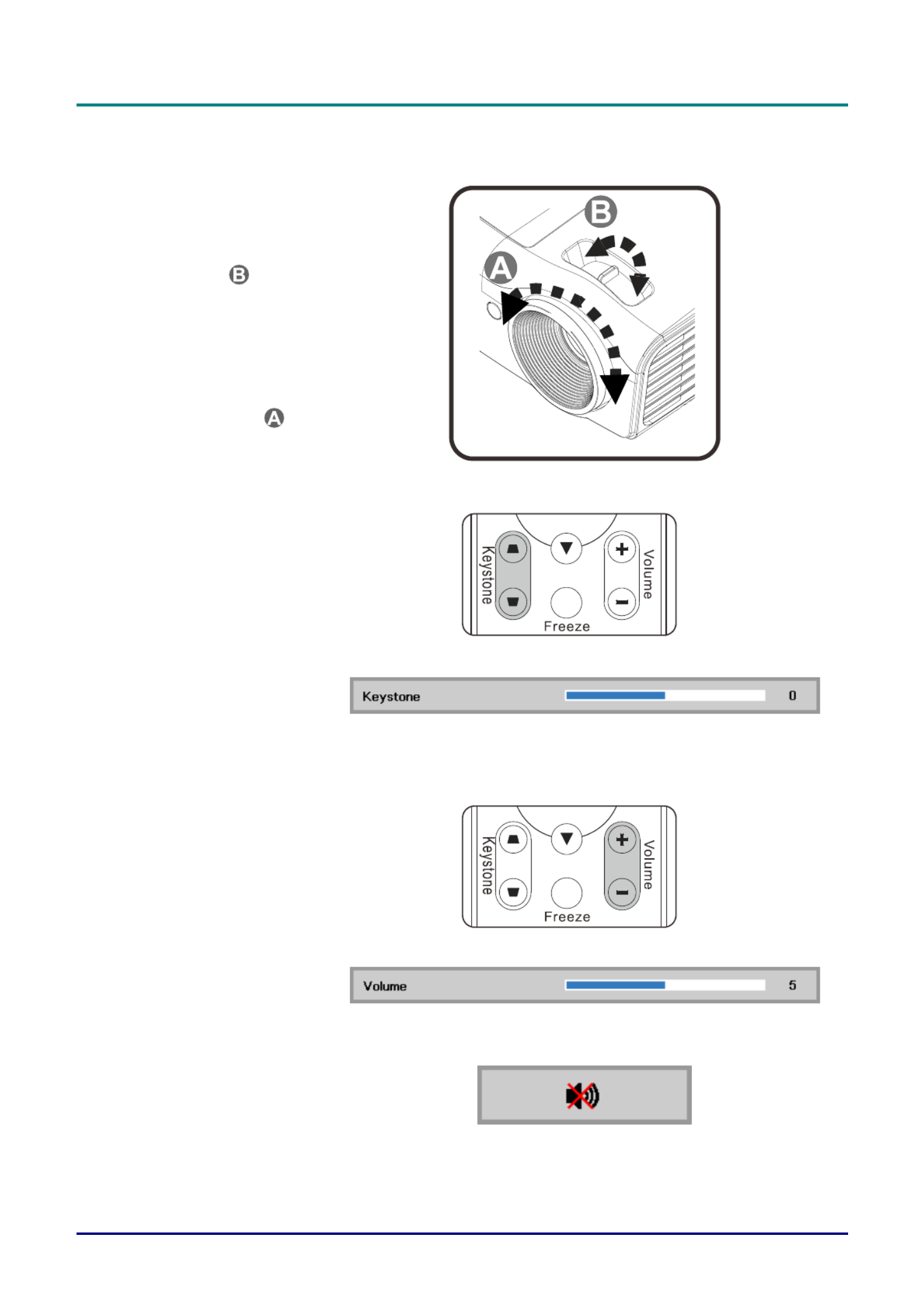

A Z , F KDJUSTING THE OOM OCUS AND EYSTONE ................................................................................................................ 14

A VDJUSTING THE OLUME .................................................................................................................................................. 14

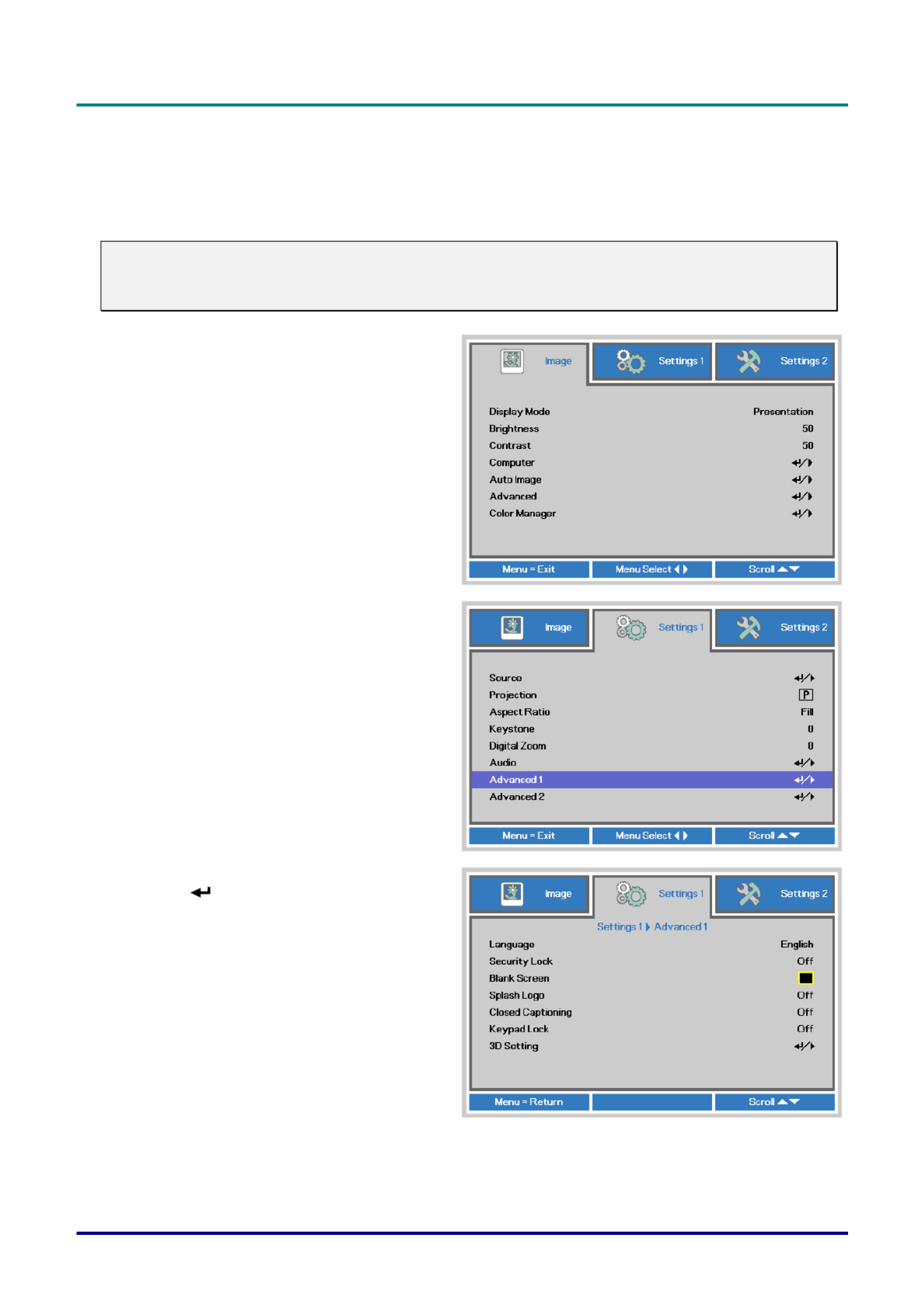

ON-SCREEN DISPLAY (OSD) MENU SETTINGS....................................................................................................... 15

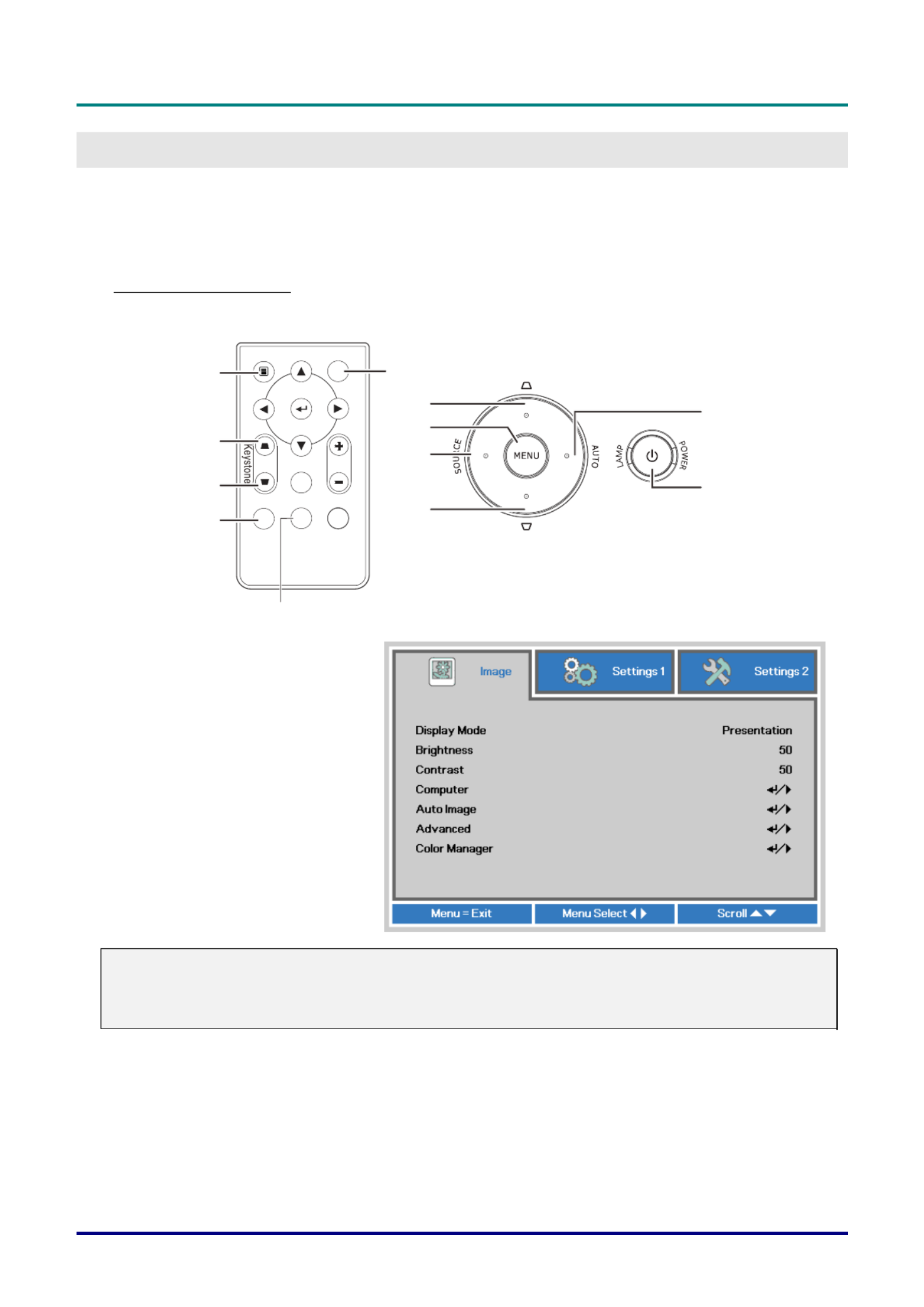

OSD MENU CONTROLS ..................................................................................................................................................... 15

Navigating the OSD ...................................................................................................................................................... 15

S LETTING THE OSD ANGUAGE .......................................................................................................................................... 16

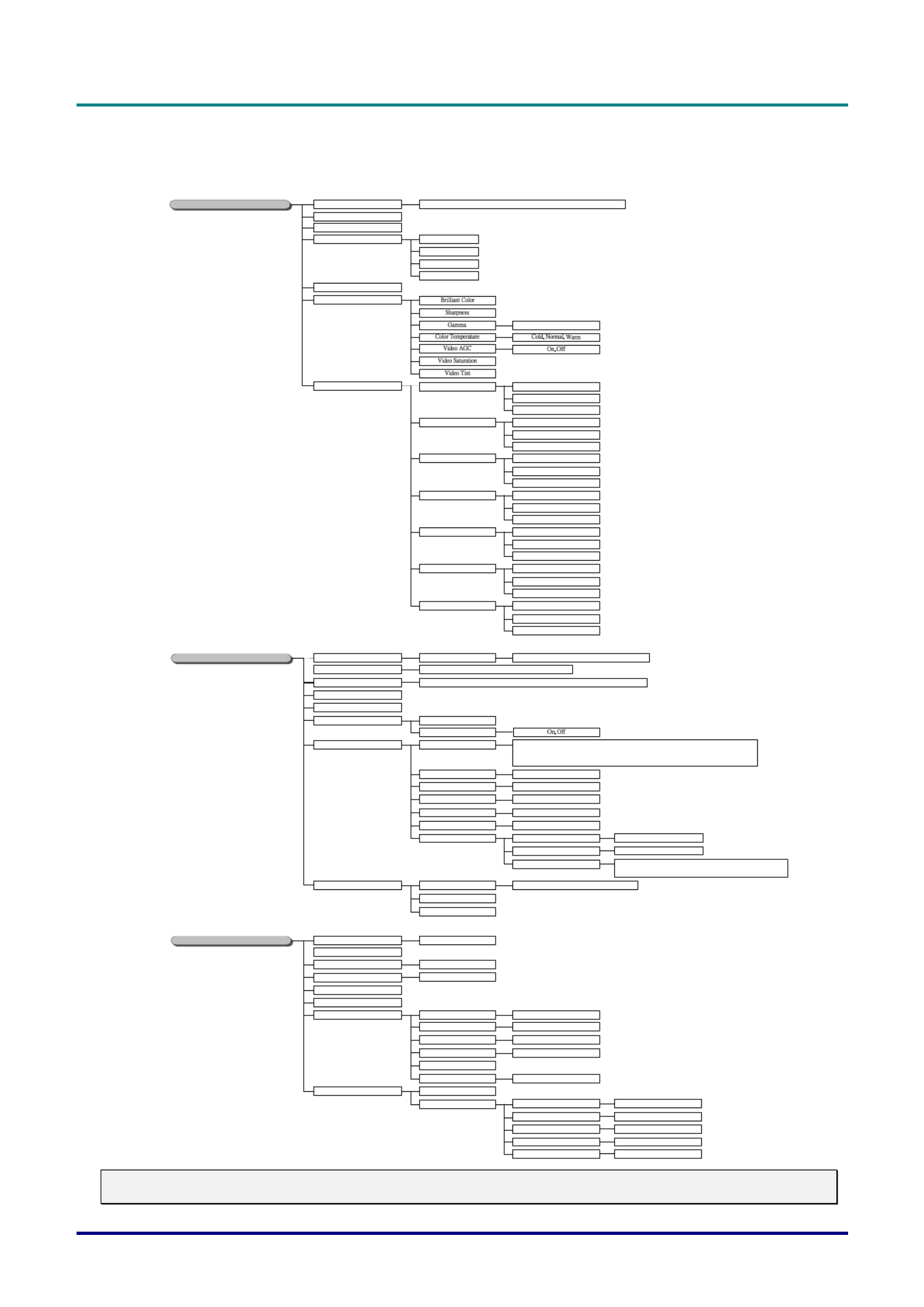

OSD MENU OVERVIEW ..................................................................................................................................................... 17

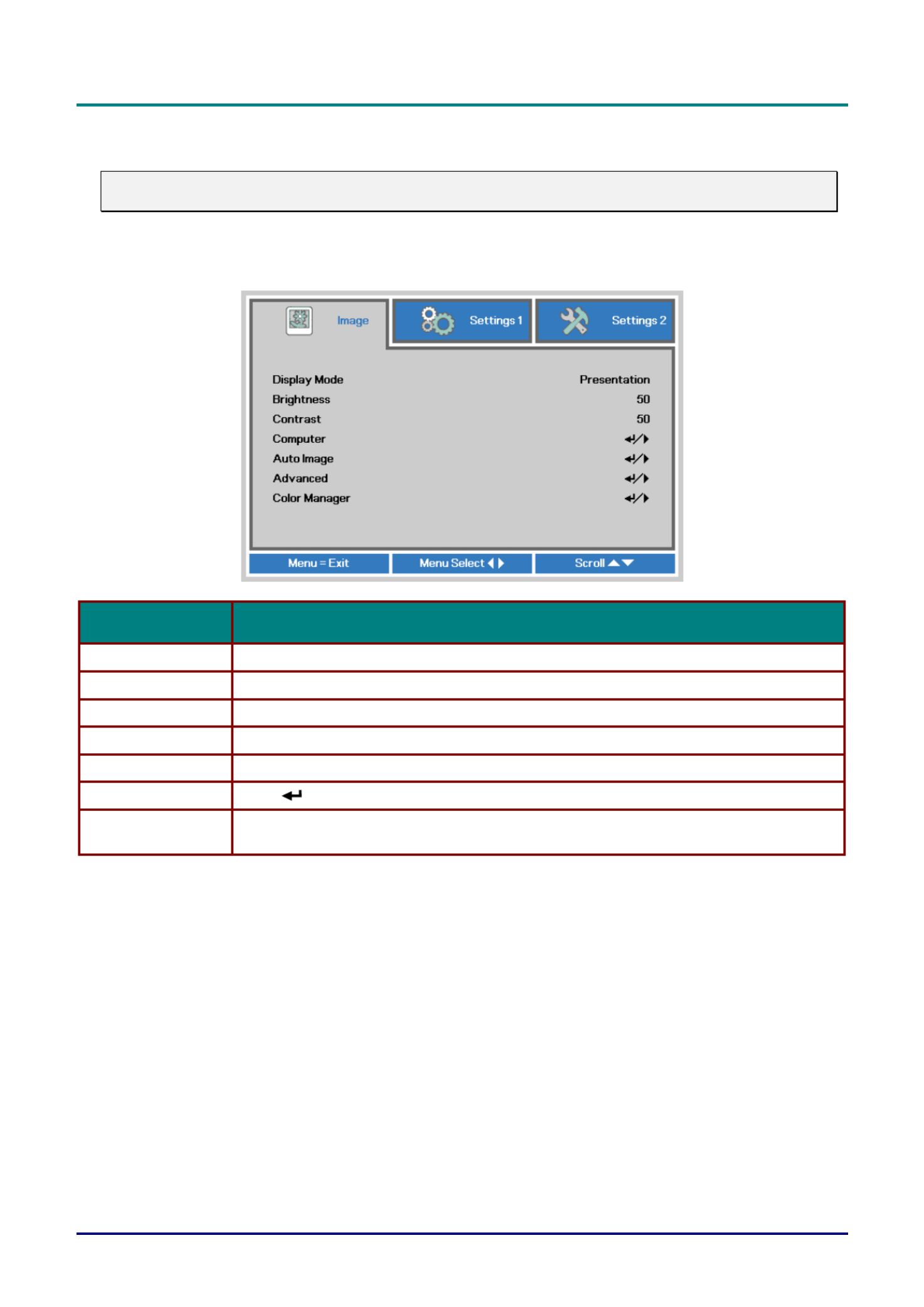

I MMAGE ENU..................................................................................................................................................................... 18

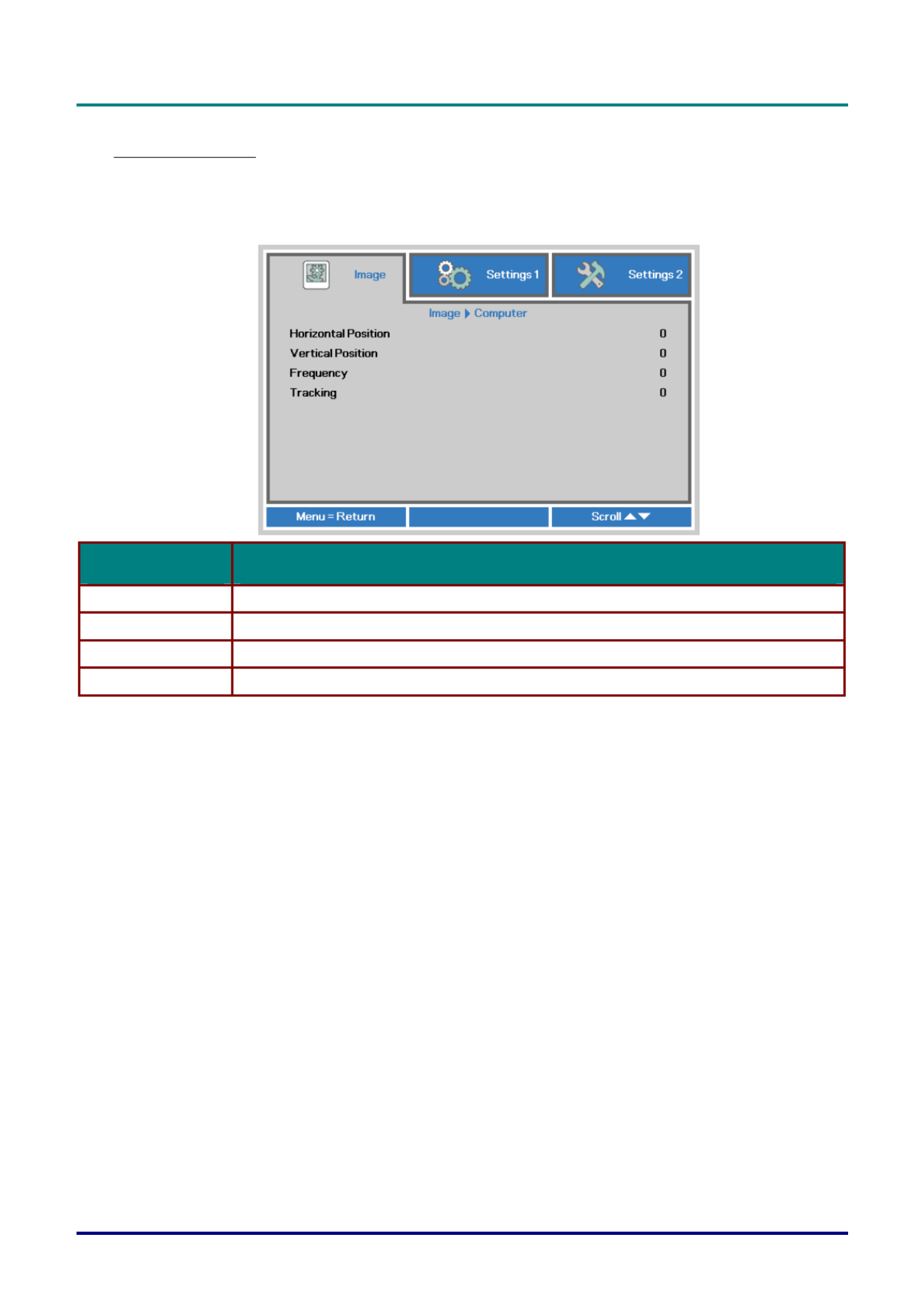

Computer Menu ............................................................................................................................................................ 19

Advanced Feature ......................................................................................................................................................... 20

Color Manager.............................................................................................................................................................. 21

S 1 MEATTINGS ENU ........................................................................................................................................................... 22

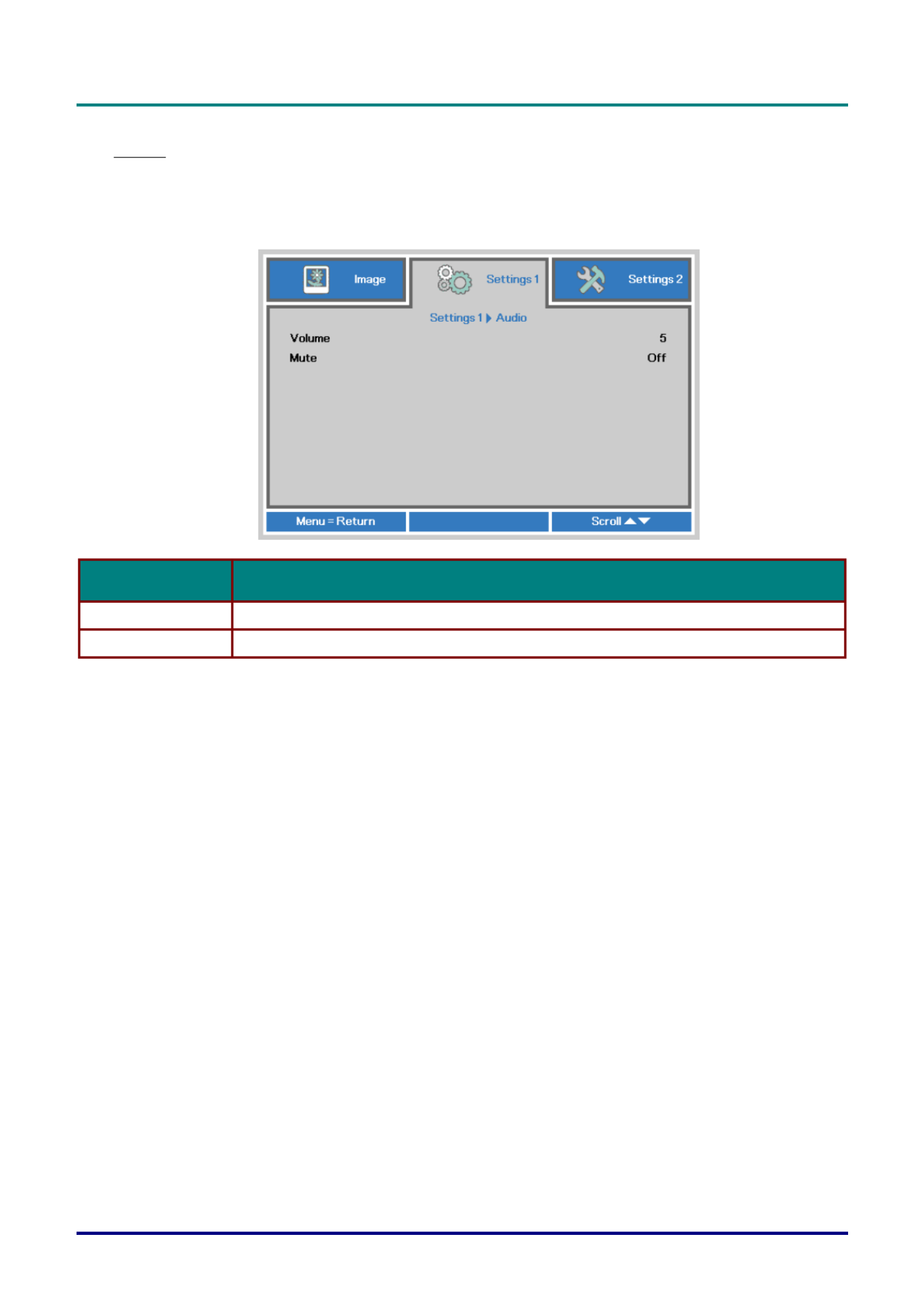

Audio............................................................................................................................................................................. 23

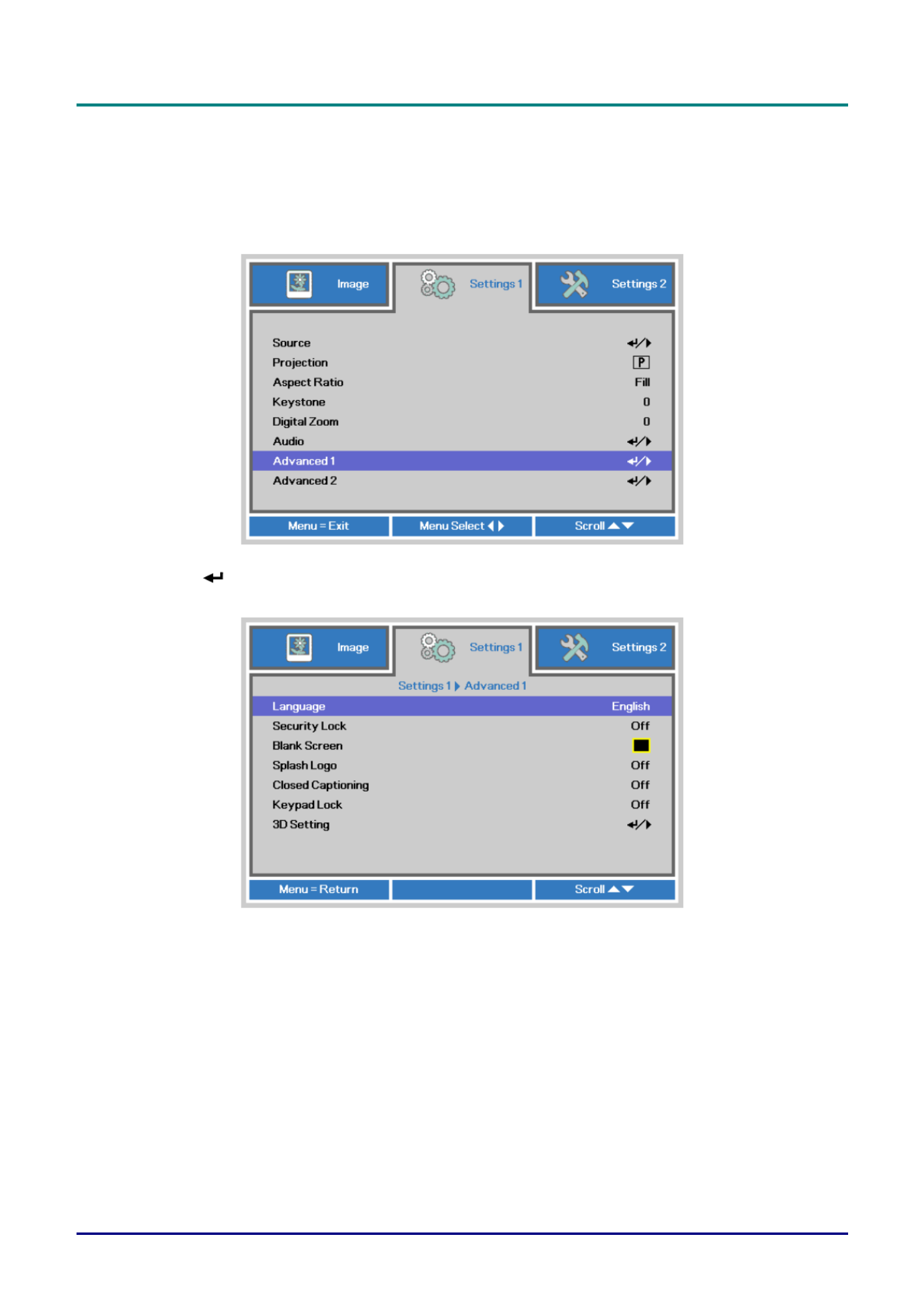

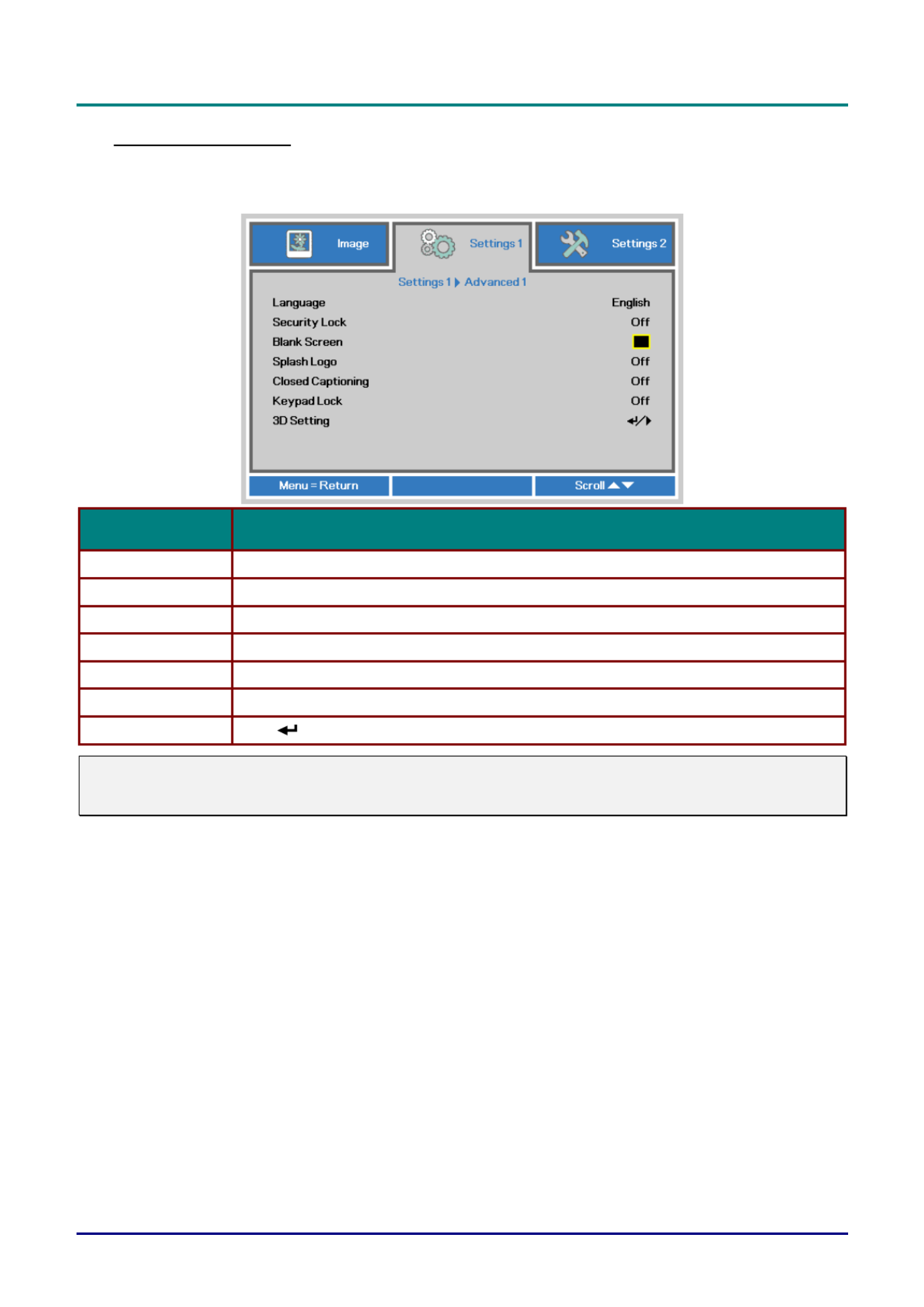

Advanced 1 Feature ...................................................................................................................................................... 24

Advanced 2 Feature ...................................................................................................................................................... 26

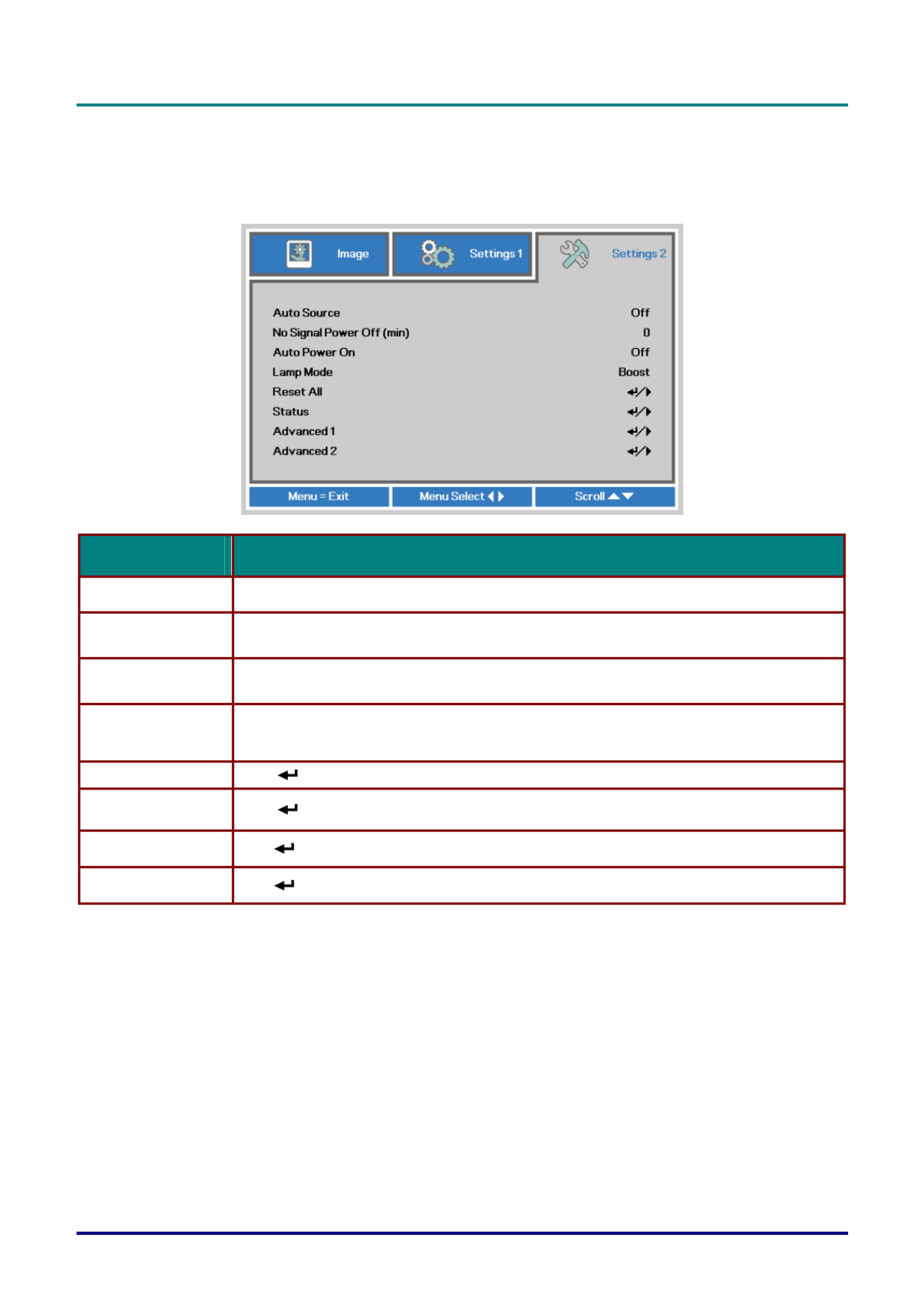

S 2 METTINGS ENU ............................................................................................................................................................. 27

Status............................................................................................................................................................................. 28

Advanced 1 Feature ...................................................................................................................................................... 29

Advanced 2 Feature ...................................................................................................................................................... 31

MAINTENANCE AND SECURITY................................................................................................................................. 33

R P LEPLACING THE ROJECTION AMP................................................................................................................................... 33

Resetting the Lamp........................................................................................................................................................ 36

CLEANING THE PROJECTOR................................................................................................................................................ 37

Cleaning the Lens ......................................................................................................................................................... 37

Cleaning the Case ......................................................................................................................................................... 37

U KSING THE ENSINGTON® LOCK & USING THE SECURITY BAR......................................................................................... 38

Using the Kensington® Lock ......................................................................................................................................... 38

TROUBLESHOOTING ..................................................................................................................................................... 39

COMMON PROBLEMS AND SOLUTIONS ............................................................................................................................... 39

T TIPS FOR ROUBLESHOOTING ............................................................................................................................................ 39

LED ERROR MESSAGES..................................................................................................................................................... 40

I PMAGE ROBLEMS.............................................................................................................................................................. 40

L PAMP ROBLEMS ............................................................................................................................................................... 41

R C PEMOTE ONTROL ROBLEMS .......................................................................................................................................... 41

A PUDIO ROBLEMS ............................................................................................................................................................. 41

H P SAVING THE ROJECTOR ERVICED .................................................................................................................................. 42

HDMI Q & A .................................................................................................................................................................... 43

SPECIFICATIONS............................................................................................................................................................. 44

Preface

– –ix

SPECIFICATIONS................................................................................................................................................................. 44

P D . P SROJECTION ISTANCE VS ROJECTION IZE.................................................................................................................... 47

Projection Distance and Size Table .............................................................................................................................. 47

T M TIMING ODE ABLE ........................................................................................................................................................ 49

P DROJECTOR IMENSIONS ................................................................................................................................................... 51

REGULATORY COMPLIANCE ..................................................................................................................................... 52

FCC WARNING .................................................................................................................................................................. 52

CANADA ............................................................................................................................................................................ 52

S CAFETY ERTIFICATIONS ................................................................................................................................................... 52

APPENDIX I ....................................................................................................................................................................... 53

RS-232C PROTOCOL.......................................................................................................................................................... 53

DLP Projector—User’s Manual

– – 1

ETTING

ETTING ETTING

TARTED

TARTEDTARTED

Packing Checklist

Carefully unpack the projector and check that the following items are included:

DLP PROJECTOR

MenuPower

olum e

Fre ez

ut o So u r

ceMut

REMOTE CONTROL

(WITH ONE 3V CR2025 BATTERY)

RGB CABLE POWER CORD

CARRYING CASE

(OPTIONAL)

CD-ROM

(THIS USER’S MANUAL)

QUICK START GUIDE WARRANTY CARD

Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It

is recommend that you keep the original packing material should you ever need to return the equipment

for warranty service.

Caution:

Avoid using the projector in dusty environments.

DLP Projector—User’s Manual

Views of Projector Parts

Front-right View

1 2

4 5

I L D S TEM ABEL ESCRIPTION EE PAGE

1. IR receiver Receive IR signal from remote control

2. Lens Projection Lens

3. Focus ring Focuses the projected image

4. Zoom ring Enlarges the projected image

5. Function keys See Top view—On-screen Display (OSD) buttons

and LEDs. 3

Important:

Ventilation openings on the projector which keeps the projector lamp allow for good air circulation,

cool. Do not obstruct any of the ventilation openings.

— — 2

DLP Projector—User’s Manual

Top view—On-screen Display (OSD) buttons and LEDs

I L D STEM ABEL ESCRIPTION EE PAGE

1. Keystone Navigates and changes settings in the OSD

Quick Menu – For Keystone

2. MENU Opens and exits OSD menus

3. SOURCE Navigates and changes settings in the OSD

Enter the Source menu

4. Keystone Navigates and changes settings in the OSD

Quick Menu – For Keystone

5. AUTO Navigates and changes settings in the OSD

Optimizes image size, position, and resolution

6. (Power button) Turns the projector On or Off.

Solid Blue Power On , Standby, Lamp Lit

7. POWER LED

Flashing Blue System Initialized / Cooling / Error code

Solid Red Lamp Fail.

8. LAMP LED

Flashing Red Error code

– – 3

DLP Projector—User’s Manual

Rear view

Warning:

As a safety precaution, disconnect all power to the projector and connecting devices before making

connections.

1 2 3 4 5 6 7 8 9 10 11 12

I L D S TEM ABEL ESCRIPTION EE PAGE

1. AC IN Connect the POWER cable 9

2. HDMI (*1) Connect the HDMI cable from a HDMI device

3. COMPUTER IN 1 Connect the RGB cable from a computer

4. COMPUTER IN 2 (*2) Connect the RGB cable from a computer

5. RS-232C (*2) Connect RS-232 serial port cable for remote control

6. COMPUTER OUT (*2) Connect the RGB cable to a display

7. S-VIDEO (*3) Connect the S-VIDEO cable from a video device

8. VIDEO(*3) Connect the COMPOSITE cable from a video device

9. AUDIO IN Connect an AUDIO cable from the audio device

10. (USB) Connect the USB cable from a computer (For service only)

11. AUDIO OUT Connect an AUDIO cable to audio amplifier

12. Kensington Lock Secure to permanent object with a Kensington® Lock system 38

Note:

(*1) Not available in D550 / D552 / D55BA / D548 / D54HA / D551 / D560ST Series.

(*2) Not available in D548 / D54HA / D553 Series.

(*3) Not available in D55BA Series.

— — 4

DLP Projector—User’s Manual

Bottom view

11 22

I L D S TEM ABEL ESCRIPTION EE PAGE

1. Ceiling support holes Contact your dealer for information on mounting the projector on a ceiling

2. Tilt adjustor Rotate adjuster lever to adjust angle position. 13

Note:

When installing, ensure that you use only UL Listed ceiling mounts.

For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw

depth of 12 mm (0.47 inch).

The construction of the ceiling mount must be of a suitable shape and strength. The ceiling mount

load capacity must exceed the weight of the installed equipment, and as an additional precaution

be capable of withstanding three times the weight of the equipment (not less than 5.15 kg) over a

period of 60 seconds.

– – 5

DLP Projector—User’s Manual

Remote Control Parts

Me nu Power

Volu me

Freez e

Auto S ource Mute

I L D S TEM ABEL ESCRIPTION EE PAGE

1. Up cursor Navigates and changes settings in the OSD

2. Enter Changes settings in the OSD

3. Power Turns the projector On or Off 9

4. Right cursor Navigates and changes settings in the OSD 15

5. Volume + Increase volume

6. Volume - Decrease volume

7. Mute Audio mute

Note : Available in different model

8. Freeze Freeze/unfreezes the on-screen picture

9. Source Detects the input device

10. Auto Auto adjustment for frequency, tracking, size, position (RGB only)

11. Keystone top Corrects image-trapezoid (wider top) effect

12. Keystone bottom Corrects image trapezoid (wider bottom) effect

13. Down cursor Navigates and changes settings in the OSD

14. Left cursor Navigates and changes settings in the OSD

15. Menu Opens the OSD

— — 6

DLP Projector—User’s Manual

Inserting the Remote Control Batteries

Remove the battery compartment cover

by sliding the cover in the direction of

the arrow (A). Pull out the cover (B).

Insert the battery with the positive side

facing up.

Replace the cover.

Caution:

1. Only use a 3V lithium battery (CR2025).

2. Dispose of used batteries according to local ordinance regulations.

3. Remove the batteries when not using the projector for prolonged periods.

– – 7

DLP Projector—User’s Manual

— — 8

Important:

1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency

fluorescent lights can disrupt remote control operation.

2. Be sure nothing obstructs the path between the remote control and the projector. If the path

between the remote control and the projector is obstructed, you can bounce the signal off certain

reflective surfaces such as projector screens.

3. The buttons and keys on the projector have the same functions as the corresponding buttons on

the remote control. This user’s manual describes the functions based on the remote control.

Remote Control Operating Range

The remote control uses infrared transmission to control the projector. It is not necessary to point the

remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or

the rear of the projector, the remote will function well within a radius of about 7 meters (23 feet) and

15 degrees above or below the projector level. If the projector does not respond to the remote control,

move a little closer.

Projector and Remote Control Buttons

The projector can be operated using the remote control or the buttons on the top of the projector. All

operations can be carried out with the remote control; however, the buttons on the projector are

limited in use.

DLP Projector—User’s Manual

– – 9

ETUP AND

ETUP AND ETUP AND

PERATION

PERATIONPERATION

Starting and Shutting down the Projector

Connect the power cord to the projector.

Connect the other end to a wall outlet.

The POWER LED on the projector

light.

Turn on the connected devices.

Ensure the POWER LED not a flashing.

Then press the POWER button to

turn on the projector.

The projector splash screen displays and

connected devices are detected.

See Setting an Access Password

(Security Lock) on page 11 if security

lock is enabled.

If more than one input device is

connected, press the SOURCE button

and use ▲▼ to scroll among devices.

(Component is supported through the

RGB to COMPONENT ADAPTER.)

 VGA1 / VGA2(*): Analog RGB

 Composite Video(*): Traditional composite video

 S-Video(*): Super video (Y/C separated)

 HDMI(*): High-Definition Multimedia Interface

Note : (*)Not available in some model

DLP Projector—User’s Manual

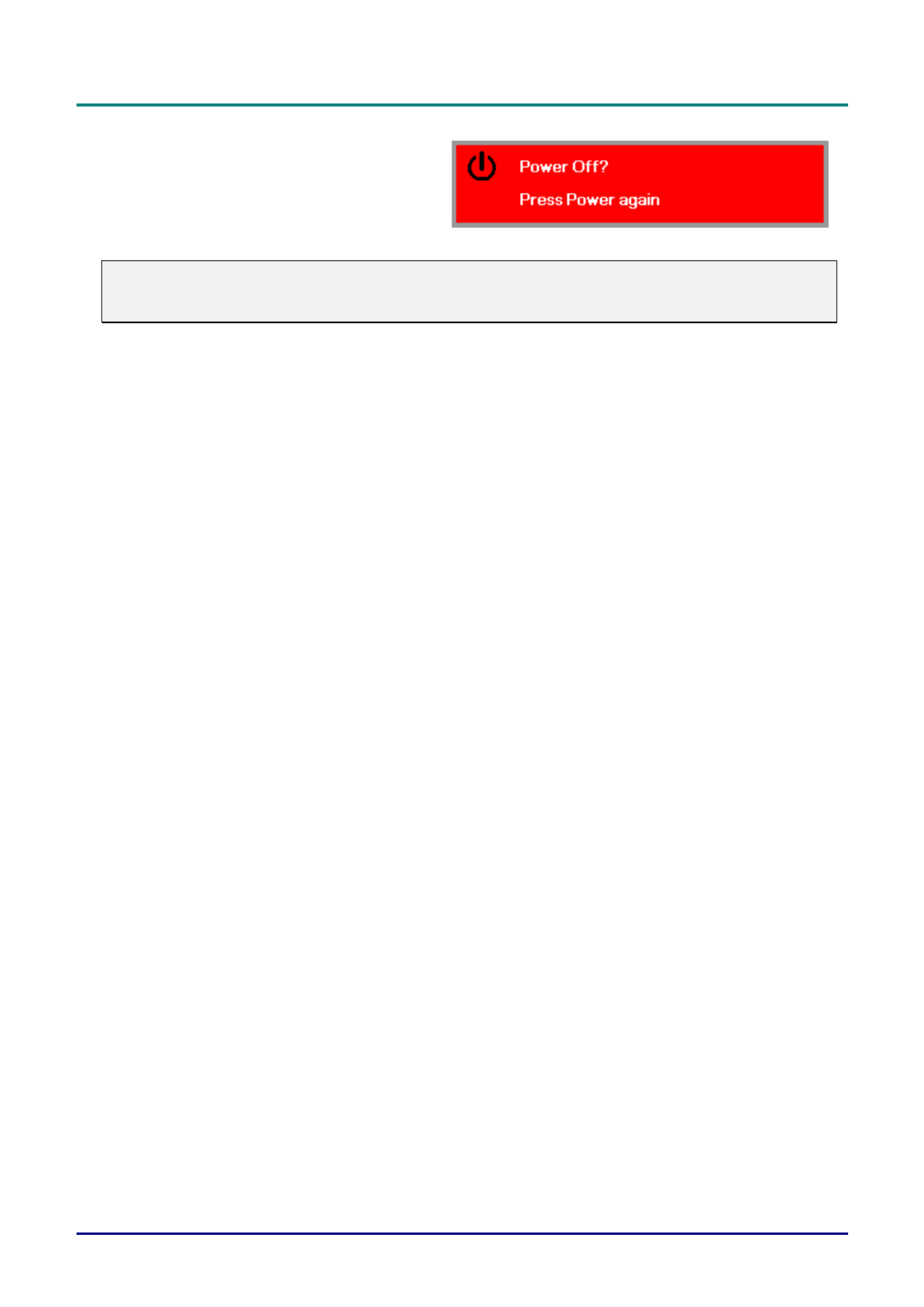

5. When the “Power Off? /Press Power

again” message appears, press the

POWER button. The projector turns

off.

Caution:

Do not unplug the power cord until the POWER LED stops flashing–indicating the projector has

cooled down.

— — 10

DLP Projector—User’s Manual

Setting an Access Password (Security Lock)

You can use the four (arrow) buttons to set a password and prevent unauthorized use of the projector.

When enabled, the password must be entered after you power on the projector. (See Navigating the

OSD on page 15 and Setting the OSD Language on page 16 for help on using OSD menus.)

Important:

Keep the password in a safe place. be able to use the projector. Without the password, you will not

If you lose the password, contact your reseller for information on clearing the password.

Press the MENU button to open the OSD

menu.

Press the cursor ◄► button to move to

the Settings 1 menu, press the cursor ▲▼

button to select Advanced 1.

Press (Enter) / ► to enter the

Advanced 1 sub menu. Press the cursor

▲▼ button to select Security Lock.

Press the cursor ◄► button to enter and

enable or disable security lock function.

A password dialog box automatically

appears.

– – 11

DLP Projector—User’s Manual

You can use the cursor buttons ▲▼◄►

either on keypad or IR remote control for

password entry. You can use any

combination including the same arrow five

times, but not less than five.

Press the cursor buttons in any order to set

the password. Push the MENU button to

exit the dialog box.

The password confirm menu appears when

user presses the power-on key in case the

Security Lock is enabled.

Enter the password in the order you set it

at step 5. In case you forget the password,

please contact the service center.

The service center will validate the owner

and help reset the password.

— — 12

DLP Projector—User’s Manual

Adjusting the Projector Level

Take note of the following when setting up the projector:

 The projector table or stand should be level and sturdy.

 Position the projector so that it is perpendicular to the screen.

 Ensure the cables are in a safe location. You could trip over them.

To adjust the angle of the picture, turn the tilt-adjuster right or left until the desired angle has

been achieved.

– – 13

DLP Projector—User’s Manual

Adjusting the Zoom, Focus and Keystone

Use the Image-zoom

control (on the projector

only) to resize the

projected image and

screen size .

Use the Image-focus

control (on the projector

only) to sharpen the

projected image .

Use the KEYSTONE

buttons the remote control

to correct image-trapezoid

(wider top or bottom)

effect.

The keystone control

appears on the display.

Adjusting the Volume

Press the Volume +/-

buttons on the remote

control.

The volume control

appears on the display.

Press the MUTE button to

turn off the volume. (This

feature is available only on

the remote).

Note : Available in

different model

— 14 —

DLP Projector—User’s Manual

– – 15

-S

-S-S

CREEN

CREEN CREEN

ISPLAY

ISPLAY ISPLAY

(OSD)

(OSD)(OSD)

ENU

ENU ENU

ETTINGS

ETTINGSETTINGS

OSD Menu Controls

The projector has an OSD that lets you make image adjustments and change various settings.

Navigating the OSD

You can use the remote control cursor buttons to navigate and make changes to the OSD.

Menu Power

Volume

Freeze

Auto Source

Mute

1. To enter the OSD, press the

MENU button.

2. There are three menus.

Press the cursor ◄► button

to move through the menus.

3. Press the cursor ▲▼ button

to move up and down in a

menu.

4. Press ◄► to change values

for settings.

5. Press MENU to close the

OSD or leave a submenu.

Note:

Depending on the video source, not all items in e. For example, the the OSD are availabl

Horizontal/Vertical Position items in the Computer menu can only be modified when connected

to a PC. Items that are not available cannot be accessed and are grayed out.

DLP Projector—User’s Manual

Setting the OSD Language

Set the OSD language to your preference before continuing.

1. Press the MENU button. Press the cursor ◄► button to navigate to Settings 1. Press the cursor

▲▼ button to move to the Advanced 1 menu.

2. Press (Enter) / ► to enter the Advanced 1 sub menu. Press the cursor ▲▼ button until

Language is highlighted.

3. Press the cursor button until the language you want is highlighted.

4. Press the MENU button four times to close the OSD.

— — 16

DLP Projector—User’s Manual

OSD Menu Overview

Use the following illustration to quickly find a setting or determine the range for a setting.


Settings 1

Off, On

Blank, Red, Green, Blue, White

Off, On

3D Sync Invert

3D Format

Hue

Saturation

English, Français, Deutsch, Español, Português, 簡体中文, 繁體中文, Italiano, Norsk,

Svenska, Nederlands, Русский, Polski, Suomi, Ελληνικά, 한국어, Magyar, Č اﻟﻌﺮﺑﻴﺔeština, ,

Türkçe, Việ ﻓﺎرﺳﯽ תירבעt, 日本語, ไทย, ,

Off, On

Gain

1.8, 2.0, 2.2, 2.4, B&W, Linear

Hue

Saturation

Gain

Hue

Saturation

Gain

Hue

Saturation

Gain

Hue

Saturation

Gain

Hue

Saturation

Gain

Red

Green

Blue

Reference Input Source Select (IR/Keypad)

None, Grid, White, Red, Green, Blue, Black

Settings 2

Center, Down, Up, Left, Right

0%, 25%, 50%, 75%, 100%

Off, On

0-98

Normal, High

Display Mode

Brightness

Auto Image

Computer

Contrast

Advanced

Color Manager

Source

Aspect Ratio

Projection

Audio

Digital Zoom

Keystone

Advanced 1

Advanced 2

Auto Source

Auto Power On

No Signal Power Off

Status

Reset All

Lamp Mode

Advanced 1

Advanced 2

Volume

Security Lock

Blank Screen

Splash Logo

Keypad Lock

3D Setting

Horizontal Position

Vertical Position

Frequency

Tracking

Red

Language

Closed Captioning

Green

Blue

Cyan

Magenta

Yellow

White

Source

Mute

Test Pattern

H Image Shift

V Image Shift

Off, On

Menu Position

Translucent Menu

Low Power Mode

Lamp Hour Reset

Projector ID

Fan Speed

Off, On

Sleep Timer

Source Filter

Std. , Boost

VGA1

VGA2 (*)

Composite Video (*)

S-Video (*)

HDMI (*)

Normal, Real, Ceiling, Real+Ceiling

Fill, 4:3, 16:9, Letter Box, Native, 2.35:1

Presentation, Bright, Game, Movie, TV, sRGB, Blackboard, User

Off, On

Frame Sequential, Top/Bottom, Side-By-Side, Frame Packing

(3D FramePacking HDMI source only)

Off, DLP-Link, IR

Disable, Enable

Note:

(*) Not available in some model.

– – 17

DLP Projector—User’s Manual

Image Menu

Attention !

All of display mode parameters when changed will be saved to user mode.

Press the button to move to the MENU button to open the OSD menu. Press the cursor ◄► Image

Menu. Press the cursor ▲▼ button to move up and down in the Image menu. Press ◄► to enter

and change values for settings.

I D TEM ESCRIPTION

Display Mode Press the cursor ◄► button to enter and set the Display Mode.

Brightness Press the cursor ◄► button to enter and adjust the display brightness.

Contrast Press the cursor ◄► button to enter and adjust the display contrast.

Computer Press (Enter) / ► to enter the Computer menu. See Computer Menu on page 19.

Auto Image Press (Enter) / ► to automatically adjustment for phase, tracking, size and position.

Advanced Press (Enter) / ► to enter the Advanced menu. See Advanced Feature on page 20.

Color Manager Press (Enter) / ► to enter the color manager menu. See page for more information on 21

Color Manager.

— — 18

DLP Projector—User’s Manual

Computer Menu

Press the MENU button to open the OSD menu. Press ◄► to move to the Image menu. Press ▲▼

to move to the Computer menu and then press Enter or ►. Press ▲▼ to move up and down in the

Computer menu.

I D TEM ESCRIPTION

Horizontal Position Press the cursor ◄► button to enter and adjust the display position to left or right.

Vertical Position Press the cursor ◄► button to enter and adjust the display position to up or down.

Frequency Press the cursor ◄► button to enter and adjust the A/D sampling clock.

Tracking Press the cursor ◄► button to enter and adjust the A/D sampling dot.

– – 19

DLP Projector—User’s Manual

Audio

Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 1 menu. Press ▼

▲ to move to the Audio menu and then press Enter or ►. Press ▼▲ to move up and down in the

Audio menu.

I D TEM ESCRIPTION

Volume Press the ◄► buttons to enter and adjust the audio volume.

Mute Press the ◄► buttons to enter and turn on or off the speaker.

– – 23

DLP Projector—User’s Manual

Advanced 1 Feature

Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 1 menu. Press ▲

▼ to move to the Advanced 1 menu and then press Enter or ►. Press ▲▼ to move up and down in

the Advanced 1 menu. Press ◄► to enter and change values for setting.

I D TEM ESCRIPTION

Language Press the cursor ◄► button to enter and select a different localization Menu.

Security Lock Press the cursor ◄► button to enter and enable or disable security lock function.

Blank Screen Press the cursor ◄► button to enter and select different color to blank the screen.

Splash Logo Press the cursor ◄► button t enter and o select splash logo on or off.

Closed Captioning Press the ◄► buttons to enter and enable or disable Closed Captioning

Keypad Lock Press the cursor ◄► button to enter and enable or disable keys can be work on keypad.

3D Setting Press Enter/ ► to enter the 3D menu. See page 25 for more information on 3D Setting.

Note:

To enjoy the 3D function, first enable the Play Movie in 3D setting found in your DVD device under the

3D Disc Menu.

— — 24

DLP Projector—User’s Manual

Settings 2 Menu

Press the button to move to the MENU button to open the OSD menu. Press the cursor ◄►

Settings 2 Settings 2 menu. Press the cursor ▲▼ button to move up and down in the menu.

I D TEM ESCRIPTION

Auto Source Press the cursor ◄► button to enter and enable or disable automatic source detection.

No Singal Power Off

(min.)

Press the cursor ◄► button to enter and enable or disable automatic shutdown of lamp when

no signal.

Auto Power On Press the cursor ◄► button to enter and enable or disable automatic power On when AC power is

supplied.

Lamp Mode Press the cursor ◄► button to enter and select the lamp mode for higher brightness or lower

brightness to save lamp life.

Reset All Press (Enter) / ► to reset all settings to default values.

Status Press (Enter) / ► to enter the Status menu. See page 28 for more information on Status.

Advanced 1 Press (Enter) / ► to enter the Advanced 1 menu. See Advanced 1 Feature on page 29.

Advanced 2 Press (Enter) / ► to enter the Advanced 2 menu. See Advanced 2 Feature on page 31.

– – 27

Produkt Specifikationer

Mærke:	Vivitek
Kategori:	videoprojektorer
Model:	D557W
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	274.6 mm
Dybde:	212 mm
Højde:	100 mm
Vægt:	2300 g
Brugervejledning:	Ja
Produktfarve:	Hvid
Indbygget skærm:	Ingen
Produkttype:	Bærbar projektør
Naturligt aspektforhold:	16:10
Indbyggede højttaler(e):	Ja
Format til analogt signal:	NTSC 3.58, NTSC 4.43, NTSC M, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L
Udgangseffekt (RMS):	2 W
Antal HDMI-porte:	1
DVI-port:	Ingen
Ethernet LAN:	Ingen
Strømforbrug (standby):	0.5 W
Strømforbrug (typisk):	240 W
Markedspositionering:	Bærbar
Hurtig start guide:	Ja
Sammensat videoindgang:	1
Understøttede billedformater:	16:10
Støjniveau:	35 dB
Fjernbetjening inkluderet:	Ja
Strømkilde:	Vekselstrøm
Full HD:	Ingen
Lyd (L, R) indgang:	1
Kontrastforhold (typisk):	15000:1
Antal VGA-porte (D-sub):	2
Brændviddeområde:	21.8 - 24 mm
Projektor lysstyrke:	3000 ANSI lumens
Projektionsteknologi:	DLP
Projektor indbygget opløsning:	WXGA (1280x800)
Skærmstørrelse kompatibilitet:	27 - 300 "
Projiceringsafstand:	1 - 10 m
Trapezkorrektion, vertikal:	-40 - 40 °
Blændeområde (F-F):	2.52 - 2.73
Forskydning:	114 %
Throw-forhold:	1.54 - 1.71:1
RS-232-porte:	1
Levetid for lyskilde:	5000 t
Lampeeffekt:	190 W
Levetid for lyskilde (økonomisk tilstand):	6000 t
Lyskilde type:	Lampe
Antal af S-video-indgange:	1
Seriel grænsefladetype:	RS-232
Zoomforhold:	1.1:1
Strømforbrug (økonomi tilstand):	200 W
Støjniveau (økonomisk tilstand):	32 dB
Pære-strøm (økonomisk funktion):	160 W
