Whirlpool WL B8160 NE Manual

Whirlpool Kogesektioner WL B8160 NE

Læs gratis den danske manual til Whirlpool WL B8160 NE (107 sider) i kategorien Kogesektioner. Denne vejledning er vurderet som hjælpsom af 3 personer og har en gennemsnitlig bedømmelse på 4.9 stjerner ud af 2 anmeldelser. Har du et spørgsmål om Whirlpool WL B8160 NE, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/107

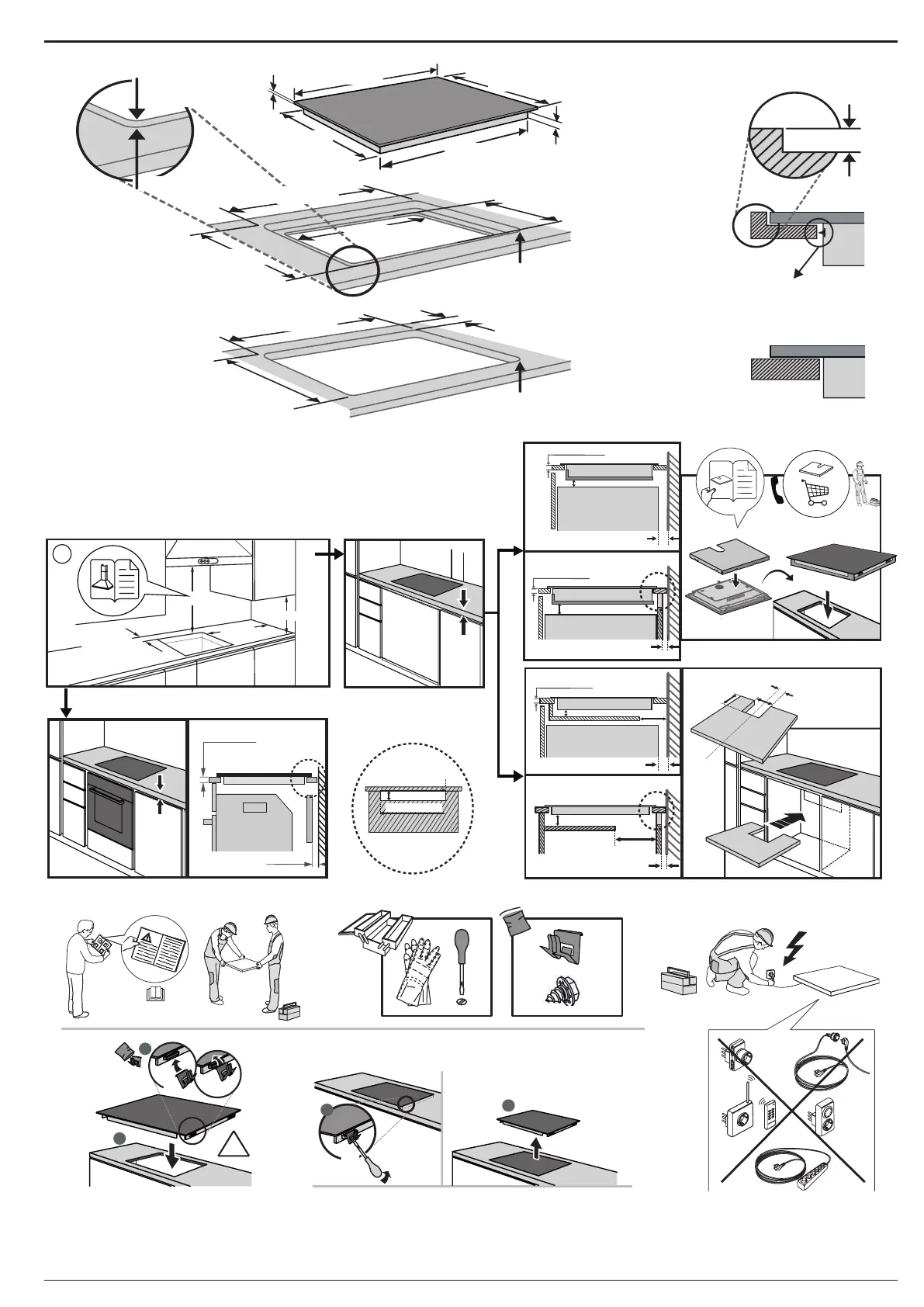

560 mm

R = Max. 10 mm

Min. 35 mm

560 mm

R = 11.5 mm

593 mm

513 mm

Min. 480 mm

Max. 492 mm

50 mm

6mm

kit *

R = Max. 10 mm

R = 11.5 mm

4 mm

551 mm

510 mm

479 mm

590 mm

Min. 480 mm

Max. 492 mm

28 mm-

No Max.

Min. 35 mm

Min. 400 mm

Min.100 mm

45 mm

90 mm

120 mm

Min. 28 mm

20 mm

min. 45 mm

min. 550 mm

12 mm-

No Max.

min. 20 mm

60 mm

min. 10 mm

60 mm

min. 20 mm

min. 10 mm

Min. 12 mm

A-A

Min. 12 mm

min. 10 mm

min. 20 mm

90°C

x8*

* Available only on certain models - Налично само при определени модели - Dostupné pouze u určitých modelů - Kun disponibel på visse modeller - Nur für bestimmte Modelle erhältlich - Διατίθεται μόνο

σε ορισμένα μοντέλα - Disponible en determinados modelos solamente - Saadaval ainult teatud mudelitel - Saatavana vain eräissä malleissa - Disponible sur certains modèles seulement - Dostupno samo na

određenim modelima - Kizárólag bizonyos típusok esetén - Disponibile solo su alcuni modelli - Tik tam tikruose modeliuose - Pieejams tikai atsevišķiem modeļiem - Alleen verkrijgbaar voor bepaalde modellen - Kun

tilgjengelig på noen modeller - Dostępne tylko w wybranych modelach - Disponível apenas em determinados modelos - Disponibile numai la anumite modele - K dispozícii len na niektorých modeloch - Na voljo

le pri določenih modelih - Dostupno samo na određenim modelima - Endast på vissa modeller - Доступно лише в деяких моделях-



Before using the appliance, read these safety

instructions. Keep them nearby for future reference.

These instructions and the appliance itself provide

important safety warnings to be observed at all times.

The manufacturer declines any liability for failure to

observe these safety instructions, for inappropriate

use of the appliance or incorrect setting of controls.

WARNING: If the hob surface is cracked, do not use

the appliance - risk of electric shock.

WARNING: Danger of re: Do not store items on the

cooking surfaces.

CAUTION: The cooking process has to be supervised.

A short cooking process has to be supervised

continuously.

WARNING: Unattended cooking on a hob with fat

or oil can be dangerous - risk of re. NEVER try to

extinguish a re with water: instead, switch o the

appliance and then cover ame e.g. with a lid or a re

blanket.

Do not use the hob as a work surface or support.

Keep clothes or other ammable materials away from

the appliance, until all the components have cooled

down completely - risk of re.

Metallic objects such as knives, forks, spoons and

lids should not be placed on the hob surface since they

can get hot.

Very young children (0-3 years) should be kept

away from the appliance. Young children (3-8years)

should be kept away from the appliance unless

continuously supervised. Children from 8 years old

and above and persons with reduced physical, sensory

or mental capabilities or lack of experience and

knowledge can use this appliance only if they are

supervised or have been given instructions on safe use

and understand the hazards involved. Children must

not play with the appliance. Cleaning and user

maintenance must not be carried out by children

without supervision.

After use, switch o the hob element by its control

and do not rely on the pan detector.

WARNING: The appliance and its accessible parts

become hot during use. Care should be taken to avoid

touching heating elements. Children less than 8 years

of age shall be kept away unless continuously

supervised.

The food must not be left in or on the product for

more than one hour before or after cooking.

PERMITTED USE

CAUTION: the appliance is not intended to be

operated by means of an external switching device,

such as a timer, or separate remote controlled system.

This appliance is intended to be used in household

and similar applications such as: sta kitchen areas in

shops, oces and other working environments; farm

houses; by clients in hotels, motels, bed & breakfast

and other residential environments.

No other use is permitted (e.g. heating rooms).

This appliance is not for professional use. Do not

use the appliance outdoors.

WARNING: Induction hob may generate the

acoustic sound when something is left on the control

panel. Switch o the cooktop through the ON/OFF

button.

INSTALLATION

The appliance must be handled and installed by

two or more persons - risk of injury. Use protective

gloves to unpack and install - risk of cuts.

Installation, including water supply (if any), electrical

connections and repairs must be carried out by a

qualied technician. Do not repair or replace any part

of the appliance unless specically stated in the user

manual. Keep children away from the installation site.

After unpacking the appliance, make sure that it has

not been damaged during transport. In the event of

problems, contact the dealer or your nearest After-

sales Service. Once installed, packaging waste (plastic,

styrofoam parts etc.) must be stored out of reach of

children - risk of suocation. The appliance must be

disconnected from the power supply before any

installation operation - risk of electric shock. During

installation, make sure the appliance does not damage

the power cable - risk of re or electric shock. Only

activate the appliance when the installation has been

completed.

Carry out all cabinet cutting operations before

tting the appliance and remove all wood chips and

sawdust.

If the appliance is not installed above an oven, a

separator panel (not included) must be installed in the

compartment under the appliance.

ELECTRICAL WARNINGS

It must be possible to disconnect the appliance

from the power supply by unplugging it if plug is

accessible, or by a multi-pole switch installed upstream

of the socket in accordance with the wiring rules and

the appliance must be earthed in conformity with

national electrical safety standards.

Do not use extension leads, multiple sockets or

adapters. The electrical components must not be

accessible to the user after installation. Do not use the

appliance when you are wet or barefoot. Do not

operate this appliance if it has a damaged power cable

or plug, if it is not working properly, or if it has been

damaged or dropped.

Installation using a power cable plug is not allowed

unless the product is already equipped with the one

provided by the Manufacturer.

If the supply cord is damaged, it must be replaced

with an identical one by the manufacturer, its service

agent or similarly qualied persons in order to avoid a

hazard - risk of electric shock.

SAFETY INSTRUCTIONS

IMPORTANT TO BE READ AND OBSERVED

Produkt Specifikationer

Mærke:	Whirlpool
Kategori:	Kogesektioner
Model:	WL B8160 NE
Antal effektniveauer:	9
Tænd-/slukkontakt:	Ja
Vekselstrømsindgangsspænding:	230 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	590 mm
Dybde:	510 mm
Højde:	52 mm
Vægt:	9700 g
Produktfarve:	Sort
Kontroltype:	Berøring
Strøm:	31.3 A
Ledningslængde:	1.2 m
Pakkevægt:	10700 g
Pakkedybde:	600 mm
Pakkebredde:	670 mm
Pakkehøjde:	120 mm
Timer:	Ja
Placering af apparat:	Indbygget
Installationsrum bredde:	562 mm
Installationsrum dybde:	480 mm
Installationsrum højde:	60 mm
Børnesikring:	Ja
Komfurtype:	Zone induktionskogeplade
Overfladetype:	Glas
Antal kogeplader / madlavningsområde:	4
Antal elektriske kogeplader:	4
Blus/kogeplade zone 1 type:	Stor
Blus/kogeplade zone 2 type:	Stor
Kontrolposition:	Top forside
Tilsluttet belastning (elektrisk):	7200 W
Ovnbredde størrelse:	59 cm
Blus/kogeplade zone 3 type:	Ekstra stor
Blus/kogeplade zone 4 type:	Regelmæssig
Restvarmeindikator:	Ja
Indbygget hætte:	Ingen
Tilsluttet belastning (gas):	- W
Holde varm funktion:	Ja
Installationsrum bredde (min.):	560 mm
Elektronisk tænding:	Ingen
Komfurlåg:	Ingen
Boost funktion:	Ja
Almindelig kogeplade/kogezone, diameter:	230 mm
Simre kogeplade/kogezone, diameter:	145 mm
Simre kogeplade / madlavningsområde:	1600 W
Almindelige kogeplade / madlavningsområde:	2200 W
Stor kogeplade / madlavningsområde:	3000 W
Understøttet grydemateriale:	Glas
Tændblussikring:	Ingen
Stor kogeplade/kogezone, diameter:	210 mm
Zone, som kan forlænges:	Ja
Antal boostere:	4
Kogepladeindikator:	Ja
Installationsrum bredde (maks.):	562 mm
Kogekontrol funktion:	Ja
Beskyttelse mod utilsigtet start:	Ja
Fiskebrænder:	Ingen
Garantiperiode:	2 År
