Dear customer,
Please read these operating instructions carefully
and pay particular attention to the safety notes
indicated in the first pages. We recommend that you
keep this instruction booklet for future reference and
pass it on to any future owners.
Transport damages
When unpacking the appliance, check that it is not
damaged. If in doubt, do not use it and contact the
Service Centre.
The symbols you will see on some paragraphs of this booklet have the following meaning:
The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly
important for your safety or correct functioning of the appliance.
The information marked with this symbol provides additional instructions and practical tips on the use of
the appliance.
Tips and information about economical and ecological use of the machine are marked with this symbol.
Our contribution to the protection of the
environment: we use recycled paper.
ENGLISH
23
Maintenance 38
Bodywork 38
Detergent dispenser drawer 38
Drain filter 38
Water inlet filter 38
Emergency emptying out 39
Frost precautions 39
Something not working? 40-41
Warnings 24-25
Disposal 25
Tips for environmental protection 25
Technical specifications 26
Installation 27
Unpacking 27
Positioning 27
Water inlet 27
Water drainage 28
Electrical connection 28
Your new washing machine 29
Description of the appliance 29
Detergent dispenser drawer 29
Use 30

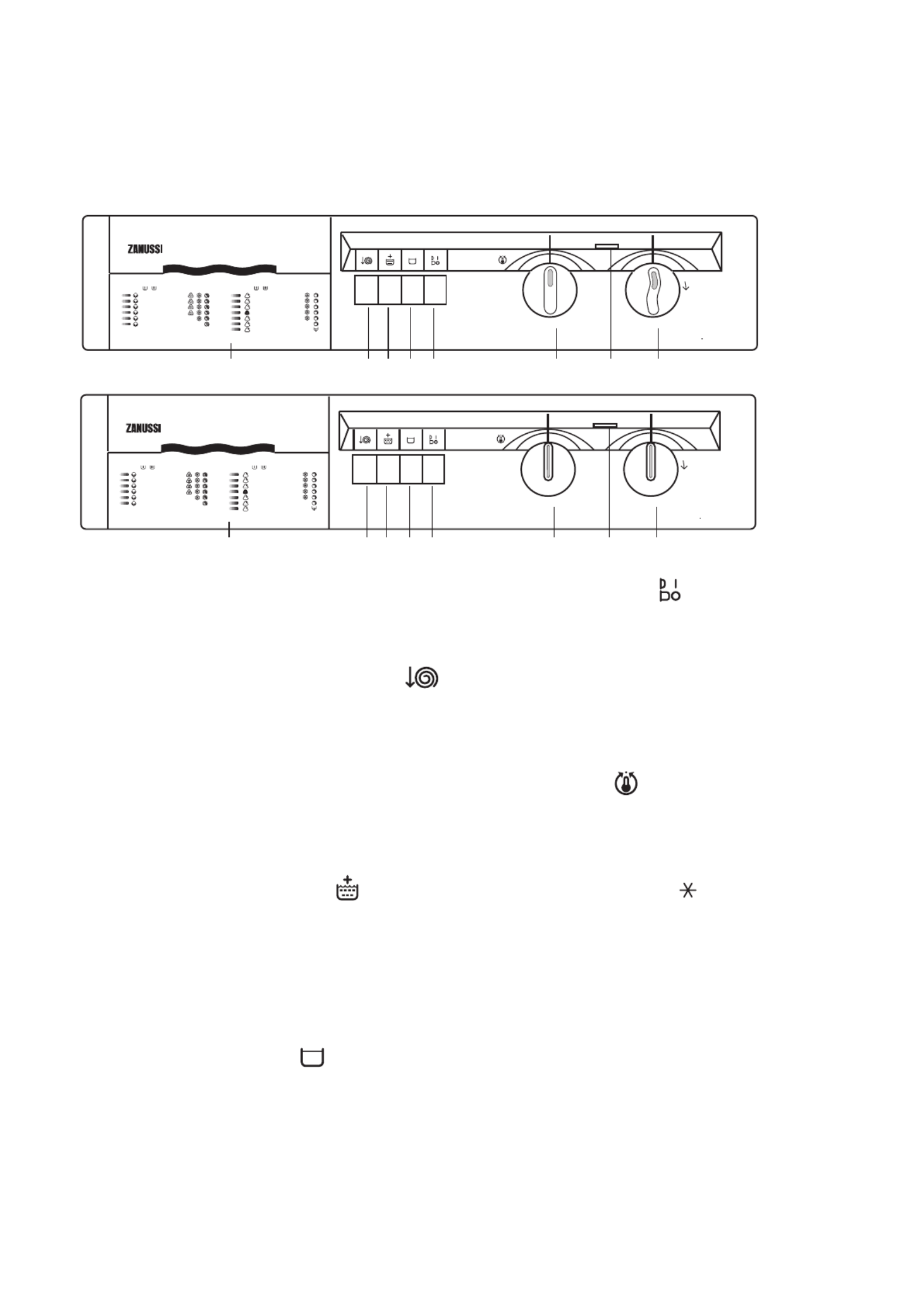

Control panel 30
Controls 30
Washing hints 31
Sorting the laundry 31
Temperatures 31
Before loading the laundry 31
Maximum loads 31
Laundry weights 31
Removing stains 31
Detergents and additives 32

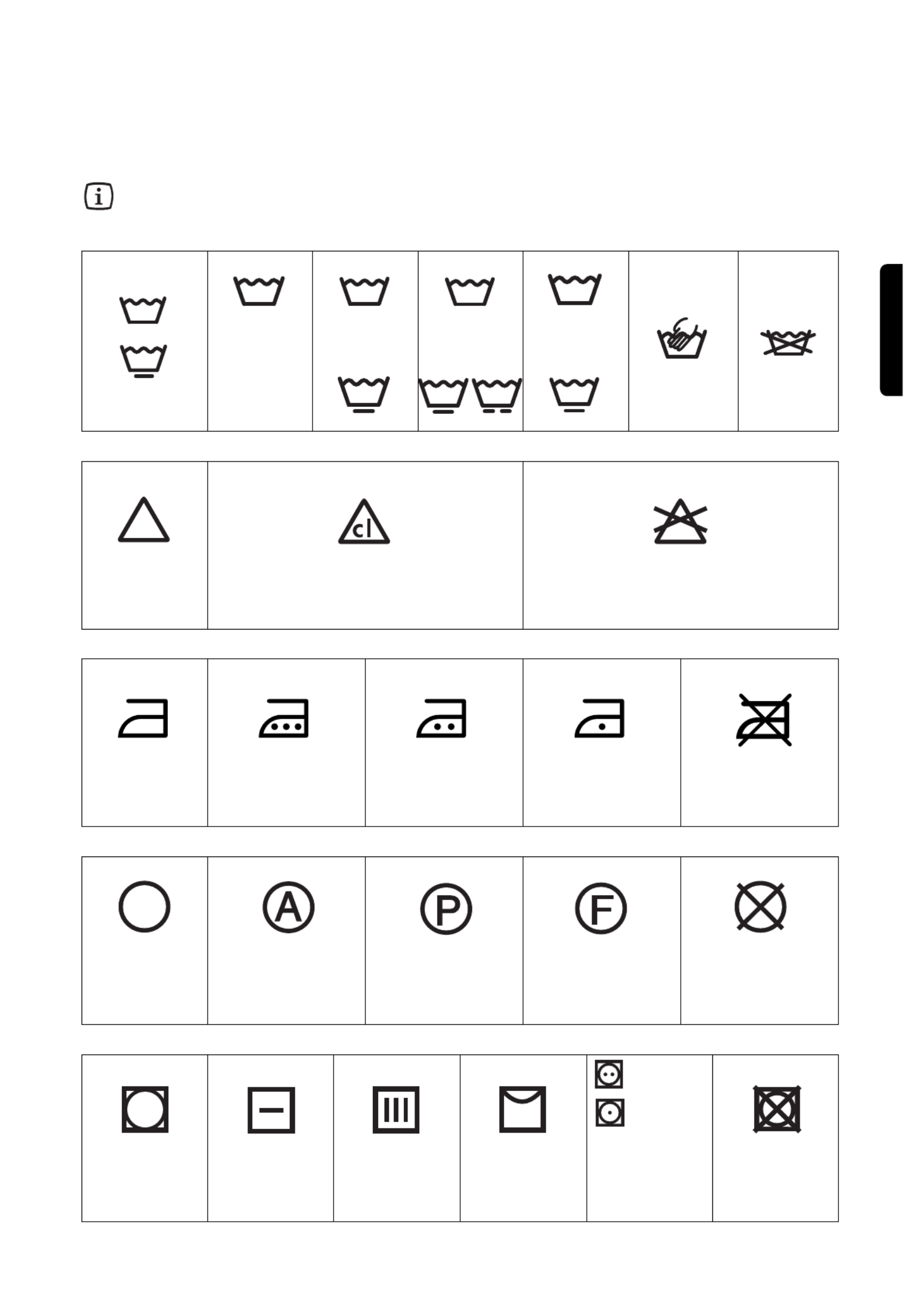

International wash code symbols 33
Operating sequence 34-35
Washing programmes 36-37
Contents
24
Installation
• All internal packing must be removed before using
the appliance. Serious damage may be caused to
the machine or adjacent furniture if the protective
transit devices are not removed or are not
completely removed. Refer to the relevant
paragraph in the instruction book.
• Any electrical work required to install this appliance
must be carried out by a qualified electrician.
• Any plumbing work required to install this
appliance must be carried out by a qualified
plumber.
• After having installed the machine, check that it is
not standing on its electrical supply cable.
• If the appliance is placed on a carpeted floor,
ensure that air can circulate freely between the feet
and the floor.
Use
• This appliance is designed for domestic use. It
must not be used for purposes other than those for
which it was designed.
• Only wash fabrics which are designed to be
machine washed. Follow the instructions on each
garment label.
• Do not overload the appliance. Follow the
instructions in the instruction book.
• Make sure that all pockets are empty. Objects such
as coins, safety pins, pins and screws can cause
extensive damage.
• Do not machine wash garments saturated with
petroleum, methylated spirits, trichlorethylene, etc.
If such fluids have been used to remove stains
prior to washing, wait until they have completely
evaporated from the fabric before placing garments
in the appliance.
• Place small items such as socks, belts, etc. in a
cloth bag or pillowcase to prevent them getting
trapped between the drum and the tub.
• Use only the recommended quantities of fabric
softener. An excessive amount could damage the
laundry.
Warnings
• Leave the porthole door slightly ajar when the
appliance is not in use. This preserves the door
seal and prevents the formation of musty smells.
• Always check that water has emptied out before
opening the door. If not, drain the water following
the instructions in the instruction book.
• Always unplug the appliance and shut the water
tap after use.
General safety
• Repairs to the machine must be carried out only by
qualified personnel. Repairs carried out by
inexperienced persons could cause serious
danger. Contact your local Service Centre.
• Never pull the power supply cable to remove the
plug from the socket; always take hold of the plug
itself.
• During high temperature wash programmes the
door glass may get hot. Do not touch it!
The following warnings are provided in the interests of overall safety. You must read them carefully before
installing or using the appliance.
ENGLISH
25
Disposal
Tips for environmental protection
Packaging materials
The materials marked with the symbol are
recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by disposing of
them properly in appropriate collection containers.
Machine
Use authorised disposal sites for your old appliance.
Help to keep your country tidy!
To save water, energy and to help protect the
environment, we recommend that you follow these
tips:
• Normally soiled laundry may be washed without
prewashing in order to save detergent, water and
time (the environment is protected too!).
• The machine works more economically if it is fully
loaded.
• With adequate pre-treatment, stains and limited
soiling can be removed; the laundry can then be
washed at a lower temperature.
• Measure out detergent according to the water
hardness, the degree of soiling and the quantity of
laundry being washed.
Child safety
• Children are often not aware of how dangerous
electrical appliances can be. When the machine is
working, children should be carefully supervised
and not be allowed to play with the appliance.
• The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children - danger
of suffocation! Keep them out of children’s reach.
• Keep all detergents in a safe place out of children’s
reach.
• Make sure that children or pets do not climb into
the drum.
• When the appliance is to be scrapped, cut off the
electrical supply cable and destroy the plug with
the remaining cable. Disable the door catch in
order to prevent children from becoming trapped
inside while playing.
26
DIMENSIONS Height 85 cm
Width 60 cm
Depth 58 cm
MAXIMUM LOAD Cotton 5 kg
Synthetics 2 kg
Delicates 2 kg
Woollens 1 kg
SPIN SPEED 500 rpm max. (FLN 507)
600 rpm max. (FLN 607)
800 rpm max. (FLN 807)
1000 rpm max. (FLN 1007)
POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz
TOTAL POWER ABSORBED 2200 W
MINIMUM FUSE PROTECTION 10 A
WATER PRESSURE Minimum 5 N/cm2
Maximum 80 N/cm2
This appliance complies with the following EEC Directives:
73/23/EEC of 19/02/73 relating to low voltage
89/336/EEC of 03/05/89 relating to electromagnetic compatibility.
Technical specifications
ENGLISH
27
Unpacking
All transit bolts and packing must be removed
before using the appliance.
You are advised to keep all transit devices so that
they can be refitted if the machine ever has to be
transported again.

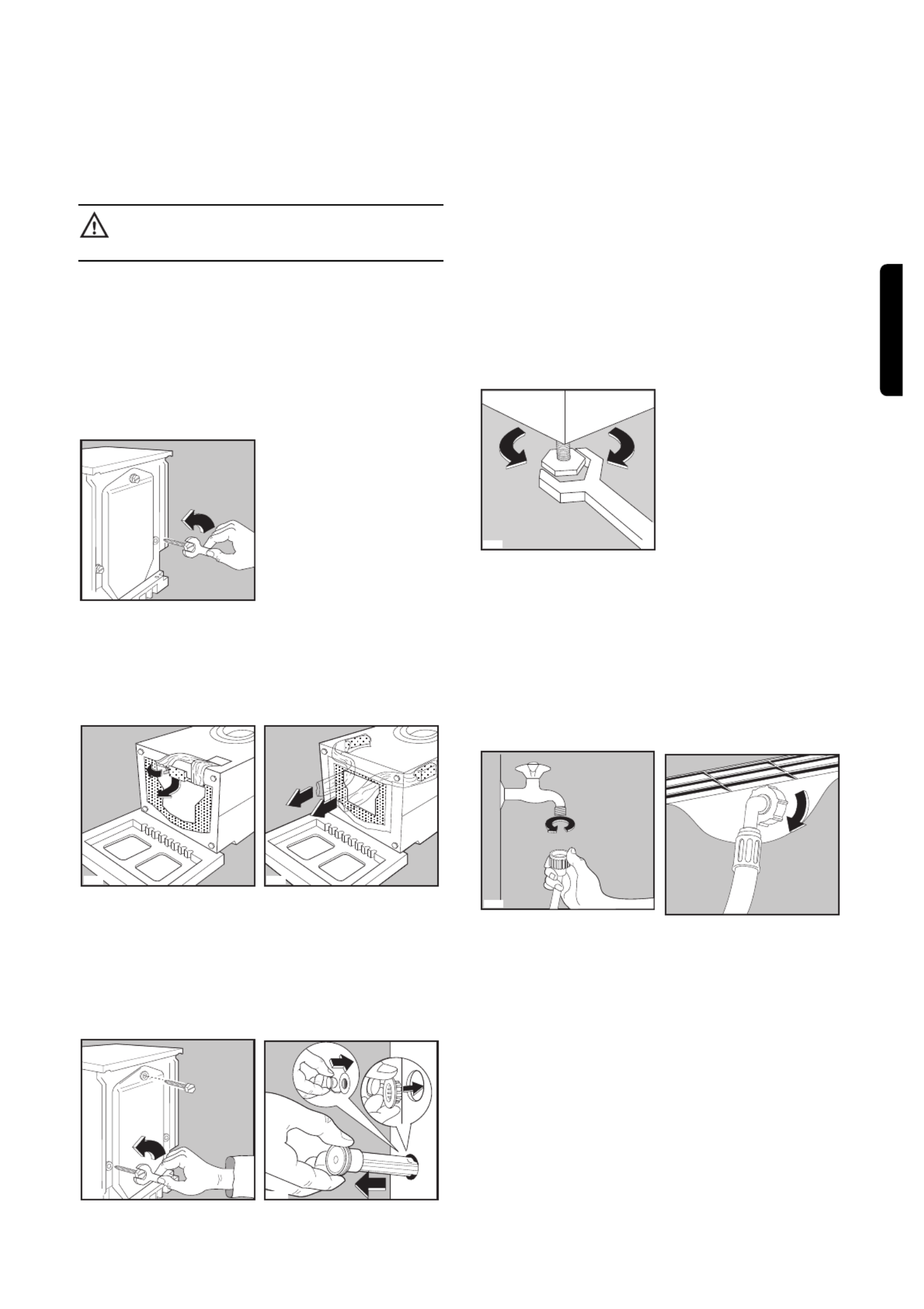

1. Using a spanner, unscrew and remove the rear
right-hand bolt and lay the machine on its back,
taking care not to squash the hoses. This can be
avoided by placing one of the corner packing
pieces between the machine and the floor.
2. Remove the polystyrene block from the bottom of
the machine and release the two plastic bags.
3. Carefully remove the right-hand bag (1) then the
left-hand bag (2) by pulling them towards the
centre of the machine.
4. Set the machine upright and remove the two
remaining bolts from the back.
5. Pull out the three plastic spacers from the holes
into which the bolts were fitted.
6. Plug the open holes with the plugs which you will
find at the back of the appliance.
P0020
P0256
21
P1066
P1068
P0255
Positioning
Install the machine on a flat hard floor.
Make sure that air circulation around the machine is
not impeded by carpets, rugs etc. Check that the
machine does not touch the wall or other kitchen
units.
Carefully level by screwing the adjustable feet in or
out. Never place cardboard, wood or similar
materials under the machine to compensate for any
unevenness in the floor.

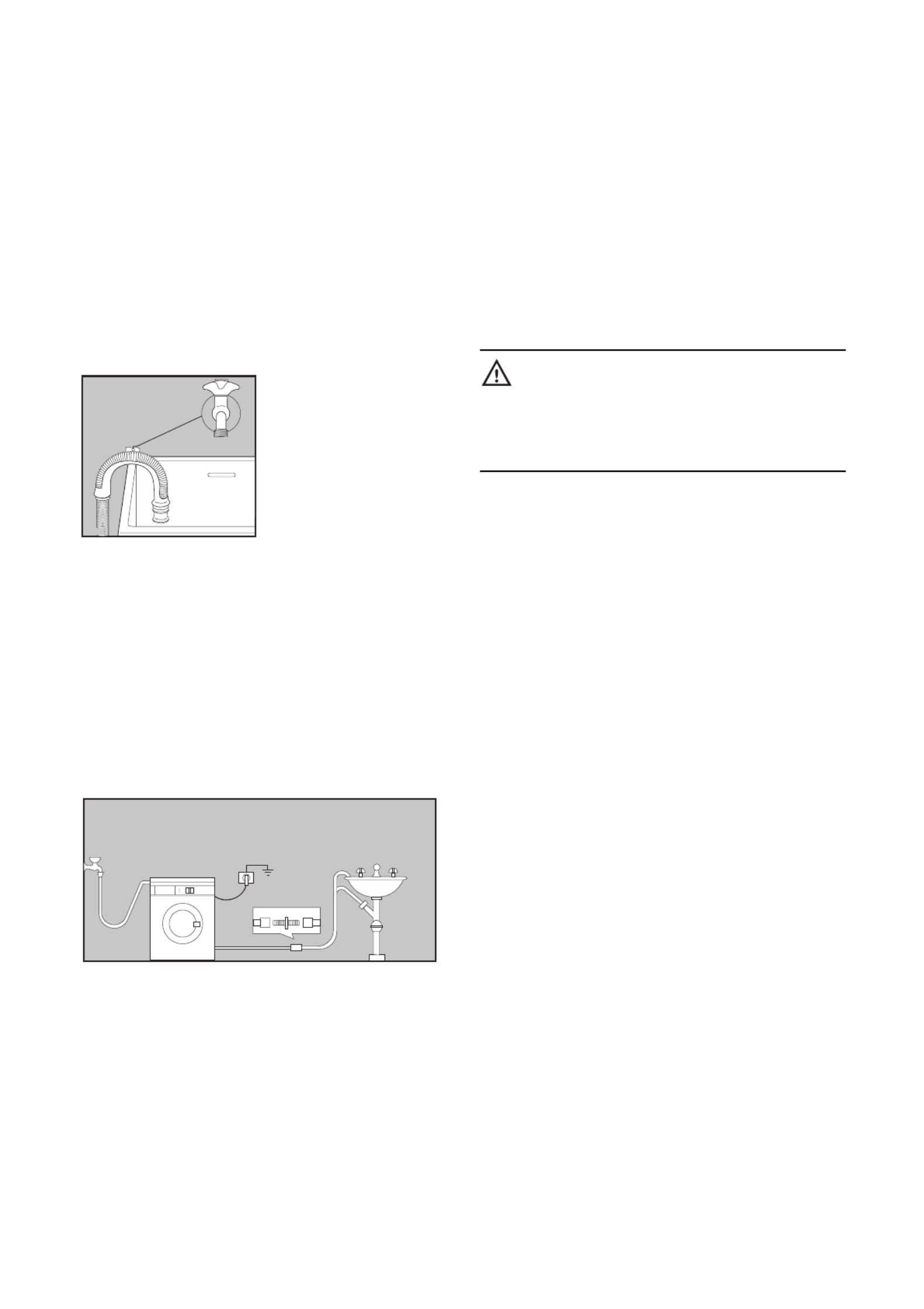

Water inlet
Connect the water inlet hose to a tap with a 3/4"
thread.
The other end of the inlet hose which connects to the
machine can be turned in any direction. Simply
loosen the fitting, rotate the hose and retighten the
fitting, making sure there are no water leaks.
The inlet hose must not be lengthened. If it is too
short and you do not wish to move the tap, you will
have to purchase a new, longer hose specially
designed for this type of use.
P0021
P1088
P1051
Installation
28
Water drainage
The end of the drain hose can be positioned in three
ways:
Hooked over the edge of a sink using the plastic
hose guide supplied with the machine. In this
case, make sure the end cannot come unhooked
when the machine is emptying.
This could be done by tying it to the tap with a piece
of string or attaching it to the wall.
In a sink drain pipe branch. This branch must be
above the trap so that the bend is at least 60 cm
above the ground.
Directly into a drain pipe at a height of not less
than 60 cm and not more than 90 cm.
The end of the drain hose must always be
ventilated, i.e. the inside diameter of the drain pipe
must be larger than the outside diameter of the drain
hose.
The drain hose must not be kinked. Run it along the
floor; only the part near the drainage point must be
raised.
P0023
P0022
Electrical connection
This machine is designed to operate on a 220-230 V,
single-phase, 50 Hz supply.
Check that your domestic electrical installation can
take the maximum load required (2.2 kW), also
taking into account any other appliances in use.
Connect the machine to an earthed socket.
The manufacturer declines any responsibility
for damage or injury through failure to comply
with the above safety precaution.
Should the appliance power supply cable
need to be replaced, this should be carried
out by our Service Centre.
The power supply cable must be easily
accessible after installing the machine.
ENGLISH
29
This new machine meets all modern requirements for effective treatment of laundry with low water, energy and
detergent consumption.
• will allow you to choose the most suitable temperature for your laundry.The temperature selector dial
• The from 90° to 60°C before draining will prevent old drain pipesautomatic cooling of the washing water
from being deformed.
• ensures the machine is stable during the spin.The balance control device

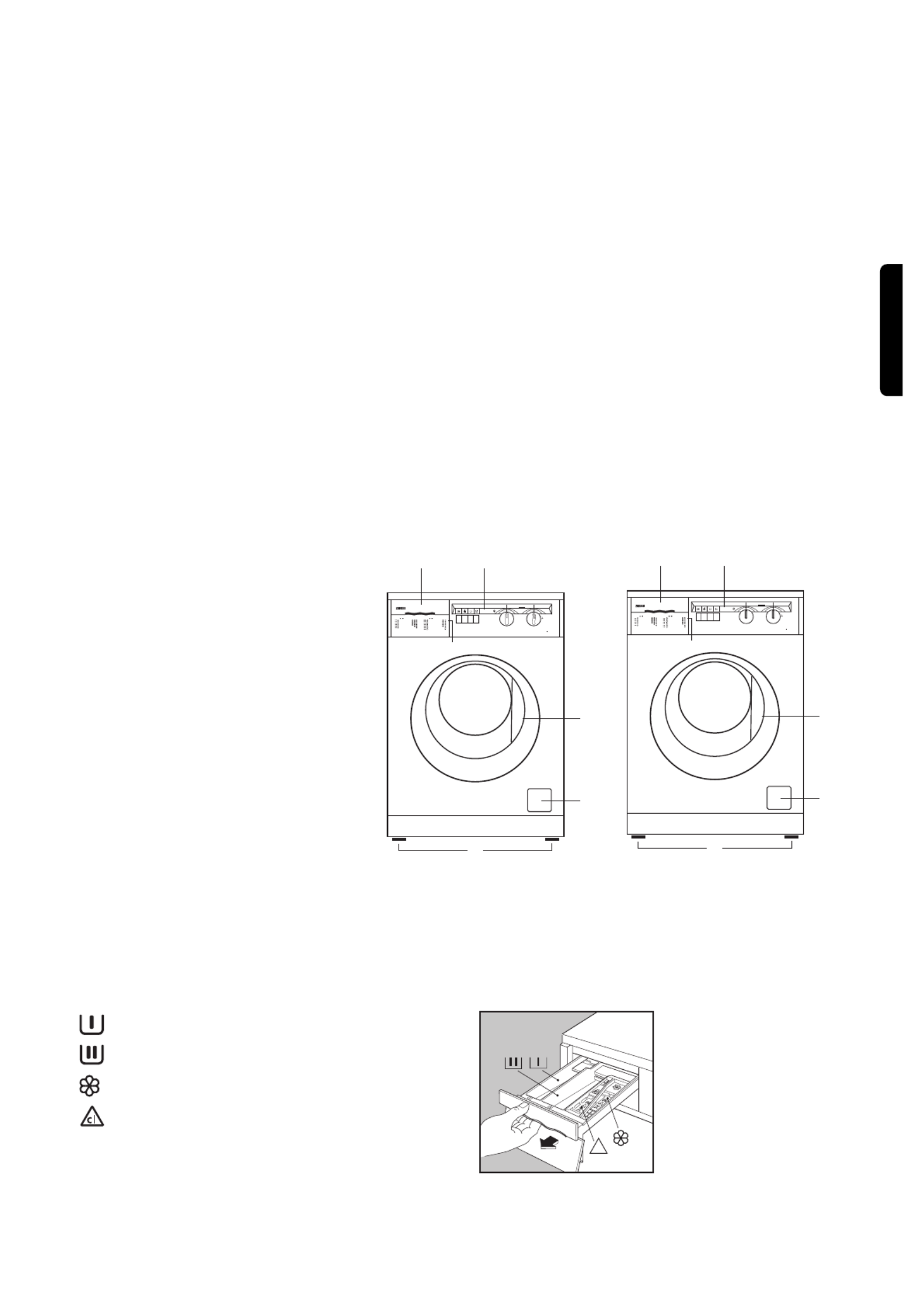

1 Detergent dispenser drawer
2 Programme chart
3 Control panel
4 Door handle
5 Drain filter
6 Adjustable feet
Detergent dispenser drawer
Prewash
Main wash
Fabric softener, starch
Bleaching agent
Your new washing machine
Description of the appliance
5
4
6
2
31
B
B
D
F
A 60º- 90º
30º- 60º
30º- 40º
30º- 60º
30º- 40º
30º- 40º
30º- 40º
J
K
L
MN
P
H
5 0 7F L N
5
4
6
2
31
B
B
D
F
A 60º- 90º
30º- 60º
30º- 40º
30º- 60º
30º- 40º
30º- 40º
30º- 40º
J
K
L
M
N
P
H
5 0 7F L N
P0446
Cl
30
Use
1 Programme chart
It will help you to choose the most suitable washing
programme for your laundry.
2 Spin speed reduction button
By depressing this button the spin speed is reduced
as follows:
●cotton and linen: from 500/600/800 rpm
according to the model to 400 rpm
from 1000 rpm to 600 rpm (FLN 1007)
●synthetics, delicates and wool: from 750 to
400 rpm for FLN 807-FLN 1007 and from
500/600 rpm to 400 rpm for FLN 507-FLN607.
3 Intensive rinse button
By depressing this button on programmes for cotton
and linen the machine will perform the rinses with
high water level.
To be used in areas where the water is very soft or
for people allergic to detergents or who have very
delicate skin.
4 Anti-crease button
This option can be used for all programmes.
The last rinse water is not emptied out, so as to
avoid creasing if the laundry is not removed from the
machine immediately after washing.
The water can be emptied out by pressing the button
again (emptying will be followed by a spin) or by
selecting the drain programme “ ”.Q
If the button is not pressed, the programmes end
with a spin.
5 On/Off button
Press this button to start the machine. The same
button is used to switch the machine off.
Before selecting a programme or changing an
ongoing programme the machine must be
switched off by depressing the On/Off button.
6 Temperature selector dial
(thermostat)
To select the washing temperature turn the dial to
the required value.
Depress the dial to pop it out. (FLN 807-FLN 1007)
When your laundry is only lightly soiled, a cold wash
can be used (dial to position ).
7 Mains-on light
It comes on when the machine starts operating and
goes out at the end of the programme.
8 Programme selector dial
To select the required programme, turn this dial
clockwise until the programme letter is exactly
opposite the pointer.
Depress the dial to pop it out. (FLN 807-FLN 1007)
1 2 3 4 5 6 7 8
B
B
C
D
F
G
A 60º- 90º
30º- 60º
30º- 40º
30º- 60º
30º- 40º
30º- 40º
30º- 40º
J
K
L
M
N
P
Q
H
5 0 7F L N
1 2 3 4 5 6 7 8
B
B
C
D
F
G
A 60º- 90º
30º- 60º
30º- 40º
30º- 60º
30º- 40º
30º- 40º
30º- 40º
J
K
L
M
N
P
Q
H
8 0 7F L N
Control panel
ENGLISH
31
Washing hints
Sorting the laundry
Follow the wash code symbols on each garment
label and the manufacturer’s washing instructions.
Sort the laundry as follows:
whites, coloureds, synthetics, delicates, woollens.
Temperatures
90° for normally soiled white cottons and linen
(e.g. tea cloths, towels, tablecloths,
sheets...)
60° for normally soiled, colour fast garments
(e.g. shirts, night dresses, pyjamas....) in
linen, cotton or synthetic fibres and for
lightly soiled white cotton (e.g. underwear).
(cold)for delicate items (e.g. net curtains), mixed
30°-40° laundry including synthetic fibres and
woollens bearing the label «pure new
wool, machine washable, non-shrink».
Before loading the laundry
Never wash whites and coloureds together. Whites
may lose their “whiteness” in the wash.
New coloured items may run in the first wash; they
should therefore be washed separately the first time.
Make sure that no metal objects are left in the
laundry (e.g. hair clips, safety pins, pins).
Button up pillowcases, close zip fasteners, hooks
and poppers. Tie any belts or long tapes.
Remove persistent stains before washing. Rub
particularly soiled areas with a special detergent or
detergent paste.
Treat curtains with special care. Remove hooks or tie
them up in a bag or net.
Maximum loads
Recommended loads are indicated in the
programme charts.
General rules:
Cotton, linen: drum full but not too tightly packed;
Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum no more than
one third full.
Washing a maximum load makes the most efficient
use of water and energy.
For heavily soiled laundry, reduce the load size.
Laundry weights
The following weights are indicative:
bathrobe 1200 g
napkin 100 g
quilt cover 700 g
sheet 500 g
pillow case 200 g
tablecloth 250 g
towelling towel 200 g
tea cloth 100 g
night dress 200 g
ladies’ briefs 100 g
man’s work shirt 600 g
man’s shirt 200 g
man’s pyjamas 500 g
blouse 100 g
men’s underpants 100 g
Removing stains
Stubborn stains may not be removed by just water
and detergent. It is therefore advisable to treat them
prior to washing.
Blood: treat fresh stains with cold water. For dried
stains, soak overnight in water with a special
detergent then rub in the soap and water.
Oil based paint: moisten with benzine stain
remover, lay the garment on a soft cloth and dab the
stain; treat several times.
Dried grease stains: moisten with turpentine, lay
the garment on a soft surface and dab the stain with
the fingertips and a cotton cloth.
Rust: oxalic acid dissolved in hot water or a rust
removing product used cold. Be careful with rust
stains which are not recent since the cellulose
structure will already have been damaged and the
fabric tends to hole.
Mould stains: treat with bleach, rinse well (whites
and fast coloureds only).
Grass: soap lightly and treat with bleach (whites and
fast coloureds only).
Ball point pen and glue: moisten with acetone (*),
lay the garment on a soft cloth and dab the stain.
Lipstick: moisten with acetone as above, then treat
stains with methylated spirits. Remove any residual
marks from white fabrics with bleach.
Red wine: soak in water and detergent, rinse and
treat with acetic or citric acid, then rinse. Treat any
residual marks with bleach.
32
Ink: depending on the type of ink, moisten the fabric
first with acetone (*), then with acetic acid; treat any
residual marks on white fabrics with bleach and then
rinse thoroughly.
Tar stains: first treat with stain remover, methylated
spirits or benzine, then rub with detergent paste.
(*) do not use acetone on artificial silk.
Detergents and additives
Good washing results also depend on the choice of
detergent and use of the correct quantities to avoid
waste and protect the environment. Although
biodegradable, detergents contain substances
which, in large quantities, can upset the delicate
balance of nature.
The choice of detergent will depend on the type of
fabric (delicates, woollens, cottons, etc.), the colour,
washing temperature and degree of soiling.
All commonly available washing machine detergents
may be used in this appliance:
– powder detergents for all types of fabric,
– powder detergents for delicate fabrics (60°C max)
and woollens,
– liquid detergents, preferably for low temperature
wash programmes (60°C max) for all types of
fabric, or special for woollens only.
The detergent and any additives must be placed in
the appropriate compartments of the dispenser
drawer before starting the wash programme.
If using concentrated powder or liquid detergents, a
programme prewash must be selected.without
The washing machine incorporates a recirculation
system which allows an optimal use of the
concentrated detergent.
Pour liquid detergent into the dispenser drawer
compartment marked starting thejust before
programme.
Any fabric softener or starching additives must be
poured into the compartment marked before
starting the wash programme.
The bleaching agent (chlorine) can be used only for
white or fast coloured cotton and linen items.
Pour it into the compartment marked .
Follow the product manufacturer’s recommendations
on quantities to use and do not exceed the «MAX»
mark in the detergent dispenser drawer.
Quantity of detergent to be used
The type and quantity of detergent will depend on
the type of fabric, load size, degree of soiling and
hardness of the water used.
Water hardness is classified in so-called “degrees” of
hardness. Information on hardness of the water in
your area can be obtained from the relevant water
supply company, or from your local authority.
Follow the product manufacturers’ instructions on
quantities to use.
Use less detergent if:
– you are washing a small load,
– the laundry is lightly soiled,
– large amounts of foam form during washing.
Degrees of water hardness
Level Characteristic
Degrees
German
°dH
French
°T.H.
soft
medium
hard
very hard
0- 7
8-14
15-21
more than
21
0-15
16-25
26-37
more than
37
1
2
3
4
ENGLISH
33
International wash code symbols
These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.
Energetic wash
Delicate wash
Max. wash
temperature
95°C
Max. wash
temperature
60°C
Max. wash
temperature
40°C
Max. wash
temperature
30°C
Hand wash Do not
wash
at all
Bleaching Bleach in cold water Do not bleach
Ironing Hot iron
max 200°C
Warm iron
max 150°C
Lukewarm iron
max 110°C
Do not iron
Dry cleaning Dry cleaning
in all solvents
Dry cleaning in
perchlorethylene,
petrol, pure alcohol,
R 111 & R 113
Dry cleaning
in petrol,
pure alcohol
and R 113
Do not
dry clean
Drying Flat On the line On clothes
hanger
Tumble dry
high
temperature
low
temperature
Do not
tumble dry
95
60
60
40
40
40
30
30
Produkt Specifikationer
| Mærke: | Zanussi |
| Kategori: | Vaskemaskiner |
| Model: | FLN 1007 |
Har du brug for hjælp?
Hvis du har brug for hjælp til Zanussi FLN 1007 stil et spørgsmål nedenfor, og andre brugere vil svare dig
Vaskemaskiner Zanussi Manualer
14 Januar 2025
12 Januar 2025
12 Januar 2025
12 Januar 2025
14 Oktober 2024
12 Oktober 2024
11 Oktober 2024
14 Juli 2024
14 Juli 2024
14 Juli 2024
Vaskemaskiner Manualer
- Manta
- Trieste
- Zanker
- Lloyd
- Nordland
- Kelvinator
- Atlas
- Kenmore
- Neufunk
- Koenic
- Bush
- Adler
- Hisense
- Campomatic
- Daewoo
Nyeste Vaskemaskiner Manualer
15 Januar 2025
15 Januar 2025
15 Januar 2025
15 Januar 2025
15 Januar 2025
15 Januar 2025
14 Januar 2025
14 Januar 2025
14 Januar 2025
14 Januar 2025
