INSTRUCTIONS

For a detailed description of all the features and specications

of this product please visit our website.

Tested in New Zealand. Made with care in China

IN THE UNLIKELY EVENT OF YOUR TENT DEVELOPING A LEAK

2. Firstly check all valves are screwed in correctly.

3. Deﬂate the faulty Air Pole and unzip the ﬂysheet sleeve.

4. Remove the tube from the Outer by cutting the cable tie holding the zipper

ends together and unzip.

CAUTION: DO TO OPEN THESE ZIPS WHEN THE POLE IS INFLATED.

5. Remove the clear tube from the Sleeve.

6. Partially inﬂate the tube and check for leaks (bubbles) in a basin of water.

7. Using a the repair patch provided cover the hole and seal.

8. Partially inﬂate the tube and re insert into the pole sleeve. Zip together.

9. Connect the zipper ends with the replacement Cable ties provided.

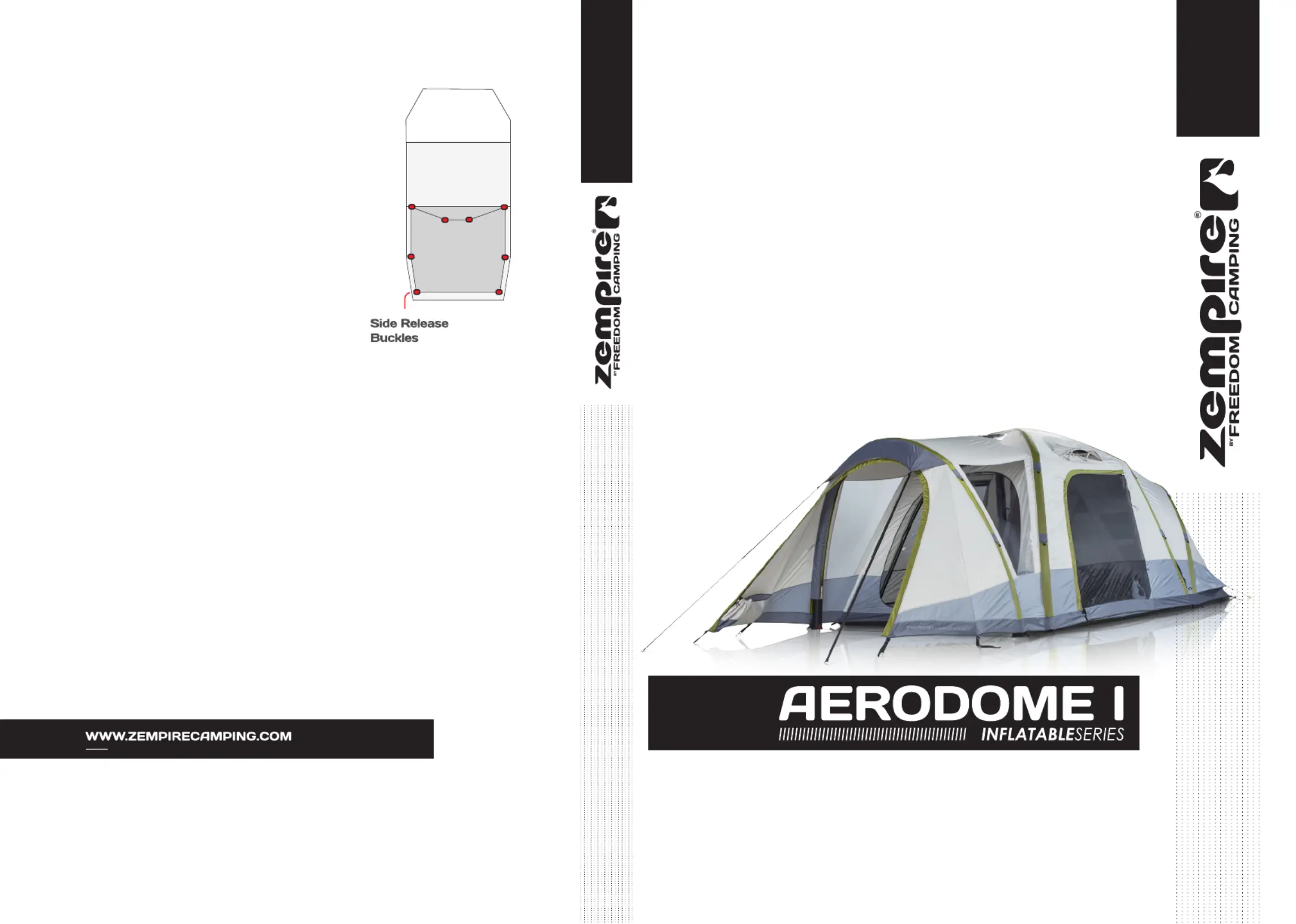

INNER TENT ATTACHMENT

1. Lay out the inner inside the tent with the

door facing the centre and the black ﬂoor

facing downwards.

2. Attach the buckles at the rear corners of

the tent and connect the toggles on the

inner through the corresponding rings

working your way from the rear to the

front.

3. The room can remain attached when

deﬂating the tent.

INSTRUCTIONS

13. It is recommended that guy ropes are pegged

out at all times and windows are opened

whenever possible to allow adequate ventilation.

Insert pegs at a 45

angle

3. Unzip the triangle Valve Cover on

the right hand side of the tent and

locate the AERO-FRAME valves.

1. Clear your site making sure there are no sharp

objects where you are going to pitch your tent. Try

to get a site that is as ﬂat as possible. Spread tent

out, the PVC windows are located at the front.

2. Peg out the 4 peg points on the main body of the

tent as shown.

4. Remove the valves completely and re-screw in to ensure the valve is not

cross-threaded. Screw in ﬁrmly but do not over tighten. Open the valve caps.

5. The pump features a double hose adapter

which allows two tubes to be inﬂated at the

same time.

Ensure the pump is conﬁgured as per the

following diagram.

Attach the of the hoses to the AERO-FRAME

valve inlets.

6. Begin to inﬂate the centre and rear AERO-FRAME. Have

someone walk inside to help raise the frame during inﬂation.

Inﬂate to 7 PSI.

DO NOT INFLATE ABOVE 8PSI. THIS MAY CAUSE DAMAGE TO

THE POLES AND THE TENT.

7. Once inﬂated to the correct pressure, remove the pump hoses and securely attach

the valve caps. Close the Valve Cover.

8. Remove the double adapter and attach

one hose directly to the pressure gauge as

shown.

9. Inﬂate the front awning

AERO-FRAME following the

previous procedure, then remove

the hose and securely attach the

valve cap.

10. Peg out the remaining peg points around

the tent ensuring that the ﬂoor sits ﬂat. It is

easier to align the front door correctly with

the door closed.

11. Peg out the front and rear anchor

webbings. These should sit at a 45

angle to the

ground.

DEFLATION

1. AERO-FRAME.Remove the valves from the Take care as poles will be under

pressure.

2. AERO-FRAME It may be necessary to remove some excess air from the

before rolling up your tent. This can be done by carefully walking down the

length of the tube towards the valve end.

PSI0

4 5 6

INFLATE

DEFLATE

12. Peg out the 2 draft vents on either side of

the bedrooms. These can be pegged closed

during cooler weather conditions.
