M oicrowave ven
Installation Guide
and Users Manual
WARNING: This product can expose you to chemicals including
nickel, which is known to the State of California to cause cancer.
For more information, go to www.P65Warnings.ca.gov.
Please register your ZLINE appliance to activate your warranty.
Begin the simple registration process by scanning the QR code.
By registering your appliance, you will have access to:
• Technical Support
• Warranty Service
• Tracking your support inquiries
Registering Your Product
Combining precise, high performance technology with seamless integration, the ZLINE
Microwave Oven is an elite upgrade for a professional kitchen suite. Experience
optimal results for every dish with 11 different power levels, utilizing regular heat, broil,
or convection cooking elements. Premium cooking features include multi-stage cooking
technology, sensor cooking, express cooking, and multiple auto-defrost.
Have peace of mind in a busy kitchen with the integrated child lock safety feature.
Enjoy a modern, yet versatile built-in installation and superior cooking with the ZLINE
Microwave Oven.
Warranty
COVERAGE
ZLINE Kitchen and Bath microwave parts will be warrantied for two years from the
original purchase date for the original purchaser of the product.
TERMS
This warranty applies only to the original purchaser of the product installed for
normal residential use. This is defined as a single-family, residential dwelling in a
non-commercial setting. Commercial settings include but are not limited to: schools,
churches, hotels, restaurants, vacation rentals such as Airbnb, day care centers,
private clubs, fire stations, common areas in multi-family dwellings, nursing homes,
food service locations, and institutional food service locations such as hospitals or
correction facilities. This warranty is non-transferable and will not be extended based
on the date of installation. The warranty applies only to products installed in the
continental United States and the District of Columbia. Warranty shall not apply and
ZLINE Kitchen and Bath is not responsible for damage resulting from negligence,
improper maintenance, misuse, abuse, alteration of or tampering with the appliance,
accident, natural disaster, improper electric supply, unauthorized service or repair,
improper installation, or installation not in accordance with the instructions contained
in the manual or the local codes.
WHAT IS NOT COVERED
1. Installation or start-up damages or problems caused by improper installation or
use.
2. Damage related to unauthorized service or unauthorized parts.
3. Installation in any commercial or non-residential application.
4. Aesthetic damage, scratches, or natural wear caused by normal use.
5. Second-hand, open box products, or products purchased from an unauthorized
retailer.
CONTENTS
PRODUCT SPECIFICATIONS 1
PRECAUTIONS 2
IMPORTANT SAFETY INSTRUCTIONS 3
GROUNDING INSTRUCTIONS 6
PARTS AND TOOLS 8
ACCESSORIES 9
INSTALLATION REQUIREMENTS 10
OPERATION 15
EXPERT COOKING GUIDE 33
MAINTENANCE 38
TROUBLESHOOTING 40
1
The data plate shows the model and serial number. Refer to the data plate on the
appliance when requesting service. The data plate can be found on the inside of the
appliance door.
Important Appliance Information
Model Number
Serial Number
Date of Purchase
Date Installed
Installer
PRODUCT SPECIFICATIONS
Rated Voltage: 120V, 60Hz, 20A
Rated Output Power: 1000W
External Dimensions: 23.4”W x 17.9”H x 22.4”D
Net Weight: Approx 78 lbs
2
PRECAUTIONS
This appliance can be used by children aged from 8 years and above if they have been
given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision. Keep the
appliance and its cord out of reach of children less than 8 years.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard. (For appliances with type Y
attachment.)
WARNING: It is hazardous for anyone other than a professional to carry out any service
or repair operation that involves the removal of any cover which gives protection
against exposure to microwave energy.
WARNING: Liquids and other foods must not be heated in sealed containers since they
are liable to explode.
When heating food in plastic or paper containers, keep an eye on the oven due to the
possibility of ignition.
Only use utensils that are suitable for use in microwave ovens.
If smoke is emitted, switch off or unplug the appliance and keep the door closed in order
to stifle any flames.
Microwave heating of beverages can result in delayed eruptive boiling, therefore care
must be taken when handling the container.
To reduce the risk of fire, electric shock, injury to persons or
exposure to excessive microwave oven energy when using your
appliance, follow basic precautions, including the following:
Do not attempt to operate this oven with the door open. This can result in harmful
exposure to microwave energy. It is important not to break or tamper with the safety
interlocks.
Do not place any object between the oven front face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.
WARNING: If the door or door seals are damaged, the oven must not be operated until
it has been repaired by a professional.
If the oven is not maintained in a good state of cleanliness, its surface could be
degraded and affect the lifespan of the oven and lead to a dangerous situation.
3
important safety instructions
The contents of feeding bottles and baby food jars shall be stirred or shaken and the
temperature checked before consumption, in order to avoid burns.
Eggs in their shell and whole hardboiled eggs should not be heated in microwave ovens
since they may explode, even after microwave heating has ended.
The oven should be cleaned regularly and any food deposits removed since they may
explode, even after microwave heating has ended.
Only use the temperature probe recommended for this oven. (For ovens provided with a
facility to use a temperature-sensing probe.)
The microwave oven must be operated with the decorative door open. (For ovens with a
decorative door.)
This appliance is intended to be used in household and similar applications such as:
staff kitchen areas in shops, offices, and other working environments; by clients in hotels,
motels, and other residential type environments; farm houses; bed and breakfast type
environments.
Care should be taken not to displace the turntable when removing containers from the
appliance. (For fixed appliances and built-in appliances being used equal or higher than
900mm above the floor and having detachable turntables. This is not applicable for
appliances with horizontal bottom hinged door.)
The appliance shall not be cleaned with a steam cleaner.
WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid
the possibility of electric shock.
The microwave oven is intended for heating food and beverages. Drying of food or
clothing and heating of warming pads, slippers, sponges, damp cloth, and similar may
lead to risk of injury, ignition, or fire.
WARNING: The appliance and its accessible parts become hot during use. Surface of
a storage drawer can get hot. Care should be taken to avoid touching heating elements.
Children less than 8 years of age shall be kept away unless continuously supervised.
Metallic containers for food and beverages are not allowed during microwave cooking.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass
since they can scratch the surface, which may result in shattering of the glass.
The appliance is intended to be used built-in.
The appliance must not be installed behind a decorative door in order to avoid
overheating. (This is not applicable for appliances with decorative door.)
4
important safety instructions
WARNING: When the appliance is operated in the combination mode, children should
only use the oven under adult supervision due to the temperatures generated.
Creation of sparks: Metal - e. g. a spoon in a glass - must be kept at least 2 cm from the
oven walls and the inside of the door. Sparks could irreparably damage the glass on the
inside of the door.
Water in the hot cooking compartment: Never pour water into the hot cooking
compartment. This will cause steam. The temperature change can cause damage.
Moist food: Do not store moist food in the closed cooking compartment for long periods.
Do not use the appliance to store food. This can lead to corrosion.
Cooling with the appliance door open: Only leave the cooking compartment to cool with
the door closed. Do not trap anything in the appliance door. Even if the door is only
slightly ajar, the fronts of adjacent units may be damaged over time.
Heavily soiled seal: If the seal is very dirty, the appliance door will no longer close
properly during operation. The fronts of adjacent units could be damaged. Always keep
the seal clean.
Operating the microwave without food: Operating the appliance without food in the
cooking compartment may lead to overloading. Never switch on the appliance unless
there is food in the cooking compartment.
Using the appliance door for standing on or placing objects on: Do not stand or place
anything on the open appliance door. Do not place ovenware or accessories on the
appliance door.
Transporting the appliance: Do not carry or hold the appliance by the door handle. The
door handle cannot support the weight of the appliance and could break.
Microwave popcorn: Never set the microwave power too high. Use a power setting no
higher than 600 watts. Always place the popcorn bag on a glass plate. The disc may
jump if overloaded.
Liquid that has boiled over must not be allowed to run through the turntable drive into the
interior of the appliance. Monitor the cooking process. Choose a shorter cooking time
initially and increase the cooking time as required.
WARNING
Visible bubbling or boiling when the container is removed from
the microwave oven is not always present. This could result in very
hot liquid suddenly boiling over when the container is disturbed.
USERS MANUAL
6
Electric Shock Hazard
Improper grounding can result in a risk of electric shock. Consult a qualified
electrician if the grounding instructions are not completely understood, or if doubt
exists as to whether the appliance is properly grounded.
Do not use an extension cord. If the power supply cord is too short, have a qualified
electrician install an outlet near the appliance.
Do not cut or remove the ground prong. It must be plugged into a matching
grounding type receptacle to avoid electrical shock. If there is any doubt as to
whether the wall receptacle is properly grounded, the check with a qualified
electrician.
Before installing, turn power OFF at the service panel. Lock service panel to prevent
power from being turned ON accidentally.
Be sure your appliance is properly installed and grounded by a qualified technician.
Installation, electrical connections and grounding must comply with all applicable
codes.
GROUNDING INSTRUCTIONS
Before you plug in an electrical cord or turn on power supply,
make sure all controls are in the OFF position.
WARNING
7
This appliance must be grounded. In the event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an escape wire for the electric current. This
appliance is equipped with a cord having a grounding wire with a grounding plug. The
plug must be plugged into an outlet that is properly installed and grounded.
WARNING:
Improper use of the grounding can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the grounding instructions are not
completely understood, or if doubt exists as to whether the appliance is properly
grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord
that has a 3-blade grounded plug, and 3-slot receptacle that will accept the plug on the
appliance. The marked rating of the extension cord shall be equal to or greater than the
electrical rating of the appliance.
DANGER:
Electric Shock Hazard
Touching some of the internal components can cause serious personal injury or death.
Do not disassemble this appliance. Improper use of the grounding can result in electric
shock. Do not plug into an outlet until appliance is properly installed and grounded.
A short power-supply cord is provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
Longer cord sets or extension cords are available and may be used if care is exercised
in their use.
If a long cord or extension cord is used:
The marked electrical rating of the cord set or extension cord should be at least
as great as the electrical rating of the appliance.
The extension cord must be a grounding-type 3-wire cord.
The longer cord should be arranged so that it will not drape over the counter
top or tabletop where it can be pulled on by children or tripped over
unintentionally.
GROUNDING INSTRUCTIONS
8
Before starting on the installation, prepare all the necessary tools and parts required
to install the microwave. This will save installation time and simplify the installation
process.
PARTS AND TOOLS
Philips head screws
1/8” drill bitPhillips screwdriver
Tape measure
Included
Not Included
Electric drill
9
Turntable
Food which particularly requires a lot of heat from underneath can be prepared directly
on the turntable.
The turntable can turn clockwise or anti-clockwise.
Place the turntable on the drive in the centre of the cooking compartment. Ensure that it is
properly fitted.
Never use the microwave without the turntable.
The turntable can withstand max. 5 kg.
The turntable must turn when using all types of heating.
Reversible rack included.
Face up for grilling.
Face down for baking and roasting.
ACCESSORIES
Grill Rack
10
General cabinet requirements:
1⁄4” (6.4 mm) space between the side of the
appliance and an adjacent wall or cabinet
door when installed at the end of a cabinet run.
The cabinet base must be flat and capable of
supporting the weight of your appliance when
in use. Figure 3
The appliance door will overlap the furniture
below by approx 3/16” (5 mm) when opened.
There must be an air gap of at least 0.24” (6
mm) between the appliance and the cabinet
walls when the appliance is installed, i.e. 0.12”
(3 mm) each side. Figure 2
PP
ç¼ʚ
ʎ¼ʚ
è¼ʚ
ʎ¼ʓʘ
ç¼ʓʘ
ç¼ʓʘ
è¼ʓʘ
ë
ë
PP
ëé
ʌ¼ʓʘ
Cabinet Dimensions
NOTICE: The cabinet base must be flat and
capable of supporting a weight of at least 142 lbs
(64.1 kg).
PP
ë
ʌ¼ʓʘ
Installation Requirements
Figure 1 Figure 2
Figure 3
Flush installation also requires:
Two side cleats to be attached inside the cabinet frame, recessed from the front
A 5/16” (8 mm) baseplate underneath the unit body.
Installation Requirements
PHDVXUHPHQWVLQLQFKHVPP
7RSYLHZ
6LGHYLHZ
ê
)OXVKLQVHW
GHSWK
ë
&OHDWV
&OHDWV
è¼ʓʘ
FOHDWV
ê
ë
RSHQLQJ
FXWRXW
KHLJKW
ʎ¼ʓʘ
IOXVK
FXWRXW
KHLJKW
EDVHSODWH
ʌ¼ʓʘ
èç¼ʓʘ
ë
èç¼ʓʘ
12
The outlet can be located anywhere within the shaded area. Anywhere within the shaded
area, the minimal distance between the appliance and the wall is 13⁄4 in (45 mm).
Electrical Requirements:
A three prong grounded outlet
120 V, 60 Hz, AC only
20 Amp electrical supply with a fuse or a circuit breaker
Electric Installation
This product must be connected to a supply circuit of the proper voltage and frequency.
Wire size must conform to the requirements of the National Electric Code or the prevailing
local code for this rating.
The power supply cord and plug should be brought to a separate 20-amp branch circuit
single grounded outlet. The outlet box should be located inside the cabinet above the
appliance.
The outlet box and supply circuit should be installed by a qualified electrician and
conform to the National Electrical Code or the prevailing local code.
The voltage used must be the same as specified on this microwave oven. Using a higher
voltage is dangerous and may result in a fire or oven damage. Using a lower voltage will
cause slow cooking.
The manufacturer is not responsible for any damages resulting from the use of the oven
with any voltage other than specified.
ê
Installation Requirements
Mode
MWO-
Connection Circuit
Requirements
NEMA 5-20 120 V,
60 Hz
20 Amps
-24
13

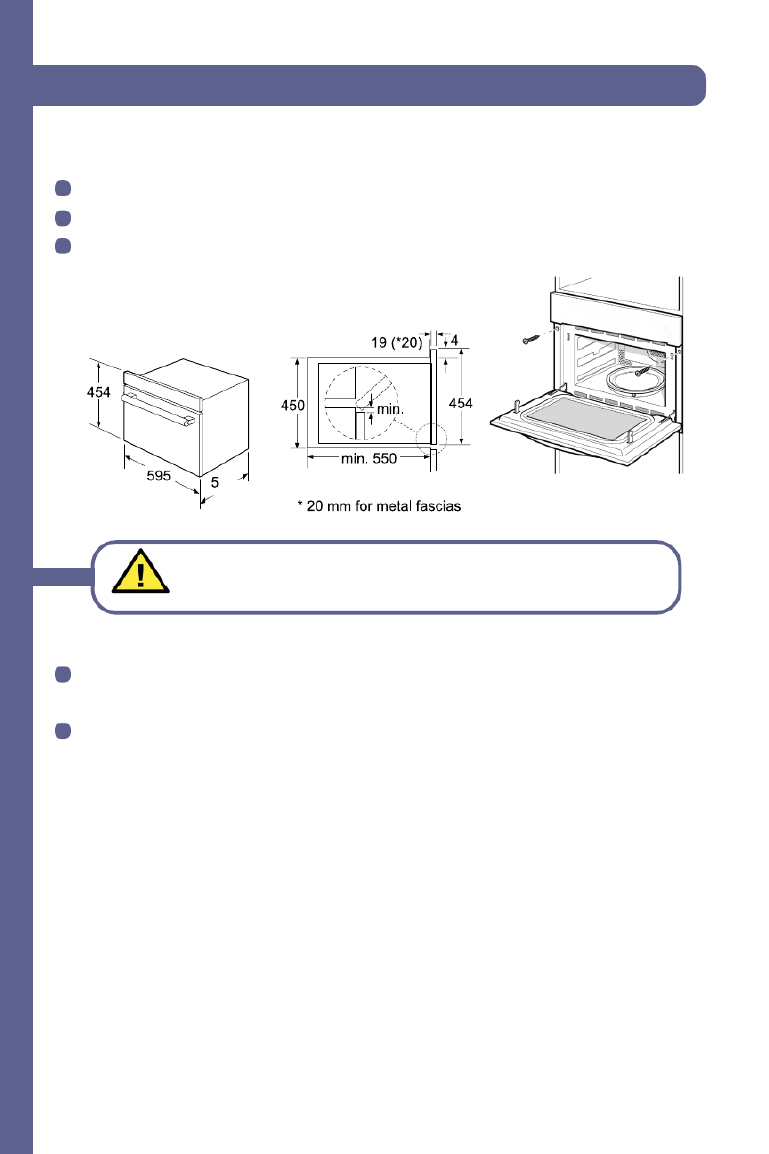

Building In
Carefully push the microwave into the cabinetry, making sure that it is in the center.
Do not kink the connecting cable.
Open the door and fasten the microwave with the screws that were supplied.
Electrical connection
The appliance is fitted with a plug and must only be connected to a properly installed
grounded socket.
Only a qualified electrician who takes the appropriate regulations into account may
install the socket or replace the connecting cable. If the plug is no longer accessible
following installation, an all-pole isolating switch must be present on the installation
side with a contact gap of at least 3 mm. Contact protection must be ensured by the
installation.
10
68
WARNING:
The gap between the worktop and the appliance must not be closed
by additional battens.
Installation Requirements
14
Install Appliance
The appliance is heavy. It is advisable to install it with a second person.
Mount to Cabinet
Fully insert the appliance and center it. Do not kink the electrical cable.
Screw the appliance into place.
Installation Requirements
WARNING:
The appliance is heavy. It is advisable to install it with a second
person.
15
Symbol
Function
Select Auto Defrost programs
Start cooking programs for frozen
convenience foods
Select Sensor Cook programs
Select Sensor Reheat programs
Cook popcorn
Heat beverages
Select pizza programs
Select auto menu programs
Set Broil modes (Hi/Lo)
Set power level for microwave
operation
Select pheheat programs
Use the number keys to enter
customized values
Confirm entered values/Start
cooking mode
Add 30 seconds
Clear entered value
/turn appliance off
Set time of day
Activate/deactivate child lock
Set Temp. or weight of cooking
Set cooking time
Heat beverages
Select Convection programs
Select 8 automatic programmes.
Set the weight of cooking.
Se . the of cooking
t etim
Auto menu
Weight
Time
Microwave
functionparameter
Select microwave power.100W,200W,
300W,400W,500W,600W,700W,800W
900W,1000W
Operation
16
Cooling fan
Your appliance has a cooling fan. The cooling fan switches on during operation. The hot
air escapes above the door.
The cooling fan continues to run for a certain time after operation.
The appliance remains cool during microwave operation. The cooling fan will still switch
on. The fan may run on even when microwave operation has ended.
Condensation may appear on the door window, interior walls and floor. This is normal
and does not adversely affect microwave operation. Wipe away the condensation after
cooking.
Select 8 automatic programmes.
Set the weight of cooking.
Se . the of cooking
t etim
Auto menu
Weight
Time
Microwave
S microwave power.100W,300W elect
500W,700W and 900W
WARNING
Do not cover the ventilation slots. Otherwise, the appliance will
overheat.
Operation
17
Operation
Setting the clock
1. Once the appliance is connected, “12:00” will be displayed as the time of day. To
set the correct time, proceed as follows:
2. Touch .Clock
3. Enter the correct time using the number keys.
Example: To set the clock to 12:41 type in 1 2 4 1.
4. Touch to confirm.Start/Enter
Heating up the oven
1. To remove the new oven smell, heat up the microwave when it is empty and closed.
One hour with Convection at 350°F (180°C) is ideal. Ensure that no packaging
remnants have been left in the oven cavity.
2. Touch once to enter bake mode.Convection
3. Enter the numbers with the number keys.3 5 0
4. Touch TEMP./ WEIGHT to adjust cooking time.
5. Enter the numbers with the number keys.6 0
6. Touch to start cooking.Start/Enter
7. The oven light turns on and the appliance starts heating.
Setting Convection mode
Example: Roast 350°F for 20 minutes
1. Touch twice to enter roast mode.Convection
2. Enter the numbers with the number keys.3 5 0
3. Touch TEMP./ WEIGHT to adjust cooking time.
4. Enter the numbers with the number keys.2 0
5. Touch to start cooking.Start/Enter
+30 seconds
+30 seconds
+30 seconds
18
Operation
Opening the oven door during operation
Operation is suspended. After closing the door, touch the key. Operation Start/Enter
continues.
Cancelling operation
1. Touch to cancel the active oven mode. The appliance turns off and the Clear/Off
clock is displayed.
2. The cooling fans may continue to run for awhile and then switch off automatically.
Rapid Preheating
1. With rapid preheating, your oven reaches the set temperature particularly quickly.
2. To ensure an oven cooking result, only put your food in the cooking compartment
when the preheating phase is complete.
3. Touch the PREHEAT key.
4. Enter the temperature setting with the number keys. The input temperature should be
within 100 to 450°F .
5. Touch the key. The oven begins to heat up.Start/Enter
The preheating process is complete
A signal sounds. Put your dish in the oven. Set the cooking mode you need.
Cancelling rapid preheating
1. During setting the rapid preheating function, touch the can cancel the Clear/Off
function.
2. During rapid preheating, touch can cancel the function. You can also Clear/Off
open the door to cancel the function.
+30 seconds
+30 seconds
Only when you can hear alarm and preheating icon is blinking you
can open the door and put food inside.
WARNING:
19
OPERATION
Suitable ovenware
Suitable dishes are heat-resistant ovenware made of glass, glass ceramic, porcelain,
ceramic or heat-resistant plastic. These materials allow microwaves to pass through.
You should only use ovenware with decorative gold or silver trim if the manufacturer
guarantees that they are suitable for use in microwaves.
Unsuitable ovenware
Metal ovenware is unsuitable. Metal does not allow microwaves to pass through. Food in
covered metal containers will remain cold.
Ovenware test
Do not switch on the microwave unless there is food inside. The following ovenware test
is the only exception to this rule. Perform the following test if you are unsure whether your
ovenware is suitable for use in the microwave:
Heat the empty ovenware at maximum power for 1⁄2 to 1 minute.
Check the temperature occasionally during that time.
The ovenware should still be cold or warm to the touch.
The ovenware is unsuitable if it becomes hot or sparks are generated.
WARNING:
Creation of sparks: metal – e.g. a spoon in a glass – must be kept
at least 2 cm from the oven walls and the inside of the door. Sparks
could destroy the glass on the inside of the door.
20
Microwave power settings
You can select from 11 different microwave power levels. If you do not set a power level,
the microwave will automatically operate at the highest power level 10.
The table below provides suggested power levels for various types of food that can be
prepared in the microwave.
Power
level
Microwave
output
Use for
‚‹
High
100% Boiling water
Cooking ground meat
Making candy
Cooking fresh fruit & vegetables
Cooking fish & poultry
Preheating browning dish
Reheating beverages
Cooking bacon slices
Š90% Reheating meat slices quickly
Saute onions,
celery & green peppers
‰80% All reheating
Cooking scrambled eggs
ˆ70% Cooking breads & cereal products
Cooking cheese dishes
Cooking muffins,
brownies & cupcakes
Cooking whole poultry
‡60% Cooking pasta
†50% Cooking meat
Cooking custard
Cooking spare ribs,
rib roast & sirloin roast
Operation
21
OPERATION
Setting the microwave
1. Enter the desired cook time with the number keys. The timer display will fill in from
right to left.
Example: To set a microwave time of 20 minutes and 30 seconds, enter the
numbers 2 0 3 0.
2. You can start microwave operation with the default power level 10 by touching
3. Start/Enter or you can set a different power level. Touch Power Level.
4. Enter the desired power level using the number keys.
5. Touch to start microwave operation. The microwave timer will start to Start/Enter
count down.
Express cooking
1. In waiting state, touch to start 100% microwave cooking in 1 to number keys 1 to 9
9 minutes.
2. If the door is closed, the oven will start to cook automatically after 2 seconds.
Change Power Level
1. You can change the power level at any time during microwave operation.
2. Touch Power Level.
3. Enter the desired power level with the number keys.
4. Touch . Microwave operation continues with the new power level.Start/Enter
…40% Cooking less tender cuts of meat
Reheating frozen packaged foods
„30% Thawing meat, poultry & seafood
Cooking small quantities of food
Finish cooking casseroles,
stew & some sauces
Melting chocolate
ƒ20% Softening butter & cream cheese
‚10% Softening ice cream
Raise yeast dough
Power
level
Microwave
output
Use for
0% Cooling down the food
+30 seconds
+30 seconds
+30 seconds
23
Automatic programmes
Setting a programme
1. When you have selected a programme, set the oven. The temperature selector must
be in the off position.
2. Touch .Auto menu
3. Touch repeatedly to scroll through all Auto menu .Auto menu
4. Touch the number keys to adjust weight of food.
5. Touch to start cooking.Start/Enter
Opening appliance door during operation
Opening the appliance door during operation will interrupt the current mode. Close the
appliance door and then touch to resume operation.Start/Enter
Cancel operation
Touch to cancel the active oven mode. The appliance turns off and the Clear/Off
clock is displayed. The cooling fans may continue to run for awhile and then switch off
automatically.
+30 seconds
+30 seconds
Auto Menu
Program Weight range Food placement
1 - Chicken Breasts 0.5 - 3.0 lbs Wire rack,
facing down
2 - Chicken Thigh 0.5 - 3.0
3 - Whole Poultry 1.5 - 4.5 lbs Turntable
4 - Beef Roast 0.5 - 3.25 lbs
5 - Pork Tenderloin 1.0 - 3.0 lbs
6 - Pork Chops 0.5 - 3.0 lbs
7 - Meatloaf 1.0 - 3.25 lbs
8 - Fish Fillets 0.5 - 2.0 lbs
Wire rack,
facing down
Turntable
Wire rack,
facing down
Turntable
Wire rack,
facing down
Wire rack,
facing down
lbs
OPERATION
25
Popcorn
The popcorn feature lets you pop 3 different bag sizes of commercially packaged
microwave popcorn. Use the following table to determine the setting to use:
NOTE: Popcorn times may vary by brand and/or type.
Setting Popcorn mode
1. The appliance must be turned off.
2. Touch The cook time is displayed.Popcorn.
3. Touch repeatedly or touch number key 1 to 3 to choose the desired weight.Popcorn
4. Touch .Start/Enter
5. The microwave timer starts counting down.
6. When the microwave time has elapsed, a beep will sound. The appliance turns off
and the clock is displayed.
Beverage
The beverage feature heats 0.5 to 2 cups of a beverage. Use the table below to
determine the setting to use.
Bag size Touch Popcorn key
1.2 oz. once
2.5 oz. twice
3.5 oz. 3 times
Amount Touch Beverage key
0.5 cups (about 4 oz.) once
1 cup (about 8 oz.) twice
1.5 cups (about 12 oz.) 3 times
2 cups (about 16 oz.) 4 times
WARNING:
Do not leave oven unattended while popping corn. Popcorn may
ignite and cause fire.
+30 seconds
OPERATION
26
Setting Beverage mode
1. Touch Beverage. The cook time is displayed.
2. Touch Beverage number key 1 to 4 repeatedly or touch to choose the desired
amount.
3. Touch Start/Enter.
4. The microwave timer starts counting down. When the microwave timer has elapse, a
beep will sound. The appliance turns off and the clock is displayed.
Frozen Foods
Setting Frozen Foods
1. The appliance must be turned off.
2. Touch Frozen Foods.
3. You can change the temperature by using the number keys. You can enter a
temperature between 200 and 450° F (100 - 230°C).
4. Touch TEMP./WEIGHT to adjust cooking time.
5. Touch to start cooking.Start/Enter
Opening appliance door during operation
Opening the appliance door during operation will interrupt the current mode. When you
close the appliance door, operation will be resumed.
Cancel operation
1. Touch to cancel the active oven mode. The appliance turns off and the Clear/Off
clock is displayed.
2. The cooling fans may continue to run for awhile and then switch off automatically.
+30 seconds
+30 seconds
Operation
Produkt Specifikationer
| Mærke: | ZLine |
| Kategori: | Ovn |
| Model: | AWS-30-BS |
Har du brug for hjælp?
Hvis du har brug for hjælp til ZLine AWS-30-BS stil et spørgsmål nedenfor, og andre brugere vil svare dig
Ovn ZLine Manualer
10 Januar 2025
30 August 2024
30 August 2024
29 August 2024
29 August 2024
29 August 2024
29 August 2024
29 August 2024
29 August 2024
29 August 2024
Ovn Manualer
- Miele
- Mx Onda
- Haier
- Veripart
- Conrad
- Maytag
- Hestan
- InAlto
- Navitel
- Liebherr
- Sauber
- PITSOS
- Milectric
- Kitchenware
- Leonard
Nyeste Ovn Manualer
29 Juli 2025
29 Juli 2025
28 Juli 2025
28 Juli 2025
28 Juli 2025
28 Juli 2025
28 Juli 2025
28 Juli 2025
28 Juli 2025
28 Juli 2025
