FUNCTION

INSTALLATION

(Link by Bolt on Valve)

THIS FILTER OPERATES UNDER HIGH PRESSURE. WHEN ANY PART OF THE CIRCULATING

SYSTEM (e.g., CLAMP, PUMP, FILTER, VALVES, ETC.) IS SERVICED, AIR CAN ENTER THE

SYSTEM AND BECOME PRESSURIZED . PRESSURIZED AIR CAN CAUSE THE LID OR VALVE TO

BE BLOWN OFF WHICH CAN RESULT IN SEVERE INJURY, DEATH, OR PROPERTY DAMAGE

TURN PUMP OFF BEFORE CHANGING VALVE POSITION.

WARNING

4-4

TO PREVENT DAMAGE TO THE PUMP AND FOR PROPER OPERATION OF THE SYSTEM,

CLEAN PUMP STRAINER AND SKIMMER BASKETS REGULARLY.

FILTER

BACKWASH

RINSE

WASTE

RECIRCULATE

CLOSED

Valve Position

Normal Filtration and Vacuuming

Cleaning Filter by reversing the flow

Used after backwash to flush dirt from valve

By-passes filter, used for vacuuming to waste or lowering water level

By-passes filter for circulating water to pool

Shuts off all flow to filter or pool

Function

DO NOT UNSCREW SCREWS OF FLANGE CLAMP WHILE PUMP IS RUNNING.

ZOFI09081122

FUNCTIONS OF VALVE POSITIONS

WASTE

FILTER

BACKWASH RINSE

WASTE

RECIRCULATE

CLOSED

WASTE WASTE

WASTE WASTE WASTE

IN FLOW OUT FLOW IN FLOW OUT FLOW IN FLOW OUT FLOW

GENERAL

TO ASSEMBLE:

SERVICING VALVE( Stop pump,close gate valve in suction&discharge before proceeding):

a. Set handle in filter position. b. Remove cover screws. c. Lift cover and key assembly out.

1. Place valve key so that wedge opening is at TOP port (handle in Filter psn.). Flat edge of cover screw lug should align with

flat edge of body screw lug.

2. Position cover o’ring.

3. Secure assembly to body with cover screws. Tighten cover screws evenly and alternately. Do not over-tighten.

The filter uses special filter sand to remove dirt particles from pool water. The filter sand is loaded into the filter tank and functions as

a permanent dirt removing media. When the control valve is in the FILTER position, the pool water which contains suspended dirt

particles, is pumped through your piping system and is automatically directed by the patented filter control valve to the top of the filter

tank. As the pool water is pumped through the filter, dirt particles are trapped by the sand bed, and filtered out. The cleaned pool water is

returned from the bottom of the filter tank, through the control valve and back to the pool through the piping system. This entire sequence

is continuous and automatic. It provides for total recirculation of pool water through your filter and piping system.

After a period of time, the accumulated dirt in the filter causes a resistance to flow, and the flow diminishes. This means it is time to

clean your filter. With the control valve in the BACKWASH position, the water flow is automatically reversed through the filter so that it

is directed to the bottom of the tank, up through the sand, flushing the previously trapped dirt and debris out the waste line. Once the filter

is back-washed of dirt, set control valve to RINSE position and run pump for about 1/2 to 1 minute, and then set the control valve in the

FILTER position, to resume normal filtering.

NOTE: Turn pump off before changing valve position.

Only simple tools (screwdriver and wrenches), plus pipe sealant for plastic adapters, are required to install and

service the filter.

1. The filter should be placed on a level concrete slab, very firm ground, or equivalent. The filter should be placed

2. Loading the sand media. Filter sand media is loaded through the top opening of the filter.

a. Loosen the flange clamp and remove filter control valve (if previously installed).

b. Cap internal pipe with plastic cap to prevent sand from entering it.

c. We recommend filling the tank approximately 1/2 way with water to provide a cushion effect when the filter

d. Carefully pour in correct amount and grade of filter sand. (Be sure center pipe remains centered in opening.)

internal pipe.

in the right position so that the piping connections, control valve are convenient and accessible for operation and service.

sand is poured in. This helps protect the under-drain laterals from excessive shock.

Sand surface should be leveled and should come to about the middle of the filter tank. Remove plastic cap from

TITAN SERIES SAND FILTER

ZT800, ZT900Models:ZT700B,

2-4

3. Assemble filter control valve into the filter tank.

a. Insert filter control valve (with o'ring in place) into the tank neck, taking care that the center pipe slips into the hole

b. Place two plastic clamps around valve flange and tank flange and tighten just enough so that the valve may be

d. Connect pump to control valve opening marked PUMP. After connections are made, tighten valve flange clamps with

plumbing connections, suction lines to pump, waste, etc.

5. Make electrical connections to pump per pump instructions.

6. To prevent water leakage, make sure all pipe connections are tight.

4. Make return to pool pipe connection to control valve opening marked RETURN and complete other necessary

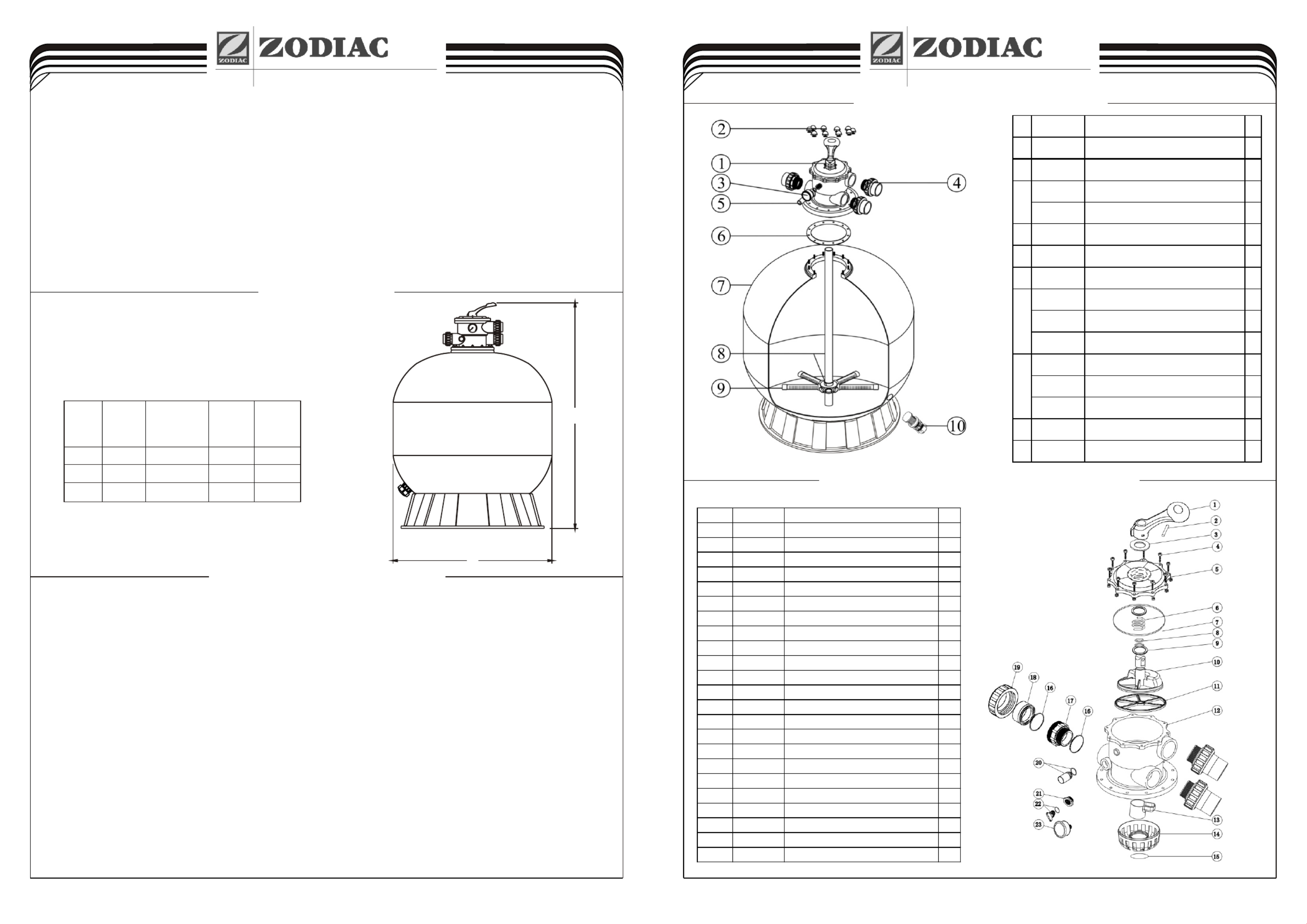

MAIN DIMENSION

in the bottom of the valve.

rotated on tank for final positioning.

c. Carefully screw pressure gauge (with o'ring in place) into tapped hole in valve body. Do not over-tighten.

screwdriver, tapping around clamp with screwdriver handle to help seat valve flange clamp.

REPLACEMENT PARTS OF FILTER

3-4

1. Make sure the correct amount of filter media sand is located in the tank and all connections have been connected and secured.

2. Depress control valve handle and rotate to BACKWASH position. (To prevent damage to control valve seal, always depress handle

before turning.)

3. Prime and start pump according to pump instructions (be sure all suction and return lines are open), allowing the filter tank to fill with

water. Once water is flowing out of the waste line, run the pump for at least 1 minute. The initial back-washing of the filter is

recommended to remove any impurities or fine sand particles in the sand media.

4. Turn pump off and set valve to RINSE position. Start pump and operate until water in sight glass is clear, about 1/2 to 1 minute. Turn

pump off and set valve to FILTER position and restart pump. The filter is now operating in the normal filter mode, filtering dirt particles

from the pool water.

5. Adjust pool suction and return valves to achieve desired flow. Check system and filter for water leaks and tighten connections, bolts, nuts,

as required.

6. Note the initial pressure gauge reading when the filter is clean. (It will vary from pool to pool depending upon the pump and general piping

system.) As the filter removes dirt and impurities from the pool water, the accumulation of dirt in the filter will cause the pressure to rise

and diminish the water flow. When the pressure gauge reading is 1.5 bar, higher than the initial "clean" pressure you noted, it is time to

backwash the filter (see BACKWASH under filter and control valve functions).

NOTE: During initial clean-up of the pool water it may be necessary to backwash frequently due to the unusually

INSTALL/START-UP OF FILTER

heavy initial dirt load in the water.

DIMENSION TABLE

REPLACEMENT PARTS OF MULTIPORT VALVE

Item Part No. Description Qty

1 W01013003 Handle (Big) 1

2 W03018008 Pin for Handle 1

3 W01181027 Washer for Handle 1

4 W89280301 M6*32 Screw with Nut 10

5 W01013019 50mm Top Mount Valve Standard Lid (Black) 1

6 W03014014 Spring for 50mm Top Mount Valve 1

7 W02011006 O-Ring for 50mm Top Mount Valve Lid 1

8 W02011022 O-Ring for 50mm Top Mount Valve Rotor 2

9 W01181002 Washer for Spring 2

10 W01021002 50mm Valve Rotor 1

11 W02311003 Spider Gasket 1

12 W01013027 50m m Top Mount Valve Bottom Body (black) 1

13 W01013029 50mm Water Tube 1

14 W01013030 50mm Diffuser 1

15 W02011005 O-Ring for Diffuser 1

16 W02011007 O-Ring for Connector 6

17 W01013031 50m m Connector with External Thread (Black) 3

18 W01171154 50mm Union Adaptor 3

19 W01013032 50mm Union Nut (Black) 3

20 W89280104 Sight Glass with O-Ring 1

21 W01111048 Connector for Pressure Gauge/Stopper 1

22 W89021703 Drain Plug with O-ring 1

23 W06011009 Oil Pressure Gauge With O-ring (50psi) 1

Model

High Diameter

Valve Port

Size Sand

1300

1200

V900

V800 800

900

350

25050

1092V700B 723

21550

Item Part No. Description Qt y

1 W88280306 50mm Top Mount Valve 1

2 W89010601 Nut with O-Ring 1

W06011009 Oil Pressure Gauge With O-ring (50 psi) 1

W01111048 Connector for Pressure Gauge/Stopper 1

4 W89280103 50mm Union set (3 pieces) with O-Ring 3

5 W89280104 Sight glass with O-Ring 1

6 W02011126 Filter Neck Gasket 1

W89010612 ZT700B Filter Tank With Base 1

W89010603 ZT800 Filter Tank With Base 1

W89010604 ZT900 Filter Tank With Base 1

W89010611 ZT700B Lateral Assembly With Center Pipe 1

W89010607 ZT800 Lateral Assembly With Center Pipe 1

W89010608 ZT900 Lateral Assembly With Center Pipe 1

9 W01172010 ZT800-ZT900 Laterals (185mm) 8

10 W89010107 Water Drain Set 1
