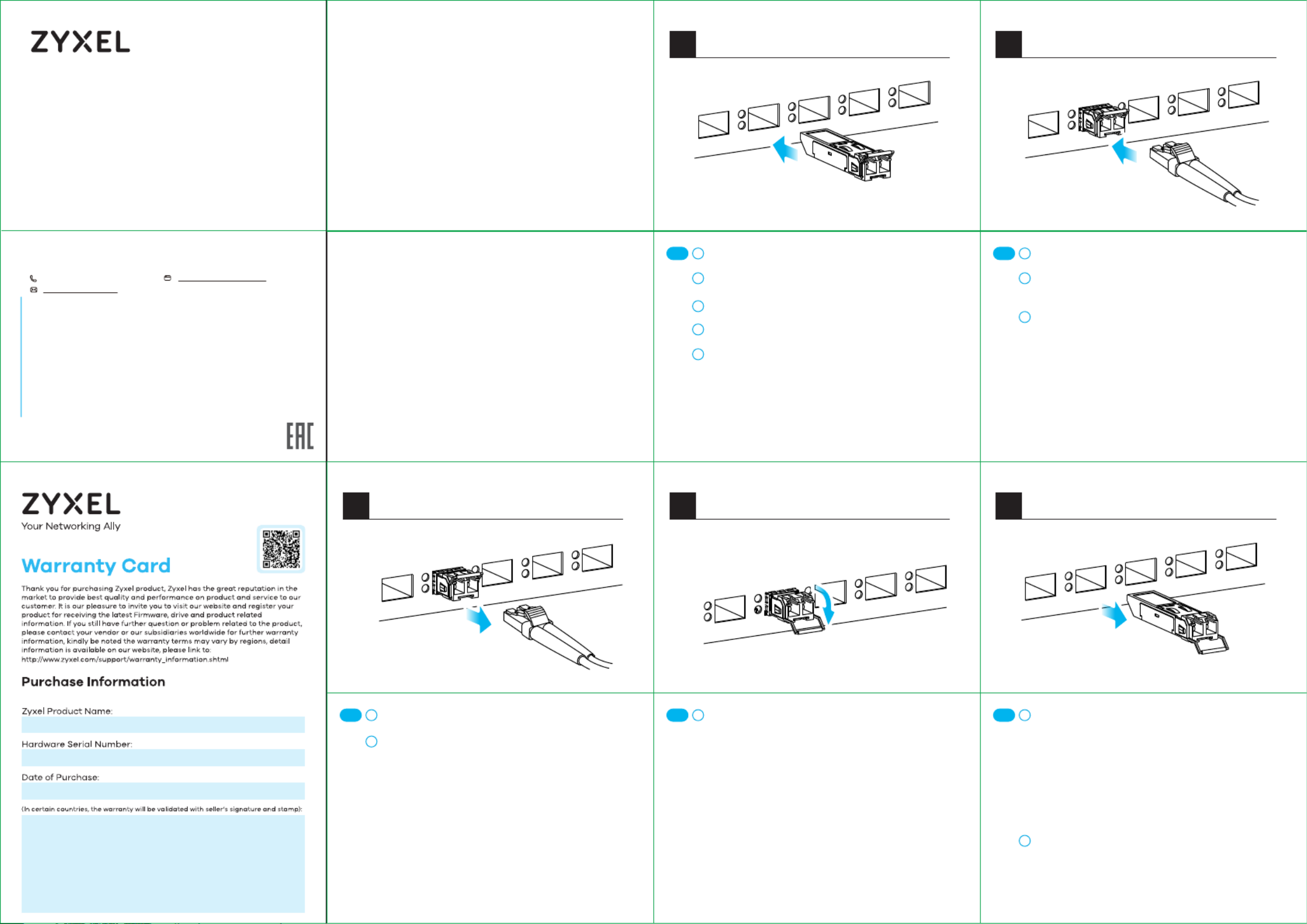

SFP and SFP+ Transceivers

User’s Guide

Removing Fiber-optic Cable

Attach an ESD preventive wrist strap to your

wrist and to a bare metal surface on the chassis.

Disconnect all ﬁber-optic cables from the

SFP/SFP+ module.

Installing a Module 1

Attach an ESD preventive wrist strap to your

wrist and to a bare metal surface.

Remove the module from its protective packag-

ing.

Locate the transmit (Tx) and the receive (Rx)

markings on the module.

Align the module in front of the slot opening on a

device.

Make sure the latch is in the lock position, then

insert the module into the slot until the module

snaps into place.

Note : Module installation orientation varies

depending on your device. Your module comes

with a mechanism that prevents incorrect

insertion. Do NOT force or twist the module into a

slot.

Connecting a Fiber-optic Cable 2

Remove the dust plugs from the module and

cables.

Identify the signal transmission direction of the

ﬁber-optic cable and the module. Insert one end

of the ﬁber-optic cable into the module.

Insert the other end of the ﬁber-optic cable into a

remote device.

Note : Refer to the user’s guide that comes with

your device for module slot status.

Introduction

EU Importer

Zyxel Communications A/S

Gladsaxevej 378, 2. th. 2860 Søborg, Denmark

https://www.zyxel.com/dk/da/

US Importer

Zyxel Communications, Inc

1130 North Miller Street Anaheim, CA 92806-2001

https://www.zyxel.com/us/en/

Removing a Module

Unlocking a Module

Pull out the latch and down to unlock a module. Pull the latch, or use your thumb and index ﬁnger

to grasp the tabs on both sides of the module,

and carefully slide it out of the slot.

Note : Do NOT force or twist the module out of a

slot. If the module will not slide out, grasp the

tabs on both sides of the module with a slight

up/down motion and carefully slide it out of the

slot. If unsuccessful, contact Zyxel Support to

prevent damage to your Zyxel Device and

module.

Insert the dust plug into the ports on a module.

Use a transceiver module for connection to a remote device. SFP

and SFP+ transceiver modules are hot swappable. You can install

and remove a module while your device is operating.

SFP/SFP+ modules both use 3.3V power input and LC-type

connectors.

SFP/SFP+ modules support data rate of 100M/1G/10G bps and

single-mode/multi-mode connection based on its speciﬁcation.

Handling Warning

All modules are static sensitive. To prevent damage from

electrostatic discharge (ESD), it is recommended you attach an ESD

preventive wrist strap to your wrist and to a bare metal surface

when you install or remove a module.

All modules are dust sensitive. When not in use, always keep the

dust plug on. Avoid getting dust and other contaminant into the

optical bores, as the optics do not work correctly when obstructed

with dust.

Safety Warning

All modules are equipped with a Class 1 laser, which emits invisible

radiation. Read the following safety warnings carefully.

•To avoid possible eye injury, do not look into an operating

ﬁber-optic module’s connectors.

•Laser radiation is present when the device or system is powered

up.

•Only trained and qualiﬁed personnel should be allowed to install or

replace these modules.

Environmental Warnings

•Dispose of your ﬁber-optic module according to all national laws

and regulations.

...warranty must be validated with the seller's ....

See the Zyxel website for a list of supported transceivers.
