Side 1/2

Acer LCD Monitor Quick Start Guide (QSG)

Important safety instructions

Please read the following instructions carefully.

1. To clean the LCD monitor screen: Be sure that your monitor is electrically rated to operate with the adapter available in your

location.

• Turn off the LCD monitor and unplug the adapter.

• Spray a non-solvent cleaning solution onto a rag and clean the screen gently.

..EESSAACC RROO NNEEEERRCCSS EEHHTT OOTTNNOO YYLLTTCCEERRIIDD DDIIUUQQIILL YYNNAA RRUUOOPP RROO YYAARRPPSS RREEVVEENN•

..EESSAACC RROO NNEEEERRCCSS YYAALLPPSSIIDD DDCCLL EEHHTT NNOO SSRREENNAAEELLCC DDEESSAABB--LLOOHHOOCCLLAA RROO AAIINNOOMMMMAA YYNNAA EESSUU TTOONN OODD EESSAAEELLPP •

• will not be liable for dama ge resulting fAcer rom use of any a mmonia or alcohol-based eaners.cl

2. Do not place the LCD monitor ear a window. Exposing the monitor to rain, moisture or sunlight can severely damage it. n

3. Do not apply pressure to the LCD screen. Excessive pressure may cause permanent damage to the display.

4. Do not remove the cover or attempt to service this unit yourself. An authorized technician sho d perform servicinul g of any

nature.

5. Store the LCD monitor in a room with a temperature of -20 60° C (-4° to140° F). Storing the LCD monitor outside this ran° to ge

may result in permanent damage.

6. Immediately unplug your monitor and call an authorized technician if any of the following circumstances occur:

• - Monitor t C signal cable is frayed or damaged. o-P

• Liquid spills onto the LCD monitor or the monitor is exposed to rain.

• The LCD monitor or case is damaged.

Package contents

ttaching the monitor to the bas

HDMI DC-19V

DP Audio Out

1. Remove the monitor, stand and base from the packaging.

2. Assemble the stand with base, rotating the stand in an anticlockwise direction. A clicking sound signifies that the

stand has been securely attached to the base.

3. Assemble the monitor with the stand and base. A clicking sound signifies that the monitor has been securely

attached to the base.

Connecting Your Monitor to a Computer

Turns the monitor on/off.

Blue indicates power on. Orange indicates standby/power

saving mode.

External Controls

No. Icon Item Description

1Mode/Exit

2Brightness/

Enter

Input/-

4 Menu/+

5 POWER Power button

LCD monitor Quick start guide DP cable HDMI cable

(Optional)(Optional) AC Power cord AC Adapter

1. Turn off your monitor and unplug your computer’s power cord.

2. 2-1Connect HDMI Cable ( nly HDMI-input model)O

a.Make sure both the monitor and computer are powered-OFF.

b.Connect the HDMI cable to the computer.

2-2Connect DP Cable (Only DP-input model)

a.Make sure both the monitor and computer are powered-OFF.

b.Connect the DP cable to the computer.

3. Connect the Audio Cable. (Only Audio-out Model) (Optional)

4. Insert the monitor power cable into the power port at the back of the monitor.

5. Plug the power cords of your computer and your monitor into a nearby electrical outlet.

a. Press to view Main page. Press again to enter mode select

function.

b. When the Function Menu is active. Press to return previous

Menu or exit current Menu.

a. Press to view Main page. Press again to enter brightness

adjustment function.

b. When the Function Menu is active, this button will enter a

selection in the OSD.

a. Press to view Main page. Press again to enter Input select

function.

b. When the Function Menu is active, press this button selected

or move to the previous function.

a. Press to view Main page. Press again to enter next function

in the Function Menu.

b. When the Function Menu is active, press this key selected or

move to the next function.

1 2 3 4 5

LCD Monitor EK1 series-EK241QK

Regulations and safety notices

CE declaration of Conformity

Hereby, Inc., declares that this LCD monitor is in compliance with the essential requirements and otherAcer

relevant provisions of EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, and RoHS Directive 2011/65/EU and Directive

2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

Notice:

In order to prevent damage to the monitor, do not lift the monitor by its base.

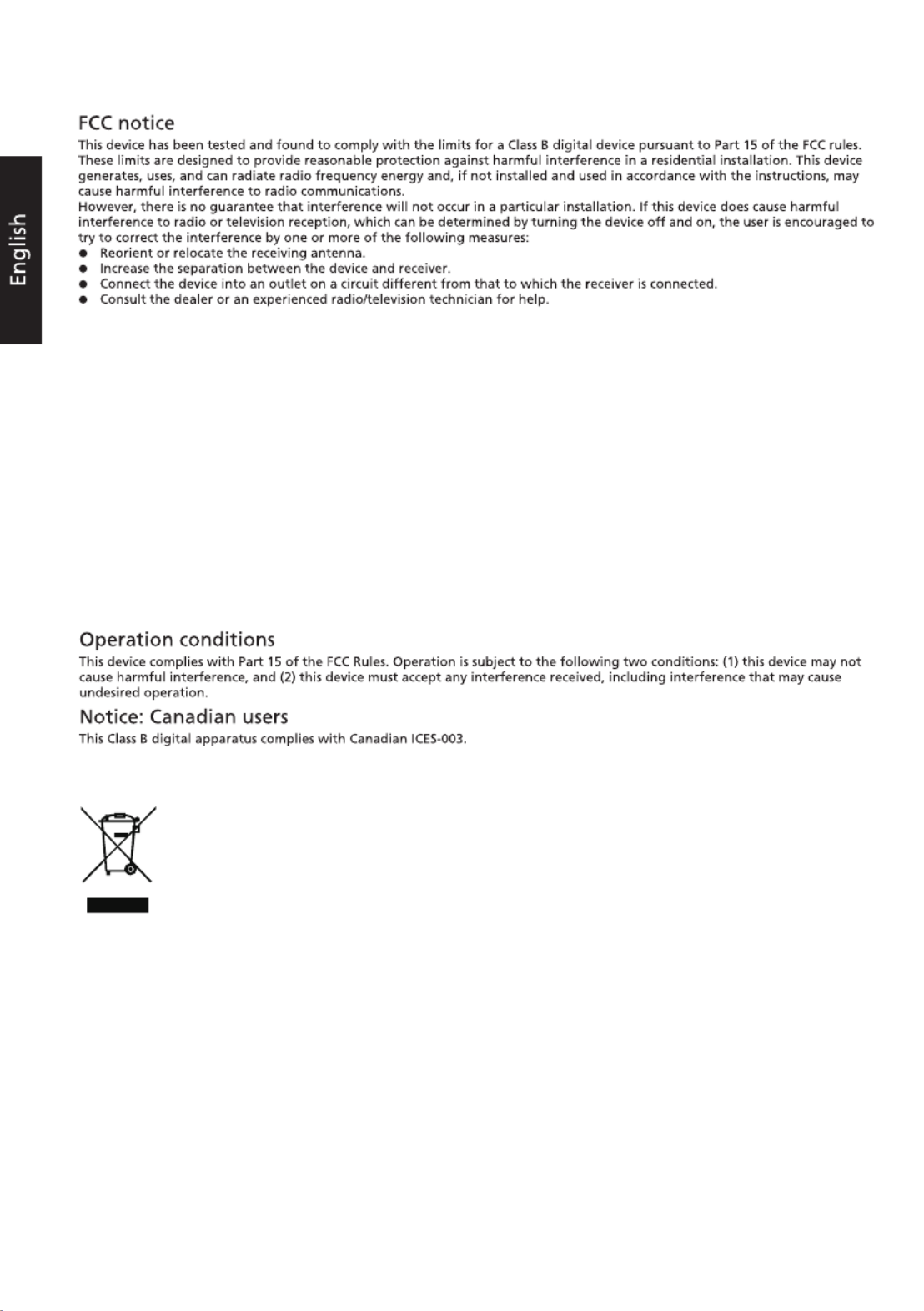

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with EMC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this

equipment. Operation with non-certified peripherals is likely to result in in terference to radio and TV reception.

Caution

Changes or modifications not expr essly approved by the manufacturer could void the user authority, which is granted by the

Federal Communications Commissi on, to operate this product.

Disposal of Waste Equipment by Users in Private Household in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other

household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a

designated collection point for the recycling of waste electrical and electronic equipment. The separate collection

and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure

that it is recycled in a manner that protects human health and the environment. For more information about

where you can drop off your waste equipment for recycling, please contact your local city office, your household

waste disposal service or the shop where you purchased the product.

Acer monitor is purposed for video and visual display of information obtained from electronic devices.

Produkt Specifikationer

Mærke:	Acer
Kategori:	Skærm
Model:	EK241QK
Produktfarve:	Sort
Skærm diagonal:	23.6 "
Skærmopløsning:	3840 x 2160 pixel
Berøringsskærm:	Ingen
HD-type:	4K Ultra HD
Skærmteknologi:	LED
Naturligt aspektforhold:	16:9
Responstid:	4 ms
Skærm form:	Flad
Skærm diagonal (metrisk):	59.9 cm
Antal HDMI-porte:	1
VESA montering:	Ja
Panel montering grænseflade:	100 x 100 mm
Strømforbrug (standby):	0.85 W
Strømforbrug (typisk):	36 W
Bredde (uden stativ):	540 mm
Dybde (uden stativ):	192 mm
Højde (uden stativ):	400 mm
Vægt (uden stativ):	3050 g
Bredde (med stativ):	540 mm
Dybde (med stativ):	192 mm
Højde (med stativ):	400 mm
Vægt (med stativ):	3350 g
Markedspositionering:	Hjem
Strømforbrug (slukket):	0.42 W
Kabler inkluderet:	AC,HDMI
Pakketype:	Kasse
Energiforbrug (SDR) pr. 1000 timer:	26 kWh
Strømforbrug (maks.):	41 W
Energieffektivitetsklasse (SDR):	G
Energiforbrug (HDR) pr. 1000 timer:	- kWh
Energieffektivitetsskala:	A til G
HDMI:	Ja
Paneltype:	IPS
Farvedybde:	10 Bit
Vis antal farver:	1.073 milliarder farver
Maksimal opdateringshastighed:	60 Hz
Skærmens lysstyrke (typisk):	- cd/m²
Kontrastforhold (typisk):	1000:1
Kontrastforhold (dynamisk):	100000000:1
Horisontal scanningsområde:	15 - 204 kHz
NTSC-dækning (typisk):	72 %
Antal DisplayPorts:	1
Udgang til hovedtelefoner:	Ja
Stativ inkluderet:	Ja
Vertikalt scanningsområde:	40 - 60 Hz
Kode for europæisk produktregister for energimærkning (EPREL):	393886
