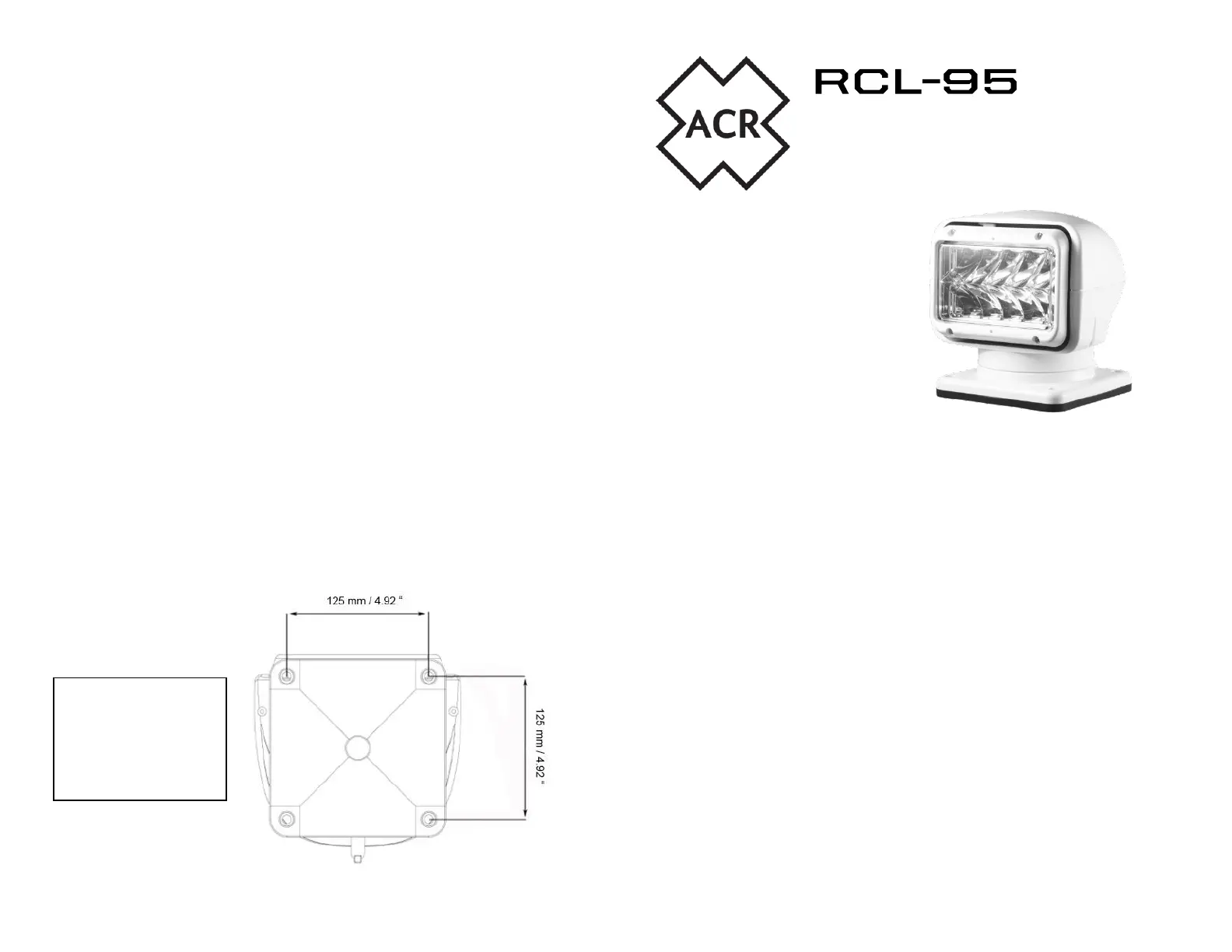

Y1-03-0348 Rev. B
SAFETY NOTICE:
◎ If replacing LED module, the LED module connector should be
connected correctly for positive and negative wires.
RED and BLUE: Positive (+)
BLACK and BROWN: Negative (-)
◎ FCC RULE Part. 15.21：Changes or modifications not expressly
approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
◎ This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
◎ This searchlight is a Radio Frequency (RF) device which operates on
Channel 433.92 MHz. It will send out RF energy when it is in operation.
1. RF energy may affect some electronic equipment.
2. Some electronic equipment on vehicles or boats may be affected by
RF energy.
Contents Included in the RCL-95 Box:
• RCL-95 Searchlight / Mounting Screw Set & Mounting Template
• Handheld Wireless Remote Control
• Wired Joystick Controller & Cable
INSTALLATION:
Multi-Function
Motorized LED Searchlight
TECHNICAL MANUAL
FEATURES:
360° Continuous Rotation & 135° Tilt
Programmable Wireless Handheld
Remote Control
UV Ray and Saltwater Resistant
Automatic return to home position
when searchlight is turned off*
*Important Notice: If searchlight DC
power is disconnected (wires
disconnected from battery or power
supply switched off), after
reconnecting to power, make sure to turn on the searchlight using the
wireless or wired remote, to make a full 360° rotation, in order to reset the
home position memory.
SPECIFICATIONS:
Housing Color: Black (p/n 1959) / White (p/n 1958)
Performance: 360° Continuous Rotation / 135° Tilt
LED Module:
Lamp: 10 OSRAM High Power LEDs
Wattage: 50W
Luminous intensity: 460,000 Candelas
Color Temperature: 5,700-6,000K
Beam distance: 4501 ft (1372m)
Beam Pattern: Spot
Energy Efficient: 4 Amps (12V) to 2 Amps (24V)
Cast Aluminum Heat Sink & Hardened Polycarbonate Lens
IP 68 LED Module / IP 56 Housing
Radio Frequency: 433.92 MHz
Wireless Remote Operation Distance: 213 ft. (65m)
Power: 12V-24V (Multi-voltage)
Weight: 4.2 lbs / 1.9 Kgs
Approvals: FCC / CE / R10
Working Environment: -30°C (-22°F) to +70°C (+158°F)
Caution:
Do not mount the
searchlight upside
down to prevent
inadvertent entry of
moisture
Y1-03-0348 Rev. B
OPERATION:
1. Press on/off button to Switch on or off searchlight.
Change direction of the light beam by pressing the direction buttons.
2. Utilize the Function button to switch speed
HANDHELD WIRELESS REMOTE PROGRAMMING:
1. Switch off DC Power or disconnect from battery.
2. Make sure there is NO other transmitter
operating at the same time.
3. Switch on DC power, within 5 seconds press
remote up ▲ and down ▼button once
simultaneously.
4. Searchlight will flash to acknowledge the
remote. Connection has been made.
5. Up to 4 remotes may be used with the
searchlight (programming a fifth remote will
replace the first). To program a second
remote, within five seconds of programming
the first remote, press the second remote’s up
and down button once simultaneously. Repeat
to program additional remotes.
Wireless Remote Battery: 2x 23A batteries (included)
OPTIONAL ACCESSORIES:
• Wireless Dash Mount Remote (p/n 9635)
• RCL-95 Replacement Mounting Plate for GOLIGHT® (p/n 9639)*
• RCL-95 16.4’ (5m) Extension Cable (p/n 9638)
*This retrofit kit can be used when replacing GOLIGHT® Stryker or RadioRay
searchlights with the ACR RCL-95 Searchlight. Note: This kit will not work for
the RadioRay portable version (GOLIGHT is a registered trademark of
GOLIGHT, Inc.)
DASH MOUNT WIRED JOYSTICK INSTALLATION:
Up
Button
Down
Button
Left
Button
Right
Button
Fn
.
Dual speed (Fast / Slow)
