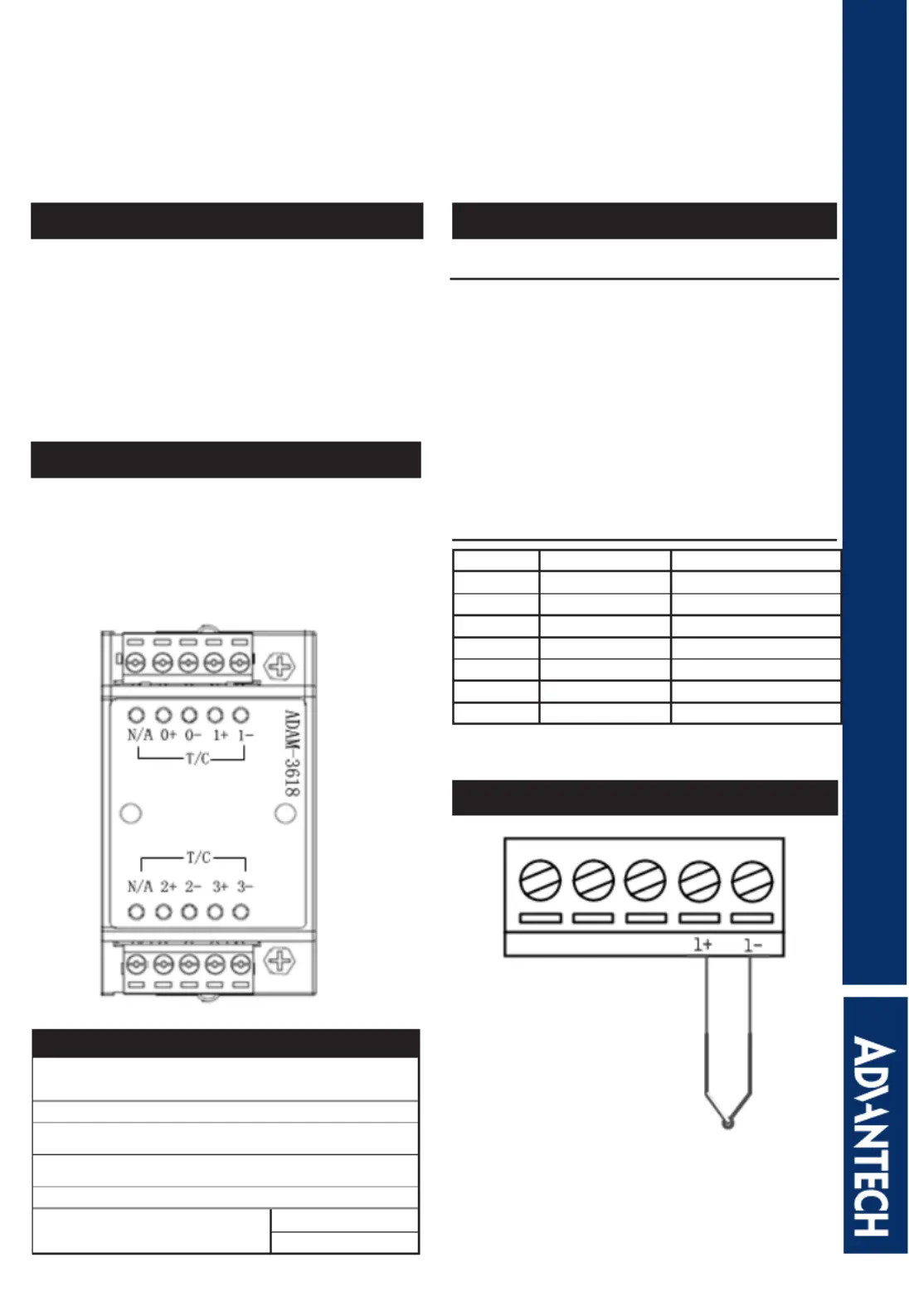

Startup Manual 1

Packing List

Before installation, make sure that you have

received the following:

•

ADAM-3618 Product

• ADAM-3618 Startup Manual

If anything is missing or damaged, contact your

distributor or sales representative immediately.

Specications

System Functions

• Analog Input Channels: 4 differential

• Input Types: J, K, T, E, R, S, B

Type Thermocouple

• Resolution 16-bit

• Accuracy Refer to below

• Isolation Voltage 2000 V

• Burn-out Detection Yes

• Power Consumption 1w

• Operation Temp. -40 ~ 70°C

• Warranty 2 years

Notes

For more information on this and other Advantech

products, please visit our websites at:

http://www.advantech.com

For technical support and service:

http://www.advantech.com/support/

This startup manual is for ADAM-3618

Part No: 2003A61800 1st Edition

May 2016

STARTUP MANUAL

ADAM-3618

4-ch Thermal Couple Module

Application Wiring

Overview

As ADAM-3600 Extension I/O, ADAM-3618 is a

16-bit, 4-channel analog input module that pro-

vides temperature signal acquisition. This module

is extremely cost-effective solution for industrial

measurement and monitoring applications

Caution:

When connecting jumpers or installing the card, you should disconnect the power to prevent surges

damaging sensitive electronic components.

Type Range Accuracy @ 25°C

0~760 2.5°C°C ±

K 0~1370°C

±2.5°C

T -100~400°C

±2 °C

E 0~1000°C

±2.5°C

R 500~1750°C

±2.5°C

S 500~1750°C

±2.5°C

B 500~1800°C

±3°C

TC type range & Accuracy

2 Startup Manual

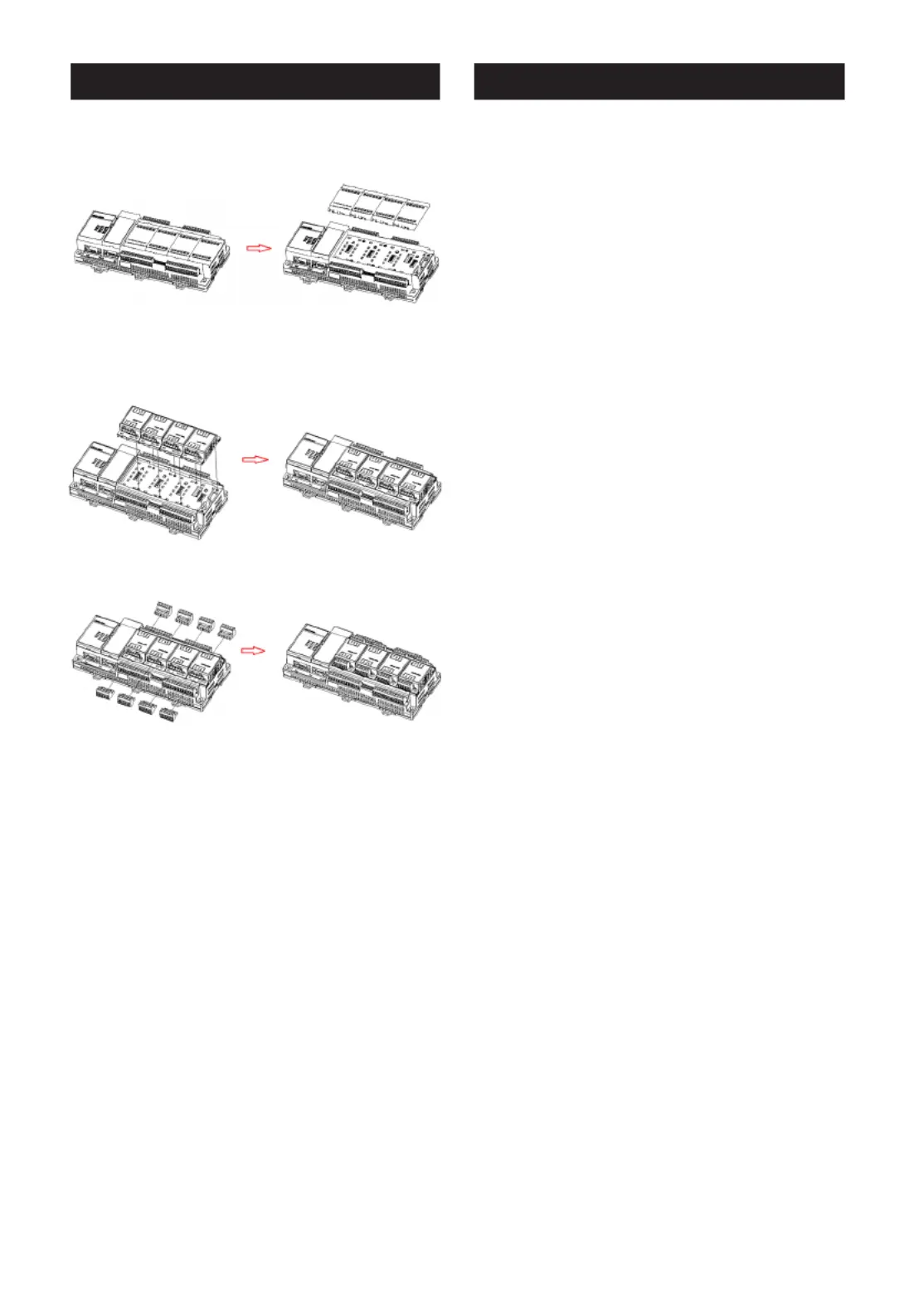

Installation

Remove the cover of extension slot on the

ADAM-3600-C

2. Install ADAM-3618 on the extension slot, please

note that the connector must be perfectly match,

and then fix the two screws.

3. Fix the terminal block

Software and User Manual

The TagLink Studio is for completing ADAM-

3600 and its extension I/O configuration and

management. The PC operation system is

Windows XP/Windows 7. The software installa-

tion package as well as user’s manual can be

acquired from the following path: http://www.

advantech.com/
