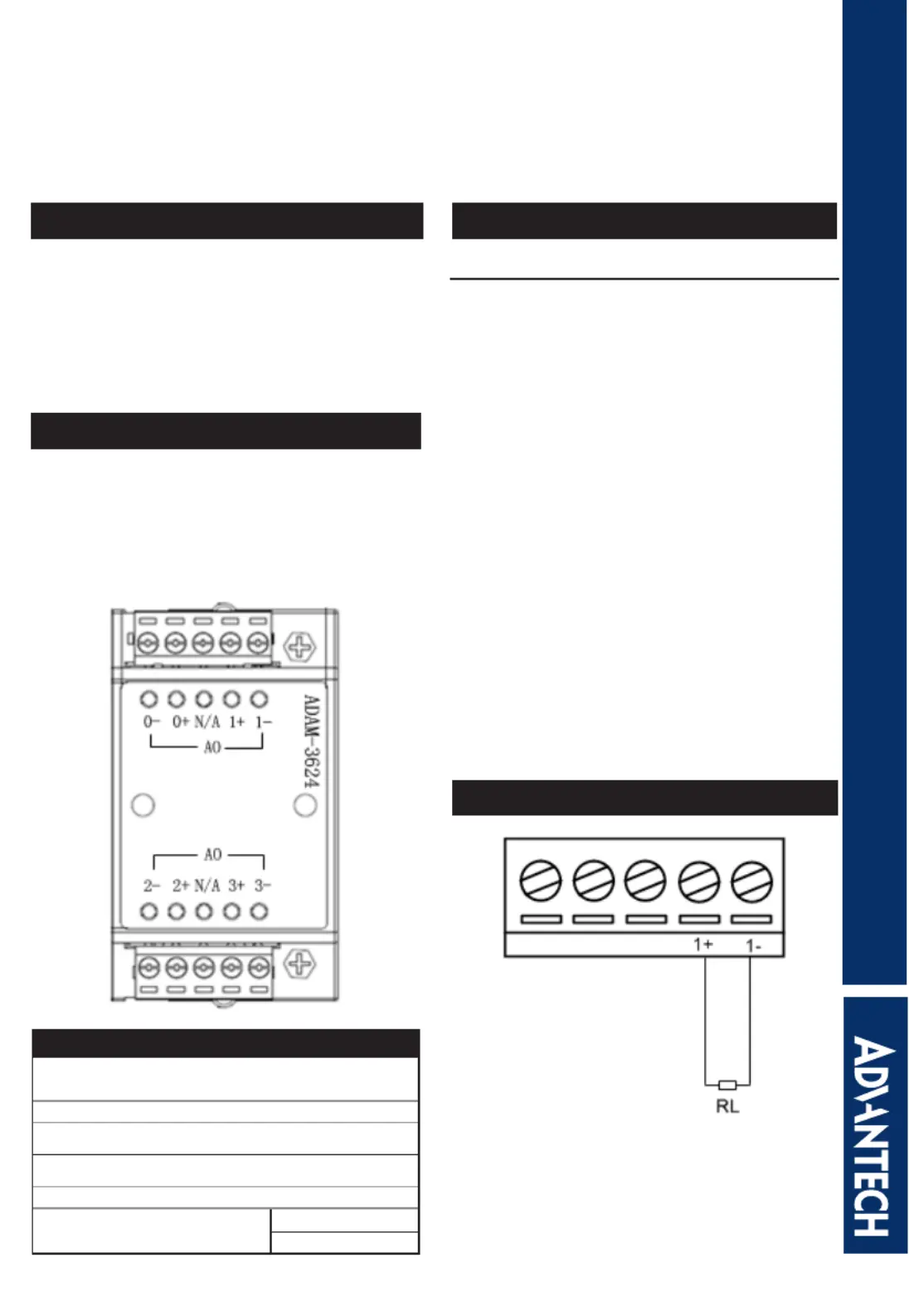

Startup Manual 1

Packing List

Before installation, make sure that you have

received the following:

•

ADAM-3624 Product

• ADAM-3624 Startup Manual

If anything is missing or damaged, contact your

distributor or sales representative immediately.

Specications

System Functions

• Analog Output Channels: 4 differential

• Output Type: Voltage, Current

• Resolution 16-bit

• Accuracy ± 0.3% of FSR (Volt

age) at 25°C

± 0.3 % of FSR

(Current) at 25°C

• Power Consumption 1w

• Operation Temp. -40 ~ 70°C

• Warranty 2 years

Notes

For more information on this and other Advantech

products, please visit our websites at:

http://www.advantech.com

For technical support and service:

http://www.advantech.com/support/

This startup manual is for ADAM-3624

Part No: 2003A62400 1st Edition

May 2016

STARTUP MANUAL

ADAM-3624

4-ch Analog Output Module

Application Wiring

Overview

As an ADAM-3600 Extension I/O, the ADAM-

3624 is a 16-bit, 4-channel analog output module.

As a voltage output type, the load can be 2KΩ.

While current output type, the load could be

from 0 to 500 . This module is extremely cost-Ω

effective solution for industrial measurement and

monitoring applications.

2 Startup Manual

Installation

Remove the cover of extension slot on the

ADAM-3600-C

2. Install ADAM-3624 on the extension slot, please

note that the connector must be perfectly match,

and then fix the two screws.

3. Fix the terminal block

Software and User Manual

The TagLink Studio is for completing ADAM-

3600 and its extension I/O configuration and

management. The PC operation system is

Windows XP/Windows 7. The software installa-

tion package as well as user’s manual can be

acquired from the following path: http://www.

advantech.com/
