ADAM-4520A Startup Manual 1

Before you begin installing your module, make sure that the

following materials have been included:

• ADAM-4520A

• 1 x DIN-rail mounting bracket (attached to module)

• Startup Manual

• 1 x Panel mounting bracket

If any of the above items are missing or damaged, please

contact your distributor or sales representative immediately.

CE Notication

ADAM-4520A, developed by Advantech Co., Ltd. has

passedtheCEtestforenvironmentalspecications.The

test conditions for passing include the equipment being

operatedwithinanindustrialenclosure.Therefore,inorder

to protect the ADAM module from being damaged by ESD,

we strongly recommend the use of CE-compliant industrial

enclosure products.

• Automatic internal RS-485 bus supervision

• NoexternalowcontrolsignalsforRS-485

• Minimum 3000 V

isolation

• Auto detection on baud rate / data format

• Baud rate up to 115.2 kbps

• Networking up to 4000 feet (1200 m)

• Built-in 120-ohm termination resistors

• Poweranddataowindicatorfortroubleshooting

• Power requirement: +10 to +48 V

• Mounts easily on DIN-rail or panel

ADAM-4520A

Robust RS-232 to RS-422/485 Isolated Converter

Startup Manual

ADAM-4520A transparently converts RS-232 signals into

RS-422 or RS-485.

Intelligent RS-485 Control

ADAM-4520A automatically senses the direction of the data

owandswitchestransmissiondirection.

Isolation

TheADAM-4520Aopto-isolatorsprovide3000V

isolation

to protect the host computer from ground loops and voltage

spikes.

Surge Protection

ADAM-4520Ao󰀨ersinternalsurge-protectiononitsdata

lines. Internal high-speed transient suppressors on each

data line protect the modules from dangerous voltage levels

or spikes.

Common

• Power Requirements: Unregulated +10 to +48 V

• Case: ABS+PC with captive mounting hardware

• Accessories (supplied): DIN-rail mounting adapter,

panel mounting bracket

• Plug-in screw terminal wiring: Accepts AWG 1-#12 to

#22 (0.5 to 2.5 mm)

• Operating Temperature: -40 ~ 85 °C (-40 ~ 185 °F)

Storage Temperature: -40 ~ 85 °C (-40 ~ 185 °F)

• Humidity: 5 ~ 95%, non-condensing

ADAM-4520A

• Baud rate: 115.2kbps,max.(RTScontrolandRS-422

mode switchable)

• RS-232 Interface: Female DB-9

• RS-422/RS-485 Interface: Plug-in screw terminal

• Power Consumption:

Typical:0.6W@24V

Max.:0.8W@24V

• Isolation Voltage: 3000 V

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com/

For technical support and service:

http://www.advantech.com/support/

ThisstartupmanualisforADAM-4520A.

Part No. 2043452000 Edition 1

November 2022

Declaration of Conformity

Overview

Specications

Features

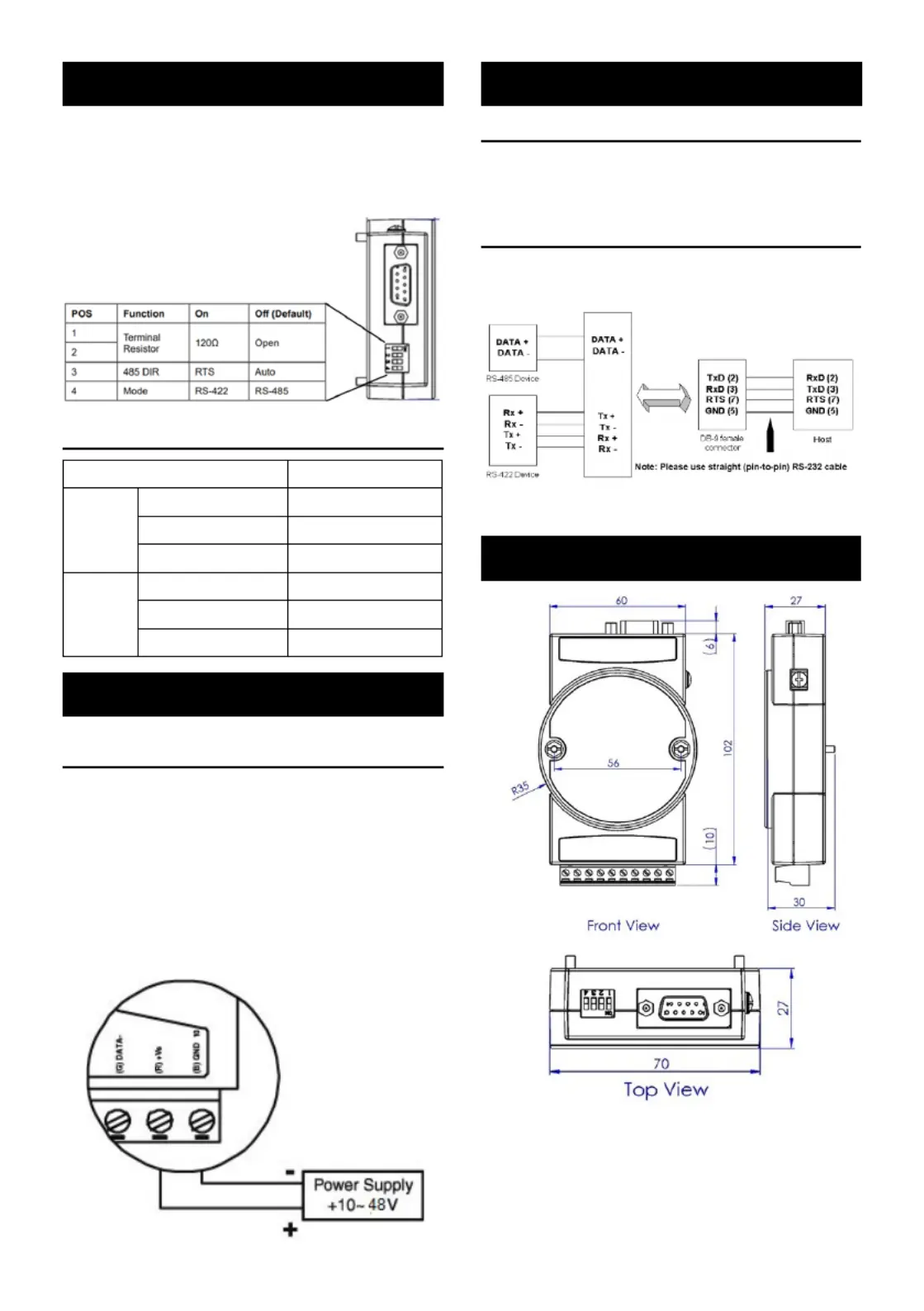

2 ADAM-4520A Startup Manual

TheDIPswitch(SW1)onthetopofADAM-4520Asets

terminal resistors, RS-485 direction, and RS-422/RS-485

mode.

PleaserefertothetablebelowtondtheSW1position

denitions.

ADAM-4520A

Data Flow Direction Indicator LED Status

RS-485

Idle Green

RS-232→RS-485 Dark

RS-485→RS-232 Red

RS-422

Idle Dark

RS-232→RS-422 Green

RS-422→RS-232 Red

Power Supply

ADAM modules are designed to accept industry standard

+24 VDC unregulated power. Operation is guaranteed when

using any power supply between +10 and +48 V

. Power

ripples must be limited to 200 mV peak-to-peak while the

voltage in all cases must be maintained between +10 to +48

.Allpowersupplyspecicationsarereferencedatthe

moduleconnector.Thepowercablesshouldbeselectedac-

cording to the number of modules connected and the length

of the power lines. When using a network with long cables,

we advise the use of thicker wire to limit the line voltage

drop. In addition to serious voltage drops, long voltage lines

can also cause interference with communication wires.

Communication Wiring

We recommend that shielded twisted-pair cables that com-

ply with the EIA RS-485 standard be used with the ADAM

network to reduce interference. Only one set of twisted-pair

cablesisrequiredtotransmitbothdataandRTSsignals.

Basic Conguration Hook-Up

Before placing a module in an existing network, the module

shouldbeproperlycongured.Thetwofollowingdiagrams

show typical layouts for both modules.

ADAM-4520A Connection Diagram

Application Wiring

ADAM Dimensions

Switch Settings Application Wiring (Cont.)
