ECU-P1528 Startup Manual 1
Before installation, please make sure that you have re-
ceived the following:
• ECU-P1528PE Card
• Quick Start User Manual
• ECU-P1528RE Card
• Quick Start User Manual
If anything is missing or damaged, contact your distributor
or sales representative immediately.
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio fre-
quency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference
to radio communications. Operation of this equipment in
a residential area is likely to cause interference in which
case the user is required to correct interference at his own
expense.
CE
This product has passed the CE test for environmental
specicationswhenshieldedcablesareusedforexternal
wiring. We recommend the use of shielded cables. This kind
of cable is available from Advantech. Please contact your
local supplier for ordering information.
ECU-P1528PE
8-Port SFP Gigabit Ethernet Card
ECU-P1528RE
8-Port RJ45 Gigabit Ethernet Card
Startup Manual
The ECU-P1528PE is a PCIe (non-universal) extension
card with 8-Port SFP Gigabit Ethernet.
The ECU-P1528RE is a PCIe (non-universal) extension
card with 8-Port RJ45 Gigabit Ethernet.
TheECU-P1528supportfollowingspecications:
• ECU-P1528PE: 8 port SFP Gigabit Ethernet Card
• ECU-P1528RE: 8 port RJ45 Gigabit Ethernet Card
• BUS Type: PCIe of the ECU-P (non-universal)
• Dimensions: 157 x 152 mm (6.2 x 6.0”)
• Power Consumption: 5V ±5% @1000mA typical;
3.3V ±5% @600mA typical;
• Operating Temp for single card: -25 ~ 60°C (-13 ~140°F)
Operating Temp for dual cards: -25 ~ 55°C (-13 ~131°F)
• Operating Humidity: 5 ~ 95% RH non-condensing
After the device driver is installed, you can now install the
ECU-P1528 card in your computer.
Please follow the steps below to install the ECU-P1528
card:
1. Turno󰀨yourcomputerandunplugthepowercordand
cables. TURN OFF your computer before installing or
removing any components on the computer.
2. Remove the slot cover on the back panel of your
computer.
3. Touch the metal part on the surface of your computer
to neutralize the static electricity that might be on your
body.
4. Insert the ECU-P1528 card into a PCI Express slot.
Hold the card only by its edges and carefully align it
withtheslot.Insertthecardrmlyintoplace.Useof
excessive force must be avoided; otherwise, the card
might be damaged.
5. Fasten the two screws on panel of the card.
6. Connect SFP modules to the SFP ports for ECU-
P1528PE.
7. Plug in the power cord and turn on the computer.
Overview Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com/support/
This startup manual is for ECU-P1528PE and ECU-
P1528RE.
Part No. 2041152800
Printed in China
1st Edition
February 2023
Declaration of Conformity
Hardware Installation
Specications
2 ECU-P1528 Startup Manual

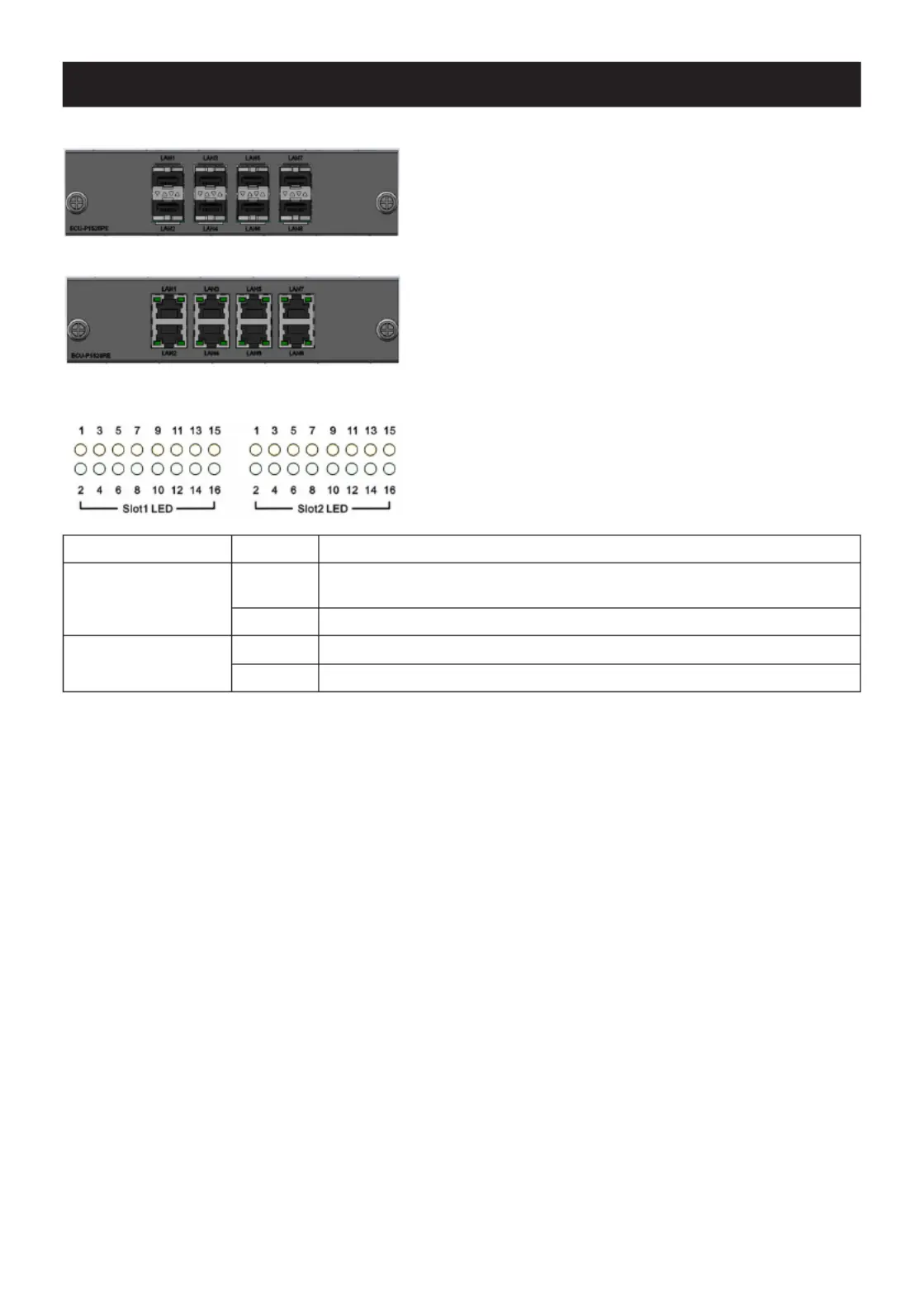

Front view of the ECU-P1528PE panel:
Front view of the ECU-P1528RE panel:
There is no pilot light on the ECU-P1528 panel except the LAN LED. Usually, the mainframe has the corresponding LED for
expansion slots. Take ECU-4784 and ECU-486 for example:
LED Status Description
Odd Number Port
(LAN/ LINK)
Light 1Gbps network is linked for ECU-P1528PE
1G/100Mbps network is linked for ECU-P1528RE
O󰀨 Invalid network link
Even Number Port
(LAN/ ACT)
Blinking Ethernet data being received / transmitted
O󰀨 No Ethernet data being received / transmitted
Connector and LED Assignments
