Industrial Unmanaged Gigabit Ethernet Switch

Specifications

The EKI-2725 comes equipped with all the standard

unmanaged switch features of the EKI family.

Furthermore, it offers a +12~48 VDC redundant power

input design, and is secured with a double protection

mechanism; Power polarity Reverse Protect and an

Overload Current Fuse; The former is using for

protection against accidental reverse polarity and the

latter is using for protection against excessive currents

or current beyond the acceptable current rating of EKI-

2725. Each port of EKI-2725 has 2 LED’s to show the

link status transmission speed and collision status. It

also provides a relay output for an event alarm. In the

event of a power failure, the built-in LED will activate

the alarm to notify administrators. Engineers can

simply verify the hardware status by checking the

LED, which makes troubleshooting quick and easy.

Before installation, please make sure that you have

received the following:



1 x EKI-2725/I Industrial Ethernet Switch



2 x Wall Mounting Bracket and 8 x Screws M3x5L



1 x DIN- rail Bracket and 3 x Screws M3x5L



1 x EKI-2725/I Startup Manual

If anything is missing or damaged, contact your

distributor or sales representative immediately.

1 Startup Manual

General



Compatibility: IEEE 802.3, 802.3u, 802.3x,

802.3ab

 -LAN: 4 x 10/100/1000Base T(X)



Transmission Distance:

Ethernet: Up to 100 m



Transmission Speed: Up to 1000 Mbps



Connectors:

5 - -x 10/100/1000Base T/TX RJ 45 ports



LED Indicators:

P1, P2, P-Fail

10/100/1000T (X): Link/Activity, Duplex/Collision



Switch Architecture: Store and Forward



Power Requirement: 12 ~ 48 VDC, redundant

dual power inputs with reverse polarity protection.



Power Consumption: 2 .5 Watts



Dimensions (W x H x D): 30 x 140 x 95 mm



Operating Temperature:

EKI-2725: 10 ~ 60°C (14 ~- 140°F)

EKI-2725I: -40 ~ 75°C ( -40 ~ 167°F)



Storage Temperature: - ~ (-40 85°C 40°F ~ 185°F)



Operating Humidity: 10 ~ 95% (non-condensing)



Storage Humidity: 10 ~ 95% (non-condensing)



Safety: UL62368



EMC: CE, FCC



Warranty: 5 years

Packing List

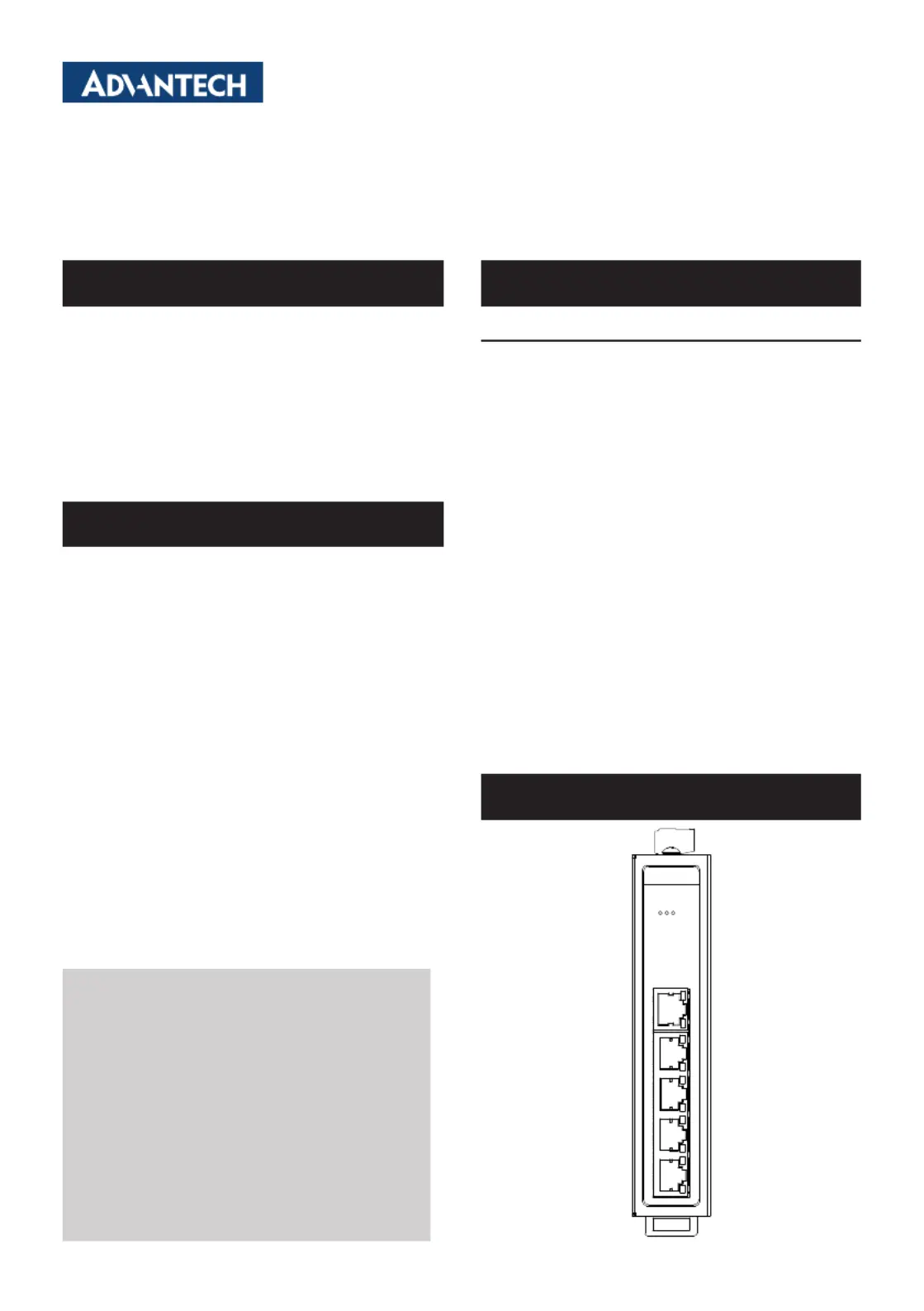

Overview

STARTUP

MANUAL

Overview

EKI-2725/I-CE

Notes

http://www.advantech.com/products

For technical support and ser

vice:

http://www.advantech.com/support/

This startup manual is for EKI-272 /I5

Part No: 200 272 25212nd Edition

Aug 2020

For more information on this and other Advantech

products, please visit our websites at:

Startup Manual 2

Mounting

DIN-rail Mounting

1. Installing the DIN-Rail Mounting Kit.

2. Removing the DIN-Rail.

Wall Mounting

1. Attach the brackets included to the switch with

screws.

2. With the brackets attached, hang the switch to nails

on the wall.

Power Connection

The EKI-2 series switch supports dual 725+12 ~ 48VDC

power inputs and changes relay status when power failure

power failure occurs.

1. Insert the positive and negative wires into the V+ and

V- contacts on the terminal block connector.

2. Tighten the wire-clamps screws to prevent the DC

wires coming loose.

Warning: This product is intended to be supplied by an

UL certified power supply or dc source suitable for use

at minimum Tma °C whose output meets SELV or 75

ES1 and is rated 12 48 Vdc, 1.5A min., if need further -

assistance, please contact Advantech for further

information.

Warning: Ensure that the voltage of the power source is

correct before connecting he equipment to a power outlet.t

The power outlet socket should have grounded connection.

Avertissement: Ce produit est destiné à être alimenté par

une alimentation certifiée UL ou une source de courant

continu adaptée à une utilisation à au moins Tma °C 75

dont la sortie satisfait les conditions SELV ou ES1 et est

évaluée à 12-48Vdc, 1.5A min-imum. Si vous avez besoin

d'une aide supplémentaire, veuillez contacter Advantech

pour plus d'informations.

Avertissement: Assurez-vous que la tension de la source

d'alimentation est correcte avant de connecter l'équipement

à une prise de courant. La prise de courant doit avoir une

prise de terre.

Warning: Never open the equipment. For safety reasons,

the equipment should be opened only by qualified skilled

person.

Avertissement: N'ouvrez jamais l'équipement. Pour des

Raisons de sécurité, l'équipement ne doit être ouvert que

par une personne qualifiée.
