Side 1/9

MIC-7_Flex_IO Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

1. Flex I/O board x 1

2. Flex I/O Expansion Kit Startup manual x 1

P/N: 2041077070

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note: Acrobat Reader is required to view any PDF

le. Acrobat Reader can be downloaded at: get.

adobe.com/reader (Acrobat is a trademark of

Adobe).

Flex I/O Expansion Kit

Flexible Expansion for Additional I/O and

Functions in MIC-7 Series

Startup Manual

Ethernet

• Ethernet Controller IC: Intel i210-AT

• Interface Speed: 10/100/1000 Mbps

• Ethernet Interface P/N: 98910770320 (2 ports),

98910770330 (4 ports)

• Ethernet Controller IC: Intel i226-V

• Interface Speed: 10/100/1000 Mbps, 2.5 Gbps

• Ethernet Interface P/N: 98910770340 (2 ports),

98910770350 (4 ports)

Storage

• Storage Interface: NVMe (1 x PCIex4)

• Supported Form Factor: M.2 2280

Others

Giga LAN Connector (bi-color light)

Left Side: Green/Orange LED

Status Display

10Mbps Always turn o󰀨

100Mbps Orange

1000Mbps Green

2.5Gbps LAN Connector (bi-color light)

Left Side: Green/Orange LED

Status Display

10Mbps Always turn o󰀨

100Mbps Always turn o󰀨

1000Mbps Orange

2.5GBE Green

Environment

• Operating Temperature

- TDP 35W CPU: -20 ~ 60 °C

- TDP 65W CPU: -20 ~ 50 °C

• Storage Temperature: -40 ~ 85 °C (-40 ~ 185 °F)

• Relative Humidity: 95% @ 40°C (non-condensing)

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.tw

For technical support and service, please visit our sup-

port website for Flex I/O Expansion Kit at:

https://advt.ch/mic770spt

months extra warranty for free at:

Http://www.register.advantech.com

This manual is for the Flex I/O Expansion Kit Rev.A1.

Part No. 2041077070

Printed in China

1st Edition

May 2025

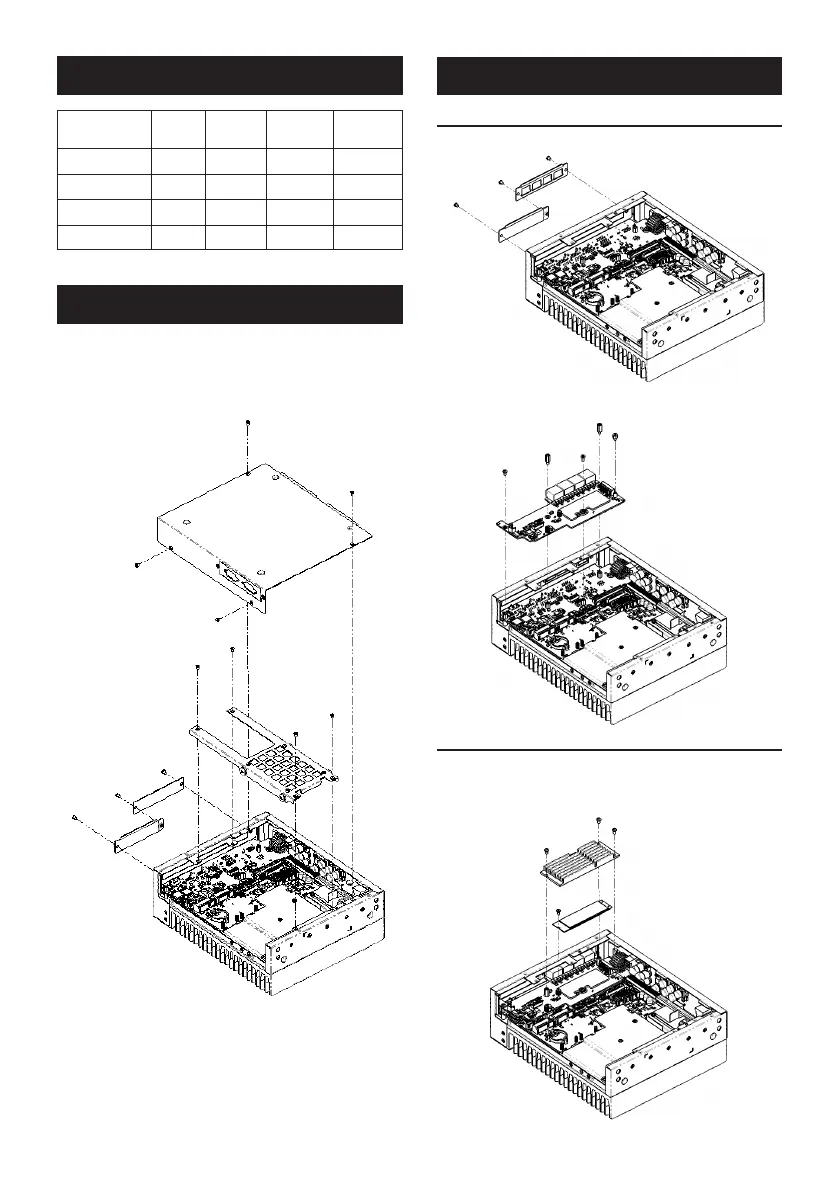

2 MIC-7_Flex_IO Startup Manual

P/N

NVMe

M.2

Eternet

Chip

Interface

Speed

Ethernet

Port

98910770320 - i210-AT 1 GbE 2

98910770330 1 i210-AT 1 GbE 4

98910770340 - i226-V 2.5 GbE 2

98910770350 1 i226-V 2.5 GbE 4

1. Remove the 4 screws and remove the bottom cover.

2. Remove the 4 screws and remove the storage device

bracket.

3. Remove the 2 screws and the front cover.

Selection Table

Simple Maintenance Process

Simple Maintenance Process (Cont.)

Flex IO Installation

1. Install the front cover and tighten the screws.

2. Install the front cover and tighten the screws.

NVMe Installation

1. Install NVMe and tighten 1 screw.

2. Install the NVMe HS and tighten the three screws.

3. Replace the bottom cover and secure it with the screws.
