ICAM-500/520 Startup Manual 1

Before installation, please ensure that the following items

have been included in your shipment:

1. ICAM-520/500 smart camera x 1

2. Startup manual x 1

If any of the above items are missing or damaged, contact

your distributor or sales representative immediately.

Caution: DANGER OF EXPLOSION IF BATTERY IS

INCORRECTLY REPLACED. REPLACE ONLY WITH THE

SAME OR EQUIVALENT TYPE RECOMMENDED BY THE

MANUFACTURER, DISCARD USED BATTERIES AC-

CORDING TO THE MANUFACTURER’S INSTRUCTIONS.

Attention: DANGER D’EXPLOSION SI LA BATTERIE EST

INEXACTEMENT REMPLACÉE. REMPLACEZ SEULE-

MENT AVEC LA MÊME CHOSE OU LE TYPE ÉQUIVA-

LENT RECOMMANDÉ PAR LE FABRICANT, JETTENT

LES BATTERIES UTILISÉES INSTRUCTIONS DE S

SELON FABRICANT DES’.

ICAM-520/500 Series

Smart Camera

Startup Manual

Sensor

• SONY IMX296, 1.6MP @ 60fps , Global shutter, Mono-

chrome/Color

Processor

• ICAM-520:

NVIDIA Xavier NX

6-core NVIDA Camel ARM

v8.2 64-bit

CPU: 6MB L2 + 4MB l3 (Max. operating frequency:

1.9GHz)

GPU: 384-core NVIDIA Volta GPU with 48 Tensor

• ICAM-500:

NVIDIA Jetson Nano

CPU: Quad Core ARM Cortex A57 (Max. operating

frequency: 1.43GHz)

GPU: Maxwell GPU, 128 CUDA core, performance up to

512 GFLOPS (FP16)

Image Signal Processor

• Mono: Brightness, Sharpness, Dark noise correction

(Default enable)

• Color: Brightness, Color debayering, Sharpness, Auto

with balance and CCM

Memory, Storage

• ICAM-520:

NVIDIA Xavier NX

8 GB LPDDR4/16GB eMMC

• ICAM-500

NVIDIA Jetson Nano

4 GB LPDDR4/16GB eMMC

Optical

• 12 mm variable focal length:

FOV 40 x 29.3 mm @ 100 mm working distance

FOV 364.5 x 263.7 @ 900 mm working distance

• 16mm variable focal length:

FOV 33.9 x 25.3 mm @ 100 mm working distance

FOV 305.4 x 228.2 @ 900 mm working distance

• LED illumination:

8 x PWM white/red LEDs, programmable

Synchronization

• Hardware Trigger/software Trigger/free-run

Packing List

For more information on this and other Advantech

products, please visit our website at

http://www.advantech.com

For technical support services, please visit our support

website at

http://support.advantech.com

This manual is for the the ICAM-500/520.

Part No. 204V050000

Printed in Taiwan

Edition 1

December 2022

Specications

2 ICAM-500/520 Startup Manual

Pin Pigtail Description Remark

1 Brown No use COM, RS232 TX

2 Blue COM, RS232 RX No use

3 White COM, RS485 D+

4 Green COM, RS485 D-

5 Pink

System power in

GND Vin(-)

6 Yellow

System power in

GND Vin(-)

No use

7 Black DI/DO GND

8 Gray Digital input 0

9 Red Digital input 1

10 Violet Digital output 0

Gray/

Pink

Digital output 1

Red/

Blue

No use

White/

Green

System power in

Vin(+)24V

Brown/

Green

System power in

Vin(+)24V

No use

White/

Yellow

Rest system BTN

To reset the sys-

tem via closed to

GND (Pin 17)

Yellow/

Brown

Hardware trig-

ger in

White/

Gray

GND

I/O

• 1 x USB 3.0, Type-C connector (Only works for Keyboard

& mouse. Connect to USB storage will increase power

consumption and heat the system)

• 1 x Micro USB for OTG (Only works in engineering mode)

• 1 x RS485

• 2 x Digital Input

• 2 x Digital Output

• 1 x Trigger Input

• 1 x Micro SD card slot

Display

• 1 x HDMI

LAN

• 1 x 10/100/1000 Base-T

Power Requirements

• ICAM-520: 19~24V

Max 18W, typical 15W

• ICAM-500: 19~24V

Max 17W, typical 15W

***The power related design of ICAM-520 is up to the power

mode 2(15W, 6 core CPU). The power mode (mode 6,7,8)

may causes Jetson Platform throttling. For more informa-

tion, please refer https://docs.nvidia.com/jetson/archives/

l4t-archived/l4t-3271/index.html#page/Tegra%20Linux%20

Driver%20Package%20Development%20Guide/power_

management_jetson_xavier.html#wwpID0E0GG0HAJetson

Linux.

Dimension

• ICAM-520: 82 mm (W) x 123 mm(H) x 62.9 mm (D)

• ICAM-500: 82 mm (W) x 123 mm (H) x 59.9mm (D)

Software Package

• OS:

- ICAM-520: Linux Ubuntu 18.04, Jetpack 4.6.2

- ICAM-500: Linux Ubuntu 18.04, Jetpack 4.5.1

• SDK/Utility: CAMNavi SDK, Web based camera utility, IP

conguretool,NVIDIADeepStreamSDK&example

Environment

• Operating temperature: 0 ~ 45° C

• Vibration during operation: 5 Grms

• EMC: CE, FCC

The ICAM-520/500 series has followings connectors that al-

lowyoutocongureyoursystemforyourapplication.ICAM

will be power on without push any button. The following

table lists the functions of the connectors.

PleaseconnecttheICAMwithpowerconnectorsrstbefore

power on.

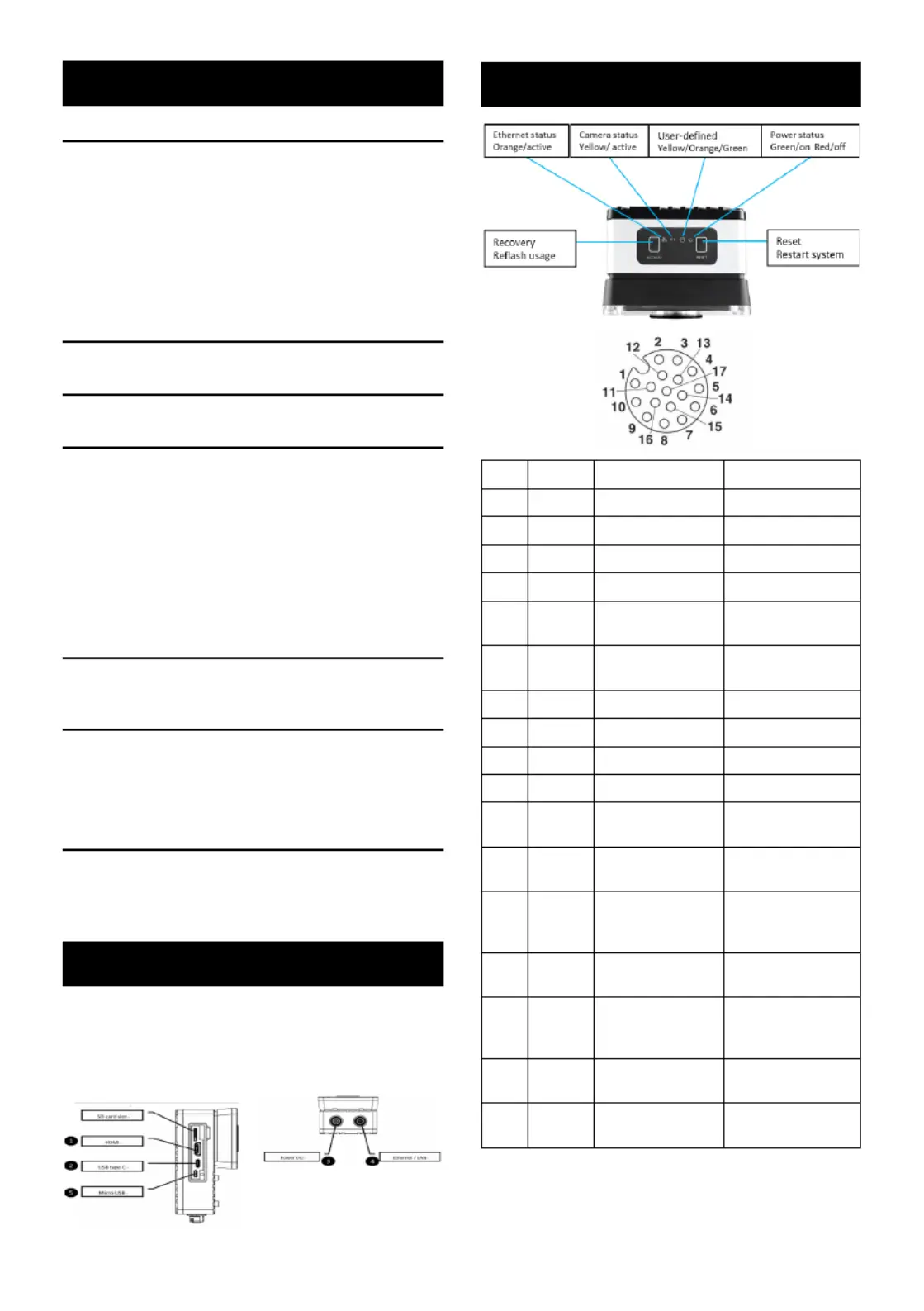

Power, Trigger input, Digital I/O and RS485 Connector

Connector (Cont.)

Connector

Specications(Cont.)
