1 Startup Manual

IMC

IMCIMC-

--150L

150L

150L150LPI

PIPI

Long

LongLong R

RReach

each

eacheach P

PPoE+

oE+

oE+oE+

Extender

ExtenderExtender

Injecting data and power together, the IMC-150LPI is

brand new leading product which break the 100

meters limitation to greater Ethernet transmission

distances. Supports 10/100Mbps Ethernet over

twisted -pair cable (CAT 5, UTP).

Provides user configurable DIP switch selection of

LFPT feature and force speed setting. Flexible and

freely extends existing Ethernet networks to reach

remote IP devices.

The IMC-150LPI PoE+ extender compliant with

IEEE 802.3at PoE+ standard, it delivers data and

power over Ethernet cable without the distance

limitations of traditional copper wires. Extends data

and power transmission reach up to 800 meters. Also

acting as both power sourcing equipment(PSE) and

powered device (PD), power source from PoE+

switch or power with 48VDC input to either local or

remote sites.

Before installation, please make sure that you have

received the following:



1 x -IMC 150LPI PoE+ extender



1 x - Wall mount kit



1 x -Din rail



Startup Manual

If anything is missing or damaged, contact your

distributor or sales representative immediately.

The Startup manual and product data sheet can be

download on the Advantech's website.



Compatibility: IEEE 802.3, 802.3u, 802.3x,

802.3at/af



LAN: 10/100Base-T(X)



Connectors:

- 1 x 10/100Mbps -RJ 45 PD

- 1 x 10/100Mbps -RJ 45 PSE



LED Indicators: PWR, 1- PAIR, PSE



DIP Switch: LFPT, AUTO- Nego, Speed



Power:

Power Consumption: Max. W 33

(Full load PoE+)

Power Input: 48V DC

Power Output 30W

Connectors: 2P Pluggable Terminal Block,

DC Jack



Dimensions x H x (W D):

92.58 21.08 x x x x 98.04 mm (3.65 0.83 3.86 in.)



Enclosure: IP30



Operating Temperature: - ~ 40 75°C 40~167°F) (-



Storage Temperature: - ~ 40 80°C (- ~ 40 176°F)



Humidity: 0 ~ 95% (non -condensing)



Railway Trackside: EN -450121



EMC: CE, FCC

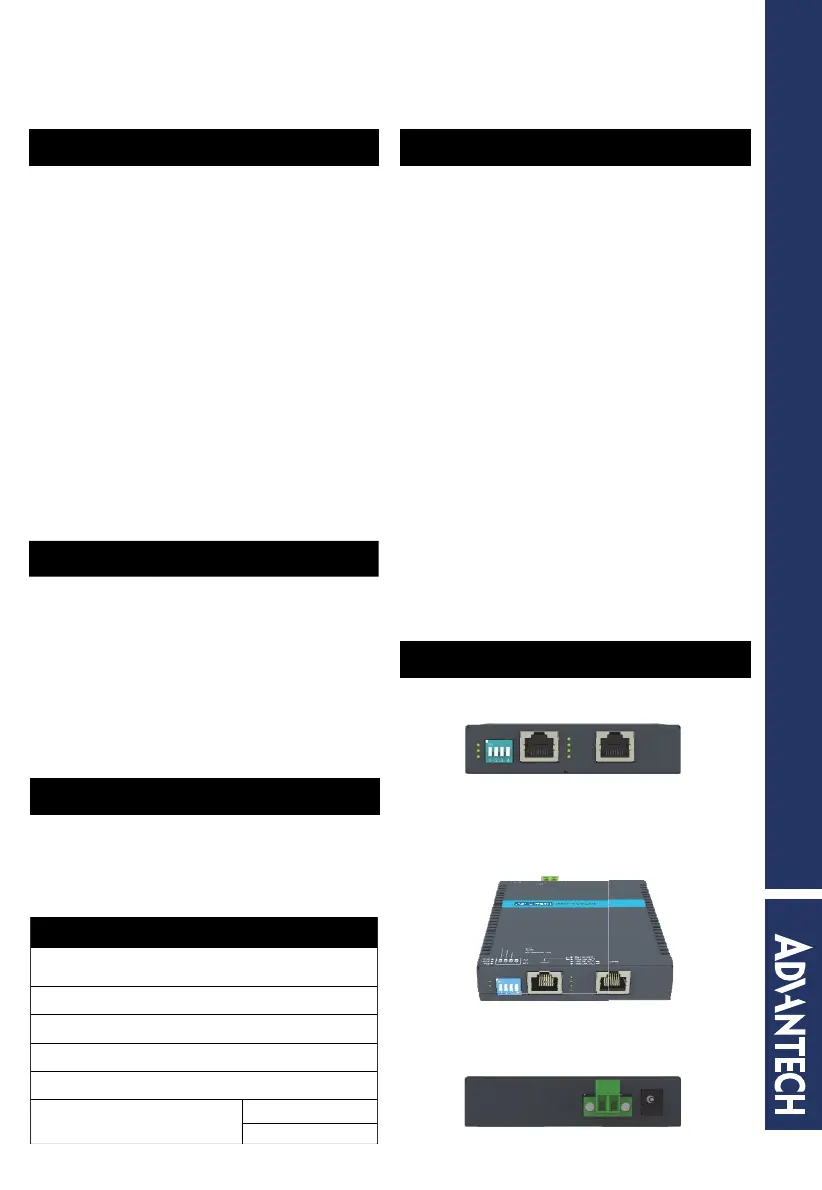

Front Panel View

Top Panel View

Rear View Panel

Packing List

Datasheet Do uments

STARTUP MANUAL

Notes

For more information on this and other Advantech

products, please visit our websites at:

http://www.advantech.com/products

For technical service: support and

http://www.advantech.com/support/

This startup is manual -150LPIfor IMC

P/N: 2049150L00

1st Edition

August, 2019

Overview Specifications

Panel View

Startup Manual 2

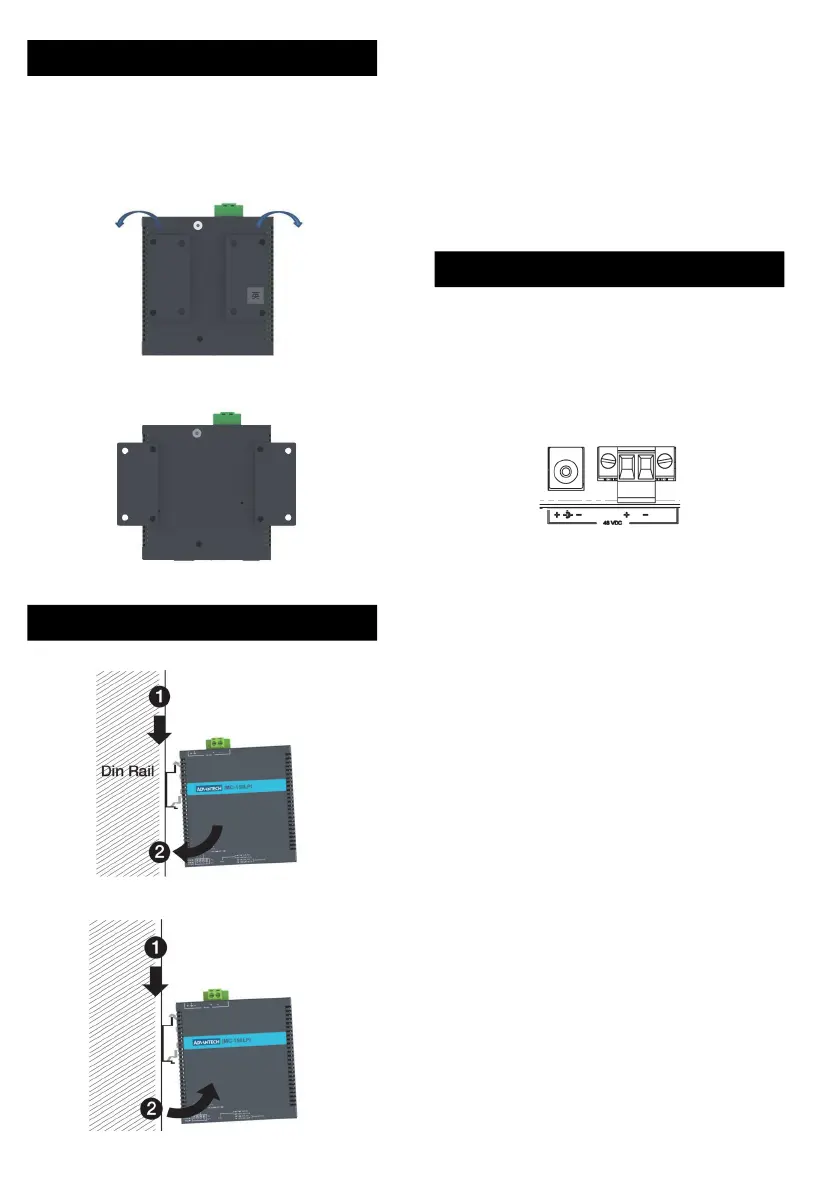

The wall-mount kit should be already be fixed to the

back panel of the IMC-150LPI. iI you need to attach

the attachment plate, follow the steps as show in the

figures below.

Loosen the screw and reverse the direction of the

attachment -wall mount kit.

Tightening -the wall mount kit 2 with screws

Installing the -DIN Rail Mounting Kit.

Removing -the DIN Rail.

Once the screws are fixed in the wall, insert the

screw heads then slide the IMC-150LPI. Make

sure the IMC-150LPI is tighten stability on the

wall.

The terminal block connector is used for

IMC- 150LPI AC/DC inputs. See below figures for

wiring the redundant power.

Insert the positive and negative wires into the

V+/V- contacts on the terminal block connector.

Tighten the wire-clamps screws to prevent the DC

wires coming loose.

Warning: This is a Class A product. In domestic

environment this product may cause radio

interference in which case the user may be required

to take adequate measures.

Avertissement: Ceci est un produit de classe A.

Dans un environnement domestique, ce produit peut

provoquer des interférences radio, auquel cas

l'utilisateur peut être tenu de prendre les mesures

adéquates.

Warning: 1) an UL Listed Class II power adapter

suitable for use at Tma 50 degree C whose output

meets ES1 (or SELV), PS2 (or LPS) and is rated

48 orVDC 1.36A min., 2) an UL Listed Class II DC

power source suitable for use at Tma 85 degree C

whose output meets ES1 (or SELV), PS2 (or LPS)

and is rated 48VDC, 1.36A min.

Avertissement: 1) un adaptateur secteur de classe II,

répertorié UL, approprié pour une utilisation à 50

degrés Celsius, dont la sortie est conforme aux

normes ES1 (ou SELV), PS2 (ou LPS) et une tension

nominale de 48Vcc 1.36A min. ou 2) une source

d'alimentation CC de classe II répertoriée UL

pouvant être utilisée à une température de 85 degrés

Celsius dont la sortie est conforme à ES1 (ou SELV),

PS2 (ou LPS) et d'une puissance nominale de 48Vcc,

1.36A min

Wall Munting

Din- rail Mounting (Optional Accessory)

Power Connection
