Side 1/5

ITA-1611 Startup Manual 1

Before you begin installing your IPC, please make sure that

the following items have been shipped:

1. 1 x ITA-1611 series IPC

2. 1 x Accessary box

3. 1 x CD (utilities and PDF format manuals indluded)

4. 2 x Mounting brackets

5. 4 x Bottom rubber pads

6. 4 x M4 screws (for mounting bracket)

7. 1x Warranty card

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note 1: For detailed contents of ITA-1611, please refer

to information on the enclosed CD-ROM (in PDF

format).

Note 2: Acrobat Reader is required to view any PDF

le.Acrobat Reader can be downloaded at:

www.adobe.com/Products/acrobat/readstep2.

html (Acrobat is a trademark of Adobe)

ITA-1611 Series Fanless Compact Embedded IPC with Intel

Celeron Dual Core CPU

Startup Manual

Standard Functions

• Chip and chipset: Intel Celeron processor J1900

• BIOS: AMI SPI 64 MB Flash

• Memory: Onboard 4 GB DDR3L 1333 memory

• Display: Embedded Gen7+GFX Core, Frequency 542

MHz. Shared system memory up to 256 MB SDRAM

• Dual display mode:

- Resolution of single display up to 2048 x 1536

- Resolution of dual display up to 1920 x 1080

• Storage: Supports 1 x M-sata and 1 x 2.5” HDD/SSD

• Expansion slot: Supports 1 x Mini PCIe slot

SystemSpecications

• Ethernet: 2 x 10/100/100M Ethernet

• USB: 5 x USB 2.0, 1 x USB 3.0

• VGA: 2 x VGA

• Serial port: 2 serial ports, with RS-232/422/485

• Digital I/O: 1 x 8-bit GPO

• Audio: 1 x speaker out (supports 2-ch 4w speaker), 1 x

line in

Mechnical and Environment

• Dimensions (W x H x D): 200 x 190 x 70 mm

(7.87” x 7.48” x 2.76”)

• Voltage input: DC 9 ~ 36 V input

• Working temperature:

-25 ~ 60° C (-13 ~ 140° F)

• Weight: 2.26 kg

Specications

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/epc

For technical support and service, please visit our

support website at:

http://support.advantech.com

This manual is for the ITA-1611 Series.

Part No. 2001161110

Print in China

1st Edition

November 2015

2 ITA-1611 Startup Manual

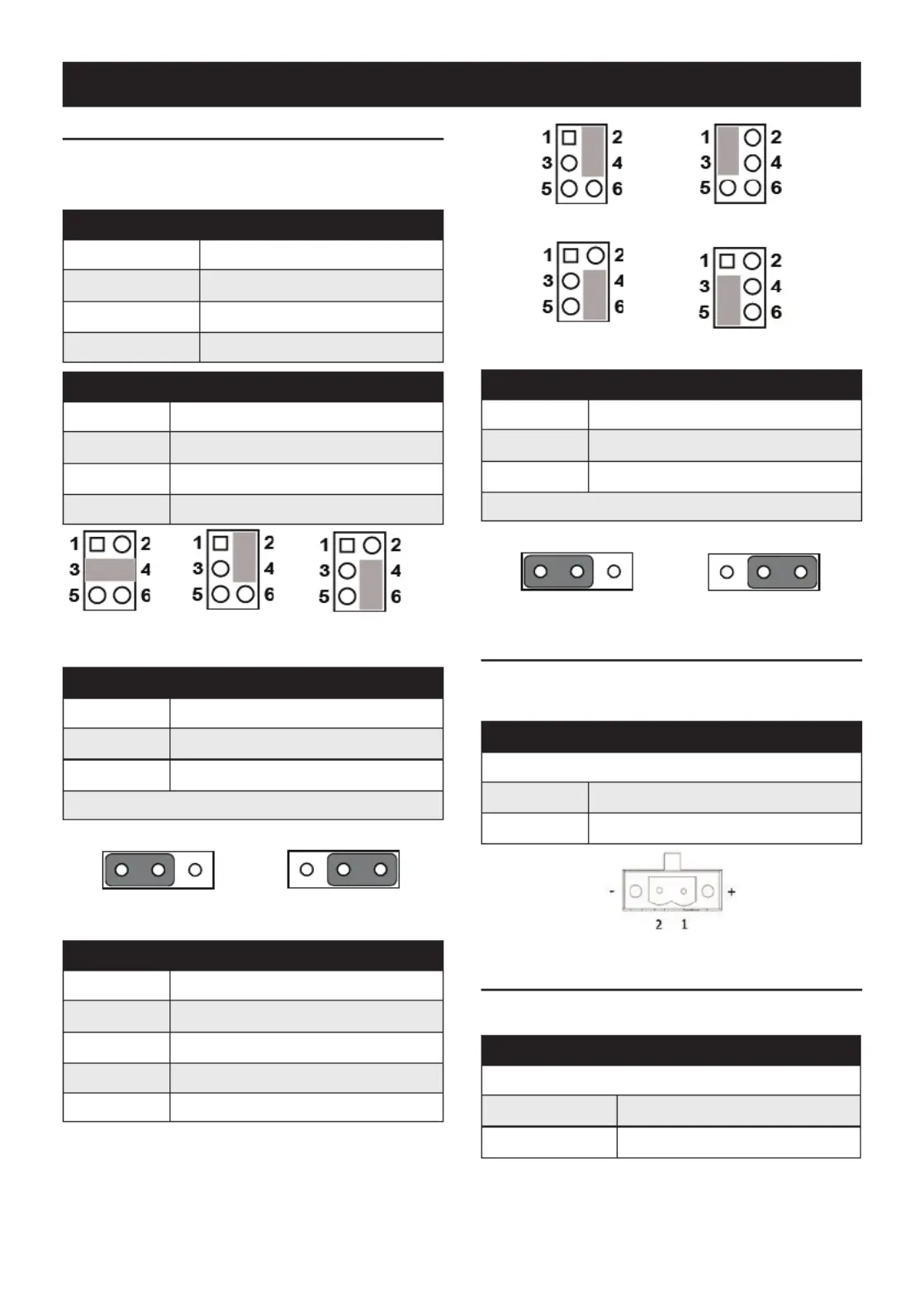

Jumper Setting

The board has a number of jumpers that allow you to con-

gure your system to suit your application.

The table below lists the function of each of the jumpers.

Name/Function

JLVDS1 LVDS voltage setting

JCOMS1 Clear CMOS setting

VCCGPIO1 GPIO voltage setting

PSON1 Power on mode setting

JLVDS1: LVDS Voltage Setting

Pins Setting

3-4 +V12

2-4 +V5

4-6 +V3.3 (Default)

JCOMS1: Clear CMOS Setting

Pins Setting

1-2 Default*

2-3 Clear CMOS setting

* Default setting

VCCGPIO1: GPIO Voltage Setting

Pins Setting

2-4 +V3.3_SB

1-3 +V5_SB (Default)

4-6 +V3.3

3-5 +V5

123

PSON1: Power On Mode Setting

Pins Setting

1-2 AT mode

2-3 ATX mode*

* Default setting

PowerConnectorDenition

The IPC has a 2-channel Phoenix power input connec-

tor, which provides 9 ~ 36 V DC voltage to the board. The

denition is as follow:

Phoenix Connecor DC Input

PinDenition

Pin 1 Positive

Pin 2 GND

DC Power Input Connector

LEDDenition

At the top right corner on the rear side, there are 3 LEDs

indicating the operating status.

LED Status

Storage LED Orange

Power/Alarm LED Green/Red

On the front side, there are also 2 LEDs indicating the

operating status.

123

Jumpers

+V12 +V5 +V3.3

Default Setting Clear CMOS Setting

AT Mode ATX Mode

+V3.3_SB +V5_SB

+V3.3 +V5
