Side 1/12
MIC-75M11 Startup Manual 1
Before you begin installing your card, please make sure
that the following items have been shipped:
1. MIC-75M11 Module p1-x1
P/N : MIC-75M11-00A1E
2. MIC-75M11 Startup Manual p1-x1 P/N :20015M1100
3. Warranty Card P/N: 2190000902
4. Card Clamp Pad x 4 P/N:1990024989T000
1960070545N001
1960070543N001
If any of these items are missing or damaged, please
contact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF file.
Acrobat Reader can be downloaded at: get.
adobe.com/reader (Acrobat is a trademark of
Adobe)
MIC-75M11
PCIE/PCI Expansion Module for MIC-7 Series
Embedded System
Startup Manual
PCIe Slots
• One PCIex16 socket
Note 1: PCIEx16 power consumption supports to 35W.
Note 2: For MIC-73 series products (ATOM CPU), only
supports PCIEx4 or PCIEx1 signal.
32-bit PCI
•One 32 Bit/33Mhz PCI socket
Note 1: PCI socket suppots 15W power consumption.
Environment
• Operation Temperature:
-20 ~ 60° C with 0.7 m/sec air flow: with 1 x Industrial SSD
without PC expansion boards
0 ~ 45° C with 0.7 m/sec air flow: with 1 x 2.5” HDD
without PC expansion boards
• Storage Temperature: - 40 ~ 85° C (-40 ~185° F)
• Relative Humidity: 95% @ 40° C (non-condensing)
Mechanical
• Dimensions (H x W x D): 92 x 90 x 230 mm
Note 1: Please add FAN into i-module, when add-on
card total power consumption is over 45W.
Specications Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://support.advantech.com.tw/support/default.
aspx
This manual is for the MIC-75M11 Series Rev. A1.
Part No. 20015M1100
Printed in China
1st Edition
January 2016

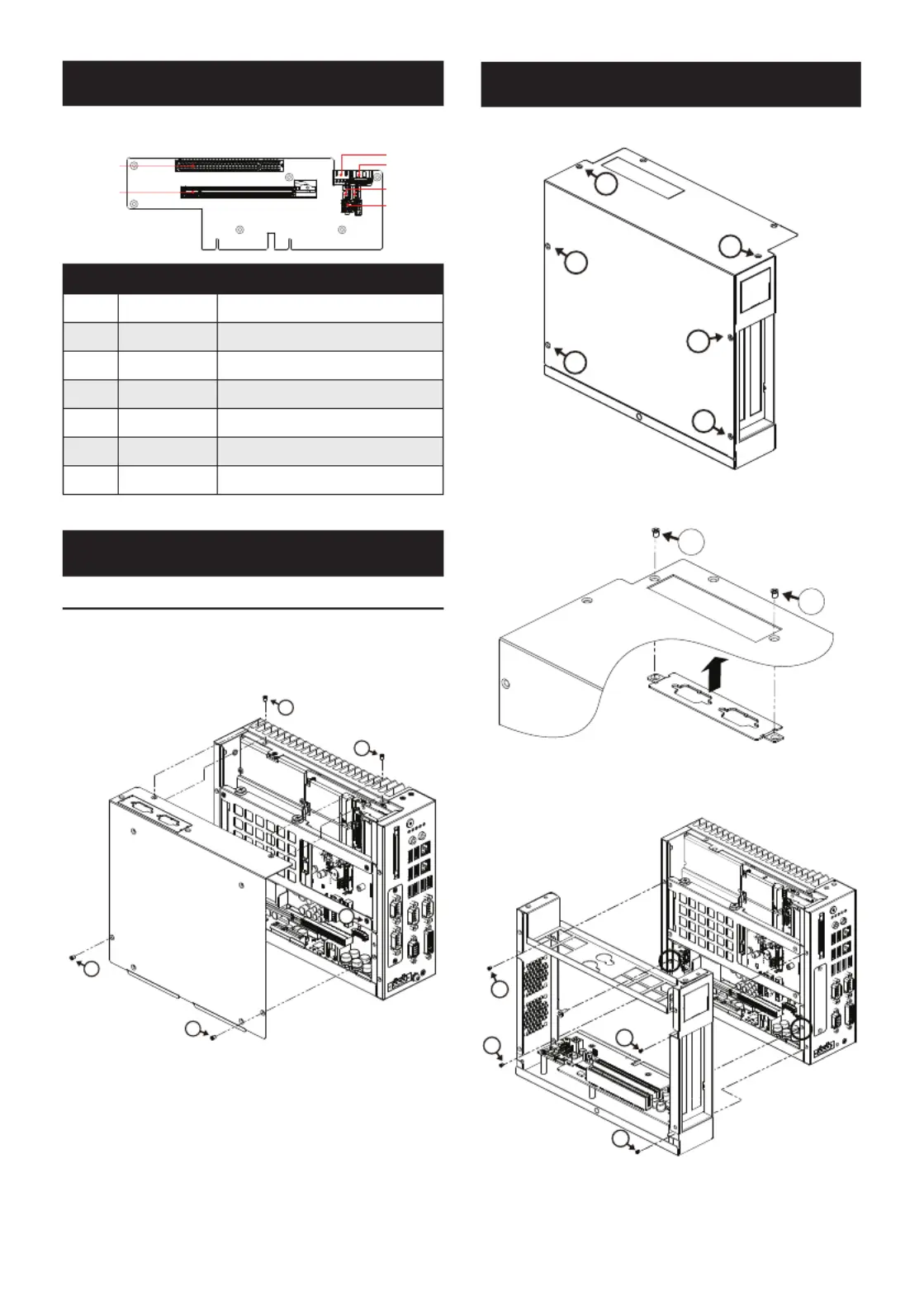

2 MIC-75M11 Startup Manual
2. Undo 6x screws of MIC-75M11.
2
2
2
2
2
2
3. Remove i-door cover by MIC-7500 bottom cover and
assemble and secure cover in i-module’s bottom cover.
3
3
4. Assemble MIC-75M11 and MIC-7 series device and
secure 4x screws to integrate system.
3
3
3
3
The table below list the function of each of the connectors.
PCIE x 16 Socket
PCI Socket
12V Extral Power
SATA CON
SATA Power CON
FAN CON
Connectors
No. Item Function
1 SATAPWR1 4 Pin Power connector (5V)
2 PWR2 4 Pin Power connector (12V)
3 FAN 1 4 Pin FAN connector
4 FAN 2 4 Pin FAN connector
5 PCI_1 PCI socket
6 PCIEx16_1 PCIEx16 Socket
System Installation
MIC-7 series i-module can assemble with all MIC-7 series
IPC system.
1. Undo MIC-7 series system screws and remove the
bottom cover.
1
1
1
1
2
Simple Maintain Process
Jumpers and Connectors
Simple Maintain Process (Cont.)
