Side 1/2

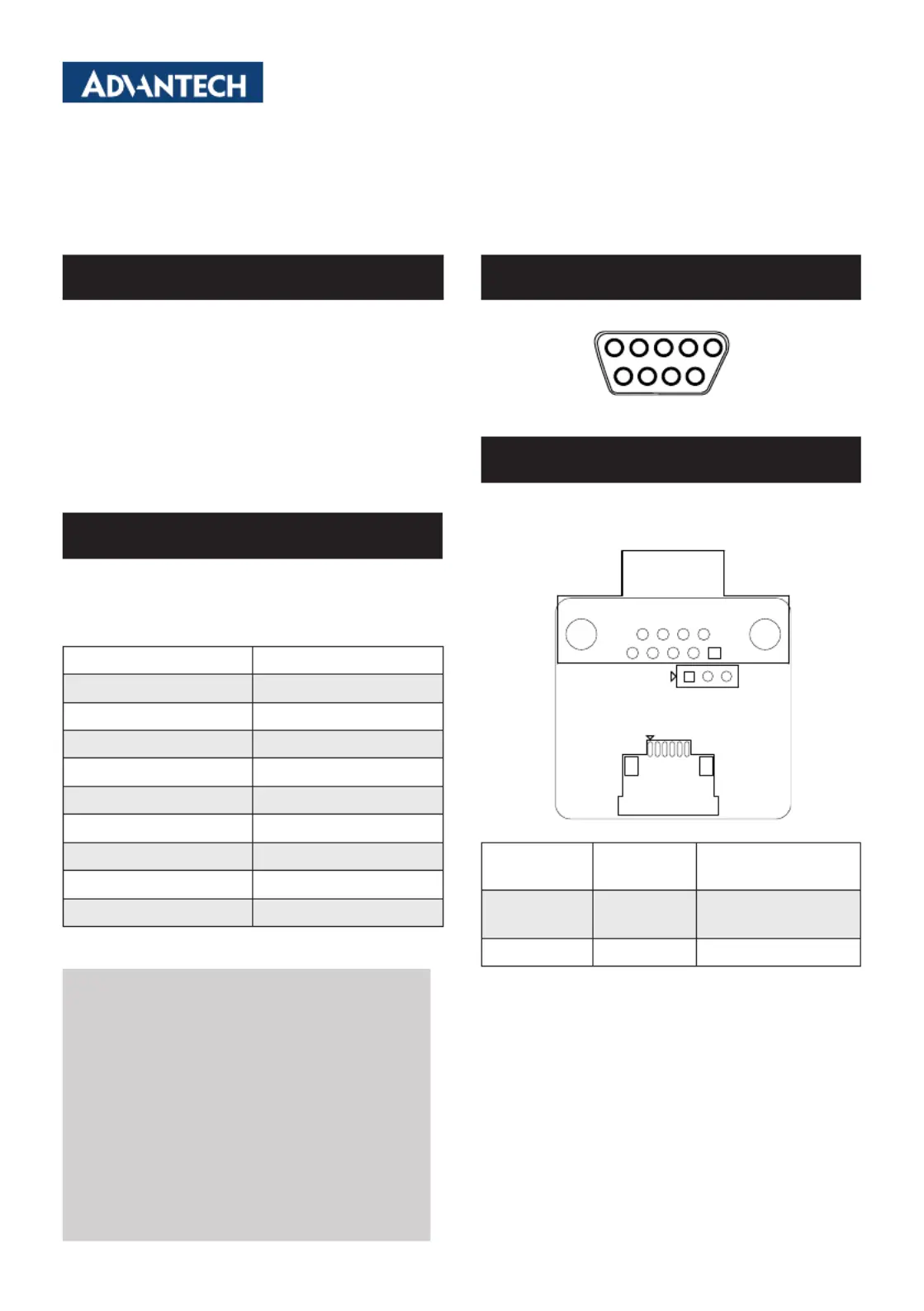

MOS-1130Y-0202 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

1. miniPCIe card x 1

2. iDoor IO side module p1-x1 with iDoor bracket x 1

3. FPC cable x 2

4. Startup manual x 1

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

The following tables and gures show the pin assignments

of 1 connector on the bracket to the modular card. if you

see two ports or above, it will use the same pin-denition

of this one.

PIN CAN Port

1 -

2 CAN_L

3 GND

4 -

5 -

6 -

7 CAN_H

8 -

9 -

MOS-1130Y-0202

2-Ports Isolated CANBus mPCIe, CANOpen, DB9

Startup Manual

You can set the terminator resistor by below jumper setting

if necessary to match impedance.

PIN# of JP1 Status

Value of Terminator

Resistor

PIN 1-2

(Default)

Closed Mode 120 Ohms

PIN 2-3 Open Mode

1 2 3 4 5

6 7 8 9

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://support.advantech.com

This manual is for the MOS-1130Y-0202 Series.

Part No. 2046113000

Print in China

1st Edition

July 2024

Pin Assignments

Pin Assignments (Cont.)

Jumper Settings

2 MOS-1130Y-0202 Startup Manual

1. Unscrew bottom cover.

2. Insert miniPCIe card and secure the screws.

3. Screw iDoor module with the bracket and x on the

front bezel.

4. Insert cable between miniPCIe card and iDoor module.

5. Screw bottom cover back.

1. Unscrew the top cover.

2. Insert miniPCIe card and secure the screws.

3. Unscrew the front bezel.

4. Screw iDoor module with the bracket and x on the

front bezel.

5. Screw the front bezel back.

6. Insert cable between miniPCIe card and iDoor module.

7. Screw top cover back.

ARK-2121L Installation

Windows Operating System

1. Please visit Advantech website to download the driver.

2. Unpack the MOS-1130Y-0202_DRIVER_

Win7_10_2030320.zip

3. Please read the pkg_readme, or just run the driver of

pkg_icomnavi_wdf_can.exe

4. Click “install” to continue the installation

5. Restart the system.

6. After the physical hardware has been installed, the card

will be automatically detected.

Linux Operating System

1. Please visit Advantech website to download the driver.

2. Open the terminal and enter the command to unpack

the MOS-1130-0202_Linux_SocketCAN_V3.0.2.0.tar.

gz as below:

# tar -zxvf MOS-1130-0202_Linux_SocketCAN_

vx.x.x.x.tar.gz

3. Please read the README in driver folder, or continue

the installation step by step.

4. Access to “MOS-1130-0202_Linux_SocketCAN_

vx.x.x.x” folder

#cd /home/PC_name/MOS-1130-0202_Linux_Socket-

CAN_vx.x.x.x/adSocketCAN_vx.x.x.x/driver-msi/

5. Enter command “make” to compile driver package to

generate ko les

# make

*If “make” error, try to use below command to x:

# apt install make

# apt install build-essential

6. Finally, input below command to install the driver so that

the driver will be loaded automatically in the future.

# make install

7. Use “ip link list” command to see whether the CAN

device name is created in net port

# ip link set can0 up type can bitrate 125000 //can0

# ip link set can1 up type can bitrate 125000 //can1

8. Check CAN port

# ifcong

ARK-6322 Installation

Driver and Advantech Device Manager
