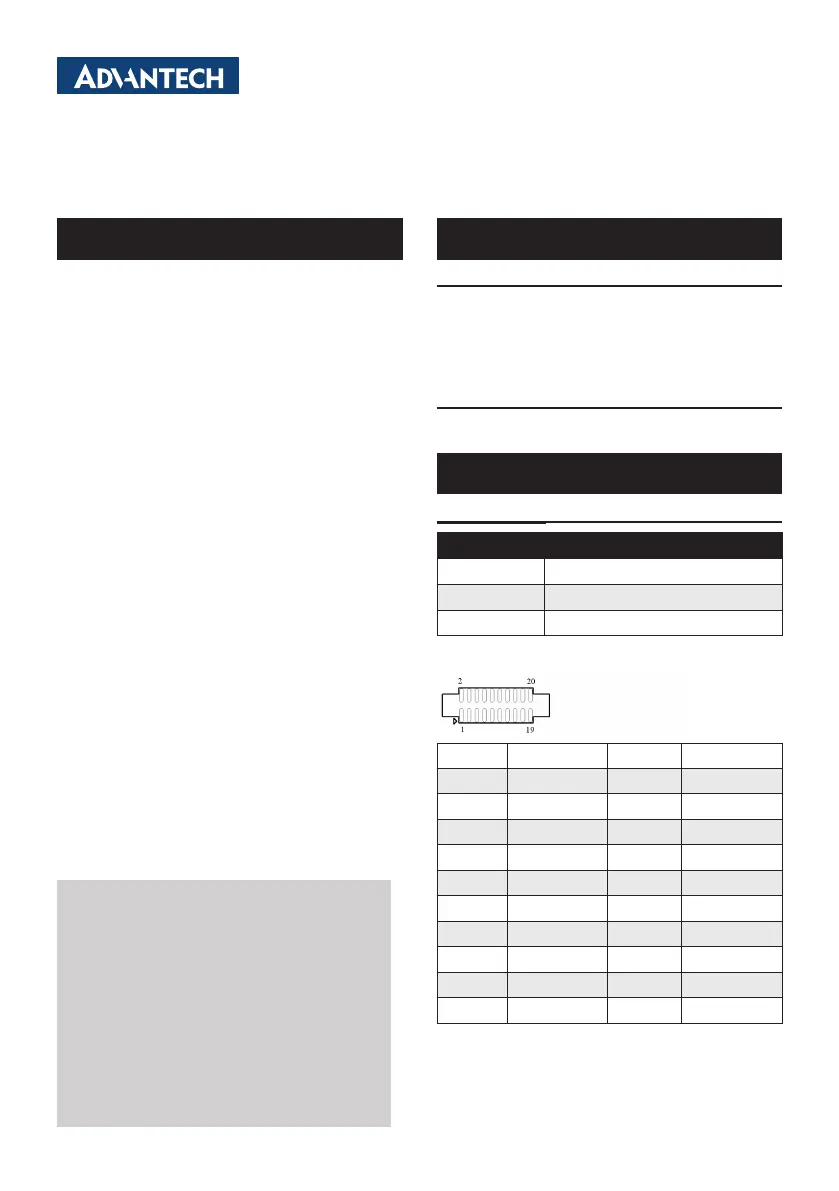

PCA-COM232 / PCA-COM485 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

PCA-COM232 / PCA-COM485 4 Series Ports Expand

Module x1

2 year quality warranty card x 1 p/n:2190000902

Startup manual x 1

R/S D=5.5 H=2.0 +M M3*4L

ST Zn X2 p/n:1935030430

THREADED SPACER M3X0.5X7L

HP-7 for LPC module X1 p/n: 1990015800S000

F Cable 2*10P-2.0/D-SUB 9P

(M)*2 22.5CM W/BKT X2 p/n: 1700008762

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

•

PCA-COM232 / PCA-COM485

4 Series Ports Expand Module

Startup Manual

Standard PC functions

This PCA-COM module expand 4 series ports by LPC con-

nector on CPU card.

PCA-COM232 - 4 RS-232 series ports.

PCA-COM485 - 4 RS-422/485 series ports with Auto-ﬂow

control function.

Mechanical

Dimensions: 31.5 mm x 48 mm

Connectors

PCA-COM232

Connectors

Label Function

COM1 Serial Port: COM1 COM2

COM2 Serial Port: COM3 COM4

COM1

Pin Signal Pin Signal

1 DCD1 2 DSR1

3 RX1 4 RTS1

5 TX1 6 CTS1

7 DTR1 8 RI1

9 GND 10 GND

11 DCD2 12 DSR2

13 RX2 14 RTS2

15 TX2 16 CTS2

17 DTR2 18 RI2

19 GND 20 GND

•

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://www.advantech.com.tw/support

This manual is for the PCA-COM232-COM485 series.

Part No. 200K023200

Printed in China

1st Edition

July 2009

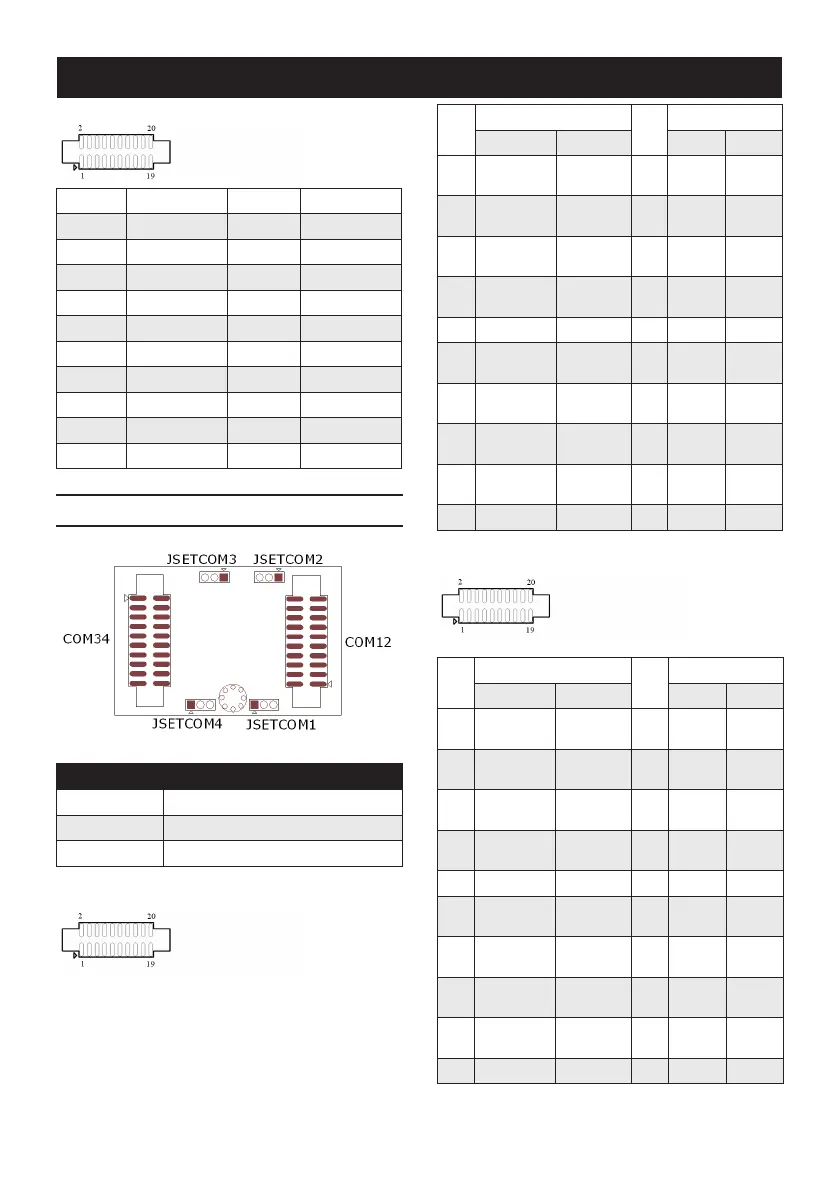

2 PCA-COM232 / PCA-COM485 Startup Manual

COM2

Pin Signal Pin Signal

1 DCD3 2 DSR3

3 RX3 4 RTS3

5 TX3 6 CTS3

7 DTR3 8 RI3

9 GND 10 GND

11 DCD4 12 DSR4

13 RX4 14 RTS4

15 TX4 16 CTS4

17 DTR4 18 RI4

19 GND 20 GND

PCA-COM485

Connectors

Label Function

COM12 Serial Port: COM1 COM2

COM34 Serial Port: COM3 COM4

COM12

•

Signal

RS422 RS485 RS422 RS485

COM1_

TXD-

COM1_

Data-

2 - -

COM1_

TXD+

COM1_

Data+

4 - -

COM1_

RXD+

- 6 - -

COM1_

RXD-

- 8 - -

9 GND GND 10 GND GND

COM2_

TXD-

COM2_

Data-

12 - -

COM2_

TXD+

COM2_

Data+

14 - -

COM2_

RXD+

- 16 - -

COM2_

RXD-

- 18 - -

19 GND GND 20 GND GND

COM34

Signal

RS422 RS485 RS422 RS485

COM3_

TXD-

COM3_

Data-

2 - -

COM3_

TXD+

COM3_

Data+

4 - -

COM3_

RXD+

- 6 - -

COM3_

RXD-

- 8 - -

9 GND GND 10 GND GND

COM4_

TXD-

COM4_

Data-

12 - -

COM4_

TXD+

COM4_

Data+

14 - -

COM4_

RXD+

- 16 - -

COM4_

RXD-

- 18 - -

19 GND GND 20 GND GND

•

Connectors
