Side 1/7

PCE-5B18-0GA1 (PCE-7B19-0GA1) Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

• 1 x 2-port USB Cable p/n: 1700002204

• PCE-5B18-0GA1 (PCE-7B19-0GA1)

• Startup Manual p/n: 20417B1900

• M4*6*0.7 Round Screws (15pcs) p/n: 1939000410

• 2 Year Quality Warranty Card p/n: 2190000902

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

PCE-5B18-0GA1 (PCE-7B19-0GA1) Backplane: 19

(18)-slot BP for 20-slot Chassis, 1 x PICMIG 1.3,

2 x (1) PCIe, 16 x 32-bit/64-bit PCI

Startup Manual

Standard Functions

• PICMIG 1.3 slots:

PCE-7B19-0G supports PCE-7xxx CPU boards

PCE-5B18-0G supports PCE-5xxx CPU boards

• PCIe slots:

PCE-7B19-0G supports two PCIe p1-x8 slots

PCE-5B18-0G supports one PCIe x16 slot

• 32-bit PCI slots:

Sixteen 32 bit/33 MHz, 64 bit/66MHz PCI slots

Bridge Chip: Diodes PI7C9X113SLFDE

• USB (2.0) ports:

Four Universal Serial Bus ports as pin headers

Mechanical and Environmental

• Dimensions: 327.66 x 417 mm

• Power supply voltage: +12 V, +5 V, -12 V, -5 V,

+3.3 V, +5 VSBY

• Power requirements: Refer to the CPU board, add-

on card & peripherals

• Operating temperature: 0 ~ 60°C

• Weight: 1.7 kg (weight of board)

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://support.advantech.com/

This manual is for the PCE-5B18-0GA1 (PCE-7B19-

0GA1) series.

Part No. 20417B1900

Printed in China

1st Edition

January 2025

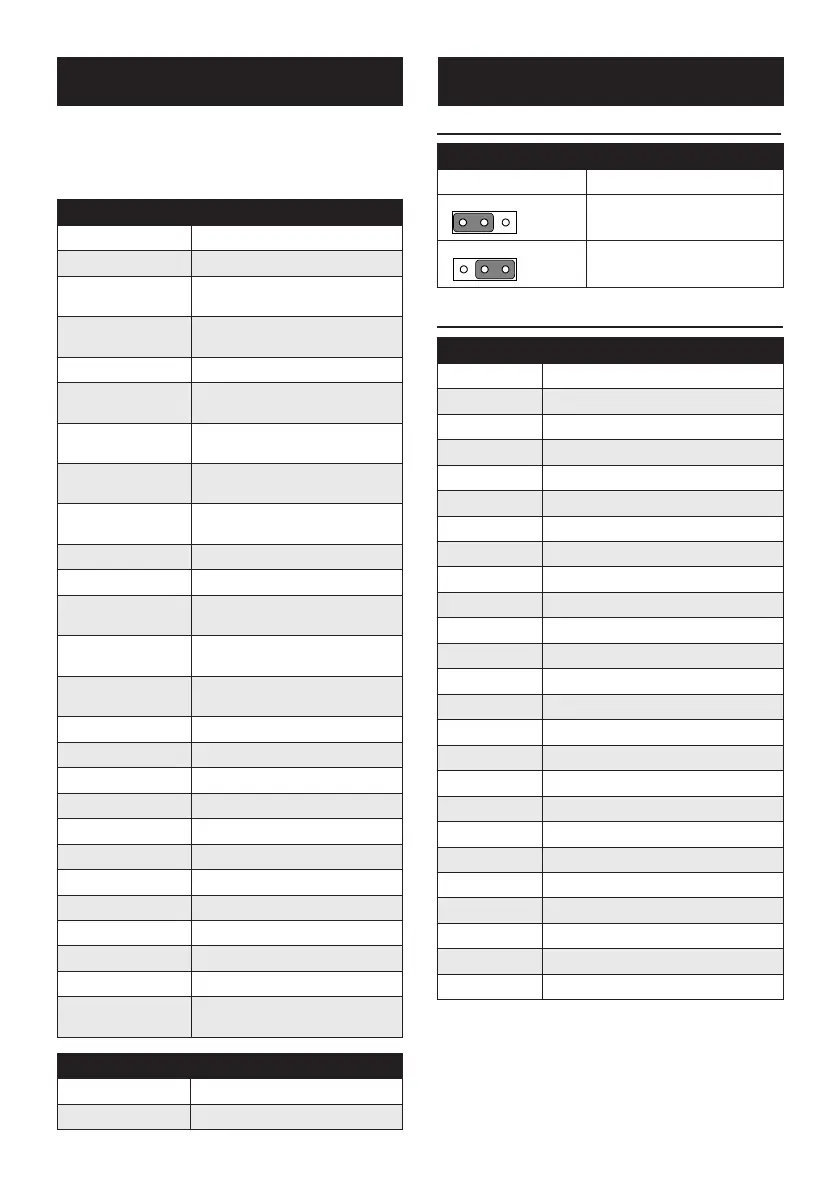

2 PCE-5B18-0GA1 (PCE-7B19-0GA1) Startup Manual

The backplane has a number of connectors and jump-

ersthatallowyoutocongureyoursystemtosuityour

application. The table below lists the function of each of

the jumpers and connectors:

Connectors

Part Reference Function

SHBA1 ~ SHBD1 PICMG 1.3 CPU board slot

PPCIE1

PCE-7B19-0G: PCIe p2-x8 slot

PCE-5B18-0G: Not available

PPCIE2

PCE-7B19-0G: PCIe p2-x8 slot

PCE-5B18-0G: PCIe x16 slot

PPCI1 ~ PPCI4 33MHz (32bit) PCI bus slot

P1PCI1 ~ P1PCI2

33MHz (32bit)/66MHz (64bit) PCI

bus slot (Secondary 1)

P2PCI1 ~ P2PCI3

33MHz (32bit)/66MHz (64bit) PCI

bus slot (Secondary 2)

P3PCI1 ~ P3PCI3

33MHz (32bit)/66MHz (64bit) PCI

bus slot (Secondary 3)

P4PCI1 ~ P4PCI4

33MHz (32bit)/66MHz (64bit) PCI

bus slot (Secondary 4)

EATXPWR1 ATX 2.0 power connector 24 pin

EATPWR1 AT 12-pin power connector

ATX12V1

ATX 12 V auxiliary 4-pin power

connector

ATX12V2

ATX 12 V auxiliary 4-pin power

connector

EATX12V1

ATX 12 V auxiliary 8-pin power

connector

PWR3V1 3.3 V auxiliary power connector

PWR3V2 3.3 V auxiliary power connector

PWR5V1 5 V auxiliary power connector

PWR5V2 5 V auxiliary power connector

VOLT1 Alarm board/CMM power connector

FAN1 ~ FAN7 Fan connectors

FANDEC1 Fan speed detector connector

SMBUS1 ~ SMBUS3

Chassis sensor board connectors

JFP1 Power and reset button connector

USB12 Two USB port pin header

USB34 Two USB port pin header

PSON2

5VSB and PSON connector for

AT power supply

Jumpers

Part Reference Function

PSON1 ATX/AT mode selection

Jumper Settings

PSON1: ATX AT Mode Selection

Jumper Setting Function

AT Mode

ATX Mode (Default)

ConnectorPinDenitions

EATXPWR1

Pin Name

1 3.3 V

2 3.3 V

3 GND

4 5 V

5 GND

6 5 V

7 GND

8 PWROK

9 5VSBY

10 12 V

11 12 V

12 3.3 V

13 3.3 V

14 -12 V

15 GND

16 PSON#

17 GND

18 GND

19 GND

20 -5 V

21 5 V

22 5 V

23 5 V

24 GND

1 2 3

Connectors and Jumpers Connectors and Jumpers (Cont.)
