User Manual
PCIE-1802
8-ch, 24-Bit, 216 kS/s Dynamic
Signal Acquisition PCI Express Card
PCIE-1802 User Manual ii
Copyright
The documentation and the software included with this product are copyrighted 2015
by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right
to make improvements in the products described in this manual at any time without
notice. No part of this manual may be reproduced, copied, translated or transmitted
in any form or by any means without the prior written permission of Advantech Co.,
Ltd. Information provided in this manual is intended to be accurate and reliable. How-
ever, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringe-
ments of the rights of third parties, which may result from its use.
Acknowledgements
Intel and Pentium are trademarks of Intel Corporation.
Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
All other product names or trademarks are properties of their respective owners.
Product Warranty (2 years)
Advantech warrants to you, the original purchaser, that each of its products will be
free from defects in materials and workmanship for two years from the date of pur-
chase.
This warranty does not apply to any products which have been repaired or altered by
persons other than repair personnel authorized by Advantech, or which have been
subject to misuse, abuse, accident or improper installation. Advantech assumes no
liability under the terms of this warranty as a consequence of such events.
Because of Advantech’s high quality-control standards and rigorous testing, most of
our customers never need to use our repair service. If an Advantech product is defec-
tive, it will be repaired or replaced at no charge during the warranty period. For out-
of-warranty repairs, you will be billed according to the cost of replacement materials,
service time and freight. Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For example, CPU
speed, Advantech products used, other hardware and software used, etc.) Note
anything abnormal and list any onscreen messages you get when the problem
occurs.
2. Call your dealer and describe the problem. Please have your manual, product,
and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return merchandize
authorization) number from your dealer. This allows us to process your return
more quickly.
4. Carefully pack the defective product, a fully-completed Repair and Replacement
Order Card and a photocopy proof of purchase date (such as your sales receipt)
in a shippable container. A product returned without proof of the purchase date
is not eligible for warranty service.
5. Write the RMA number visibly on the outside of the package and ship it prepaid
to your dealer.
Part No. 2003180200 Edition 1
Printed in Taiwan July 2015
iii PCIE-1802 User Manual
Declaration of Conformity
CE
This product has passed the CE test for environmental specifications when shielded
cables are used for external wiring. We recommend the use of shielded cables. This
kind of cable is available from Advantech. Please contact your local supplier for
ordering information.
Technical Support and Assistance
1. Visit the Advantech web site at http://support.advantech.com where you can find
the latest information about the product.
2. Contact your distributor, sales representative, or Advantech's customer service
center for technical support if you need additional assistance. Please have the
following information ready before you call:
– Product name and serial number
– Description of your peripheral attachments
– Description of your software (operating system, version, application software,
etc.)
– A complete description of the problem
– The exact wording of any error messages
Packing List
Before setting up the system, check that the items listed below are included and in
good condition. If any item does not accord with the table, please contact your dealer
immediately.
PCIE-1802 DA&C card
Startup or User Manual
Companion DVD-ROM with DAQNavi drivers included
Safety Precaution - Static Electricity
Follow these simple precautions to protect yourself from harm and the products from
damage.
To avoid electrical shock, always disconnect the power from your PC chassis
before you work on it. Don't touch any components on the CPU card or other
cards while the PC is on.
Disconnect power before making any configuration changes. The sudden rush
of power as you connect a jumper or install a card may damage sensitive elec-
tronic components.
PCIE-1802 User Manual iv
v PCIE-1802 User Manual
Contents
Chapter 1 Introduction..........................................1
1.1 Introduction ............................................................................................... 2
1.2 Features .................................................................................................... 2
1.2.1 Auto Calibration ............................................................................ 2
1.2.2 BoardID Switch ............................................................................. 2
1.3 Applications............................................................................................... 2
1.4 Installation Guide ...................................................................................... 3
Figure 1.1 Installation Flow Chart ................................................ 3
1.5 Software Overview .................................................................................... 3
1.5.1 Device Drivers............................................................................... 4
1.6 DAQNavi Device Driver Programming Roadmap ..................................... 4
1.6.1 Programming Tools....................................................................... 4
1.6.2 Programming with DAQNavi Device Drivers Function Library...... 5
1.6.3 Troubleshooting Device Drivers Error........................................... 5
1.7 Accessories............................................................................................... 5
1.7.1 Wiring Cables................................................................................ 5
1.7.2 Wiring Boards ............................................................................... 5
Chapter 2 Installation............................................7
2.1 Unpacking ................................................................................................. 8
2.2 Driver Installation ...................................................................................... 8
2.2.1 Device Auto Installation (Recommended)..................................... 9
2.3 Device Setup & Configuration ................................................................... 9

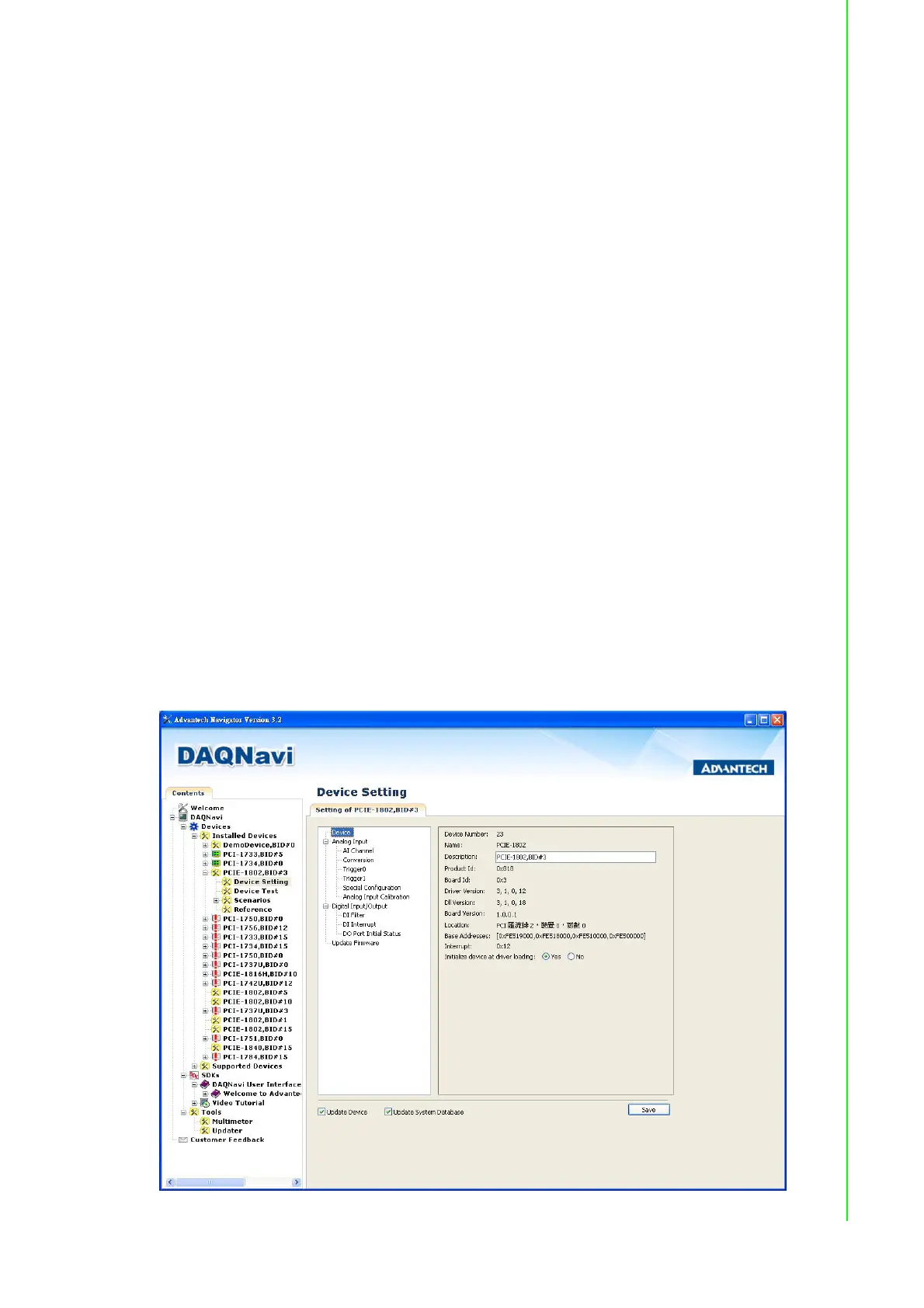

Figure 2.1 The Device Setting of PCIE-1802.............................. 9

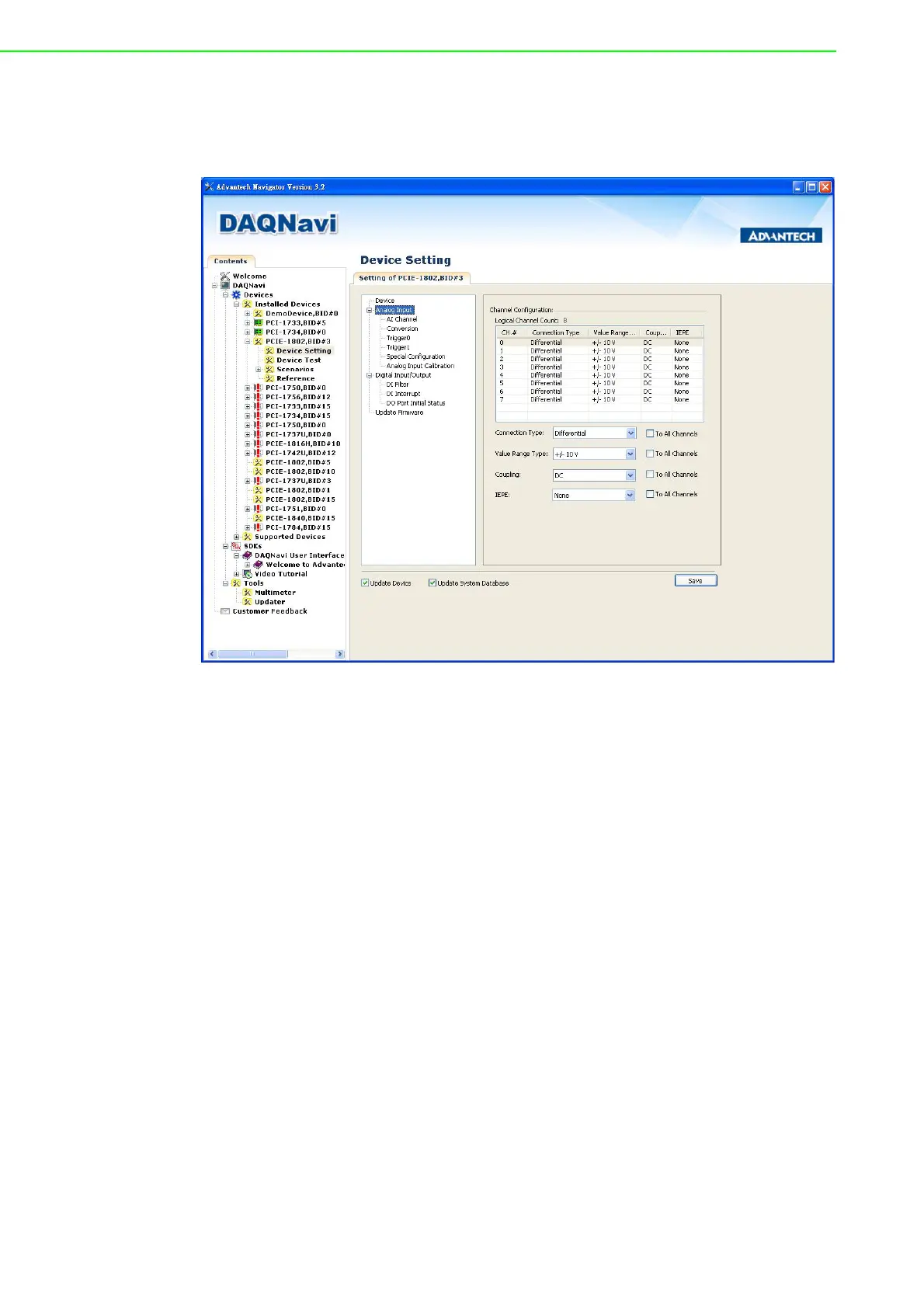

Figure 2.2 The Device Setting page .......................................... 10

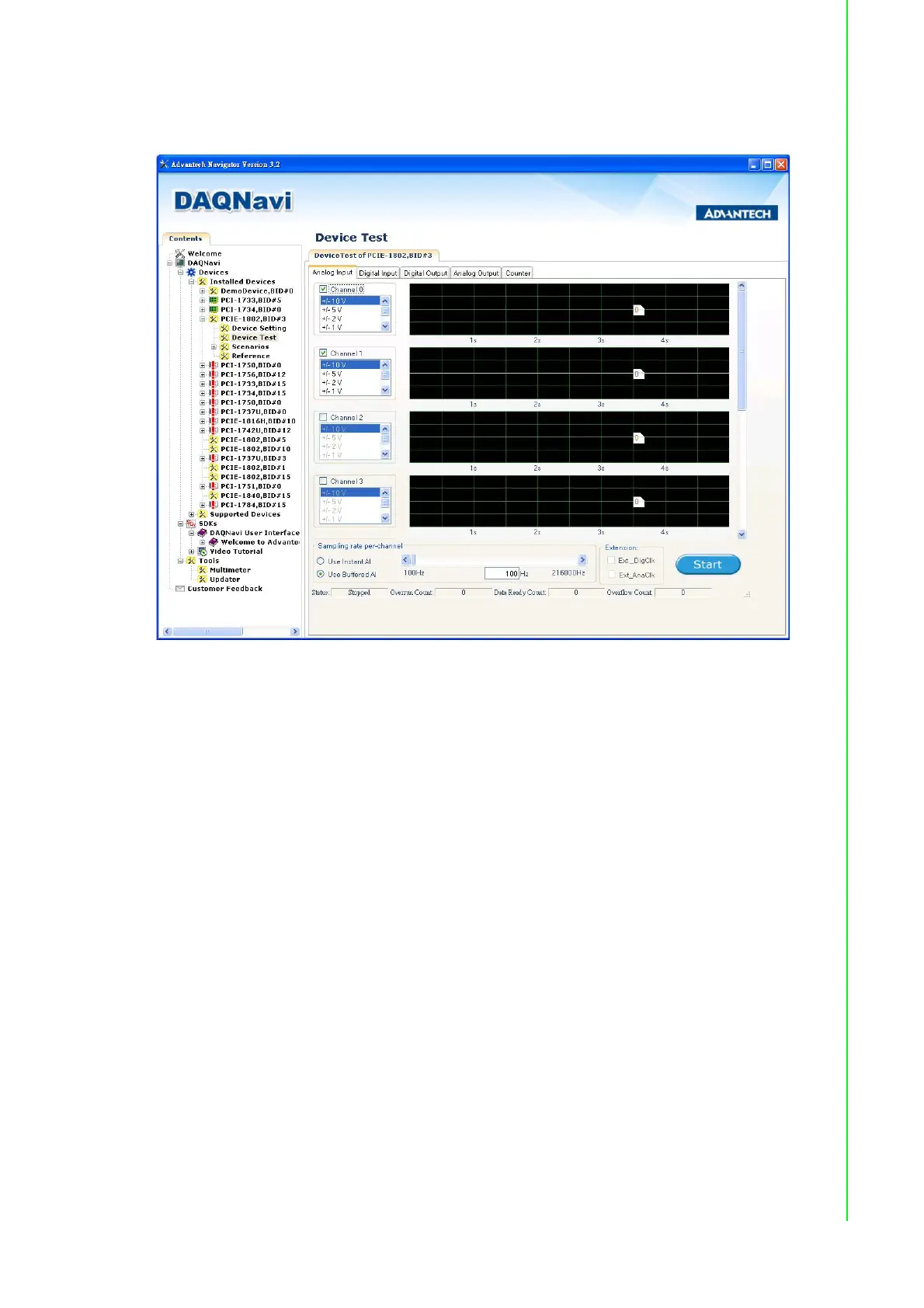

Figure 2.3 The Device Testing of PCIE-1802 ........................... 11
Chapter 3 Signal Connections ...........................13
3.1 Overview ................................................................................................. 14
3.2 Jumper Settings ...................................................................................... 14
Table 3.1: Board ID Settings ..................................................... 14
3.3 Signal Connections ................................................................................. 15

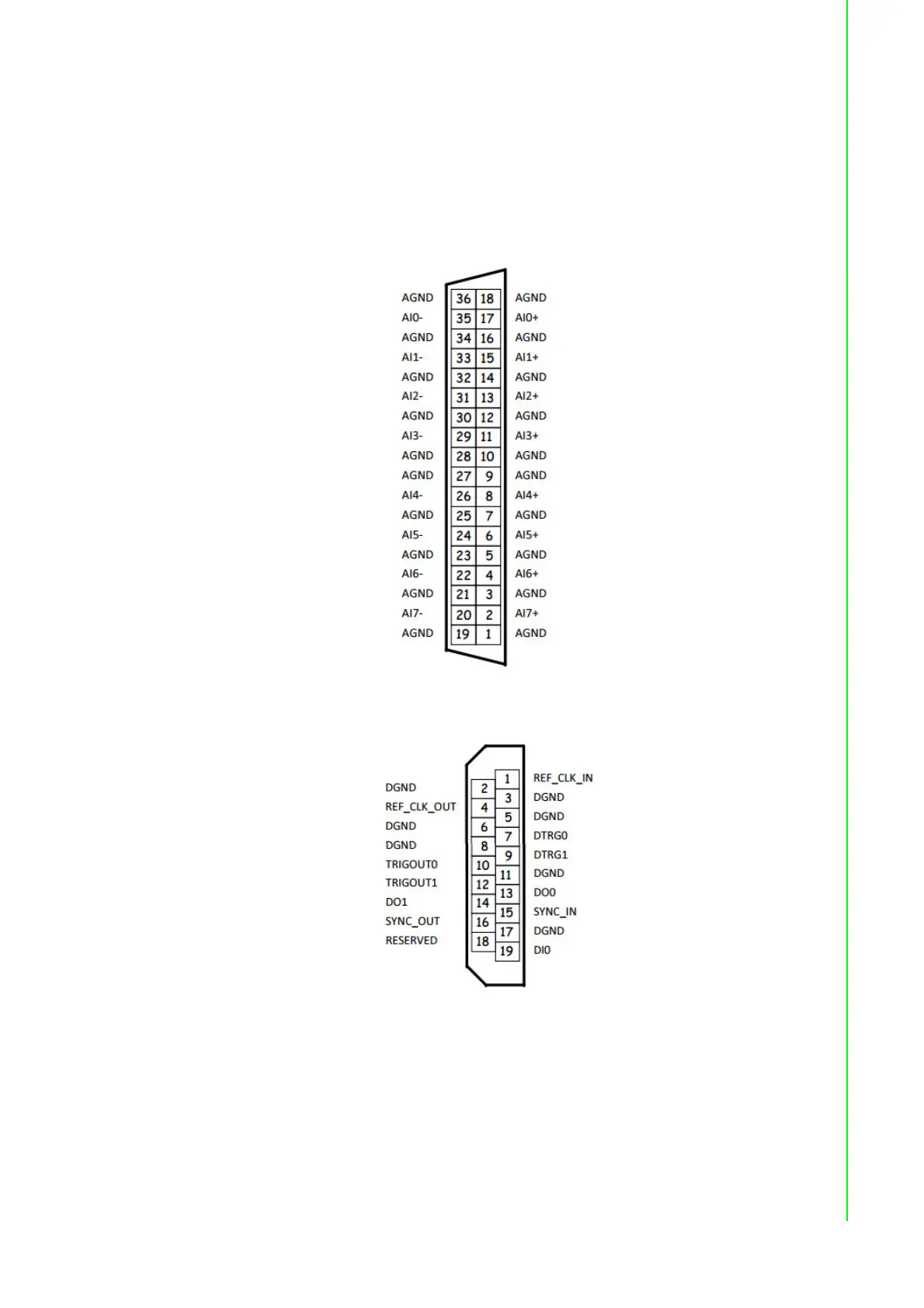

Figure 3.1 36-pin I/O Connector Pin Assignments .................... 15
Figure 3.2 19-pin I/O Connector Pin Assignments .................... 15
3.3.1 I/O Connector Signal Description................................................ 16
3.3.2 Analog Input Connections........................................................... 16
Table 3.2: Recommended Analog input Channel Configuration 16
Figure 3.3 AI Differential Input Signal Connection..................... 17
Figure 3.4 AI Pseudo-Differential Input Signal Connection ....... 17
Figure 3.5 AI IEPE Sensor Input Signal Connection ................. 18
3.3.3 Digital Input/Output Connections ................................................ 18
Figure 3.6 Digital Input Channel Connections ........................... 18
Figure 3.7 Digital Output Channel Connections ........................ 19
3.3.4 Trigger Type................................................................................ 19

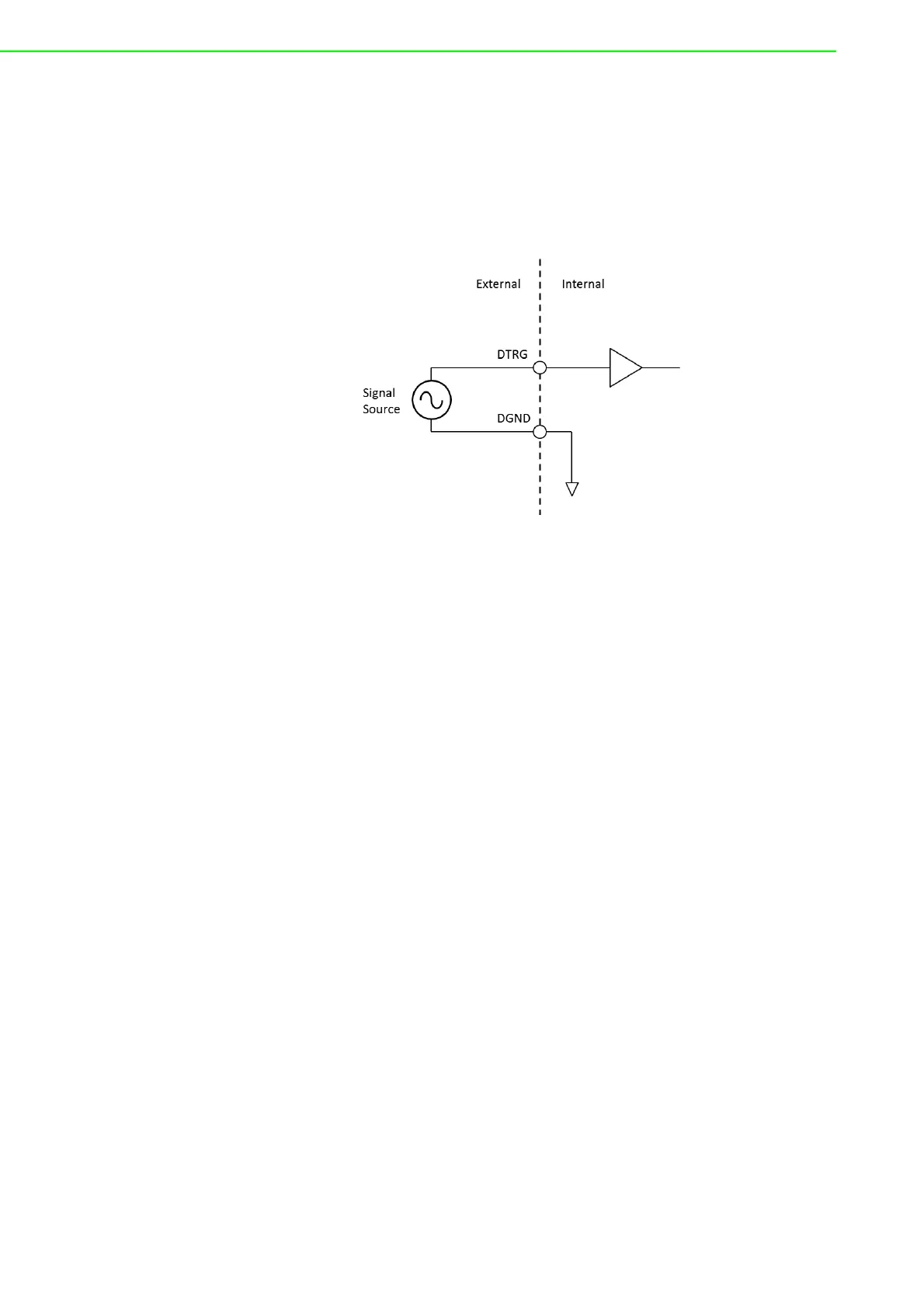

Figure 3.8 Digital Trigger Signal Connection ............................. 20
Figure 3.9 Analog Trigger - Rising Edge ................................... 21
Figure 3.10Analog Trigger - Falling Edge................................... 21
3.3.5 Multiple Cards Synchronization Signal Connection .................... 22
Figure 3.11Multiple Cards Synchronization Signal Connection.. 22
3.4 Field Wiring Considerations .................................................................... 22
PCIE-1802 User Manual vi
Appendix A Specifications.................................... 23
A.1 General Specifications ............................................................................ 24
A.1.1 Bus Interface............................................................................... 24
A.1.2 Power Requirements .................................................................. 24
A.1.3 Physical ...................................................................................... 24
A.1.4 Environmental............................................................................. 24
A.2 Input Characteristics ............................................................................... 24
A.2.1 Maximum Operating Voltage ...................................................... 25
A.2.2 Input Overvoltage Protection ...................................................... 25
A.2.3 Input Signal Range ..................................................................... 25
A.3 AC Coupled Measurement Accuracy...................................................... 25
A.4 Flatness .................................................................................................. 26
A.5 DC Coupled Measurement Accuracy...................................................... 26
A.6 Amplifier Characteristics ......................................................................... 26
A.6.1 Input Impedance ......................................................................... 26
A.6.2 Common-Mode Rejection Ratio (CMRR) ................................... 26
A.7 Dynamic Characteristics ......................................................................... 26
A.7.1 Bandwidth ................................................................................... 26
A.7.2 AC Coupling................................................................................ 27

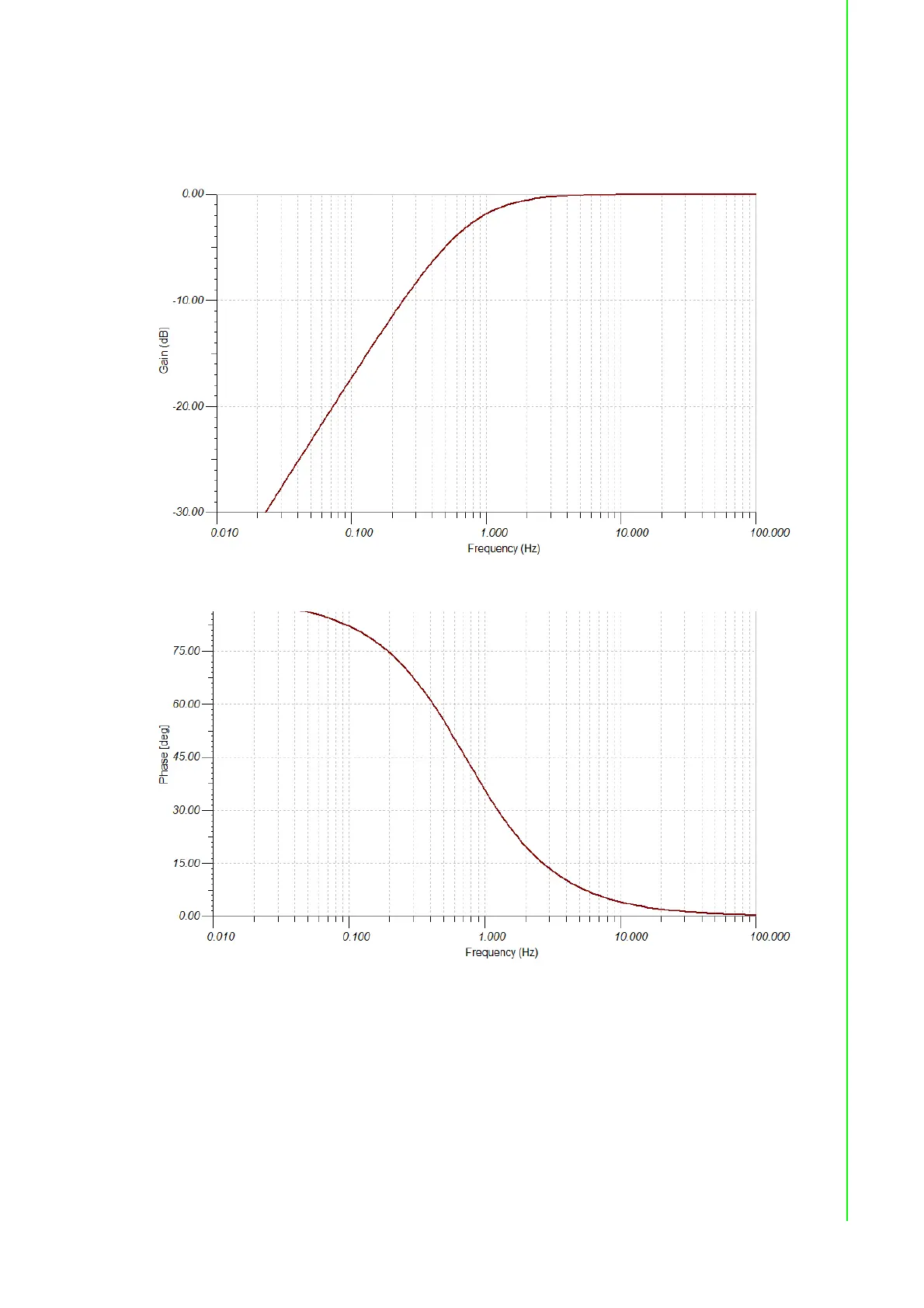

Figure A.1 Magnitude response of AC coupling circuit .............. 27
Figure A.2 Phase response of AC coupling circuit..................... 27
A.7.3 Idle Channel Noise ..................................................................... 28
A.7.4 Representative Measurement FFTs ........................................... 28
Figure A.3 FFT of -1 dBFS, 1 kHz Tone Acquired at 54 kS/s. ... 28
Figure A.4 FFT of -1 dBFS, 1 kHz Tone Acquired at 108 kS/s. . 29
Figure A.5 FFT of -1 dBFS, 1 kHz Tone Acquired at 216 kS/s. . 29
A.7.5 Dynamic Range (DR).................................................................. 30
A.7.6 Spurious Free Dynamic Range (SFDR) ..................................... 30
A.7.7 Signal-to-Noise Ratio (SNR)....................................................... 30
A.7.8 Total Harmonic Distortion (THD) ................................................ 31
A.7.9 Total Harmonic Distortion Plus Noise (THD+N) ......................... 31
A.7.10 Crosstalk..................................................................................... 31
A.7.11 Inter-channel Gain Mismatch...................................................... 32
A.7.12 Inter-channel Phase Mismatch ................................................... 32
A.8 Integrated Electronic Piezoelectric Excitation (IEPE) ............................. 32
A.9 Reference Clock Characteristics............................................................. 32
A.10 Triggers................................................................................................... 33
A.11 Digital I/O ................................................................................................ 33
A.12 Synchronization Input & Output .............................................................. 33
Appendix B Block Diagram................................... 35

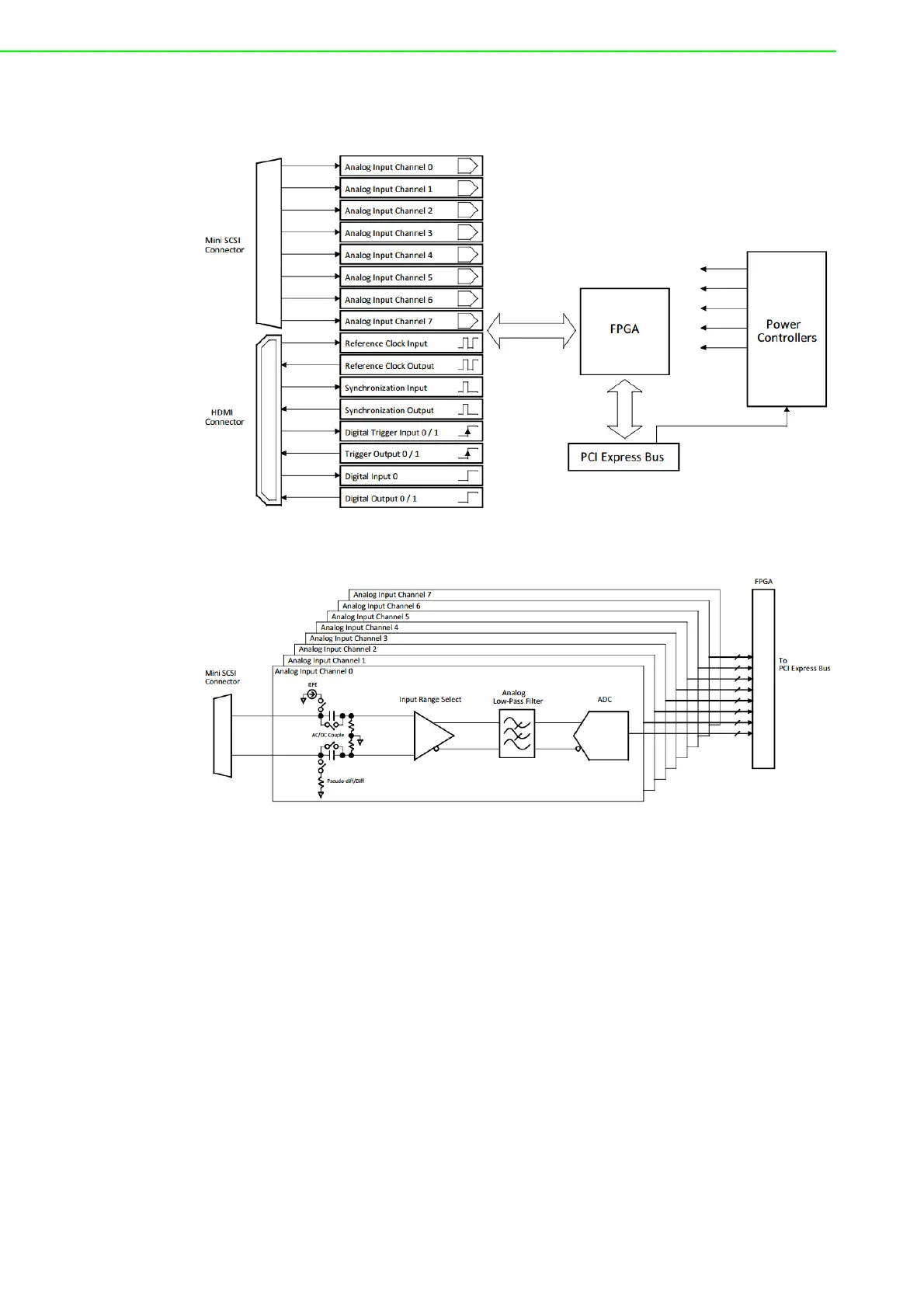

B.1 Function Block Diagrams ........................................................................ 36
Figure B.1 Function block diagram - overview........................... 36
Figure B.2 Function block diagram - analog input ..................... 36
Chapter 1
1 Introduction
This chapter will provide informa-
tion on the features of the PCIE-
1802 cards, a quick installation
guide, together with some brief
information on software and
accessories.
Sections include:
Features
Applications
Installation Guide
Software Overview
Device Drivers Programming
Roadmap
Accessories
PCIE-1802 User Manual 2
1.1 Introduction
The Advantech PCIE-1802 is a high-performance data acquisition module specifi-
cally designed for sound and vibration applications. With eight 24 bit analog inputs
per module and IEPE constant current signal conditioning, Advantech’s PCIE-1802 is
ideal for making precision measurements with microphones, accelerometers, and
other transducers that have very large dynamic ranges. The modules deliver 115 dB
of dynamic range and simultaneous sampling on all 8 channels at rates up to 216 kS/
s.
1.2 Features
The PCIE-1802 offers the following main features:
8 simultaneous analog input channels
24-bit resolution A/D converter
216 kS/s maximum sampling rate
115 dB dynamic range up to 6 gain settings for ranges from ±200 mV to ±10 V
IEPE for accelerometers and microphones
Some of the features are described in detail on the following pages.
1.2.1 Auto Calibration
The PCIE-1802 card features software auto calibration. It provides a convenient
method for user calibration processing.
1.2.2 BoardID Switch
The PCIE-1802 has a built-in DIP switch that helps define each card’s ID when multi-
ple PCIE-1802 cards have been installed on the same PC chassis. The BoardID set-
ting function is very useful when building a system with multiple PCIE-1802 cards.
With the correct BoardID settings, you can easily identify and access each card dur-
ing hardware configuration and software programming.
1.3 Applications
The following are some of the possible applications of PCIE-1802 cards:
Noise, vibration, and harshness (NVH) detection
Machine status monitoring
Structural health monitoring
Note! For detailed specifications of the PCIE-1802 card, refer to Appendix A,
Specifications.
3 PCIE-1802 User Manual
Chapter 1 Introduction
1.4 Installation Guide
Before you install your PCIE-1802 card, please make sure you have the following
components:
PCIE-1802 DA&C card
PCIE-1802 Startup Manual
Driver software
Advantech DAQNavi SDK and drivers (included in the companion CD-ROM)
Wiring cables
PCL-108BNC-0.5E (optional)
PCL-10119-1E (optional)
Wiring board
PCLD-8840 (optional)
Personal computer or workstation with a PCI Express interface (running
Windows8 (desktop mode), 7 and XP)
Some optional components are also available for enhanced operation: After you get
the necessary components and maybe some of the accessories for enhanced opera-
tion of your Multifunction card, you can then begin the installation procedures. Figure
1.1 on the next page provides a concise flow chart for a broad picture of the software
and hardware installation procedure:
Figure 1.1 Installation Flow Chart
1.5 Software Overview
Advantech offers a rich set of APIs, third-party driver supports and application soft-
ware to help fully utilize the functions of your PCIE-1802 cards:
Device Drivers (on the companion DVD-ROM)
DAQNavi SDK
PCIE-1802 User Manual 4
1.5.1 Device Drivers
Advantech Device Driver software is included on the companion CD-ROM. It also
comes with all Advantech DA&C cards. Advantech’s device drivers feature a com-
plete I/O function library to help boost your application performance. The Advantech
Device Drivers for Windows 2000, XP, Vista or Windows 7 works seamlessly with
development tools such as Visual C++, Visual C#, Visual Basic.NET, Borland C++
Builder and Borland Delphi.
1.6 DAQNavi Device Driver Programming Roadmap
This section will provide you with a roadmap to demonstrate how to build an applica-
tion from scratch using Advantech DAQNavi Device Driver with your favorite devel-
opment tools such as Visual Studio.Net, Visual C++, Visual Basic, Delphi and C++
Builder. The step-by-step instructions on how to build your own applications using
each development tool will be given in the Device Drivers Manual. Moreover, a rich
set of example source code is also given for your reference.
1.6.1 Programming Tools
Programmers can develop application programs with their favorite development
tools:
Visual Studio.Net
Visual C++ and Visual Basic
Delphi
C++ Builder
For instructions on how to begin programming works in each development tool,
Advantech offers a Tutorial Chapter in the DAQNavi SDK Manual for your reference.
Refer to the corresponding sections in this chapter on the DAQNavi SDK Manual to
begin your programming efforts. You can also look at the example source code pro-
vided for each programming tool, since they can get you very well oriented.
The DAQNavi SDK Manual can be found on the companion DVD-ROM. Alternatively,
if you have already installed the Device Drivers on your system, The DAQNavi SDK
Manual can be readily accessed through the Start button:
Start/Programs/Advantech Automation/DAQNavi/DAQNavi Manuals/DAQNavi
SDK Manual
The example source codes can be found under the corresponding installation folder
such as the default installation path:
C:\Advantech\DAQNavi\Examples\
For information about using other function groups or other evelopment tools, please
refer to the Using DAQNavi SDK chapter in the DAQNavi SDK Manual, or the video
tutorials in the Advantech Navigator.
5 PCIE-1802 User Manual
Chapter 1 Introduction
1.6.2 Programming with DAQNavi Device Drivers Function Library
Advantech DAQNavi Device Drivers offer a rich function library that can be utilized in
various application programs. This function library consists of numerous APIs that
support many development tools, such as Visual Studio.Net, Visual C++, Visual
Basic, Delphi and C++ Builder.
According to their specific functions or services, APIs can be categorized into several
function groups:
Analog Input Function Group
Digital Input/Output Function Group
Event Function Group
For the usage and parameters of each function, please refer to the Using DAQNavi
SDK chapter in the DAQNavi SDK Manual.
1.6.3 Troubleshooting Device Drivers Error
Driver functions will return a status code when they are called to perform a certain
task for the application. When a function returns a code that is not zero, it means the
function has failed to perform its designated function. See Device Driver Manual for
detailed information about Error Code.
1.7 Accessories
Advantech offers a complete set of accessory products to support PCIE-1802 cards.
These accessories include:
1.7.1 Wiring Cables
PCL-108BNC-0.5E
36-pin MINI SCSI to Eight BNC Cable, 0.5 m
PCL-10119-1E
HDMI Cable, 1 m
1.7.2 Wiring Boards
PCLD-8840-AE
20-pin DIN-rail HDMI Cable Wiring Board for PCIE-1802 and PCIE-1840.
PCIE-1802 User Manual 6
Chapter 2
2 Installation
PCIE-1802 User Manual 8
2.1 Unpacking
After receiving your PCIE-1802 package, inspect its contents first.
The package should contain the following items:
PCIE-1802 card
Companion CD-ROM (DLL driver included)
Startup Manual
The PCIE-1802 cards harbors certain electronic components vulnerable to electro-
static discharge (ESD). ESD could easily damage the integrated circuits and certain
components if preventive measures are not carefully paid attention to.
Before removing the card from the antistatic plastic bag, you should take following
precautions to prevent ESD damage:
Touch a metal part of your computer chassis with your hand to discharge static
electricity accumulated on your body. Or use a grounding strap.
Touch the anti-static bag to a metal part of your computer chassis before open-
ing the bag.
Hold the card only by the metal bracket when removing it from the bag.
After taking out the card, you should first inspect the card for any possible signs of
external damage (loose or damaged components, etc.). If the card is visibly dam-
aged, please notify our service department or the local sales representative immedi-
ately. Avoid installing a damaged card into your system. Also, pay extra caution to the
following aspects to ensure proper installation:
Avoid physical contact with materials that could hold static electricity such as
plastic, vinyl and Styrofoam.
Whenever you handle the card, grasp it only by its edges. DO NOT TOUCH the
exposed metal pins of the connector or the electronic components.
2.2 Driver Installation
We recommend you install the driver before you install the PCIE-1802 card into your
system, since this will guarantee a smooth installation process.
The Advantech DAQNavi Device Drivers Setup program for the PCIE-1802 card is
included in the companion DVD-ROM that is shipped with your DA&C card package.
Please follow the steps below to install the driver software:
1. Insert the companion DVD-ROM into your DVD-ROM drive.
2. The Setup program will be launched automatically if you have the auto play
function enabled on your system. When the Setup Program is launched, you
can follow the installation guide to correctly install the driver step by step.
Note! Keep the anti-static bag for future use. You may need the original bag to
store the card if you have to remove the card from the PC or transport it
elsewhere.
9 PCIE-1802 User Manual
Chapter 2 Installation
2.2.1 Device Auto Installation (Recommended)
You can install the PCIE-1802 module in any PCI Express slot on your computer. Fol-
low the steps below to install the module on your system.
1. Turn off your computer and unplug the power cord and cables. TURN OFF your
computer before installing or removing any components on the computer.
2. Remove the cover of the computer.
3. Remove the slot cover on the back panel of your computer.
4. Touch the metal part on the surface of your computer to neutralize the static
electricity that might be on your body.
5. Insert the PCIE-1802 card into a PCI Express slot. Hold the card only by its
edges and carefully align it with the slot. Insert the card firmly into place. Use of
excessive force must be avoided, otherwise the card might be damaged.
6. Fasten the bracket of the PCI card on the back panel rail of the computer with
screws.
7. Plug in the power cord and turn on the computer.
2.3 Device Setup & Configuration
The Advantech Navigator program is a utility that allows you to set up, configure and
test your device, and later stores your settings on the system registry. These settings
will be used when you call the APIs of Advantech Device Drivers.
Setting Up the Device
1. To install the I/O device for your card, you must first run the Advantech Naviga-
tor program (by accessing Start/Programs/Advantech Automation/DAQNavi/
Advantech Navigator).
2. You can then view the device(s) already installed on your system (if any) on the
Installed Devices list box. If the software and hardware installation are com-
pleted, you will see PCIE-1802 card in the Installed Devices list.
Figure 2.1 The Device Setting of PCIE-1802
PCIE-1802 User Manual 10
Configuring the Device
Go to the Device Setting to configure your device. Here you can configure not only
the Analog Input of PCIE-1802 but also Digital Input/Output.
Figure 2.2 The Device Setting page
11 PCIE-1802 User Manual
Chapter 2 Installation
After your card is properly installed and configured, you can go to the Device Test
page to test your hardware by using the testing utility supplied.
Figure 2.3 The Device Testing of PCIE-1802
For more detailed information, refer to the DAQNavi SDK Manual or the User Inter-
face Manual in the Advantech Navigator.
PCIE-1802 User Manual 12
Chapter 3
3 Signal Connections
This chapter provides useful
information about how to connect
input and output signals to the
PCIE-1802 cards via the I/O con-
nector.
Sections include:
Overview
Switch Settings
Signal Connections
Field Wiring Considerations
PCIE-1802 User Manual 14
3.1 Overview
Maintaining signal connections is one of the most important factors in ensuring that
your application system is sending and receiving data correctly. A good signal con-
nection can avoid unnecessary and costly damage to your PC and other hardware
devices. This chapter provides useful information about how to connect input and
output signals to the PCIE-1802 cards via the I/O connector.
3.2 Jumper Settings
Setting the BoardID Switch (SW1)
The PCIE-1802 has a built-in DIP switch (SW1), which is used to define each card's
board ID. You can determine the board ID on the register as shown in Table 2.1.
When there are multiple cards on the same chassis, this board ID setting function is
useful for identifying each card's device number through board ID. We set the PCIE-
1802 board ID as 0 at the factory. If you need to adjust it to other board ID, set the
SW1 by referring to DIP switch setting.
* Default Setting
Table 3.1: Board ID Settings
SW13210
BoardID ID3 ID2 ID1 ID0
0* ON ON ON ON
1ONONONOFF
2ONONOFFON
3ONONOFFOFF
4 ON OFF ON ON
5 ON OFF ON OFF
6ONOFFOFFON
7ONOFFOFFOFF
8 OFF ON ON ON
9 OFF ON ON OFF
10 OFF ON OFF ON
11 OFF ON OFF OFF
12 OFF OFF ON ON
13 OFF OFF ON OFF
14 OFF OFF OFF ON
15 OFF OFF OFF OFF
15 PCIE-1802 User Manual
Chapter 3 Signal Connections
3.3 Signal Connections
Pin Assignment
The I/O connector on the PCIE-1802 are a 36-pin and 19-pin connectors that enable
you to connect to accessories with the PCL-108BNC mini SCSI and PCL-10119
HDMI cable. Figure 3.1 and Figure 3.2 show the pin assignments for the 36-pin and
19-pin I/O connector separately, and Table 3.1 shows its I/O connector signal
description.
Figure 3.1 36-pin I/O Connector Pin Assignments
Figure 3.2 19-pin I/O Connector Pin Assignments
PCIE-1802 User Manual 16
3.3.1 I/O Connector Signal Description
3.3.2 Analog Input Connections
3.3.2.1 Differential Inputs
The PCIE-1802 supports two terminal configurations for analog input: differential and
pseudo-differential. The term pseudo-differential refers to the 50 Ω resistance
between the outer connector shell and chassis ground.
If the signal source is floating, use the pseudo-differential configuration. The pseudo-
differential configuration provides a ground reference between the floating source
and the PCIE-1802 by connecting a 50 Ω resistor from the negative input to ground.
Without this, the floating source can drift outside of the input common-mode range of
the PCIE-1802.
If the signal source is grounded or ground referenced, both the pseudo-differential
and differential input configurations are acceptable. However, the differential input
configuration is preferred, since using the pseudo-differential input configuration on a
grounded signal source creates more than one ground-reference point. This condi-
tion may allow ground loop current, which can introduce errors or noise into the mea-
surement. The 50 Ω resistor between the negative input and ground is usually
sufficient to reduce these errors to negligible levels, but results can vary depending
on your system setup.
Configure the channels based on the signal source reference or DUT configuration.
Refer to Table 1-1 to determine how to configure the channel.
The default configuration of the PCIE-1802 is differential.
Signal Name Reference Direction Description
AI<0..7>+ AGND Input Analog positive input channels 0 through 7
AI<0..7>- AGND Input Analog negative input channels 0 through 7
AGND ---- ---- Analog ground
REF_CLK_IN DGND Input 25 MHz reference clock input
REF_CLK_OUT DGND Output 25 MHz reference clock output
DTRG<0..1> DGND Input Digital trigger inputs
TRIGOUT<0..1> DGND Output Trigger outputs
SYNC_IN DGND Input Synchronization input
SYNC_OUT DGND Output Synchronization output
DI0 DGND Input Digital input channel
DO<0..1> DGND Output Digital output channels
DGND ---- ---- Digital ground
Table 3.2: Recommended Analog input Channel Configuration
Source Reference Channel Configuration
Floating Pseudo-differential
Grounded Differential
17 PCIE-1802 User Manual
Chapter 3 Signal Connections
Figure 3.3 AI Differential Input Signal Connection
3.3.2.2 Pseudo-Differential Inputs
A pseudo-differential input is much like a differential input in that it provides common-
mode voltage rejection (unlike single-ended inputs). However, pseudo-differential
inputs are all referred, but not directly tied, to a common ground. This connection is
typically made by a relatively low value resistor to give some isolation between the
sensor/signal ground and the measurement device ground. DSA measurement
devices have a 50 Ω resistance between the negative signal connector the outer
shell of a BNC, and the device ground. A diagram showing the pseudo-differential
input configuration of the PCIE-1802 is shown below with a floating source.
Figure 3.4 AI Pseudo-Differential Input Signal Connection
PCIE-1802 User Manual 18
3.3.2.3 IEPE for Input
For applications that require sensors such as microphones or accelerometers, the
PCIE-1802 provides an excitation current source to excite IEPE sensors. A DC volt-
age offset is generated due to the excitation current and sensor impedance. When
IEPE current sources are enabled, the PCIE-1802 automatically sets input configura-
tion to AC coupling and pseudo-differential.
Figure 3.5 AI IEPE Sensor Input Signal Connection
3.3.3 Digital Input/Output Connections
PCIE-1802 provides 2 Channels DO and 1 channel DI.
3.3.3.1 Digital Input Channel Connections
Figure 3.6 Digital Input Channel Connections
19 PCIE-1802 User Manual
Chapter 3 Signal Connections
3.3.3.2 Digital Output Channel Connections
Figure 3.7 Digital Output Channel Connections
3.3.4 Trigger Type
The PCIE-1802 supports two types of triggers: start triggers and stop triggers.
The returned data consists of samples acquired between a start trigger and a stop
trigger. That is, only data acquired after the start trigger occurred and before the stop
trigger occurred are returned.
Both start triggers and stop triggers can be delayed. When the delay number is
applied to a trigger, the trigger is effective only when the number of samples has
reached after the trigger occurs. For example, if delay number of 5 is applied to the
start trigger, the returned data will consist of samples acquired after the start trigger
occurred except the first 5 samples. If delay number of 3 is applied to the stop trigger,
the returned data will consist of samples acquired before the stop trigger occurred
plus 3 samples acquired after the stop trigger.
Both triggers can be configured independently, and can be set to use a variety of
sources, both analog and digital. Triggers can be configured to occur on either the
rising or falling edge of a signal. Moreover, analog triggers support other modes of
operation, including triggering on edges with hysteresis, and triggering when a signal
enters or leaves a predefined window. Since all three types of triggers are configured
independently, alternate edges of a signal can be used for different types of triggers.
During repetitive triggering on a waveform, you might observe jitter because of the
uncertainty of where a trigger level falls compared to the actual digitized data.
Although this trigger jitter is never greater than one sample period, it might be signifi-
cant when the sample rate is only twice the bandwidth of interest. This jitter usually
has no effect on data processing, and you can decrease this jitter by sampling at a
higher rate.
PCIE-1802 User Manual 20
3.3.4.1 Digital Trigger Connections
You can configure the PCIE-1802 to trigger in response to digital signals on DTRG0
or DTRG1 pin of the HDMI connector, located on the device front panel. The trigger
circuit can respond either to a rising or a falling edge. The trigger signal must comply
to 3.3 V or 5 V TTL voltage levels.
A diagram showing the DRTG input configuration of the PCIE-1802 is shown below
with a signal source.
Figure 3.8 Digital Trigger Signal Connection
21 PCIE-1802 User Manual
Chapter 3 Signal Connections
3.3.4.2 Analog Trigger
You can configure the PCIE-1802 analog trigger circuitry to monitor any input chan-
nel from which you acquire data. Choosing an input channel as the trigger channel
does not influence the input channel acquisition capabilities.
The trigger circuit generates an internal digital trigger based on the input signal and
the defined trigger levels. For example, you can configure the device to start acquir-
ing samples after the input signal crosses a specific threshold. PCIE-1802 offers sev-
eral analog triggering modes, including analog edge, analog edge with hysteresis,
and window triggering.
Analog trigger connections are the same as Analog Input Connections, please
refer to differential input (Figure 3.3) or pseudo-differential input (Figure 3.4).
Analog Trigger- Rising Edge
For rising edge trigger, ±10 V input range, +2 V trigger level, 0.1% trigger hysteresis
(equivalent to 20 V × 0.1% = 0.02 V).
Figure 3.9 Analog Trigger - Rising Edge
Analog Trigger- Falling Edge
For falling edge trigger, ±10 V input range, +2 V trigger level, 0.1% trigger hysteresis
(equivalent to 20 V × 0.1% = 0.02 V).
Figure 3.10 Analog Trigger - Falling Edge
PCIE-1802 User Manual 22
3.3.5 Multiple Cards Synchronization Signal Connection
The below figure shows how to synchronize multiple PCIE-1802 cards. The synchro-
nization is done through the reference clock and synchronization signal lines. The
boards in both master and slave, share the same clock, sync pulse and a start trig-
ger.
Figure 3.11 Multiple Cards Synchronization Signal Connection
3.4 Field Wiring Considerations
When you use PCIE-1802 cards to acquire data from outside, noises in the environ-
ment might significantly affect the accuracy of your measurements if due cautions are
not taken. The following measures will be helpful to reduce possible interference run-
ning signal wires between signal sources and the PCIE-1802 card.
The signal cables must be kept away from strong electromagnetic sources such
as power lines, large electric motors, circuit breakers or welding machines,
since they may cause strong electromagnetic interference.Keep the analog sig-
nal cables away from any video monitor, since it can significantly affect a data
acquisition system.
If the cable travels through an area with significant electromagnetic interference,
you should adopt individually shielded, twisted-pair wires as the analog input
cable. This type of cable has its signal wires twisted together and shielded with
a metal mesh. The metal mesh should only be connected to one point at the sig-
nal source ground.
Avoid running the signal cables through any conduit that might have power lines
in it.
If you have to place your signal cable parallel to a power line that has a high
voltage or high current running through it, try to keep a safe distance between
them. Alternatively, you can place the signal cable at a right angle to the power
line to minimize the undesirable effect.
The signals transmitted on the cable will be directly affected by the quality of the
cable. In order to ensure better signal quality, we recommend that you use the
PCL-108BNC-0.5E shielded cable.
Appendix A
A Specifications
PCIE-1802 User Manual 24
A.1 General Specifications
A.1.1 Bus Interface
Form factor: x1 PCI Express, specification v1.1 compliant
Slot compatibility: x1, x4, x8, and x16 PCI Express slots
DMA channel: 1, analog input
A.1.2 Power Requirements
Typical: +3.3 V @ 400 mA, +12 V @ 850 mA
A.1.3 Physical
Printed circuits board dimensions: 9.9 × 16.8 cm (3.9 × 6.6 in.)
I/O connector: 1 × 36-pin VHDCI (mini-SCSI), and 1 × HDMI
A.1.4 Environmental
Operating temperature: 0 to 60°C
Storage temperature: -40 to 70°C
Operating humidity: 10 to 90% RH, non-condensing
Storage humidity: 5 to 95% RH, non-condensing
Indoor use only.
A.2 Input Characteristics
Number of simultaneously sampled input channels: 8, can be enabled/dis-
abled each channel independently by software
Input configuration: Differential/Pseudo-differential (50 Ω between negative
input and chassis ground), software selectable per channel
Input coupling: AC/DC, software selectable per channel
A/D converter (ADC) resolution: 24 bits
A/D converter (ADC) type: Delta-sigma
Sample rates (fs):
– Range: 100 S/s to 216 kS/s
– Resolution: 90.95 μS/s (100 S/s to 54 kS/s)
181.90 μS/s (54 kS/s to 108 kS/s)
363.80 μS/s (108 kS/s to 216 kS/s)
FIFO buffer size: 4,096 samples
Data transfers: Direct memory access (DMA)
25 PCIE-1802 User Manual
Appendix A Specifications
A.2.1 Maximum Operating Voltage
* Voltages with respect to chassis ground.
A.2.2 Input Overvoltage Protection
* Voltages with respect to chassis ground.
A.2.3 Input Signal Range
*Each input channel gain is independently software selectable.
**Voltages on the positive terminal with respect to the negative terminal.
A.3 AC Coupled Measurement Accuracy
Gain error (fin = 1 kHz):
– Operating temperature within 5 °C of last auto-calibration temperature: <
±0.6%
– Over full operating temperature range: < ±1.0%
Offset error:
– Operating temperature within 5 °C of last auto-calibration temperature:
< 0.5 mV
– Over full operating temperature range: < 1 mV
IEPE
Input
Coupling
Input
Configuration
Positive Terminal
(+)*
Negative Terminal
(-)*
Disabled AC Differential ±24 V ±24 V
Disabled AC Pseudo-differential ±24 V ±10 V
Disabled DC Differential ±10 V ±10 V
Disabled DC Pseudo-differential ±10 V ±10 V
Enabled AC Pseudo-differential 0 ~ +24 V 0 ~ +1 V
Enabled DC Pseudo-differential 0 ~ +10 V 0 ~ +1 V
Note! Input configuration must be pseudo-differential when IEPE is enabled.
Input Configuration Positive Terminal (+)* Negative Terminal (-)*
Differential ±24 V ±24 V
Pseudo-differential ±24 V ±12 V
Gain Full-Scale Range*, **
0.28 ±10.0 V
0.56 ±5.0 V
1.4 ±2.0 V
2.8 ±1.0 V
5.6 ±0.5 V
14 ±0.2 V
PCIE-1802 User Manual 26
A.4 Flatness
* Relative to 1 kHz.
A.5 DC Coupled Measurement Accuracy
Gain error:
– Operating temperature within 5 °C of last auto-calibration temperature: <
±0.2%
– Over full operating temperature range: < ±0.4%
Offset error:
– Operating temperature within 5 °C of last auto-calibration temperature:
< 0.5 mV
– Over full operating temperature range: < 1 mV
A.6 Amplifier Characteristics
A.6.1 Input Impedance
A.6.2 Common-Mode Rejection Ratio (CMRR)
Input frequency < 20 kHz: 80 dB
A.7 Dynamic Characteristics
A.7.1 Bandwidth
*fs: Sample frequency
For example, the -3 dB bandwidth of 10 kS/s sample frequency is 0.4805 × 10 kHz =
4.805 kHz.
Frequency Band
fs ≥ 54 kS/s
20 Hz ≤ fin ≤ 20 kHz
fs ≥ 108 kS/s
20 kHz < fin ≤ 45 kHz
fs ≥ 216 kS/s
45 kHz < fin ≤ 92.2 kHz
Flatness* (dB) ±0.004 ±0.006 ±0.008
Input Configuration
Between Positive Terminal (+)
and Chassis Ground
Between Negative Terminal (-)
and Chassis Ground
Differential 1 MΩ 1 MΩ
Pseudo-differential 1 MΩ 50 Ω
Sample Rate fs < 25.6 kS/s fs ≥ 25.6 kS/s
Alias rejection > 90 dB > 90 dB
-3 dB bandwidth 0.4805 × fs 0.4852 × fs
27 PCIE-1802 User Manual
Appendix A Specifications
A.7.2 AC Coupling
-3 dB cutoff frequency : 0.727 Hz
-0.1 dB cutoff frequency: 4.727 Hz
Figure A.1 Magnitude response of AC coupling circuit
Figure A.2 Phase response of AC coupling circuit.
PCIE-1802 User Manual 28
A.7.3 Idle Channel Noise
A.7.4 Representative Measurement FFTs
Test conditions for all FFTs: 10 RMS averages of 65,536 samples using a 7-term
Blackman-Harris window at ±10 V input range. Source: Krohn-Hite 4402B.
Figure A.3 FFT of -1 dBFS, 1 kHz Tone Acquired at 54 kS/s.
Input Range
54 kS/s 108 kS/s 216 kS/s
LSBrms μVrms LSBrms μVrms LSBrms μVrms
±10.0 V 6.59 7.86 9.50 11.32 60.80 72.48
±5.0 V 6.87 4.09 9.85 5.87 60.75 36.21
±2.0 V 7.84 1.87 11.31 2.70 60.83 14.50
±1.0 V 9.92 1.18 14.36 1.71 63.22 7.54
±0.5 V 14.49 0.86 21.13 1.26 66.13 3.94
±0.2 V 30.47 0.73 42.85 1.02 85.09 2.03
29 PCIE-1802 User Manual
Appendix A Specifications
Figure A.4 FFT of -1 dBFS, 1 kHz Tone Acquired at 108 kS/s.
Figure A.5 FFT of -1 dBFS, 1 kHz Tone Acquired at 216 kS/s.
PCIE-1802 User Manual 30
A.7.5 Dynamic Range (DR)
* 1 kHz input tone, unweighted. Input amplitude is -60 dBFS.
A.7.6 Spurious Free Dynamic Range (SFDR)
* 1 kHz input tone, input amplitude is -1 dBFS.
** Measurement includes all harmonics.
A.7.7 Signal-to-Noise Ratio (SNR)
* 1 kHz input tone, input amplitude is -1 dBFS.
Input Range
Dynamic Range (dB)*
fs = 54 kS/s fs = 108 kS/s fs = 216 kS/s
±10.0 V 117 114 100
±5.0 V 114 112 98
±2.0 V 108 107 98
±1.0 V 105 102 96
±0.5 V 96 96 92
±0.2 V 88 88 86
Input Range
Spurious Free Dynamic Range (dBc)*,**
fs = 54 kS/s fs = 108 kS/s fs = 216 kS/s
±10.0 V 104 105 104
±5.0 V 106 106 106
±2.0 V 106 106 106
±1.0 V 104 102 102
±0.5 V 97 97 96
±0.2 V 89 89 89
Input Range
Signal-to-Noise Ratio (dB)*
fs = 54 kS/s fs = 108 kS/s fs = 216 kS/s
±10.0 V 99 99 97
±5.0 V 100 100 97
±2.0 V 99 99 96
±1.0 V 97 97 94
±0.5 V 93 92 89
±0.2 V 86 85 82
31 PCIE-1802 User Manual
Appendix A Specifications
A.7.8 Total Harmonic Distortion (THD)
* 1 kHz input tone, input amplitude is -1 dBFS.
A.7.9 Total Harmonic Distortion Plus Noise (THD+N)
* 1 kHz input tone, input amplitude is -1 dBFS.
A.7.10Crosstalk
* Input amplitude is -1 dBFS.
** Using the Mini-SCSI 36-pin to 8-BNC cable assembly.
Input Range
Total Harmonic Distortion (dB)*
fs = 54 kS/s fs = 108 kS/s fs = 216 kS/s
±10.0 V -103 -104 -103
±5.0 V -106 -106 -106
±2.0 V -107 -107 -107
±1.0 V -105 -105 -105
±0.5 V -102 -101 -101
±0.2 V -95 -95 -95
Input Range
Total Harmonic Distortion Plus Noise (dB)*
fs = 54 kS/s fs = 108 kS/s fs = 216 kS/s
±10.0 V 98 98 96
±5.0 V999996
±2.0 V989896
±1.0 V969694
±0.5 V939189
±0.2 V868482
Input Range
Crosstalk for Adjacent (Non-adjacent) Channels (dBc)*, **
54 kS/s, fin = 1 kHz 216 kS/s, fin = 92.2 kHz
±10.0 V -139 (-158) -128 (-137)
±5.0 V -149 (-157) -109 (-132)
±2.0 V -149 (-155) -110 (-133)
±1.0 V -144 (-154) -113 (-136)
±0.5 V -144 (-152) -118 (-135)
±0.2 V -143 (-144) -124 (-135)
PCIE-1802 User Manual 32
A.7.11 Inter-channel Gain Mismatch
* Identical channel configurations.
** Operating temperature within 5 °C of last auto-calibration temperature.
A.7.12Inter-channel Phase Mismatch
* Identical channel configurations.
** Operating temperature within 5 °C of last auto-calibration temperature.
A.8 Integrated Electronic Piezoelectric Excitation
(IEPE)
Current: 0, 4, or 10 mA ± 5%, each channel independently software selectable
Compliance: 24 V min
Channel input impedance with IEPE enabled: 200 kΩ @ 1 kHz, pseudo-dif-
ferential
A.9 Reference Clock Characteristics
Using external reference clock (25 MHz):
– Accuracy: Equal to accuracy of external reference clock
Using internal reference clock:
– Accuracy: ±20 ppm, over operating temperature range, in first year
– Aging: 3 ppm/year
Input Range
AC/DC Coupled Mismatch (dB)*, **
fin = 10 Hz fin = 100 Hz fin = 20 kHz fin = 92.2 kHz
±10.0 V < 0.005 < 0.005 < 0.005 < 0.005
±5.0 V < 0.005 < 0.005 < 0.005 < 0.005
±2.0 V < 0.005 < 0.005 < 0.005 < 0.005
±1.0 V < 0.005 < 0.005 < 0.005 < 0.005
±0.5 V < 0.005 < 0.005 < 0.005 < 0.005
±0.2 V < 0.02 < 0.01 < 0.01 < 0.02
Input Range
AC/DC Coupled Mismatch*, **
fin = 10 Hz fin = 100 Hz fin = 20 kHz fin = 92.2 kHz
±10.0 V < 0.01° < 0.005° < 0.01° < 0.04°
±5.0 V < 0.01° < 0.005° < 0.02° < 0.06°
±2.0 V < 0.01° < 0.005° < 0.02° < 0.06°
±1.0 V < 0.01° < 0.005° < 0.02° < 0.08°
±0.5 V < 0.01° < 0.005° < 0.02° < 0.08°
±0.2 V < 0.01° < 0.005° < 0.03° < 0.11°
33 PCIE-1802 User Manual
Appendix A Specifications
A.10 Triggers
Analog trigger input:
– Type: Start, delay to start, stop, or delay to stop trigger
– Source: Any analog input channel
– Level: Full scale, programmable
– Slope: Positive (rising) or negative (falling), software selectable
– Resolution: 24 bits
– Hysteresis: Programmable
Digital trigger input:
– Type: Start, delay to start, stop, or delay to stop trigger
– Source: 2 external digital trigger inputs
– Compatibility: 3.3 V CMOS, 5 V compatible
Low: 0.8 V max.
High: 2.0 V min.
– Pull-down resistor: 50 kΩ
– Polarity: Rising or falling edge, software selectable
– Minimum pulse width: 20 ns
Digital trigger output:
– Number of digital trigger output: 2
– Source: Analog trigger input, digital trigger input, or software trigger
– Compatibility: 3.3 V CMOS
Low: 0.6 V max.
High: 2.3 V min.
A.11 Digital I/O
Digital Input:
– Number of digital input: 1
– Number of Interrupt: 1
– Compatibility: 3.3 V CMOS
Low: 0.6 V max.
High: 2.3 V min.
– Pull-down resistor: 50 kΩ
Digital Output:
– Number of digital output: 2
– Compatibility: 3.3 V CMOS
Low: 0.6 V max.
High: 2.3 V min.
A.12 Synchronization Input & Output
Synchronization Input:
– Compatibility: 3.3 V CMOS, 5 V compatible
– Pull-down resistor: 50 kΩ
Synchronization Output:
– Compatibility: 3.3 V CMOS
Low: 0.6 V max.
High: 2.3 V min.
Appendix B
B Block Diagram
PCIE-1802 User Manual 36
B.1 Function Block Diagrams
Figure B.1 Function block diagram - overview
Figure B.2 Function block diagram - analog input
37 PCIE-1802 User Manual
Appendix B Block Diagram
www.advantech.com
Please verify specifications before quoting. This guide is intended for reference
purposes only.
All product specifications are subject to change without notice.
No part of this publication may be reproduced in any form or by any means,
electronic, photocopying, recording or otherwise, without prior written permis-
sion of the publisher.
All brand and product names are trademarks or registered trademarks of their
respective companies.
© Advantech Co., Ltd. 2015
Produkt Specifikationer
| Mærke: | Advantech |
| Kategori: | Ikke kategoriseret |
| Model: | PCIE-1802L-AE |
Har du brug for hjælp?
Hvis du har brug for hjælp til Advantech PCIE-1802L-AE stil et spørgsmål nedenfor, og andre brugere vil svare dig
Ikke kategoriseret Advantech Manualer
23 August 2025
23 August 2025
23 August 2025
22 August 2025
22 August 2025
22 August 2025
22 August 2025
22 August 2025
22 August 2025
22 August 2025
Ikke kategoriseret Manualer
- Simeo
- Hooker
- NAV-TV
- Voltcraft
- Contours
- Orima
- NComputing
- Simrad
- Amazfit
- Seasonic
- Rolls
- Burris
- Postium
- Weidmüller
- Sortimo
Nyeste Ikke kategoriseret Manualer
23 September 2025
23 September 2025
23 September 2025
23 September 2025
23 September 2025
23 September 2025
22 September 2025
22 September 2025
22 September 2025
22 September 2025
