Side 1/4

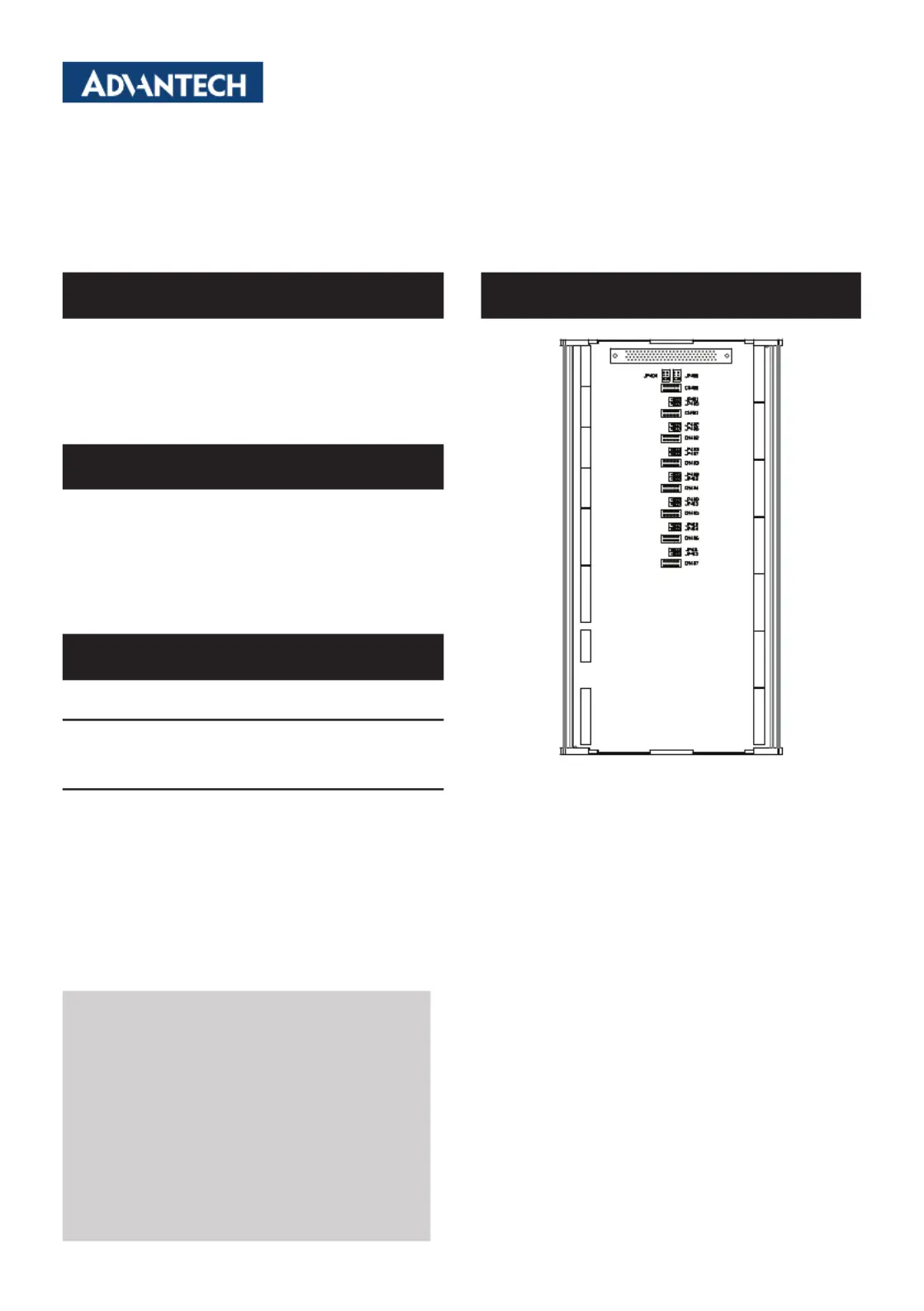

PCLD-8813 Startup Manual 1

The PCLD-8813 is an advanced signal condition board

designed for PCIE-1812/1813. This board features one

reserved slot for every channel for plugging in a PCLD-8811

active ﬁlter board and supports isolation transfers for DI/O

and counter functions.

• Isolation signal transfers for DI/O and counter

• 1 x reserved slot for every channel for plugging in a

PCLD-8811 active ﬁlter board

• 2,500 VDC DI/O isolation protection

• 500 mA maximum loading per DO channel

• DIN-rail mount kit for easy mounting

Ordering Information

• PCLD-8813 advanced signal conditioning board for PCIE-

1812/1813

Accessories

Wiring Cables

• PCL-101100R-1E 100-pin SCSI shielded cable, ribbon-

to-pin, 1 m

• PCL-101100R-2E 100-pin SCSI shielded cable, ribbon-

to-pin, 2 m

Signal Conditioning Boards

• PCLD-8811-AE low-pass active ﬁlter board

• PCLD-8813-AE advanced signal conditioning board for

PCIE-1812/1813

PCLD-8813

Advanced Signal Conditioning Board for PCIE-

1812/1813

Startup Manual

Overview

For more information on this and other Advantech

products, please visit our website at

http://www.advantech.com

For technical support and service, please visit our

support website at

http://support.advantech.com

This manual is for PCLD-8813.

Part No. 2001881300 Edition 1

February 2018

Board Components (Cont.)

Features

Board Components

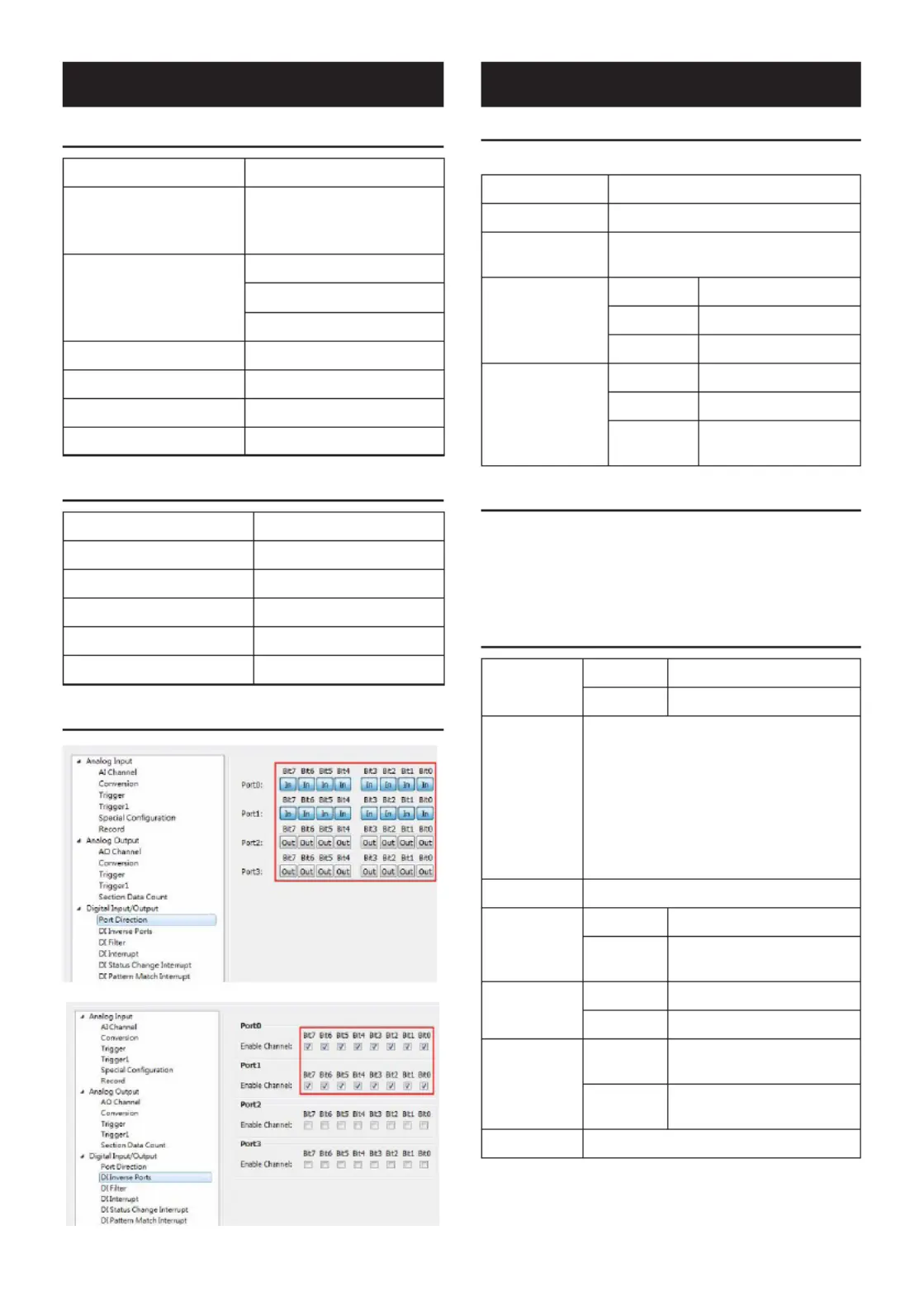

2 PCLD-8813 Startup Manual

Isolated Digital Input

Input Channels 16

Input Voltage

Logic 0: 3 V max.

Logic 1: 10 V min. (30 V

max.)

Input Current

10 V

@ 2.97 mA

20 V

@ 6.35 mA

30 V

@ 9.37 mA

Isolation Protection 2,500 V

Overvoltage Protection 70 V

ESD Protection 2,000 V

Opto-Isolator Response 50 us

Isolated Digital Output

Output Channels 16

Output Type Sink (NPN)

Isolation Protection 2,500 V

Output Voltage 5 ~ 40 V

Sink Current 500 mA max./channel

Opto-Isolator Response 50 us

DI/O Conﬁguration for PCIE-1812/1813

Encode Counter Input

Axes 4 (independent)

Optical Isolation 2,500 V

Max. Input Pulse

Frequency

10 MHz

Input Voltage

(Single Ended)

VIH (max.) 12 V

VIH (min.) 2.8 V

VIL (max.) 0.8 V

Input Voltage

(Diff. Ended)

VIH “CH+” – “CH-“ > 0.2 V

VIH “CH+” – “CH-“ < -0.2 V

Max. Input

Voltage

± 12 V

CJC Calibration

Vt = 10 (mV/°K) x T(°K)

Vt: calibration voltage

T: measured temperature in °K

0 °C = 273 °K

General Speciﬁcations

Power Sup-

ply Output

+5 V 100 mA

+12 V 50 mA

I/O Connec-

tor Type

1 x 100-pin pin-type SCSI (for PCIE-

1812/1813)

4 x 7-pin screw terminal block, 3.81 mm

(for I/O)

10 x 10-pin screw terminal block, 3.81

mm (for I/O)

1 x 3-pin screw terminal block, 3.81 mm

(for power output)

Dimensions 288 x 153 x 56 mm (11.4 x 6.0 x 2.2 in)

Power

Consumption

+5 V 0.03 A typical, 0.04 A max.

+12 V 0.15 A typical, 0.2 A max.

(without PCLD-8811)

Temperature Operating 0 ~ 60 (32 ~ 140 )°C °F

Storage -20 ~ 70 (-4 ~ 158 )°C °F

Relative

Humidity

Operating 10 ~ 90% RH non-con-

densing

Storage 5 ~ 95% RH non-con-

densing

Certiﬁcations CE

Specications Specications (Cont.)
