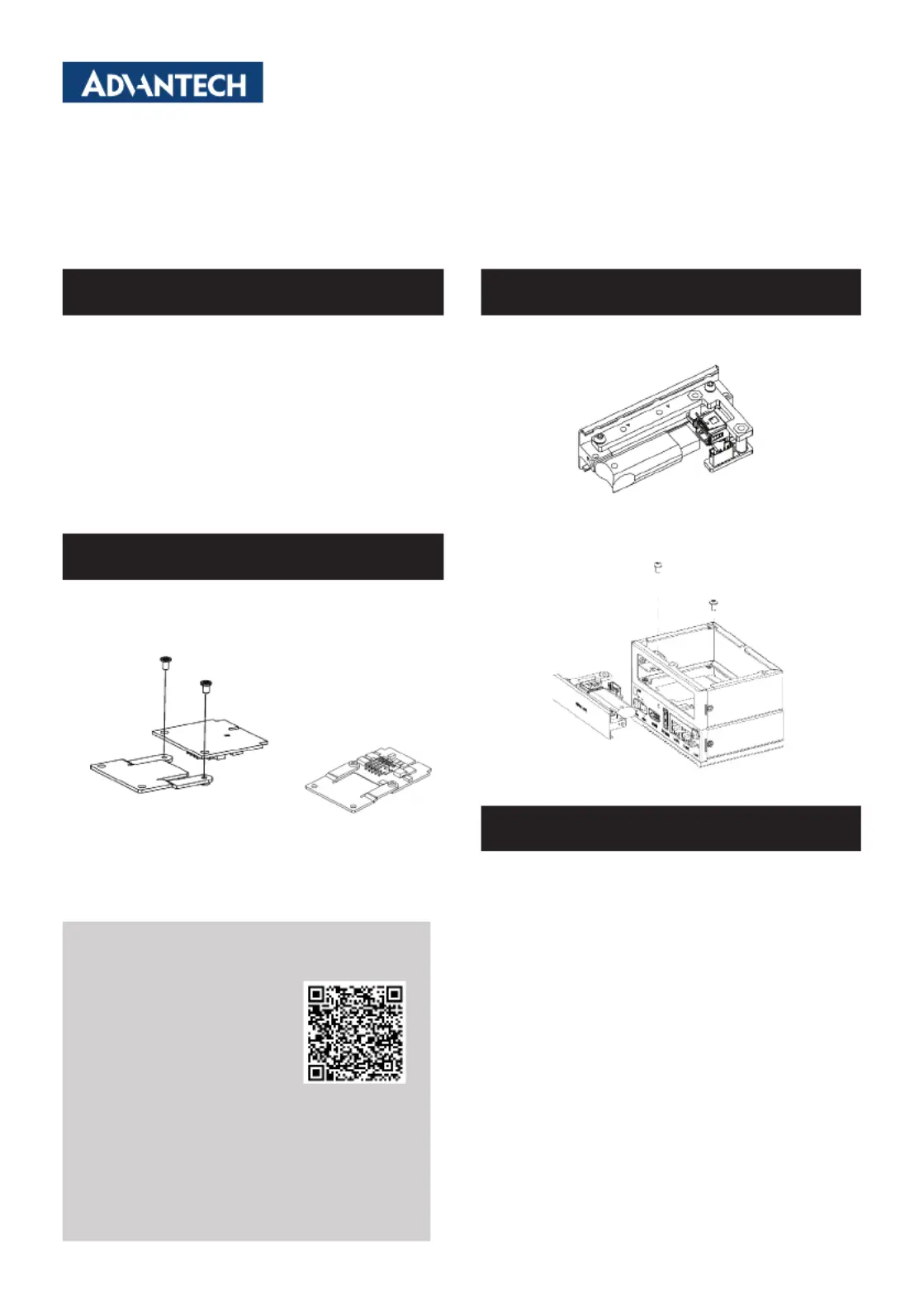

PCM-23U1DG-CE Startup Manual 1

Before installation, please make sure that you have:

• 1 x USB dongle I/O Plate with wired cable

• 1 x Startup manual

• 1 x Warranty card

• 1 x USB dongle half-size mPCIe (PCM-23U1DG-CE)

• 1 x Full/Half-size mPCIe adapter kit (PCM-23U1DG-CE)

If any of the above items are missing or damaged, please

contact your distributor or sales representative immediately.

Please follow the steps as below.

1. Assemble half-size mini-PCIe card and bracket with

screws.

PCM-23U1DG-CE

USB Slot /w Lock for USB Dongle

Startup Manual

2. Install USB device into PCM Module.

3. Insert the PCM Module through the blanking plate hole

and secure the screws. Attach the PCM Module to the

mini-PCIe card with the cable.

The support documentation and drivers can be accessed

from Advantech website.

• Documentation

- Datasheet

Documentation/Software Support Guide

Packing List

For more information on this and other Advantech

products, please visit our website at:

https://www.advantech.com/

For technical support and service:

https://support.advantech.com/support/new_de-

fault.aspx

This startup manual is for PCM-23U1DG-CE.

Part No. 204323U100 Edition 1

April 2019

Installation

Installation (Cont.)

2 PCM-23U1DG-CE Startup Manual

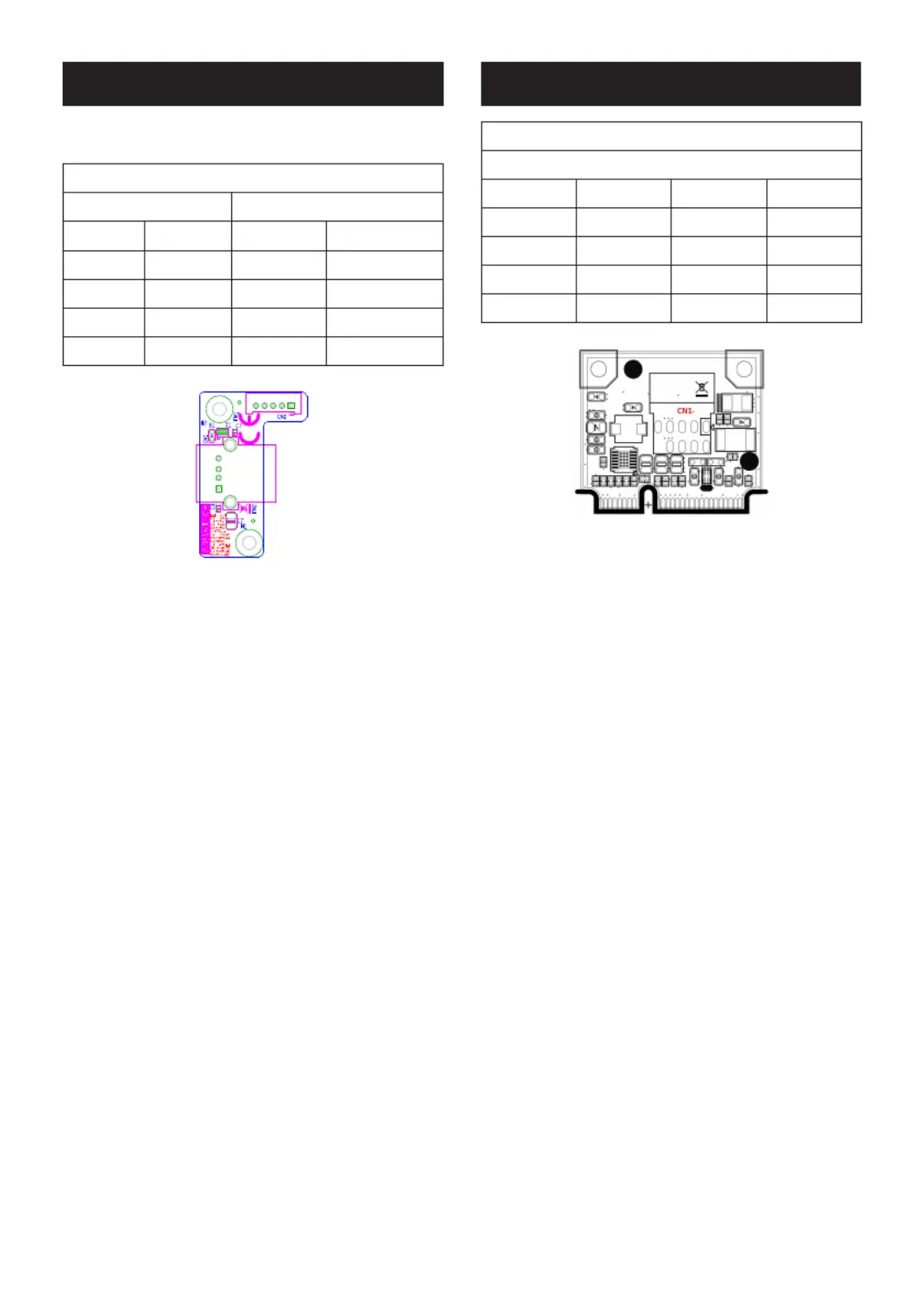

The following tables and ﬁgures show the pin assignments

of the connector on the I/O module.

Description of PIN Use - On I/O Plate

CN1, USB w/locked CN2, Internal cable for USB

PIN1

+5V PIN1 +5V

PIN1 D- PIN1 D-

PIN3 D+ PIN3 D+

PIN4 GND PIN4 GND

PIN5 GND_IO

Description of PIN Use - On mPCIe Card

CN1, Internal Cable for USB

PIN1 +5V PIN2 +5V

PIN3 NC PIN1 USB-

PIN5 NC PIN3 USB+

PIN7 GND PIN4 GND

PIN9 NC

PIN Assignment (Cont.) PIN Assignment
