PCM-37D24DI Startup Manual 1

Before installation, please ensure that the following items

have been included in your shipment:

1. 1 x M.2 card with controller

2. 1 x DB37 I/O plate x 1 with iDoor bracket

3. 1 x Wired cable

4. 1 x Extension bracket kit

5. 1 x Startup manual

6. 1 x Warranty card

If any of the above items are missing or damaged, contact

your distributor or sales representative immediately.

The support documentation and drivers can be accessed

from Advantech website.

• Documentation

- Datasheet

- StartUp

• Drivers

PCM-37D24DI

24-Channel Isolated Digital I/O, M.2 B+M key

(3042, PCIe*1), DB37

Startup Manual

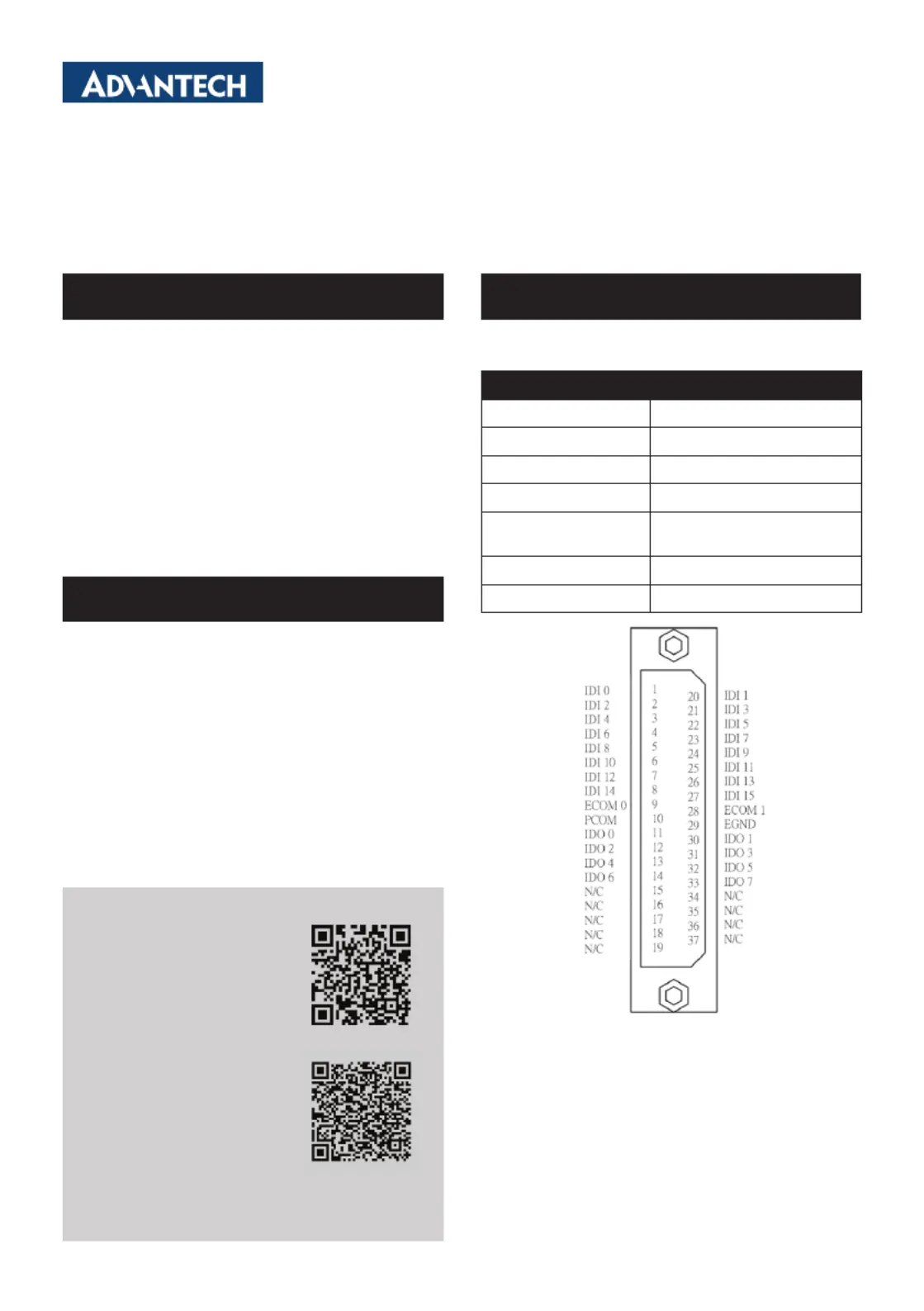

The following table and ﬁ gure show the pin assignments of

the connector on the bracket of the I/O module.

Description of PIN Use

IDIn (n=0 ~ 15) Isolated digital input

IDOn (n=0 ~ 7) Isolated digital output

ECOM0 External common of IDI0~7

ECOM1 External common of IDI8~15

PCOM

Free wheeling common diode

for IDO

EGND External ground

NC Not Connected

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support services, please visit our support

website at:

http://www.advantech.com.tw

This manual is for PCM-37D24DI.

Part No. 204137D200

Printed in Taiwan

Edition 1

December 2024

Documentation/Software Support

Pin Assignment

2 PCM-37D24DI Startup Manual

1. Insert the M.2 Card and lock the screw.

2. Unscrew to remove the blank expansion plate.

3. Insert the PCM module through the blank plate hole

and lock the screws.

Connect I/O Board to M.2 card with the cable.

The board ID can be set by SW1 and the keep-last- status-

after-hot-reset function can be set by SW2.

Board ID Setting (SW1)

ID3 ID2 ID1 ID0 Board ID

1 1 1 1 0

1 1 1 0 1

1 1 0 1 2

1 1 0 0 3

1 0 1 1 4

1 0 1 0 5

1 0 0 1 6

1 0 0 0 7

0 1 1 1 8

0 1 1 0 9

0 1 0 1 10

0 1 0 0 11

0 0 1 1 12

0 0 1 0 13

0 0 0 1 14

0 0 0 0 15

Note: On:1, Oﬀ :0

Summary of Jumper Settings

Jumper Name Pin Function Description

SW2

2-3

Load default while reset,

(Default)

1-2

Keeps the last status after reset

(enabled)

Jumper Settings Embedded Computer Installation

Extension Bracket Kit Installation
