Side 1/13

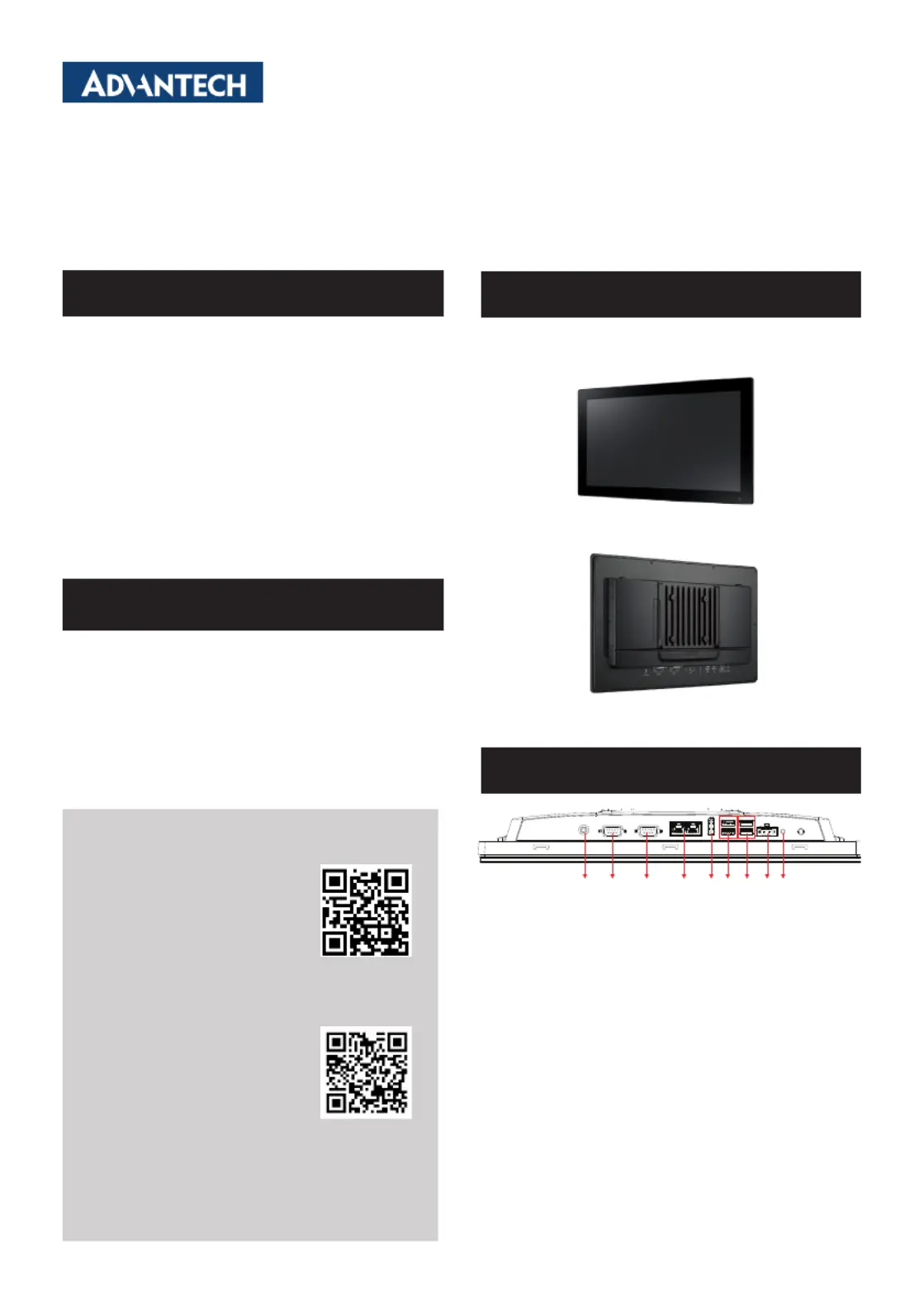

PPC-315/318/321SW Series Startup Manual 1
Before installation, ensure that the following items are
included with the product:
1. 1 x Panel PC
2. 1 x PPC-315SW/318SW/321SW ADL_N startup manual
3. 1 x Phoenix connector
4. 8/10x Mount brackets (8 for PPC-315SW; 10 for PPC-
318SW/321SW)
318SW/321SW)
If any of the above items are missing or damaged, contact
your distributor or sales representative immediately.
Before installing software on the panel PC, install the cor-
responding drivers to ensure full functionality.
All drivers can be downloaded from the Advantech website
at http://www.advantech.com.
PPC-315SW/318SW/321SW ADL_N
15.6”/18.5”/21.5” Fanless Widescreen
Panel PC with Intel® N97 Quad-Core Processor
Startup Manual
Note: The examples provided in this manual are of the
PPC-315SW ADL_N model.
Front View
Rear View
A. Line out F. 2 x USB 3.2
B. COM1:RS-232/422/485 G.2 x USB 2.0
C. COM2: RS-232/422/485 H. DC-In
D. 2 x LAN I. Power Button
E. DP
A B C D E F G H I
Packing List
For more information about this product, visit the
Advantech website at
http://www.advantech.com
For technical support and customer service, visit the
Advantech support website at
http://support.advantech.com/support/new_de-
fault.aspx
This manual is for the 315SW/318SW/321SW ADL_N
series, Rev.A0, models.
Part No. 2041315000
Printed in China
Edition 1
July 2024
Appearance
I/O Layout
Software Installation
2 PPC-315/318/321SW Series Startup Manual
Specications
Model Name PPC-315SW ADL_N PPC-318SW ADL_N PPC-321SW ADL_N
System
CPU Intel® N97 quad core
Frequency 2.0 GHz upto 3.6GHz with Turbo
Cache 6MB
Memory 1 x SODIMM, DDR5 4800MHz, max. 16GB
Storage
1 x M.2 M Key 2242/2280 (SATA or NVME PCIe x 1),
1 x 2.5” SATA bay
Network (LAN) 2 x 10/100/1000/2500 Mbps Ethernet (Intel I226 LM)
I/O
2 x RS-232/422/485
2 x USB 3.2, 2 x USB 2.0
1 x DP
1 x Line out
Expansion
1 x M.2 B key 2242 or 3042/3052 (SATA, PCIe X1 ,USB 3.0 & SIM slot)
1 x M.2 E Key 2230 (PCIe & USB 2.0)
1 x iDoor (optional)
1 x PCI or PCIe p2-x1 (optional)
Watchdog Timer 255 timer levels; setup by software
Speaker 1 x 2W
Physical
Characteristics
Dimensions
395.7 x 245.1 x 50.4mm
(15.6 x 9.6 x 2.0 in)
464.5 x 285.5 x 53.4mm
(18.3 x 11.2 x 2.1 in)
529.6 x 321.3 x 53.4mm
(20.9 x 12.6 x 2.1 in)
Weight 4.26kg 5.17kg 6.24kg
OS Support OS Support Windows 10 LTSC, Windows 11, Linux, Andriod
Power
Comsumption
Input Voltage 24V
DC
± 20%
Power Consumption 35W 40W 45W
LCD
Display Type 15.6" FHD TFT LED LCD 18.5" WXGA TFT LED LCD 21.5" FHD TFT LED LCD
Max. Resolution 1920 x 1080 1366 x 768 1920 x 1080
Viewing Angle
89 (left), 89 (right), 89
(up), 89 (down)
85 (left), 85 (right), 80 (up),
80 (down)
89 (left), 89 (right), 89
(up), 89 (down)
Luminance (cd/m
2
) 350 450 250
Contrast Ratio 800 1000 1000
Backlight Lifetime 50,000hrs (min.) 50,000hrs (min.) 50,000hrs (min.)
Touchscreen
Touchscreen type Multi-touch projected capacitive
Light Transmission >86%
Controller USB interface
Environment
Operating Temperature -10 ~ 50 °C (32 ~ 122 °F)
Storage Temperature -20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity 95% @ 40°C (non-condensing)
Shock Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27
Vibration
Operating Random Vibration Test 5~500Hz, 2Grms @with SSD, Follows IEC 60068-
2-64
EMC CE,FCC Class B, BSMI, EN60601-1-2, UKCA
Safety CB, UL, CCC, UKCA
Front Panel Protection IP66 compliant
Note: Test conditions for the power consumption values provided above were as follows:
Memory: 8G DDR5
SSD: 64GB
Windows10 IOT Enterprise
Software: Burn-In Test 8.1
