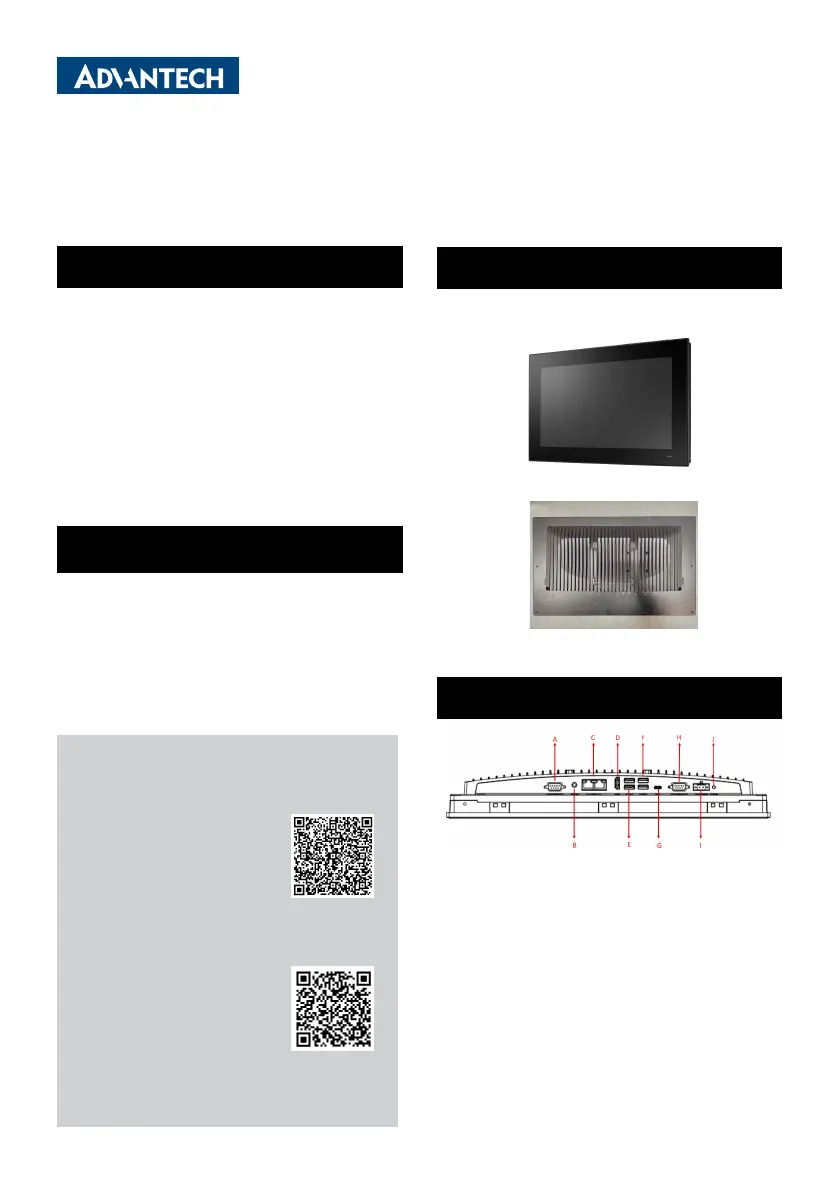

PPC-315W/318W/321W/324W Startup Manual 1
Before installation, ensure that the following items are
included with the product:
1. 1 x Panel PC
2. 1 x Startup manual
3. 1 x Phoenix connector
4. 10/12/14 x Mount brackets (10 for PPC-315W; 12 for
PPC-318W/321W; and 14 for PPC-324W)
5. 10/12/14 x Mount screws (10 for PPC-315W; 12 for
PPC-318W/321W; and 14 for PPC-324W)
If any of the above items are missing or damaged, contact
your distributor or sales representative immediately.
Before installing software on the panel PC, install the cor-
responding drivers to ensure full functionality.
All drivers can be downloaded from the Advantech website
at http://www.advantech.com.
PPC-315W/318W/321W/324W TGL
15.6”/18.5”/21.5”/23.8” Panel PC with TFT LED and
11th Gen Intel
®
Core
TM
Processor
Startup Manual
Note: The examples provided in this manual are of the
PPC-315W TGL model.
Front View
Rear View
A. COM2: RS-232/422/485 B. 1 X Line out
C. 2 x LAN D. 1 X HDMI
E. 2 x USB3.2 F. 1 x USB3.2/1 x USB2.0
G. 1 x Type C H. COM1: RS-232
I. DC in J. Power button
VESA mount screws: 4 x M4 screws
Screw depth: 8 mm (max.)
Packing List
For more information about this product, visit the
Advantech website at
https://www.advantech.com/en/products/
general-purpose/sub_b4b1d255-3d7c-4edb-ae84-
5f9f2ab56107
For technical support and customer service, visit the
Advantech support website at
https://www.advantech.com/en/support/
This manual is for the PPC-315W/318W/321W/324W
TGL series, Rev. A0, models.
Part No. 2044315W11
Printed in China
Edition 2
2025
Appearance
I/O Layout
Software Installation
2 PPC-315W/318W/321W/324W Startup Manual
Specications
PPC-315W PPC-318W
PPC-321W PPC-324W
LCD Panel 15.6” 18.5” 21.5” 23.8”
Display Type
TFT LCD
(with LED backlight)
TFT LCD
(with LED backlight)
TFT LCD
(with LED backlight)
TFT LCD
(with LED backlight)
Max. Resolution 1920 x 1080 1366 x 768
1920 x 1080 1920 x 1080
Brightness 450 cd/m2 450 cd/m2 250 cd/m2 350 cd/m2
Viewing Angle
80 (left), 80 (right),
85 (up), 85 (down)
85 (left), 85 (right),
80 (up), 80 (down)
89 (left), 89 (right),
89 (up), 89 (down)
89 (left), 89 (right),
89 (up), 89 (down)
Contrast 800 1000 1000 1000
Backlight Lifetime 50,000 hr (min.) 50,000 hr (min.) 50,000 hr (min.) 30,000 hr (min.)
Touchscreen Type Projected capacitive Projected capacitive Projected capacitive Projected capacitive
LightTransmission ≥88% ≥88% ≥88% ≥88%
Controller USB interface
Durability
(Touches)
Greater than 35 million touches in one location without failure
Enclosure Aluminum
Processor 11th gen Intel® Core™ i processor
Memory 2 x SODIMM DDR4 3200, Max 32GB x 2
Storage
1 x 2.5” SATA bay
1 x M.2 bay (2242/2280 NVME or SATA Interface) for storage and support SATA RAID 0, 1
Network (LAN)
1 x Intel I219LM controller; Speed: 10M / 100M / 1000M
1 x Intel I226LM controller; Speed: 10M / 100M / 1000M / 2500M
I/O Ports
1 x RS-232, 1 x RS-232/422/485 (adjustable through BIOS)
3 x USB 3.2, 1 x USB 2.0, 2 x USB 2.0 (internal)
1 x Type C (USB only)
1 x HDMI1.4
1 x Line out
Expansion 1 x M.2 2230 E-key for wireless card
Watchdog Timer 255 timer levels, setup via software
Speaker 2 x 1W
OS Support Microsoft® Win 10 IOT LTSC (64-bit), Win11, Linux
Power Supply 12 ~ 30 VDC
Power
Consumption
70W 70W 75W 80W
Operating
Temperature
-10 ~ 50°C (14 ~ 122°F)
Storage
Temperature
-20 ~ 60°C (-4 ~ 140°F)
Relative Humidity 95% @ 40°C/104°F (non-condensing)
Shock Tolerance Operating 10G peak acceleration (11 ms duration), following IEC 60068-2-27
Vibration
Tolerance
Operating random vibration test, 5 ~ 500 Hz, 2 Grms with SSD, in accordance with IEC 60068-2-64
Safety and EMC Safety: CB, UL, CCC, UKCA EMC: CE, FCC Class B, BSMI, VCCI, UKCA, EN60601-1-2
Dimensions
419.7 x 269 x 61.1
mm/16.52 x 10.59 x 2.44 in
419.7 x 269 x 61.1
mm/16.52 x 10.59 x 2.44 in
558.4 x 349.8 x 62.2
mm/21.9 x 13.7 x 2.4 in
595.9 x 347.1 x 61.5 mm
(23.5" x 14.7" x 2.4")
Weight 4.84 kg/10.67 lb 4.84 kg/10.67 lb 6.8 kg/14.9 lb 8.7kg (19.18lb)
Note: Test conditions for the power consumption values provided above were as follows:
Memory: 16 GB DDR4 3200
Storage: 64 GB SSD
OS: Windows 10 (64 bit)
Software: Burn-In Test 8.1
