PPC-MB-610 Startup Manual 1

Before installation, check to ensure that the following items

are included in the shipment:

1. 1 x PPC-MB-610 mini-ITX motherboard

2. 1 x COM cable (1-to-4 DB9)

3. 1 x SATA cable

4. 1 x PPC-MB-610 startup manual

5. 1 x Warranty card

6. 1 x Thermal grease

7. 14 x COM port screws

8. 2 x M.2 packet screws

If any of these items are missing or damaged, contact your

distributor or sales representative immediately.

Note 1:  FordetailedPPC-MB-610specications,refer

to the latest product information provided on the

Advantech website (PPC-61X1C model).

Note 2:  AcrobatReaderisrequiredtoviewPDFles.

This software can be downloaded from www.

adobe.com/Products/acrobat/readstep2.html

(Acrobat is a trademark of Adobe).

PPC-MB-610 Mini-ITX Motherboard with Intel® Core™ i7/

i5/i3/Pentium®/Celeron® Processor, DP/VGA, 5 x COM,

6 x USB, Dual LAN, PCIe x16, and M.2 (M Key and E Key)

Startup Manual

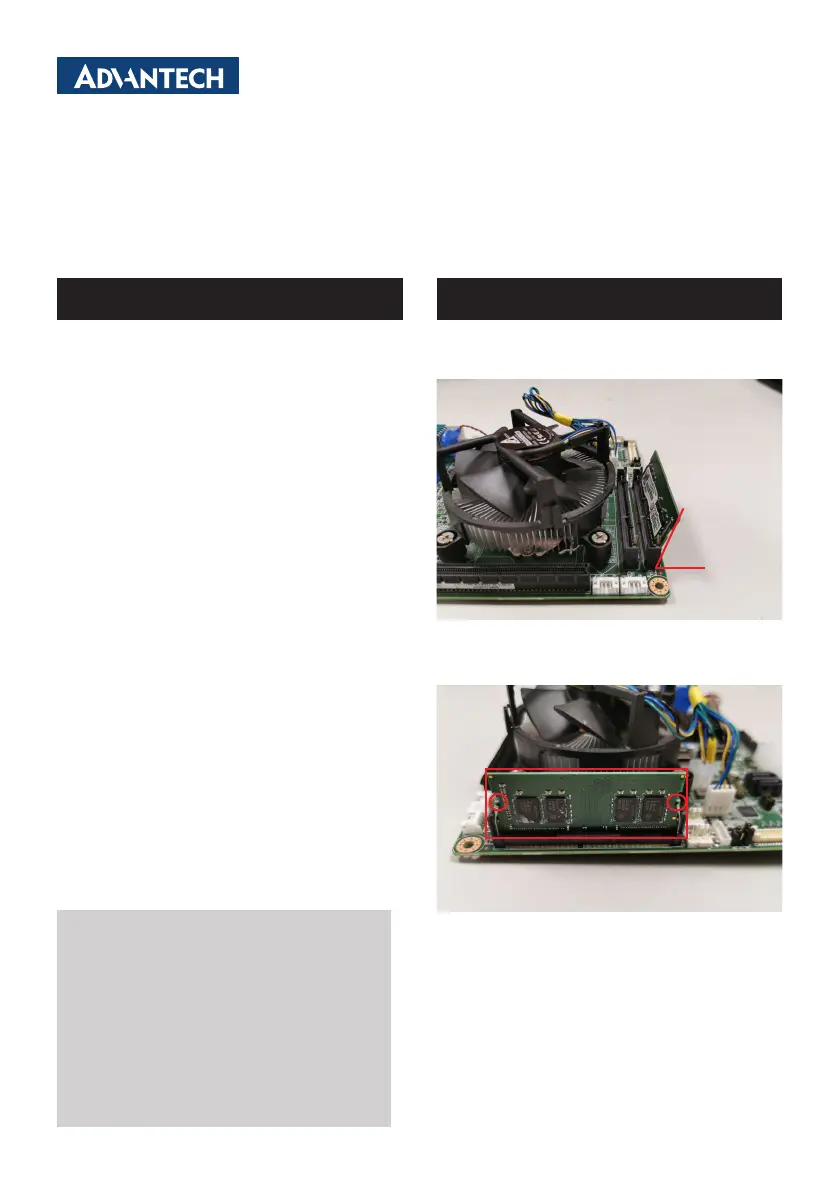

1. Insert the memory module into the memory slot at a 45

degree angle, as shown below. Ensure that the gold

ngersofthemodulearefullyinsertedintotheslot.

2. Once inserted, gently press the memory module into

the slot until the tabs snap into place, securing the

module in position.

45°

Installation Guide Packing List

For more information about this or other Advantech

products, visit our website at

http://www.advantech.com

For technical support and service, visit our support

website at

http://support.advantech.com

This manual is for PPC-MB-610, Rev. A2.

Part No. 2043776002

Printed in China

Edition 3

Jan 2021

2 PPC-MB-610 Startup Manual

PPC-MB-610

System

Proces-

sor

i7-8700/

i7-8700T

i5-8500/

i5-8500T

i3-8100/

i3-8100T

Pentium

G5400/

G5400T

Celeron

G4900/

G4900T

i7-9700E/

i7-9700TE

i5-9500E/

i5-9500TE

i3-9100E/

i3-9100TE

Number

of Cores

6/6 6/6 4/4 2/2 2/2 8/8 6/6 4/4

Max

Speed

3.2 GHz

(up to 4.6

GHz)/

2.4 GHz

(up to 4.0

GHz)

3.0 GHz

(up to 4.1

GHz)/

2.1 GHz

(up to 3.5

GHz)

3.6/3.1

GHz

3.7/3.1

GHz

3.1/2.9

GHz

2.6 GHz (up

to 4.4 GHz)/

1.8 GHz (up

to 3.8 GHz)

3.0 GHz

(up to 4.2

GHz)/

2.2 GHz

(up to 3.6

GHz)

3.1 GHz

(up to 3.7

GHz)/

2.2 GHz

(up to 3.2

GHz)

L3 Cache 12/12 MB 9/9 MB 6/6 MB 4/4 MB 2/2 MB 12/12 MB 9/9 MB 6/6 MB

TDP 65/35 W 65/35 W 65/35 W 54/35 W 54/35 W 65/35 W 65/35 W 65/35 W

Chipset

Q370

Memory

2 x 260-pin SODIMM DDR4, 2666 MHz, up to 32 GB (non ECC)

Network

(LAN)

2 x 10/100/1000 Mbps Ethernet, 1 x Intel® L219LM (with AMT 12.0 support for i7 and i5 only), 1 x Intel i211

Rear I/O

1 x RS-232/422/485, 1 x RS-232, 1x DisplayPort 1.2, 1 x VGA, 6 x USB 3.1, 1 x Line-out, 1 x Mic-in

Internal

Connector

3 x RS-232, 1 x GPIO (8 x channels), 2 x speakerx, 1 x LED, 2 x USB 2.0, 1 x LVDS, 1 x touch control,

2 x SATA 3.0 ( supports RAID 0, 1), 1 x LPC (supports TPM 2.0)

Watchdog

Timer

255timerintervals,congurableusingsoftware

Expansion

1 x M.2 slot (2280 M key) for storage, 1 x M.2 slot (2230 E key) for wireless modules

1 x PCIe x16 slot for riser cards

Dimensions

(W x H)

170 x 170 mm/6.69 x 6.69 in

Operating

System

Microsoft® Windows 10 (64 bit), Linux

Specications

Produkt Specifikationer
