UTC-510 Startup Manual 1

Front View

Rear View (STD)

Rear View (PoE)

Manufacturer:

ADVANTECH Co., Ltd.http://www.advantech.com

製造商/制造商：研華股份有限公司/研华股份有限公司

生產商/生产商：研華股份有限公司林口廠/研华股份有限公

司林口厂

UTC-510

Startup Manual

*Please use only VESA(75*75, M6*21L) compatible mount-

ing – Detailed oor stand & wall mount datasheet available

to download at Advantech website.

UTC-510 (LED Light Bar) Appearance

Front View Rear View

Packing List

Before installation, ensure that the following items are

included with the product:

• 1 x Panel PC

• 1 x UTC-510 startup manual

• 1 x Power adapter

If any of the above items are missing or damaged, contact

your distributor or sales representative immediately.

UTC-510 Appearance (Cont.) UTC-510 Appearance

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our

support website at:

http://www.advantech.com/support

This manual is for the UTC-510 Rev.A1.

Part No. 2048C51010

Printed in Taiwan

4th Edition,

April 2025

Touch Panel &

LCD Display

VESA

Mounting

I/O Ports

2 UTC-510 Startup Manual

UTC-510D

A. DC power jack

B. VGA

C. USB 3.0 X1, USB 2.0 p2-x1 (for UTC-510D)

D. LAN ports

E. MIC-in

F. Line-out

G. COM2

H. COM 1

I. Power switch

UTC-510D PoE (DC version optional)

A. USB 2.0*(DC version only)

B. Headset

C. COM1

D. COM2

E. USB 3.0* (DC version only)

F. HDMI

G. LAN PortS

H. USB 2.0 x2

I. LAN/POE Ports

J. DC Power jack

(DC version only)

K. Power switch

For Standard UTC-510 PoE Version, 1 x USB 2.0 (A port)

and 1 x USB 3.0 (E port) are not suggested to use. The cus-

tomer can change the conguration only when total power

consumption is under 25.5 W.

UTC-510G

A. DC Power jack

B. VGA

C. USB 3.0 X 2 (tor UTC-510G)

D. LAN POrtS

E. MIC-in

F. Line-out

G. COM2

H. COM 1

I. Power switch

UTC-510J

A. DC Power Jack

B. LAN 1

C. LAN 2

D. HDMI

E. USB3.2 x4

F. Mic-in

G. Line-out

H. Power Switch

I. COM 1

J. COM2

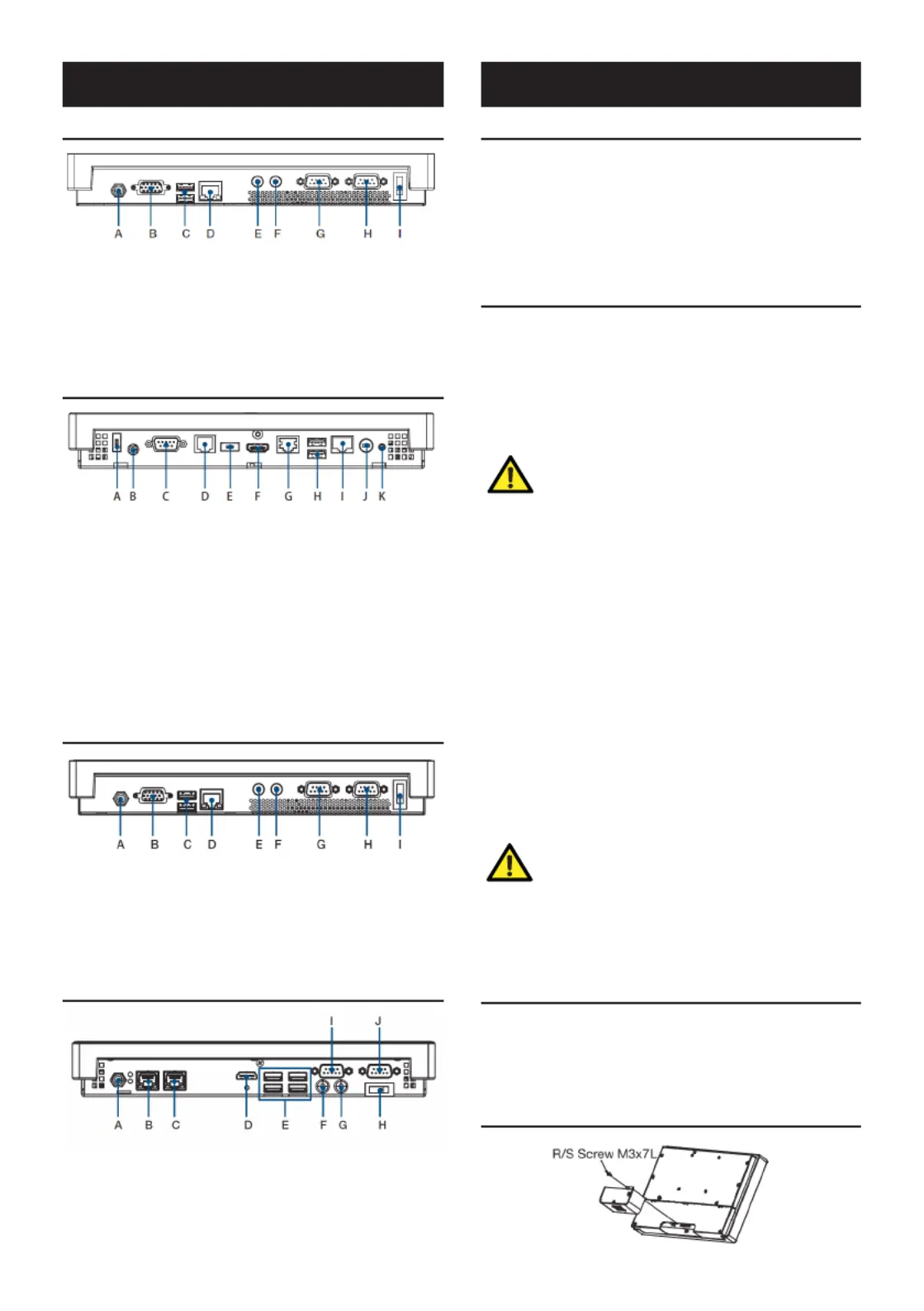

I/O Ports Easy Setup

Power On Computer

1. Connect an adaptor with input voltage rated 12V/3A for

all UTC-510 SKUs.

2. Be sure always handle the power cords by holding the

plugs ends only. Please refer to I/O Ports section above

to nd the DC/AC inlet and power switch.

3. Press the Power On/O󰀨 button. The PWR LED will turn

green.

UTC-510 (PoE)

1. Make sure PoE PSE complies with IEEE802.3at

standard.

2. Connect a LAN cable from PoE PSE to LAN/PoE Port

on UTC-510 (PoE).

3. Please refer to I/O ports section above to nd the LAN/

PoE port and power switch.

CAUTION!

UTC-510 (PoE) - A PoE Powered Device (PD) is

a device powered by a PSE and thus consumes

energy.

Always use Power Sourcing Equipment (PSE)

which follows the IEEE 802.3at PoE standard,

also known as PoE+ or PoE plus, which provides

up to 30W of DC power output. Only 25.5 W

input is assured to be vailable at the powered

device as some power dissipates in the cable.

UTC-510 PoE version follows IEEE 802.3at PoE

standard, also known as PoE+ or PoE plus,

provides up to 30W of DC power (Minimum 56V

DC and 500 mA) on each port. Only 25.5 W is

assured to be available for the powered device

as some power dissipates in the cable.

This product is intended to be supplied by an

UL certied power adapter or UL certied DC

source rated 12Vdc, 3A minimum (DC IN) or

56Vdc, 0.5A minimum (PoE IN), Tma 40 degree

C, marked LPS or Limited Power Source. If you

need further assistance, please contact Advan-

tech for further information.

ATTENTION!

Ce produit est destine a etre alimente par un

adaptateur secteur certie UL ou une source

d’alimentation CC certiee UL avec des valeurs

nominales de 12 V CC, 3 A minimum (entree CC)

ou de 56 V CC, 0,5 A minimum (entree PoE),

Tma 40 C, marquage LPS ou Source a puis-

sance limitee. Si vous avez besoin d’une aide

supplementaire, veuillez contacter Advantech

pour de plus amples informations.

Install Optional Modules

1. Attach the UTC peripheral on the bottom.

2. Re-use the screws that were removed from the frame.

3. Connect the cable to an I/O port (USB).

UTC-510 Peripheral Series Installation

Guide (Bottom)
