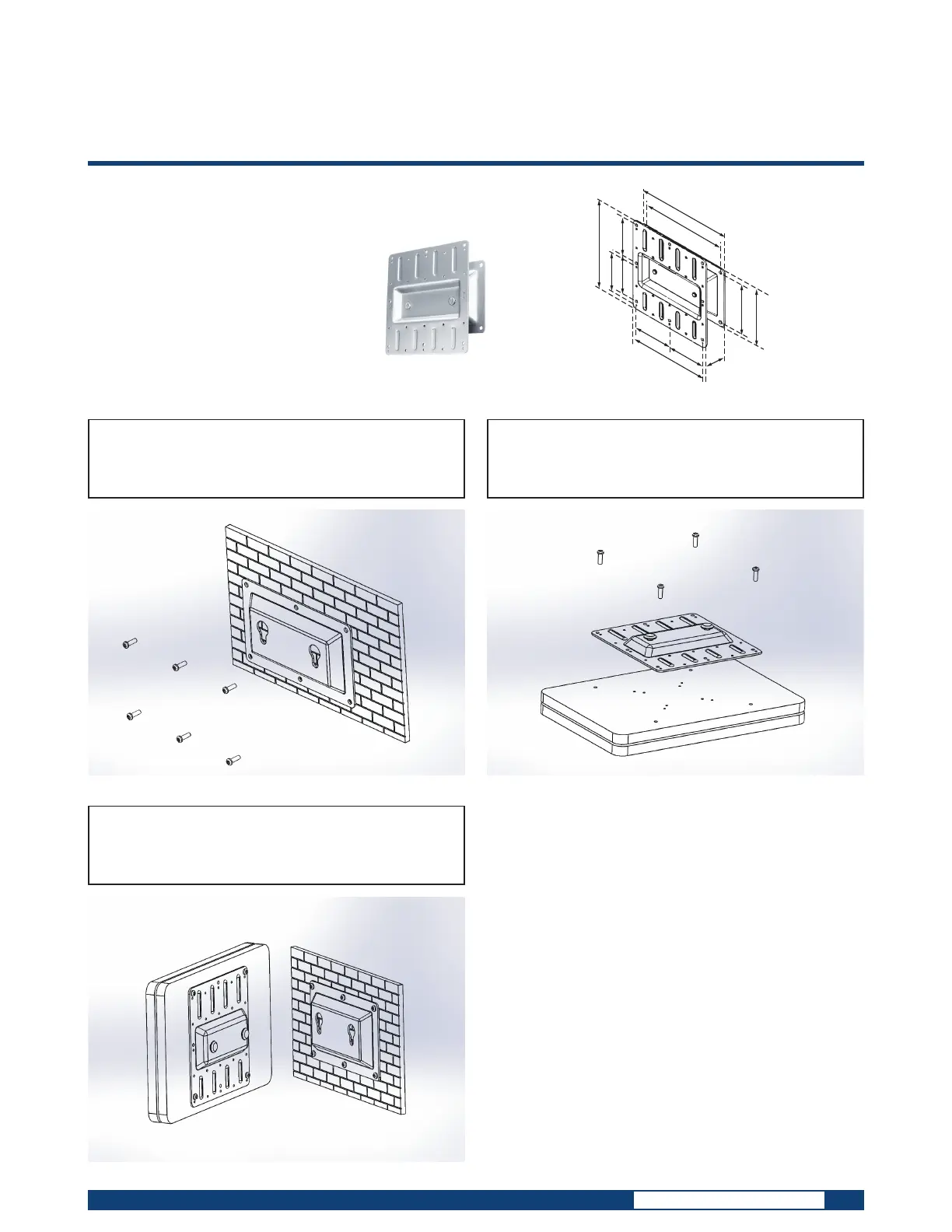

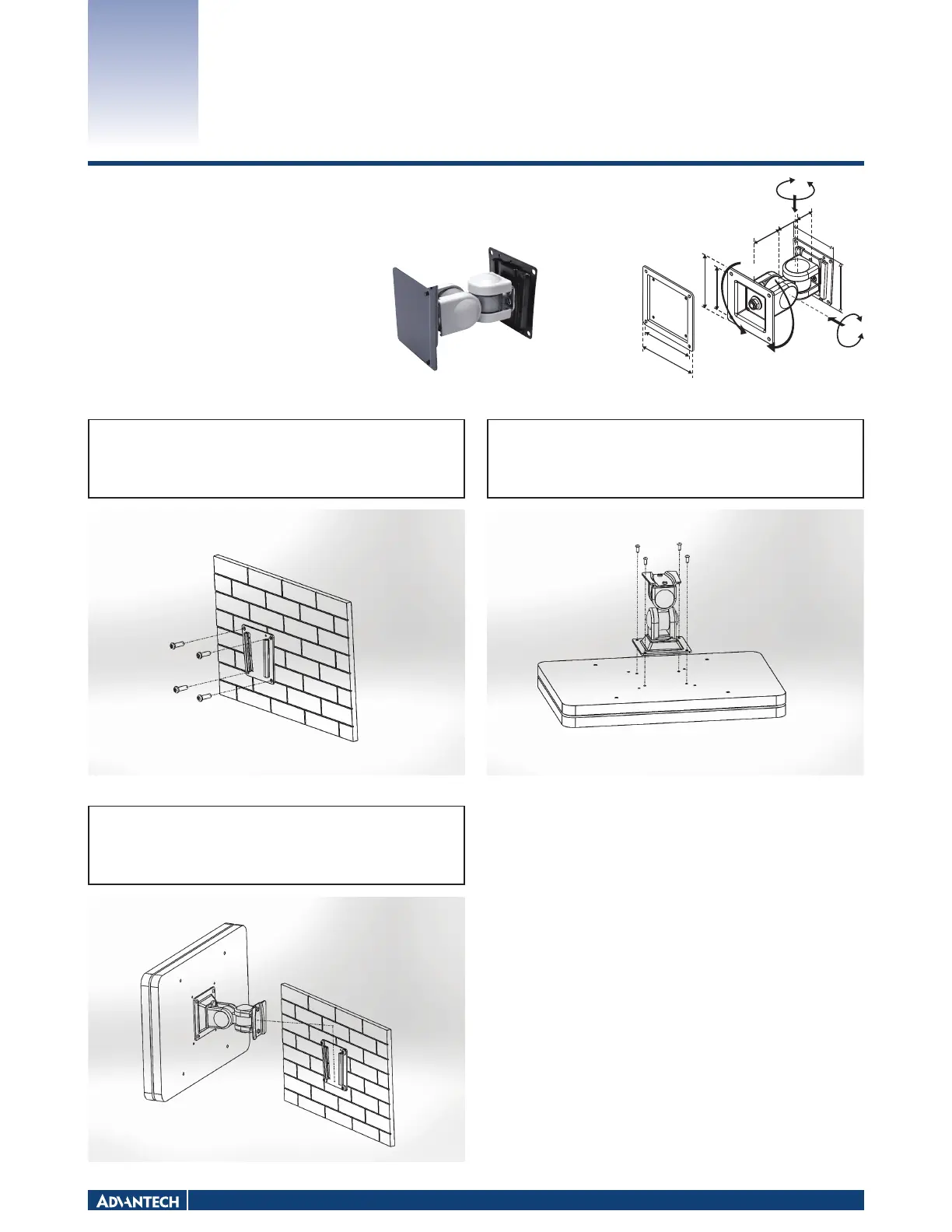

UTC-Wall-Mount Installation Guide
Step 1
Tighten the wall plate on the wall by using four screws.
Step 3
Take the UTC unit with wall mount device plate to slide
into wall mount plate on the wall.
Step 2
Tighten the wall mount device plate on the rear cover of
UTC unit by using four screws into VESA holes.
UTC-WALL-MOUNT1E
VESA 75/100 mm
Firmly fix to a solid wall
Weight capacity up to 14 kg
Material: Steel
Tilt: 180° up and down
Rotation: 270° for portrait or landscape viewing
Lift: 130.5 mm
For UTC-510/515/520/307/310/315
All product specifications are subject to change without notice. Last updated: 1-Apr-2019
www.advantech.com/products
Online Download
UTC-Wall-Mount Installation Guide
Step 1
Tighten the wall plate on the wall by using six screws.
Step 3
Take the UTC unit with wall mount device plate to hang
into wall mount plate on the wall.
Step 2
Tighten the wall mount device plate on the rear cover of
UTC unit by using four screws into VESA holes.
UTC-WALL-MOUNT2E
VESA 100/200 mm
Flush fit without movement
Weight capacity up to 35 kg
Material: Steel
Sits: 42.5 mm from the wall
For UTC-532 only
250
230
100
100
220
230
100
100
100
130
150
42.5
