VEGA-330 Startup Manual 1
Before you start installing your card, please make sure that
the following items have been shipped:
1 x VEGA-330 card
1 x 1960092232T000 heatsink with thermal pad
1 x Edge AI Suite download card
2 x 1930006235-01 screws (color: Black)
2 x 193B0204C0 screws (color: Silver)
1 x China RoHS
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.

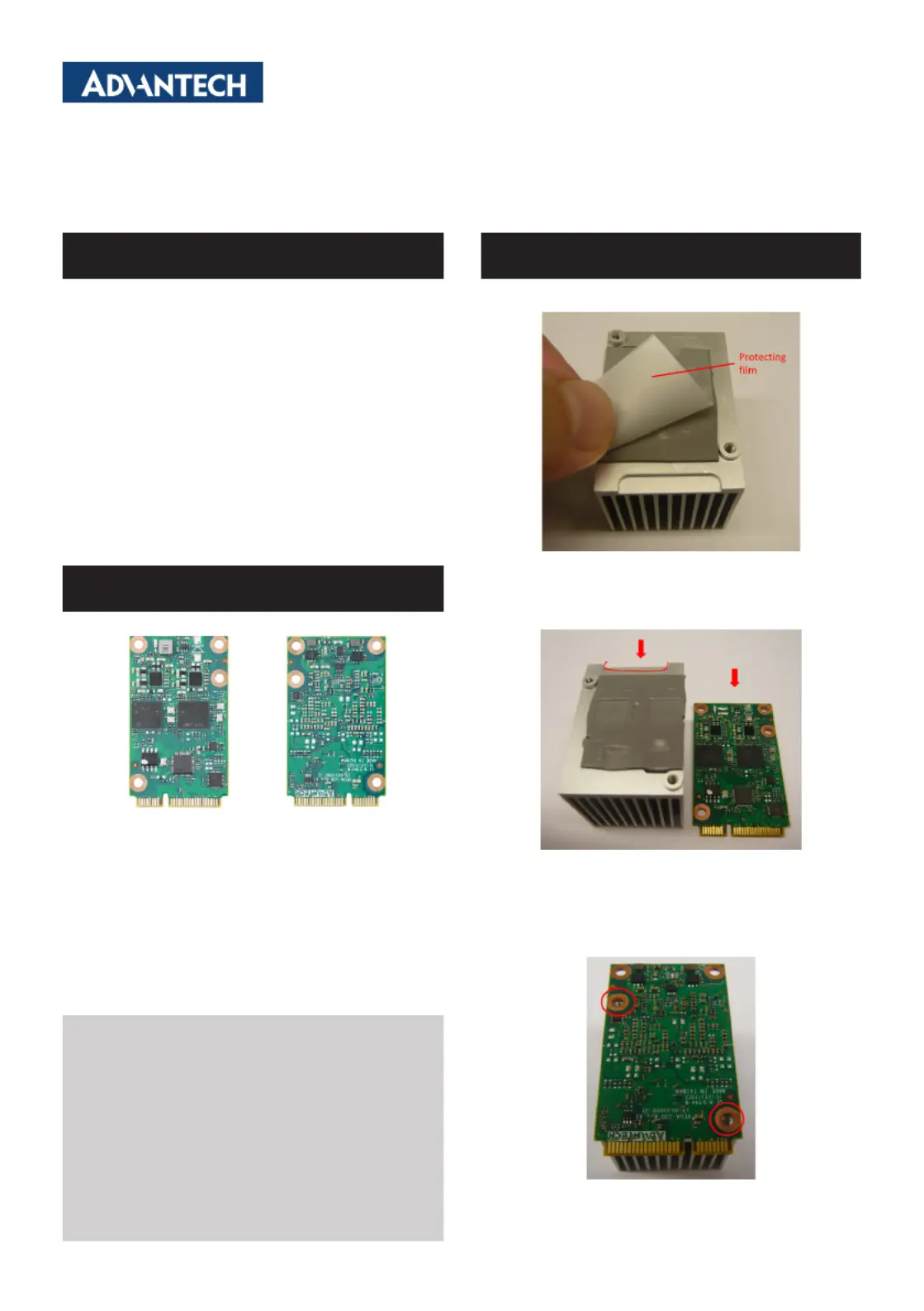

Product Pictures
Top View Bottom View
VEGA-330 Intel
TM
Movidius
TM
Myriad X Edge AI Module
Startup Manual
1. Remove the thermal pad protecting lm.
2. Check the installation direction as below, the top side of
the VEGA-330 has components which generate heat,
and should contact directly with the thermal pad.
3. Align the two diagonal screw holes of the VEGA-330
to the screw holes of heatsink, and tap VEGA-330 top
side and heatsink together.
Heatsink Installation
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
http://support.advantech.com
This manual is for the VEGA-330.
Part No. 2046033000
Printed in China
1st Edition
July 2019
2 VEGA-330 Startup Manual
Heatsink Installation (Cont.)

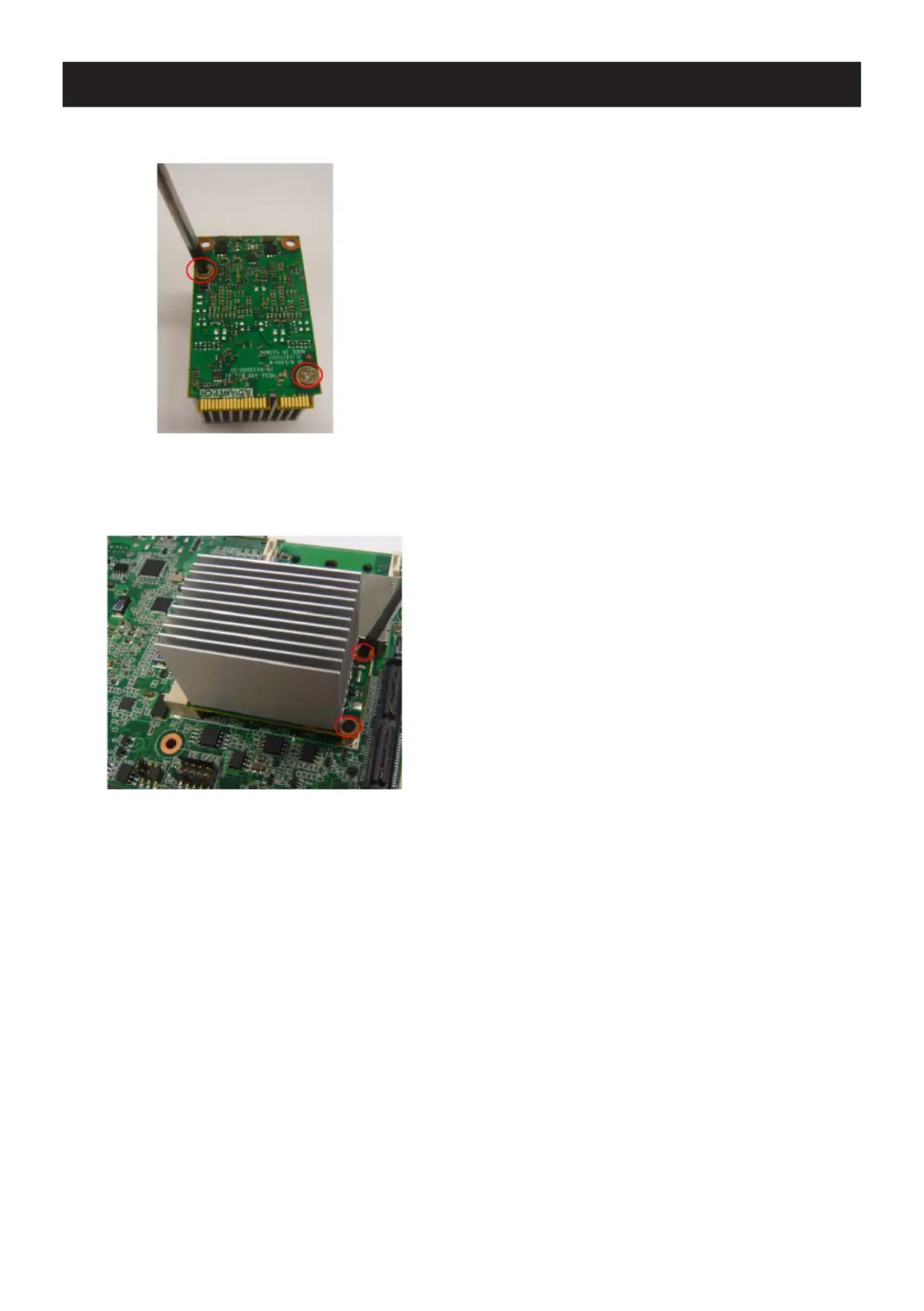

4. Secure VEGA-330 and heatsink with the two
193B0204C0 screws (color: Silver) in box.
5. Secure VEGA-330 with heatsink to mainboard mini-
PCIe slot with the two 1930006235-01 screws (color:
Black) in box.
