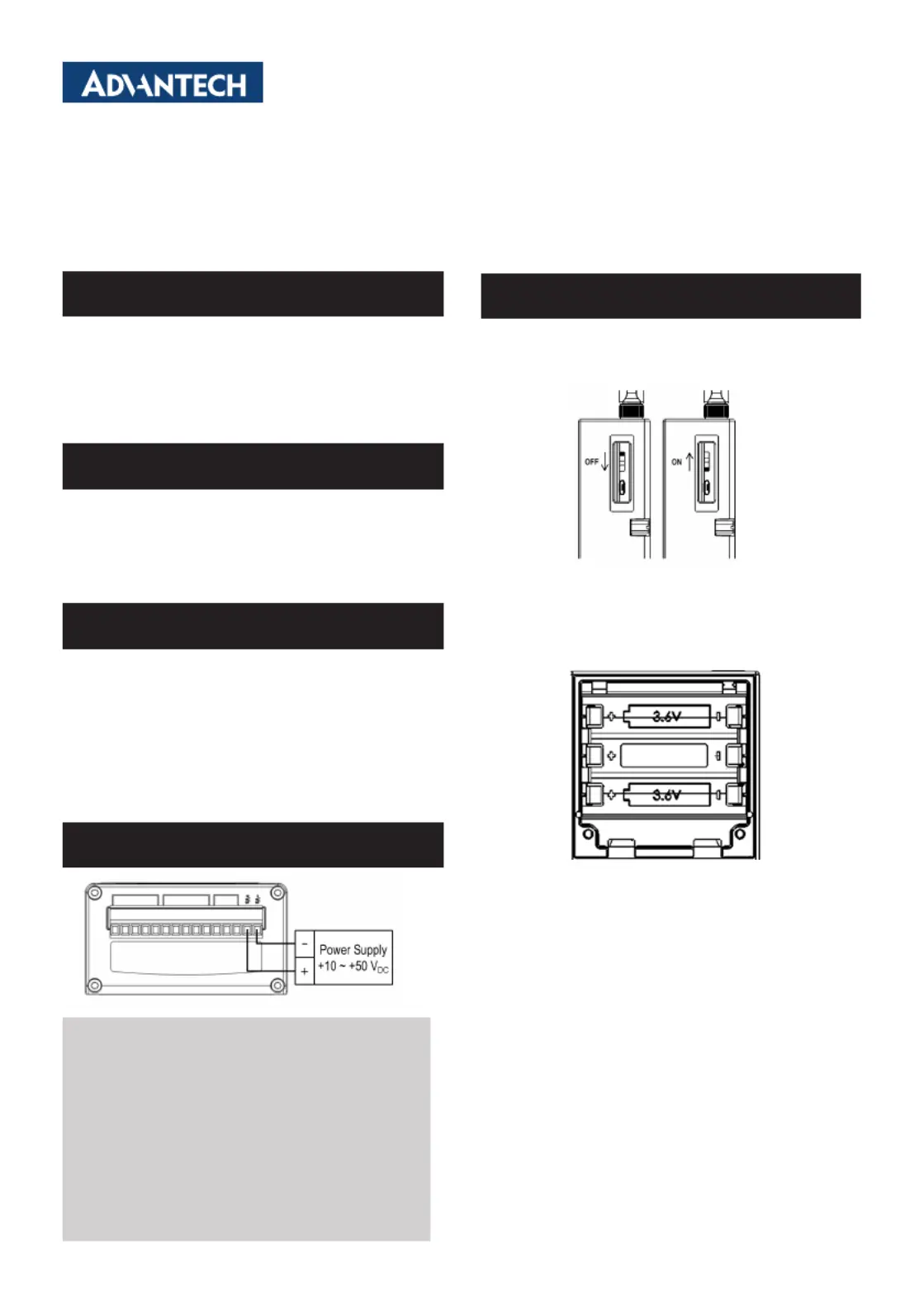

WISE-4210 Startup Manual 1
Thank you for purchasing the WISE-4210 module. This
quick start guide is intended to help you deploy your new
module. The guide contains basic information on the power
and application wiring.
Should you require additional instructions, please refer to
the user manual.
The WISE-4210 is designed for a standard industrial
DC
power supply. For some applications,
it can also accept +10 to +50 V
DC
power input with 200 mV
peak-to-peak power ripple. The immediate ripple voltage
should be between +10 and +50 V
DC
. Batteries may also be
used as an alternative power source.
• 1 x WISE-4210 module
• 1 x Mounting bracket
• 1 x Quick start manual
• 1 x China RoHS declaration (UA series only)
• 1 x Antenna (UA series only)*
*For NA series, antennas should be ordered respectively
per required frequency range.
** WISE-S200 I/O module should be ordered respectively.
WISE-4210
Industrial LPWAN SUB-G Wireless I/O Module
Startup Manual
Open the rubber cover on the side of WISE-4210 nodes,
there is a battery switch to turn on or turn off the battery
power supply.
The module accepts 3 x AA, 3.6 V lithium battery. The bat-
teries should be installed facing the same direction.
Battery
Overview
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service:
https://www.advantech.com/support/
This startup manual is for WISE-4210.
Part No. 2003421052
Printed in Taiwan
Edition 3
October 2019
Input Power Requirements
Packaging List
Power Supply Wiring
2 WISE-4210 Startup Manual
WISE-S214 (4AI/4DI)
Digital Input- Dry Contact
Analog Input
WISE-S250 (6DI/2DO/1RS-485)
Digital Input-Dry Contact
Digital Output
RS-485 Port
WISE-S251 (6DI/1RS-485)
Digital Input – Dry Contact
RS-485 Port
Normal
Mode
Mode
Light Press
(0.5 Sec)
Long Press
(2 Secs)
Power Sav-
ing Mode
LED turn
on→Get
battery
level→LED
turn off*
Leave normal
mode
Non-power
saving Mode
Getbattery
level→LED
turn off*
Leave normal
mode
S i t e -
Survey
Mode
Light Press
(0.5 Sec)
Long Press
(2 Secs)
Tx site survey packet Leave site survey mode
OTA
Mode
Status
Light Press
(0.5 Sec)
Long Press
(2 Secs)
Rx Status
Read battery
level
Leave OTA
mode
Tx Status
(by USB port)
Tx
Conguration
Tx Firmware
Low Battery NA
Leave OTA
mode
Update FW
fail
Reset OTA
mode
NA
*LED indicators will go off automatically 15 secs later when
using battery power.
Application Wiring
Membrane Button
