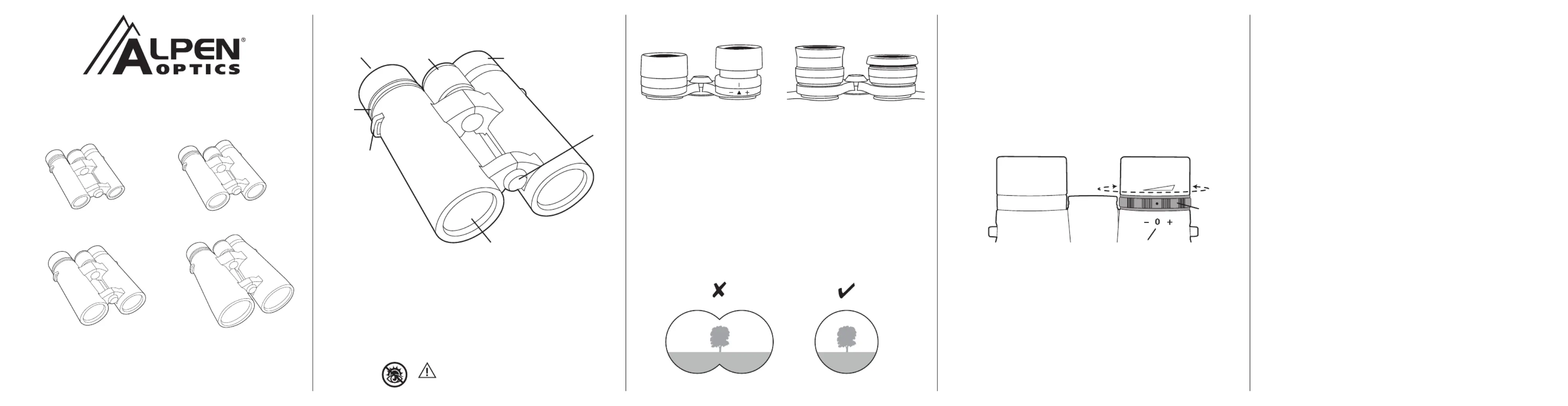

WINGS BINOCULARS

INSTRUCTIONS

#541/545

#542/546 #544

#543/547

Parts

01. Ocular Lens

02. Center Focus

03. Rubber Eyecup

04. Diopter

05. Strap Attachment

06. Objective Lens

07. Tripod Adapter Socket

1010 S 48th Street, Springdale, AR 72762

CONTENTS AND COLORS MAY VARY

SUN HAZARD

— Never look directly at the sun with this device.

WARNING:

Eyecup Adjustment

Your ALPEN binocular is ﬁtted with eyecups which can be rolled or twisted up or down

(depending on your model) to optimize the view for your eyes and to exclude extraneous

light. If you are not wearing eyeglasses or sunglasses, keep the eyecups fully extended

(“up” position). If you are wearing glasses, roll down the eyecups or twist them to the down

position. This will bring your eyes closer to the binocular’s eyepiece (ocular) lens to ensure

you can see the entire image (full ﬁeld of view with no “cutoff” or “tunnel vision”).

IPD (Interpupillary Distance) Adjustment

The distance or spacing between the center of the pupils, called “interpupillary distance”

(IPD) varies from person to person. To adjust the binocular to match your eyes, follow these

simple steps:

1. Hold your binocular in the normal viewing position. Grasp each barrel ﬁrmly.

2. Move the barrels closer together or further apart until you see a single circular ﬁeld

(don’t worry about focus yet).

3. Always re-set your binocular to this position before using it.

Twisted Eyecup Rolled Eyecup

Diopter Adjustment and Focusing

1. Adjust eyecups interpupillary distance as described in the previous sections.

2. Set the diopter adjustment ring to zero and view a distant object.

3. Keep both eyes open at all times.

4. Using a lens cover or your hand, cover the objective (front) lens of the same side of the

binocular that has the diopter adjustment ring. This is usually the right side.

5. Using the center focus wheel, focus on a distant object with ﬁne detail (e.g., brick wall,

tree branches, etc.) until it appears as sharp as possible.

6. Uncover the objective lens on the diopter side, cover the other objective lens, the left

side, then view the same object.

7. Using the diopter adjustment ring, move the dipoter adjustment marker to the “ ” or “ ” + -

till you reach focus.

Caution should be used as over turning or forcing the diopter ring can cause damage or

cause the eyepiece to break away from the chassis.

8. Your binocular should now be adjusted for your eyesight. Focusing for any distance can

now be done simply by turning the center focus wheel. Make a note of your diopter

setting for future reference.

Neckstrap Attachment

To securely attach your binocular to the binocular strap:

1. Thread the end of the strap from the bottom up through the strap attachment loop.

2. Hold the buckle and thread the end of the strap inside the buckle.

3. Adjust the overall length and pull the strap webbing tight so it is secure within the buckle.

Waterproof / Fogproof Models

ALPEN binoculars are designed and built utilizing the latest waterproof and fogproof

technology (this will be noted on the product packaging). Waterproof models are O-ring

sealed for complete moisture protection. Fogproof protection is achieved from dry nitrogen

purging that removes all internal moisture.

Tripod Mounting (tripod and tripod adapter not included)

To attach the binocular to a tripod or mono-pod, unscrew (counter-clockwise) the cap which

covers the threaded socket at the far end of the center hinge, and set it aside in a safe

place. Use a compatible binocular tripod adapter accessory to attach your binocular to any

standard tripod in a horizontal position to provide a stable image during prolonged viewing.

Care and Cleaning

Your BRESSER binocular will provide years of trouble-free service if it receives the normal

care you would give any ﬁne optical instrument.

• Do not expose non-waterproof models to heavy rain or other excessive moisture.

• If your binocular has roll-down, ﬂexible eyecups, store it with the eyecups up. This avoids

excessive stress and wear on the eyecups in the down position.

• Avoid sharp impacts. Use the included neckstrap to avoid accidentally dropping the

binoculars to prevent mis-alignment of the optics.

• When not using them, store your binoculars in the provided case in a cool, dry place.

• Avoid storing the binoculars in hot places, such as the passenger compartment of a

vehicle

on a hot day. The high temperature could adversely affect the lubricants and sealants.

Never leave the binocular where direct sunlight can enter either the objective or the

eyepiece lens. Damage may result from the concentration (burning glass effect) of the

sun’s rays.

• All moving parts of the binocular are permanently lubricated. Do not try to lubricate them.

To Clean Your Binoculars Lenses

1. Blow away any dust or debris on the lens (or use a soft lens brush).

2. To remove ﬁngerprints or other smears, clean with a soft cotton cloth rubbing in a circular

motion. A “microﬁber”cleaning cloth (available from camera or computer retailers) is ideal

for the routine cleaning of your optics.

3. For a more thorough cleaning, photographic lens tissue and photographic-type lens

cleaning ﬂuid or isopropyl alcohol may be used. Always apply the ﬂuid to the cleaning

cloth – never directly on the lens.

For assistance or to return an item, contact Alpen at 866.252.3811

or visit for return procedures. explorescientiﬁc.supportsync.com

Drawing may not match binocular model.

Diopter

Adjustment

Ring

Diopter

Adjustment

Marker
