User Instructions

Introduction:

Thank you for purchasing the American DJ LED Quest. To optimize the

performance of this product, please read these operating instructions

carefully to familiarize yourself with the basic operations of this unit.

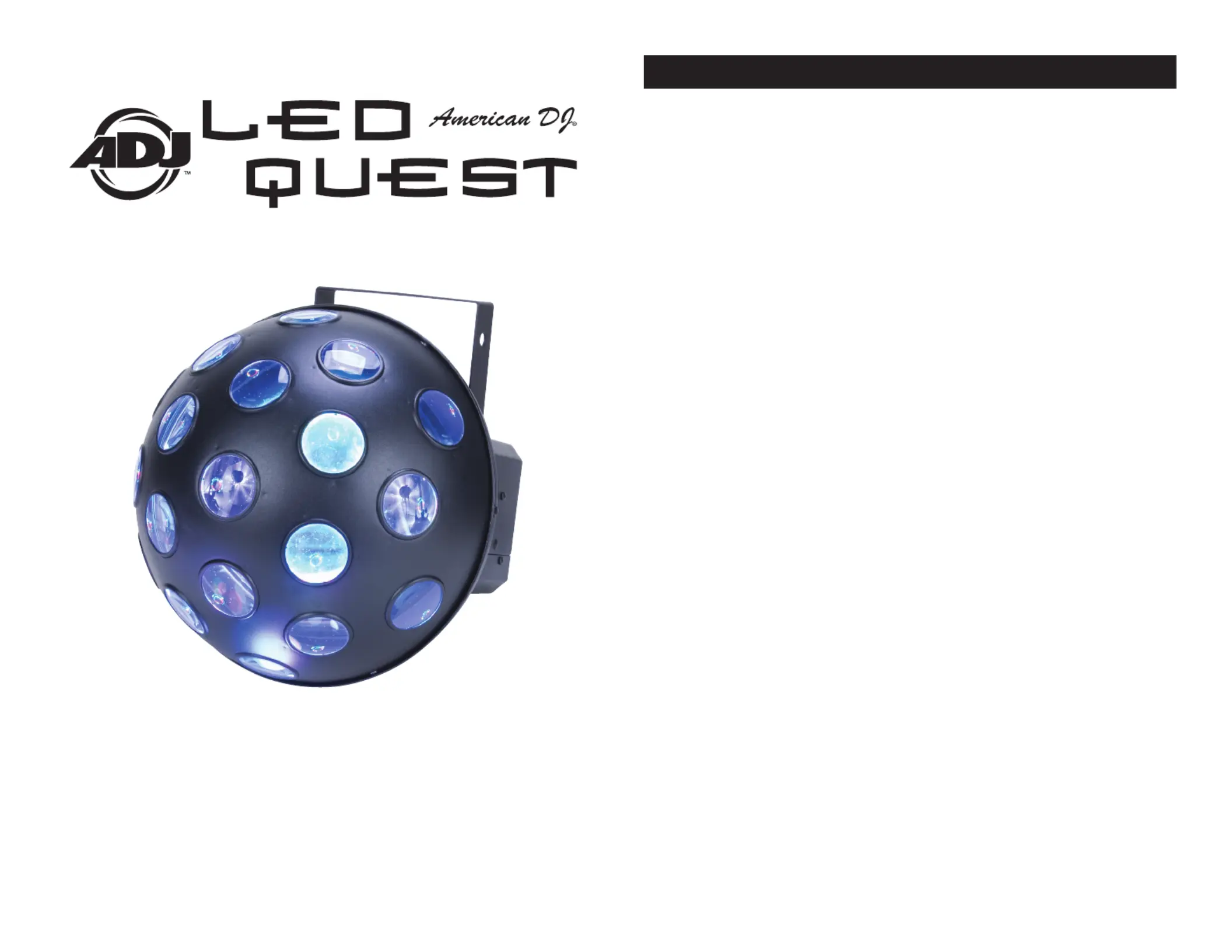

The LED Quest is a multi-colored rotating moon ower effect. The unit

operates in sound-active mode only.

Customer Support:

American DJ provides a toll free customer support line, to provide set ®

up help and to answer any question should you encounter problems

during your set up or initial operation. You may also visit us on the web

at www.americandj.com for any comments or suggestions.

Service Hours are Monday through Friday 9:00 a.m. to 6:00 p.m.

Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2941

E-mail: support@americandj.com

To purchase parts online visit http://parts.americandj.com

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures war-

ranty. In the unlikely event your unit may require service please contact

American DJ.

Do not discard the shipping carton in the trash. Please recycle when

ever possible.

LED Quest Introduction

9/09

LED Quest Operation

LED Quest Warranty Registration

The LED Quest carries a three year (1095 days) limited warranty.

Please fill out the enclosed warranty card to validate your purchase.

All returned service items whether under warranty or not, must be

freight pre-paid and accompany a return authorization (R.A.) num-

ber. The R.A. number must be clearly written on the outside of the

return package. A brief description of the problem as well as the R.A.

number must also be written down on a piece of paper and included

in the shipping container. If the unit is under warranty, you must pro-

vide a copy of your proof of purchase invoice. You may obtain a R.A.

number by contacting customer support at (800) 322-6337.

LED Quest Features

• Includes Built-In Hanging Yoke

• Sound-Active

• Light Weight

To optimize the performance of this product, please read these

operating instructions carefully to familiarize yourself with the basic

operations of this unit. These instructions contain important safety

information regarding the use and maintenance of this unit. Please

keep this manual with the unit, for future reference.

LED Quest General Instructions

Introduction: The American DJ LED Quest is a birght LED moon-®

ower effect. This fixture is designed for mobile DJ’s, clubs, bands,

roller rinks and any arena that requires a compact, light weight, easy

to use unit.

General Operation: This fixture is designed to operate as a stand

alone sound active unit, there is no need of a controller. It has been

tested and there is no assembly necessary. The LED Quest is ready

to be plugged in out of the box, there is no power switch. Plug the

unit in to a matching power outlet or into a power pack. Light output

will be immediate when the unit is powered on. The unit must receive

a sound source to operate normally. Use the sound sensitivity knob

on the rear of the unit to adjust the sound sensitivity. Turning it clock-

wise will make it more sensitive to sound, turning it counter-clockwise

will make it less sensitive.

Master-Slave Operation: This function will allow you to link up to 16

units together and operate without a controller. The units will be sound

activated. In Master-Slave operation one unit will act as the controlling

unit and the others will react to the controlling units programs. Any unit

can act as a Master or as a Slave.

1. Using standard XLR microphone cables, daisy chain your units

together via the XLR connector on the rear of the units. Remem-

ber the Male XLR connector is the input and the Female XLR

connector is the output. The rst unit in the chain (master) will use

the female XLR connector only - The last unit in the chain will use

the male XLR connector only. For longer cable runs we suggest a

terminator at the last fixture.

2. On the Master unit the dipswitches should be in the “Off” posi -

tion.

3. On the slave units put both dipswitches on the “On” position.

4. The slave units will now follow the Master unit.
