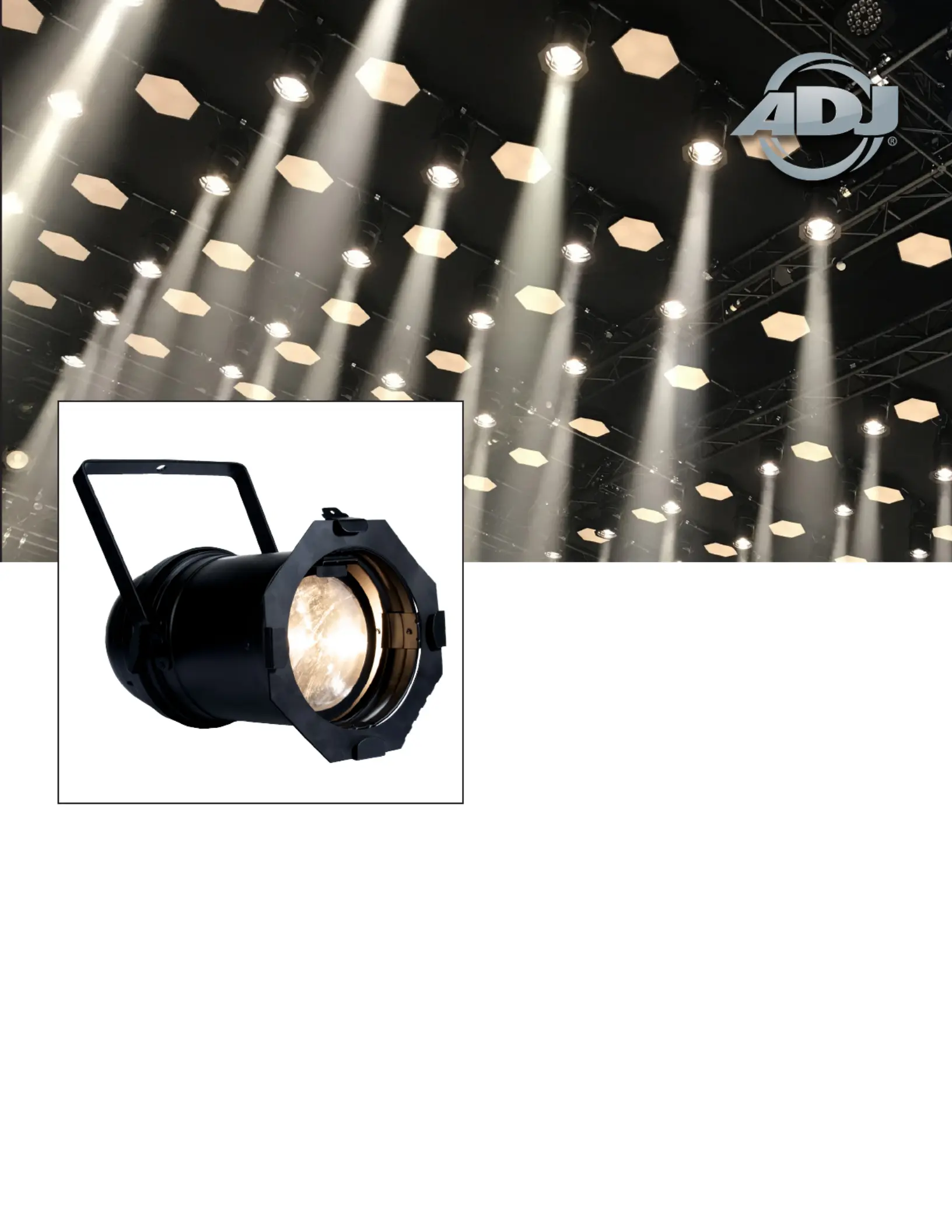

The Par Z100 3K2 combines the aesthetic appeal of a

traditional stage par can with the contemporary advantag-

es of LED technology. It runs on a 100-Watt, 3000K Warm

White C.O.B. LED engine boasting a CRI exceeding 90. With

5 manually adjustable zoom beam angles, along with DMX

In/Out and locking power In/Out, the xture facilitates the

seamless connection of multiple units for permanent or

temporary use.

PAR Z100 3K2

The Par Z100 3K2 oers the classic par can look with the modern benets of LED. The PAR Z100 3K2, looks exactly the

same as a regular black Par can, but inside its casing is housed a powerful LED light source. Oering output compa-

rable to a 1000W sealed beam Par, but producing a fraction of the excess heat, making it ideal for illuminating stages

while ensuring that performers won’t get too hot.

The Par Z100 3K2 is powered by a 100-Watt, 3000K Warm White C.O.B. LED engine with a CRI greater that 90. The 3000K

color temperature oers a good approximation to the output of a traditional lamp. There are 5 manual zoom beam

angles to choose from: 9°, 15°, 20°, 25° or 30.° A traditional par can gel frame is included so that designers can diusion

lter for even more control of the xture’s output.

Advanced features include a 4-button DMX OLED display menu, adjustable strobe rates, 6 dim modes and electronic

dimming form 1-100%. The xture is RDM and RDM Net compatible. On the back of the xture there are locking power

In/Out sockets to daisy chain power, plus 5-pin DMX data In/Out sockets.

www.ADJ.com/par-z100-3k2

PRELIMINARY

DATA ONLY

OPTICAL:

• 100-Watt, 3000K Warm White C.O.B. LED (Chip On Board)

• Life expectancy: rated at 50,000 hrs.

• Manual Zoom: 9°, 15°, 20°, 25° or 30°

• Zoom Ration: 3.3:1

PHOTOMETRICS:

• 5885 Lux (Zoomed In to 9° @ 5 meters)

• 767 Lux (Zoomed Out to 25° @ 5 meters)

• CRI: >90

FEATURES:

• 4-button DMX menu display on rear panel

• OLED display

• Adjustable latch to manually change beam angle

• Includes gel frame for diusion lters (Diusion lter

sold separately)

• Strobe Rate: 0.6Hz to 7.5Hz

• Refresh Rate: 1.2KHz

• Electronic Dimming: 0 - 100%

• 6 Dim Modes

CONNECTIONS:

• DMX: 5-pin DMX In/Out

• With Wired Digital Communication Network

• Locking power In/Out connection

CONTROL:

• DMX-512

• 2 DMX control modes: (3 & 4 Ch. modes)

• RDM and RDM Net Compatible

• Primary/Secondary, stand-alone mode

• On-board manual control mode

ELECTRICAL:

• Power Draw Total (@ Full On): 115W

• Power Consumption: 0.964A @ 120V/60Hz ; 0.5A @

220V/50Hz

• Multi-voltage operation: AC 100-240V, 50/60Hz

• Daisy chain: 15 xtures @ 120V; 25 xtures @ 230V

• Fuse protected: 3A/250V

AMBIENT TEMPERATURE RANGE (FOR USE):

• -4° ~ 113°F (-20°C ~ 45°C)

STORAGE TEMPERATURE RANGE:

• -22° ~ 113°F (-30°C ~ 45°C)

PAR Z100 3K2

Manual Zoom: 9°, 15°, 20°, 25° or 30°
