Side 1/3

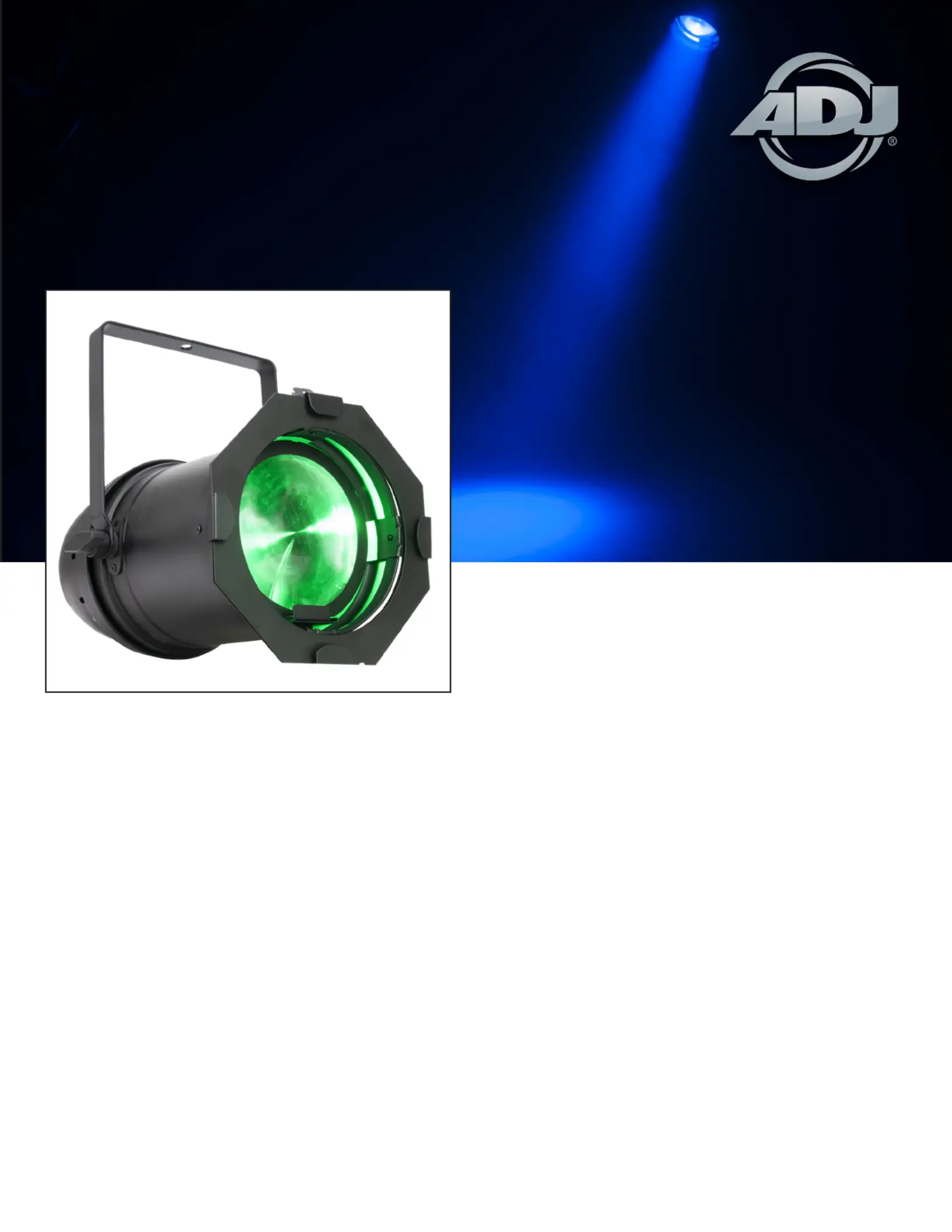

A modern twist on the classic halogen Par Can, the Par

Z150 RGBA combines a potent 150-Watt C.O.B. LED light

source with a traditional Par 64 enclosure. Oering a

choice of beam angles and full color mixing, including

white light with a color temperature of between 2300K

and 9900K, it is ideal for washing both stages and dance-

oors of all shapes and sizes.

PAR Z150 RGBA

Combining the classic aesthetic of the traditional Par Can with the power-saving and heat-reducing advantages of a modern

LED light source, ADJ’s Par Z Series provides exible wash lighting solutions for a wide variety of applications. The Par Z150

model harnesses the power and versatility of a 150-Watt quad color (red, green, blue, and amber) C.O.B. LED engine, which

delivers a huge spectrum of color options, including white light with color temperature variable between 2300K and 9900K.

C.O.B (Chip On Board) technology ensures uniform output with no color shadows, while a high CRI of >90 means that colors are

rendered more accurately when the xture is used to illuminate scenery, décor, or performers, which is particularly important

to ensure natural skin tones and enhanced depth. 64 built in color macros, along with additional white light color temperature

macros, allow for quick and ecient programming. A choice of six dimming modes, four dimming curves, and an on-board

color balance feature allows the xture to be customized for dierent applications and user preferences.

The luminaire oers ve beam angle options (7°, 11.5°, 16°, 20.5° or 25°) and is supplied with a gel frame that can be used to

add a diusion lter (sold separately), allowing an even wider spread to be achieved. As well as smooth dimming control, the

LED engine allows for variable speed strobing eects with a ash rate of between 0.6Hz and 7.5Hz. Another advantage of the

LED light source is its long-life expectancy of 50,000 hours, which essentially removes the cost and inconvenience of regular

lamp replacement.

An adjustable bracket, locked in place using a pair of large plastic thumb screws, allows the xture to hang from a truss or light-

ing stand at any desired angle. On the rear panel are 5-pin DMX input and output sockets as well as locking power input and

output sockets, which allow the electrical supply for multiple xtures to be daisy chained from a single outlet. Mode selection

and DMX addressing is facilitated by an LED display and four corresponding push buttons, also located on the rear panel. In

addition to standard DMX, the xture is also compatible with the RDM protocol to allow remote xture addressing.

www.ADJ.com/par-z150-rgba

PRELIMINARY

DATA ONLY

OPTICAL:

• 150-Watt Quad RGBA C.O.B. LED (Chip On Board - Red,

Green, Blue & Amber)

• Life expectancy: rated at 50,000 hrs.

• Manual Zoom: 7, 11.5, 16, 20.5 or 25-degrees

• Zoom Ration: 3.3:1

PHOTOMETRICS:

• 1360 Lux (Zoomed In to 7°)

• 487 Lux (Zoomed Out to 25°)

• CRI: >90

FEATURES:

• Linear white color temperature control (2300K ~ 9900K)

• Color Temperature Presets (2300K~ 9900K)

• 4-button DMX menu display on rear panel

• OLED display

• Adjustable latch to manually change beam angle

• Includes gel frame for diusion lters

(Diusion lter sold separately)

• 64 Built-in Color Macros

• Strobe Rate: 0.6Hz to 7.5Hz

• Refresh Rate: 3KHz

• Electronic Dimming: 0 - 100%

• 6 Dim Modes

• 4 Dim Curves

• On-board, color balance feature for each color (RGBL)

CONNECTIONS:

• DMX: 5-pin DMX In/Out

• With Wired Digital Communication Network

• Locking power In/Out connections

CONTROL:

• DMX-512

• 6 DMX control modes: (4/5/6/7/8/9/10/11

& 12 Ch. modes)

• RDM and RDM Net Compatible

• Primary/Secondary, stand-alone mode

• On-board manual control mode

ELECTRICAL:

• Power Draw Total (All LED’s @ Full On): 157W

• Power Consumption: 1.3A @ 120V/60Hz;

0.7A @ 220V/50Hz

• Multi-voltage operation: AC 100-240V, 50/60Hz

• Daisy chain: 10 xtures @ 120V; 18 xtures @ 230V

• Fuse protected: 3A/250V

PAR Z150 RGBA

Manual Zoom: 7°, 11.5°, 16°, 20.5° or 25°

2300K

LINEAR COLOR TEMPERATURE CONTROL

(TUNABLE WHITE)

9900K
