Side 1/2

S A V E F O R F U T U R E U S E

7301743-100 Rev. A

P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A S A m e r i c a , I n c .

NEOPRENE

SEAL

SEALANT

INSTALL NEOPRENE OR GRAPHITE FELT SEAL*

Install seal evenly around waste flange (horn).

Apply a thin bead of sealant around base flange.

*NOTE: Wax seal not recommended for this application.

RECOMMENDED TOOLS AND MATERIALS

Putty Knife Regular Sc djustable Wrench Sealant Tape Measurerewdriver A

Hacksaw Wax Ring/Gasket Flexible Supply Tube Closet Bolts Carpenters Level

CAUTION: PRODUCT IS FRAGILE. TWO PEOPLE ARE RECOMMENDED FOR HANDLING

TO AVOID BREAKAGE AND POSSIBLE INJURY!

NOTE: Pictures may not exactly define contour of china and components.

NOTE: For proper operation these products require a minimum of 30 psi line pressure.

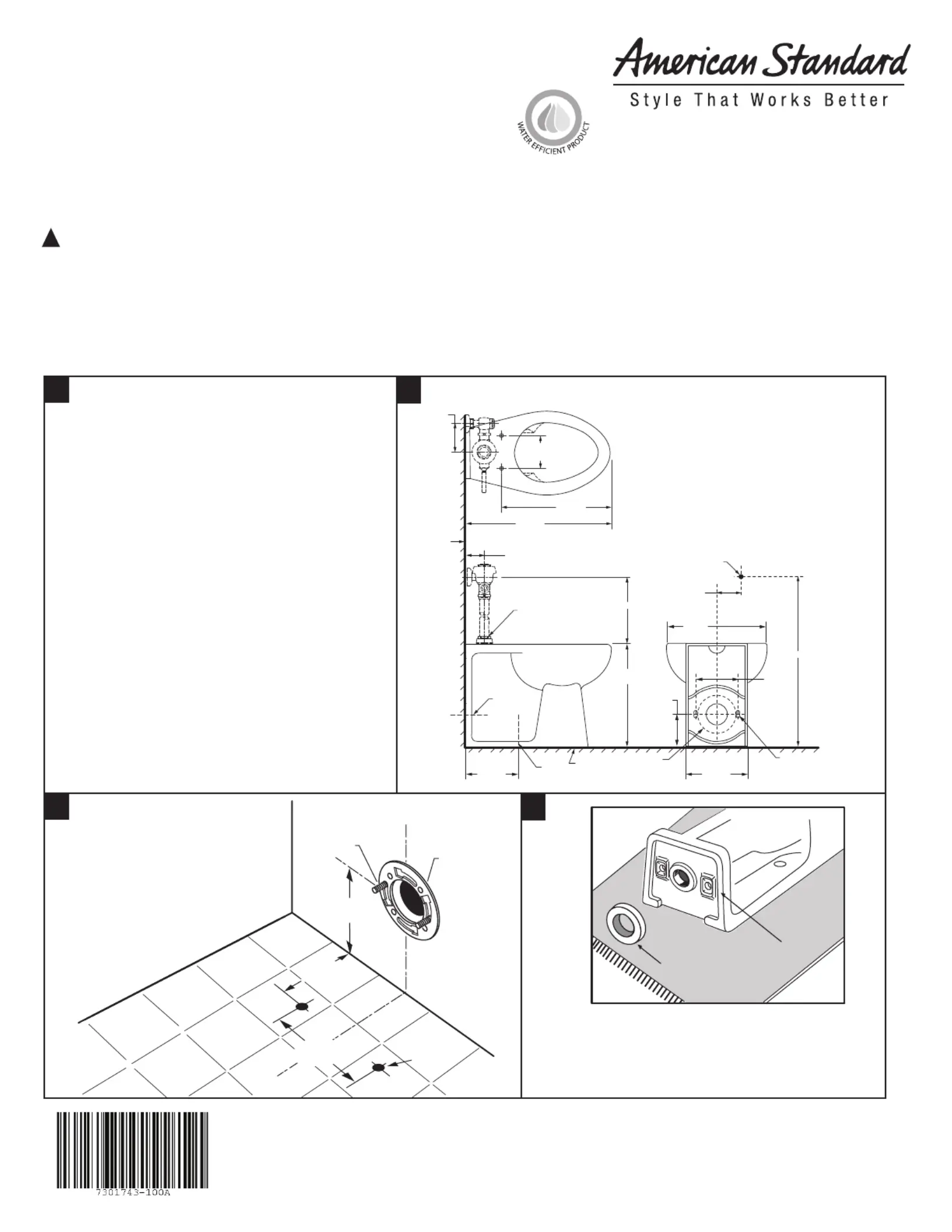

HURON BOWL WITH EVERCLEAN

ONE PIECE TOILET

INSTALLATION INSTRUCTIONS

Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this product is installed

properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be

sure your installation conforms to local codes.

HURON 3312/3313 17-1/8" TOP SPUD

DIMENSIONS (Nominal)

NOTE: Distance from floor to closet flange

centerline (rough-in) must be 4-1/4" (108 mm)

with flange surface flush to 1/16" (1.6mm) max.

beyond finished wall.

Models 3312.001, 3313.001

3 4

FLUSH TO

1/16" (1.6mm)

EXPOSED

CLOSET

FLANGE

CLOSET

BOLTS

(152mm)

PILOT

HOLES

4-1/4"

(108mm)

Install closet bolts in flange channel, turn

90°, and slide into place 6" (152 mm)

apart and parallel to floor. (Use putty to

hold bolts in place if necessary.) Brace

under flooring as needed and drill two

mounting pilot holes as shown.

a. Close flush valve completely.

b. NOTE: If replacing valve, first shut off main water supply!

c. Remove old mounting hardware, remove toilet and plug

wall waste opening to prevent escaping sewer gases.

d. Remove closet bolts from flange and clean away old wax,

putty, etc. from base area.

NOTE: Mounting surface must be clean and perpendicular

to the floor before new toilet is installed!

REMOVE OLD TOILET

INSTALL CLOSET BOLTS

FINISHED

FLOOR

FINISHED

WALL

(76mm)

18-7/8"

(479mm)

24-7/8"

(632mm)

5-1/2"

(140mm)

*4-3/4"

(120mm)

1-1/2" (38mm)

SPUD CONNECTION

C/L OUTLET

4-1/4"

(108mm)

C/L OUTLET

4-1/4"

(108mm)

17-1/8"

(435mm)

1-1/2" (38.1mm)

N.P.S. SUPPLY

6" (152mm)

DIA. HOLE

IN WALL

*4-3/4"

(121mm)

13-3/4"

(349mm)

8-1/2"

(216mm)

10-3/4"

(273mm)

C/L of

1/2"(13mm)

Dia. Holes

(152mm)

(2) SLOTS

1" x 1/2"

(25mm x 13mm)

10-3/4"

(267mm)

7301743-100 Rev. A

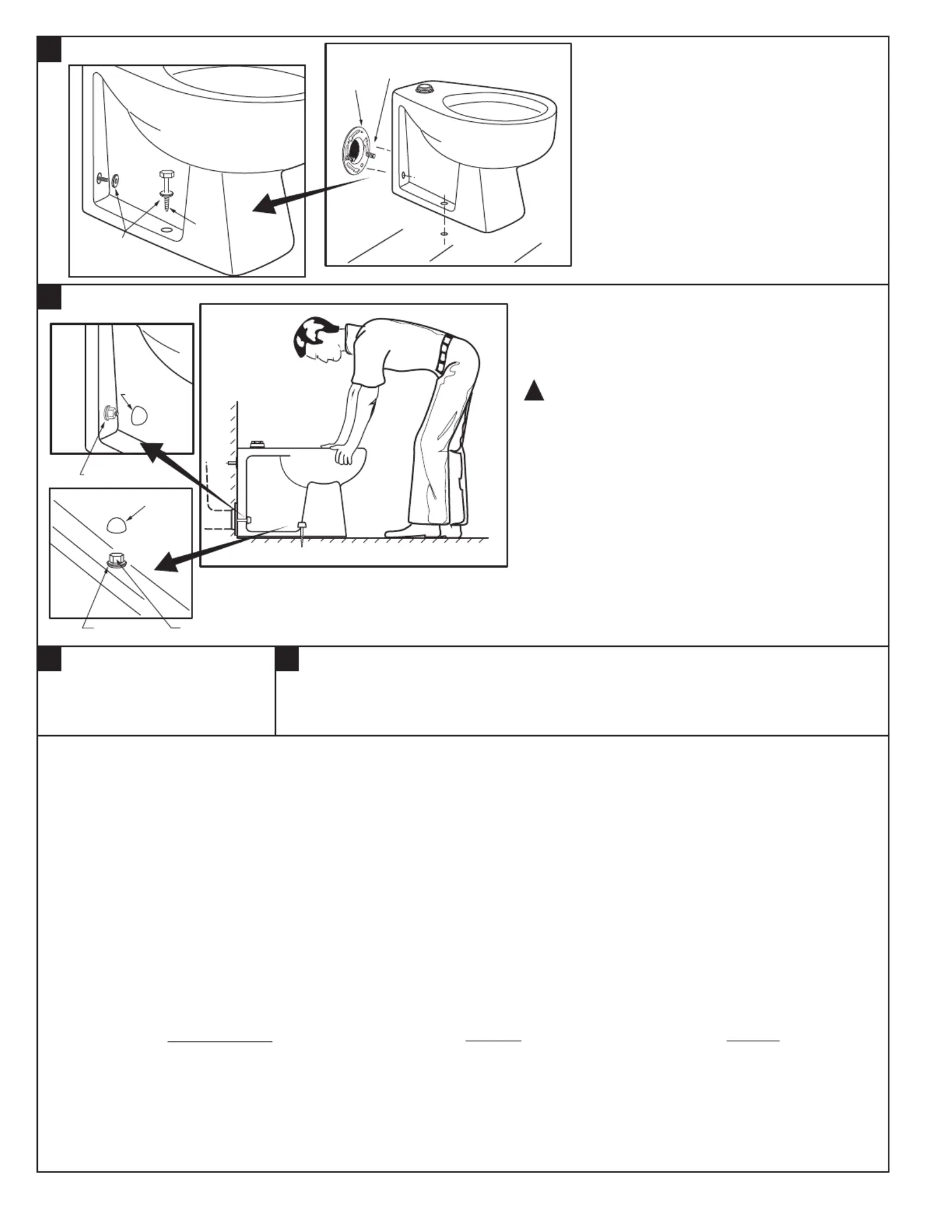

INSTALL TOILET ON FLANGE

a. Unplug wall waste opening and slide

toilet towards closet flange so bolts

project through mounting holes.

b. Loosely install retainer tapered washers

and nuts. Side of washers marked

"THIS SIDE UP" face you!must

INSTALL TOILET

a. Position toilet squarely to wall and, with a rocking

motion, push bowl against ring and flange.

Alternately tighten nuts until toilet is firmly anchored.

CAUTION: DO NOT OVERTIGHTEN NUTS

OR BASE MAY BE DAMAGED!

b. Insert the tapered washers (supplied in the kit)

into the lag bolts (not supplied). Insert bolts

through mounting holes and tighten into

pre-drilled floor openings.

c. Install the bolt caps on tapered washers. (If

necessary, cut wall bolt length to size before

installing caps.)

d. Smooth off the bead of sealant around base.

Remove excess sealant.

- 2 -

When cleaning your toilet, wash it with mild, soapy water, rinse thoroughly with clear water and dry with

a soft cloth. Avoid detergents, disinfectants, or cleaning products in aerosol cans. NEVER use abrasive

scouring powders or abrasive pads on your toilet seat. Some bathroom chemicals and cosmetics may

damage the seat's finish.

INSTALL TOILET SEAT

Install toilet seat in accordance

with manufacturer's directions.

CARE AND CLEANING

BOLT HEAD

WASHER

BOLT

CAP

NUT & WASHER

LAG

BOLT

TAPERED

WASHERS

FLANGE

BOLTS

THIS WARRANTY IS NOT TRANSFERABLE FROM ORIGINAL CONSUMER PURCHASER.

AS AMERICA, INC. ONE YEAR LIMITED WARRANTY

If inspection of this AS America, Inc. (“American Standard”) plumbing product, within one year after its initial purchase, confirms that it is defective in materials or

workmanship, American Standard will repair or, at its option, exchange the product for a similar model.

This limited warranty applies only to the original purchaser and installation of these products. In the event of a limited warranty claim, proof of purchase will be

required—save sales receipt.

This limited warranty does not apply to local building code compliance. Since local building codes vary considerably, the purchaser of this product should check with a

local building or plumbing contractor to insure local code compliance

before installation.

This limited warranty is void if the product has been moved from its initial place of installation; if it has been subjected to faulty maintenance, abuse, misuse, accident or

other damages; if it was not installed in accordance with American Standard's instructions; or if it has been modified in a manner inconsistent with the product as shipped

by American Standard.

American Standard's option to repair or exchange the product under this limited warranty does not cover any labor or other costs of removal or installation. IN NO EVENT

WILL AMERICAN STANDARD BE LIABLE FOR THE COST OF REPAIR OR REPLACEMENT OF ANY INSTALLATION MATERIALS, INCLUDING BUT NOT LIMITED

TO, TILES, MARBLE, ETC. American Standard will not be responsible for any other incidental or consequential damages attributable to a product defect or to the repair or

exchange of a defective product, all of which are expressly excluded from this limited warranty. This limited warranty does not cover any liability for consequential or

incidental damages, all of which are hereby expressly disclaimed, or the extension beyond the duration of this limited warranty of any implied limited warranties, including

those of merchantability or fitness for an intended purpose. (Some states or provinces do not allow the exclusion or limitation of implied limited warranties, so this

exclusion may not apply to you.)

This limited warranty gives you specific legal rights. You may have other statutory rights that vary from state to state or from province to province, in which case this limited

warranty does not affect such statutory rights.

In the United States:

American Standard Brands

P.O. Box 6820

Piscataway, New Jersey 08855

Attention: Director of Customer Care

For residents of the United States, warranty

information may also be obtained by calling

the following toll free number: (800) 442-1902

www.americanstandard.com

In Canada:

AS Canada, ULC
