791615-100 Rev. A

Recommended Tools & Materials

NEW SALEM 0255.112 / 0255.212

NEW SOLAR 0263.112 / 0263.212

Enameled Steel Bath

INSTALLATION INSTRUCTIONS

CAUTION: RISK OF PERSONAL INJURY. ENAMELED STEEL BATHS ARE HEAVY.

THIS IS A TWO PERSON INSTALLATION.

!

Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this product is installed properly, please read

these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes.

• Tape Measure

• Level

• Square

• Pliers

• Pipe Wrench

• Hacksaw

• Hammer

• Drywall Screw

• Teflon Tape

• Silicone Sealant

• Screwdriver

• Shims

• Bath/Shower Faucet

• Drain Assembly

• Wall Coverings, As Needed

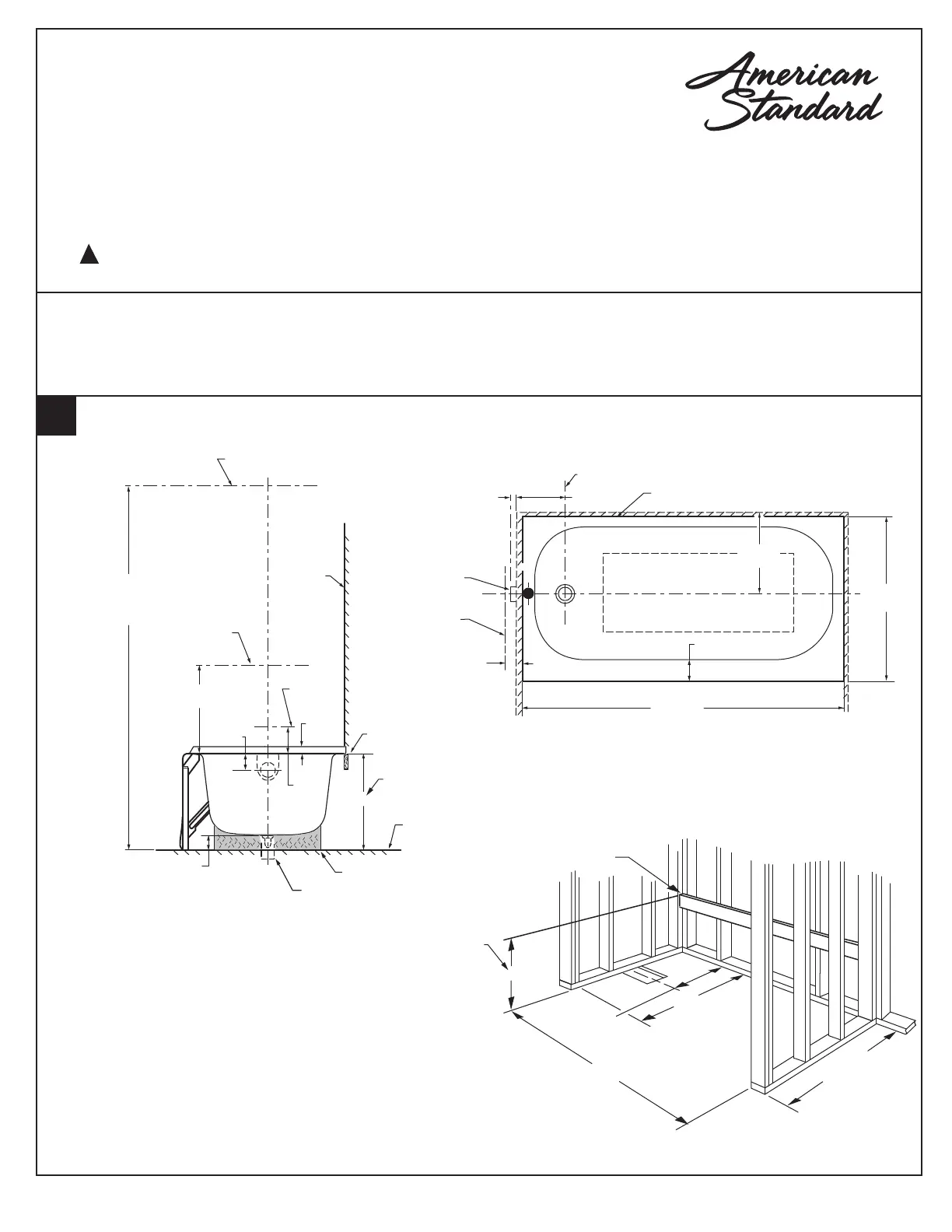

ROUGH-IN DIMENSIONS

DETERMINE FRAMING ROUGH-IN

Construct a recess using 2 x 4 construction designed

for your particular installation. Allow for thickness of

finished wall material.

-1-

NOTE: Measurements may vary plus or minus 1/4" (6mm).

Product names listed herein are trademarks of AS America, Inc.

© AS America, Inc. 2015

LEFT HAND TUB ILLUSTRATED

RIGHT HAND TUB IS REVERSED

C/L OF

SUPPLIES

1-1/2 O.D.

TAILPIECE

2-1/4"

(57mm)

8"

(203mm)

FINISHED

WALL

C/L OF

DRAIN

60"

(1524mm)

3-1/2"

(89mm)

30"

(762mm)

SEE FAUCET SPECS

FOR DIMENSION

C/L OF

SPOUT

4"

(102mm)

1"

(25mm)

12"

(305mm)

3-1/4"

(83 mm)

SUB

FLOOR

FINISHED

WALL

C/L OF

SHOWER ARM

PROVIDE SUITABLE

SUPPORT AT THIS POINT

C/L OF

VALVES

SUMP PAD

*0255 - 14-1/4" (362mm)

*0263 - 16-5/8" (422mm)

OPTIONAL TO FINISHED FLOOR

[USUALLY BETWEEN

65" & 78"

(1651mm & 1981mm)]

1-1/2" (38mm) O.D.

TAILPIECE (Not supplied)

14-3/8"

(365mm)

2-3/4"

(70mm)

*

30"

(762mm)

60-1/8"

(1527mm)

14-1/2"

(368mm)

32

"

(

813mm)

TYP.

TUB WIDTH

LEVELED SUPPORT

STRINGER

*0255 - 14-1/4" (362mm)

*0263 - 16-5/8" (422mm)

*
