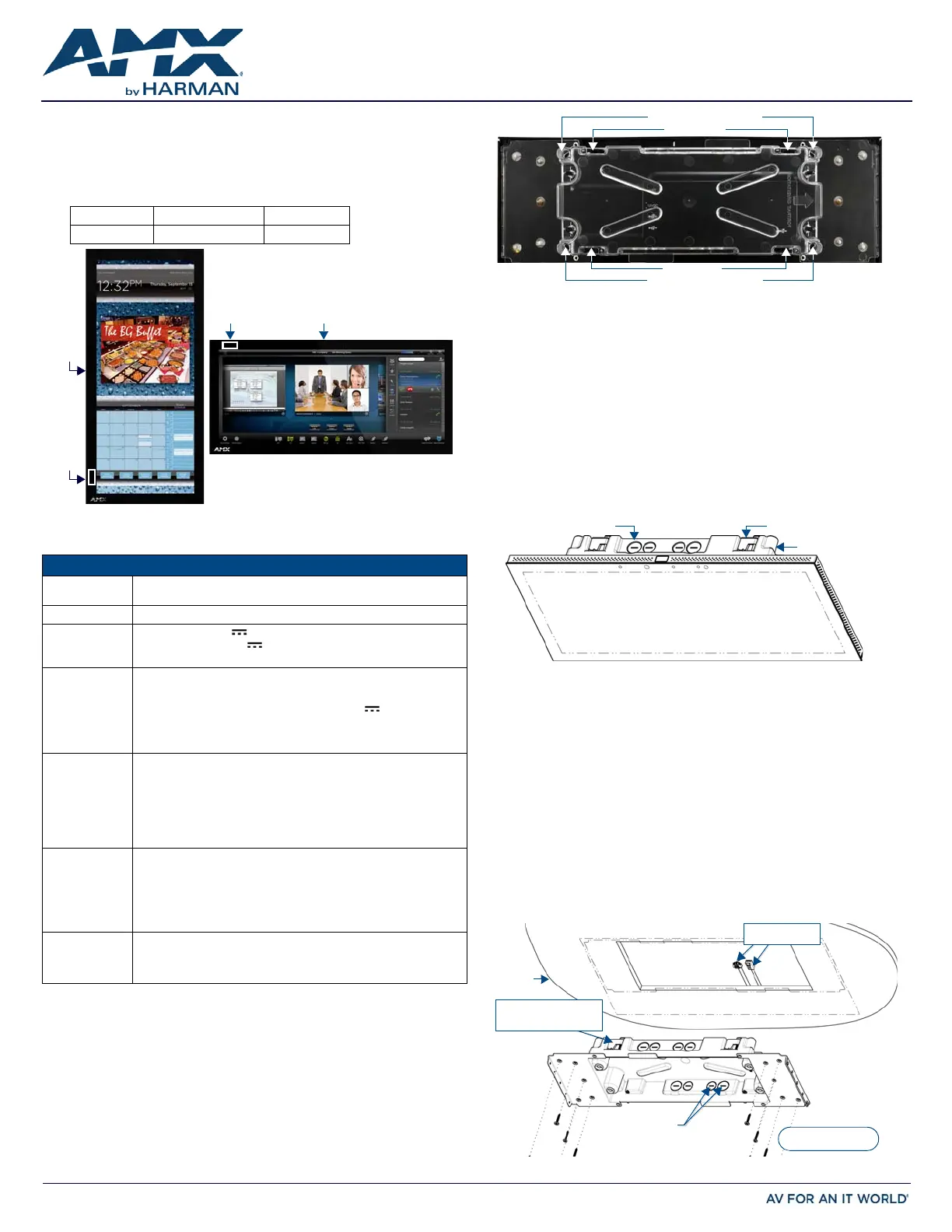

QUICK START GUIDE

MXD-2000XL-PAN 20.3" Modero X

Series Wall Mount Touch Panel

Overview

The MXD-2000XL-PAN 20.3" Modero X Series

Panoramic Wall Mount Touch Panels feature a

beautiful, panoramic capacitive multi-touch screen that provides users access to multiple

applications with minimal navigation. It is hardware-ready for support of Near Field

Communication™ (NFC) Technology to allow integration with NFC capable personal devices.

The panoramic design offers the ability to perform multiple functions simultaneously. The

MXD-2000XL-PAN is available in Portrait and Landscape layouts:

Product Specifications

Note: The MXD-2000XL-PAN-P-NC (FG5968-33) and MXD-2000XL-PAN-L-NC (FG5968-34) No

Comm touch panels do not have camera, microphone, or NFC capability. These otherwise have

all of the functionality of the MXD-2000XL-PAN panels.

MXD-2000XL-PAN Installation

• For more detailed installation instructions including important notes on thermal

concerns with Rack and Wall installations, refer to the X-Series Touch Panels

MXD/T-2000-XL-PAN & MXD/T-1900 -PAN Instruction Manual (available to view/

download from www.amx.com).

• Detailed specifications drawings for the MXD-2000XL-PAN are available to download

from www.amx.com.

The MXD-2000XL-PAN may be installed directly into a solid surface environment, using either

solid surface screws or the included locking tabs for different mounting options. Once

installed, the panel is contained within a clear outer housing known as the Backbox. The

Backbox is removed to install it into a wall, or when using the optional Rough-In Box

accessory (FG039-15).

Note: For typical mounting surfaces, such as drywall, use the locking tabs as the primary

method for securing the Backbox to the surface. For thin walls or solid surfaces, use mounting

screws (not included).

Installing the MXD-2000XL-PAN Into a Wall

The MXD-2000XL-PAN comes with a clear plastic Backbox (FIG. 2) designed to attach the

panel to most standard wall materials. This Backbox has four locking tabs (2 on top, 2 on

bottom) to help lock the Backbox to the wall. These locking tabs are only extended AFTER the

Backbox is inserted into the wall.

• When installing the Backbox, make sure that the assembly is in the correct position and

in the correct place. Once the locking tabs are extended and locked into place, removing

the Backbox may be difficult without having access to the back of the wall or causing

damage to the wall.

• In order to ensure a stable installation of the MXD-2000XL-PAN, the thickness of the

wall material must be a minimum of .50 inches (1.27cm) and a maximum of .875 inches

(2.22cm). The mounting surface should also be smooth and flat.

The Backbox also has four slots for accepting the temporary mounting posts mounted

on the back of the device.

Installing the Backbox

Since the cutout for the Backbox is off-center from the edges of the touch panel, use the

included Installation Template (68-5968-01) to ensure proper placement. The template is

marked on one side with directions for both landscape and portrait installations to ensure that

the touch panel and Backbox are properly aligned.

WARNING: Using the Installation template to select the final placement of the Backbox is highly

recommended. The outside edges of the template are the same dimensions as the touch panel,

which allows you to troubleshoot possible conflicts with wall edges, doors, and other potential

obstacles.

1. Prepare the area by removing any screws or nails from the drywall before beginning the

cutout process.

2. After ensuring proper placement, cut out the mounting surface for the Backbox, using

the (included) Installation Template as a guide.

CAUTION: Making sure that the actual cutout opening is slightly smaller than the provided

dimensions is highly recommended. This provides a margin of error if the opening needs to

be expanded. Too little wall material removed is always better than too much.

3. Thread the incoming power and Ethernet wiring from their terminal locations through

the surface opening (see FIG. 4 on reverse). Leave enough slack in the wiring to

accommodate any re-positioning of the panel.

Portrait MXD-2000XL-PAN-P FG5968-05

Landscape MXD-2000XL-PAN-L FG5968-11

FIG. 1 MXD-2000XL-PAN-P/L (PORTRAIT AND LANDSCAPE)

MXD-2000XL-PAN SPECIF ICATIONS

Dimensions (HWD) • Landscape: 9 1/2" x 20 3/8" x 11/16" (242mm x 519mm x 19mm)

• Portrait: 20 3/8" x 9 1/2" x 11/16" (519mm x 242mm x 19mm)

Weight 9.1 lbs (4.13 Kg)

Power

Consumption

• Full-On: 32W (13.5V , 2.4A)

• Standby: 3.10 W (13.5V , 0.27A)

• Start-Up Inrush Current: 4.0A for 80 μsec

External Power

Supply Required

Requires one of these AMX power sources (not included):

• PSR4.4 Power Supply, 4.5A, 3.5 mm Phoenix with Retention Screws

(FG423-46)

• PSN4.4 Power Supply, 4.5A, 3.5 mm Phoenix, 13.5V (discontinued)

(FG423-45)

• MXA-MPL Modero X Series Multi Preview Live (FG5968-10)

• MXA-MP Modero X Series Multi Preview (FG5968-20)

Certifications • UL 60950-1

• FCC Part 15 Class B

• C-Tick CISPR 22 Class B

• CE EN 55022, EN 55024 and EN 60950-1

• IEC 60950-1

•IC

• IEC/EN-60950

•RoHS/WEEE compliant

Environmental • Temperature (Operating): 32°F to 104°F (0°C to 40°C)

• Temperature (Storage): 4°F to 140°F (-20°C to 60°C)

• Humidity (Operating): 20% to 85% RH

• Humidity (Storage): 5% to 85% RH

• Power ("Heat") Dissipation:

On: 109.2 BTU/hr

Standby: 10.6 BTU/hr

Included

Accessories

• Locking 2-pin Phoenix mate (41-0002-SA)

• MXA-USB-C, USB Port Cover Kit (FG5968-18)

• MXA-CLK, Modero X Series Cleaning Kit (FG5968-16)

• Installation Template 20.3" (68-5968-01)

Sleep ButtonNFC Sensor

Sleep

NFC

Button

Sensor

MXD-2000XL-PAN-P

MXD-2000XL-PAN-L

FIG. 2 MXD-2000XL-PAN BACKBOX

FIG. 3 MXD-2000XL-PAN (LANDSCAPE)

FIG. 4 MXD-2000XL-PAN BACKBOX INSTALLATION (LANDSCAPE)

Locking Tabs

Temporary Mounting Posts

Backbox

Backbox knockouts (X8)

Locking tabs (X4)

8X Knock Outs

Remove For Cable

Routing As Needed

Mounting screws

placement (optional)

Wall

4X Installation Clamp

for Wall Thickness

.37 [12.01] to .98 [25.0]

Cables Routed to

Wall Opening
