Quick Start Guide

MXT-1901-PAN 19.4" Modero X Series® G5Panoramic Tabletop Touch Panel

Overview

In the MXT-1901-PAN 19.4” Modero X Series G5 Panoramic Tabletop Touch Panel

(FG5968-41), the most elegant interface designed specifically for dedicated room

control has been significantly enhanced to include a new G5 Graphic Engine to

provide even faster and smoother animations and transitions. It also quadruples the

processing power with a new Quad Core Processor. This new generation of touch

panels is built for usability offering edge-to-edge capacitive touch glass with multi-

touch capabilities. It features advanced technology empowering users to operate AV

equipment seamlessly, while providing the ultimate in audio and video quality. The

distinctive appearance will complement even the most sophisticated meeting facilities

and homes. With a lightning fast processor, brilliant graphics and enhanced

capabilities, the Modero X Series is the control surface that simply delivers more.

For more information on installation and configuration, please refer to the

MXT/MXD-1901-PAN Operation Reference Guide, available at www.amx.com

Common Application

The MXT-1901-PAN is ideal for boardrooms, conference rooms, or auditoriums where

a panoramic control surface is needed to provide access to multiple functions

simultaneously while remaining elegantly unobtrusive. In residences, it is perfect for

kitchens, home theaters, or home offices where the panoramic control surface can be

used to manage systems throughout the house.

Features

•Panoramic Control Surface – Combined with the new PanTastic UI, the

panoramic touch panels take the user experience to a whole new level with an

impressive control surface to perform activities much in the same way you use a

computer – multi-tasking with dedicated spaces.

•Apps - Modero X Series G5 touch panels now have the ability to run stand-alone

applications (apps) within the control environment.

•Future Technology Visions – HD video chat and conferencing using integrated

camera and hardware - ready to support Near Field Communication (NFC)

Technology, which promises short-range wireless technologies that deliver

peer-to-peer communication by 'sharing, pairing and transaction' between RF

devices like exchanging data/identities.

•Enhanced Usability – HD video streaming.

•Graphic Leaps & Bounds – The Modero X Series includes some striking new

intuitive UI functionality including: gesturing, swiping, dynamic reordering and

enhanced animation capabilities

•Perfect From Any Angle – Includes In-Plane Switching (IPS), the latest

technology in popular tablet/mobile devices that delivers the widest viewing

angles and the most accurate color reproduction on the market.

Product Specifications

Panel Connectors and Wiring

FIG. 2 shows the connectors located on the underside of the MXT-1901-PAN. The

Micro-USB port is used for camera video output. The underside USB port, as well as

the two rear USB ports, may be used with a flash drive for page transfers, firmware

upgrades, or Picture View. Any USB peripherals (mouse, keyboard, etc.) may be

connected to one of the two USB ports on the rear of the device.

The MXT-1901-PAN does not have individual channels on the base of the device to

allow passage of cables from underneath the base. Instead, it has one slot at the base

to allow options on cable configuration, with channels for securing power, Ethernet,

and Micro-USB cables (FIG. 3).

Each channel side has slots for attaching tie-wraps to secure each cable. The ferrite

on the power cable must be secured with the included tie-wrap during installation to

prevent the possibility of the panel not sitting flush on the table.

Wiring Guidelines

The MXT-1901-PAN uses a 12 VDC-compliant power supply to provide power to the

panel via the 2-pin 3.5 mm captive wire PWR connector. Use the previously provided

power requirement information to determine the power draw. The incoming PWR and

GND wires from the power supply must be connected to the corresponding locations

within the PWR connector.

NOTE: Apply power to the panel only after installation is complete.

NOTE: Connecting power to the MXT-1901-PAN should be done using the included 2-

pin 3.5mm captive wire connector included with the device. This connector is retained

within its port with locking screws instead of the pins on each side of standard captive

wire connectors, and using force to insert a standard captive wire connector may

damage the device.

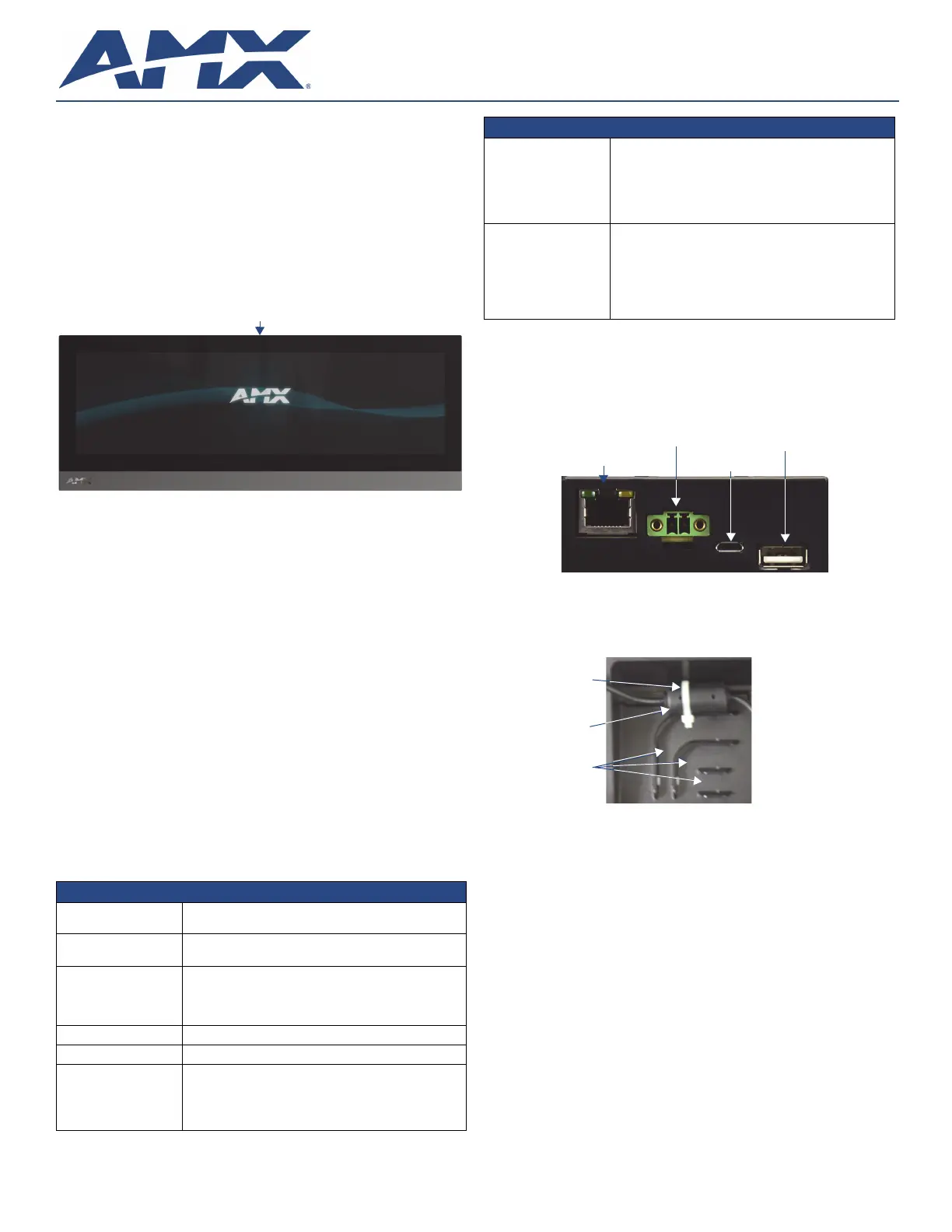

FIG. 1 MXT-1901-PAN 19.4” Panoramic Tabletop Touch Panel

MXT-1901-PAN (FG5968-41) Specifications

Power Requirements: 12VDC, 4.4A LPS: 2-pin, locking 3.5mm captive wire

connector.

Power Consumption: • Full-On: 35 W (12 VDC, 2.9 A)

•Standby: 7 W (12 VDC, 0.6 A)

Operating Environment: • Operating Temperature: 32° F to 104° F (0° C to 40° C)

•Storage Temperature: 4° F to 140° F (-20° C to 60° C)

•Humidity Operating: 20% to 85% RH

•Humidity Storage: 5% to 85% RH

Dimensions (HWD): 7" x 20 7/16” x 5 5/16” (177.8 mm x 519 mm x 134.6 mm)

Weight: 9.4 lbs (4.26 Kg)

Certifications: • UL

• FCC Part 15 Class B

• C-Tick CISPR 22 Class B

• CE EN 55022 Class B and EN 55024

• CB Scheme IEC 60950-1

Sleep Button

MXT-1901-PAN (FG5968-41) Specifications (Cont.)

Included Accessories: • MXT-1901-PAN Installation Guide (93-5968-041)

• MXA-CLK Modero X Series Cleaning Kit (FG5968-16)

• 3.5mm Locking Captive Wire Connector (41-0002-SA)

• HPG-10 .75-inch HydraPort .75-IN. Grommet (FG570-01)

• Type A USB Covers (2)

• Tie Wrap for Power Source Ferrite

Other AMX Equipment: • PSN4.4 4.4AMP, 13.5VDCA5 Power Supply (FG423-45)

• MXA-USB-C USB Cover Kit (FG5968-18)

• MXA-MPL, Modero X Series Multi Preview Live

( )FG5968-10

• MXA-MP, Modero X Series Multi Preview (FG5968-20)

• MXA-STMK-19, Secure Table Mount Kit, 19.4" Modero X

Tabletop (FG5968-65)

FIG. 2 Rear connectors

FIG. 3 Tie-wrap for power connector ferrite

Ethernet 10/100

Port Micro-USB

Port

USB Port

12 VDC

Power Port

Tie-wrap channels

Tie-wrap

Ferrite

For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).

3/14

AMX reserves the right to alter specifications without notice at any time.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com

93-5968-41 REV: A

Wiring a Power Connection

To use the 2-pin 3.5 mm captive wire connector with a 12 VDC-compliant power

supply, the incoming PWR and GND wires from the external source must be

connected to their corresponding locations on the connector (FIG. 4). The connector

uses locking screws to insure a connection to the device, so make sure to insert and

tighten the screws before applying power.

1. Insert the PWR and GND wires on the terminal end of the 2-pin 3.5 mm

captive wire cable. Match the wiring locations of the +/- on both the power

supply and the terminal connector.

2. Tighten the clamp to secure the two wires. Do not tighten the screws

excessively; doing so may strip the threads and damage the connector.

3. Verify the connection of the 2-pin 3.5 mm captive wire to the external

12 VDC-compliant power supply and apply power.

Configuring the MXT-1901-PAN

The MXT-1901-PAN is equipped with a Settings app that allow you to set and

configure various features on the panel. For more information on connecting and

configuring the MXT-1901-PAN to a network, please refer to the Modero X Series G5

Programming Guide, available at www.amx.com.

Accessing the Settings App

To access the Settings app on the MXT-1901, press and hold the Sleep Button

(FIG. 1) on the top of the panel for 3 seconds. The user will be prompted to release the

button to enter the Settings app.

Accessing the NetLinx Subpage

1. From the Settings app page, select NetLinx. This opens a password keypad.

2. Enter the panel password into the keypad (the default is 1988) and select OK to

access the subpage.

Setting the Panel’s Device Number and Device Name

In the NetLinx subpage:

1. Press Device Number to open the NetLinx editing window.

2. Enter a unique Device Number assignment for the panel and press OK.

3. Enter a unique Device Name assignment for the panel and press OK.

Accessing the Ethernet Subpage

1. From the Settings app, select Ethernet. This opens a password keypad.

2. Enter the panel password into the keypad (the default is 1988) and select OK to

access the page.

Connecting to a Master

The panel requires that you establish the type of connection you want to make

between it and your Master.

In the NetLinx page:

1. Press Mode to toggle through the available connection modes:

2. If you have enabled password security on your Master, you need to set the user-

name and password within the device.

a. Select Username to open the NetLinx editing window.

b. Set your Username and Master Password.

e. Click OK to return to the NetLinx page.

Configuring the Panel to a Network

The first step is to configure the panel’s communication parameters. This only

configures the panel to communicate with a network, and it is still necessary to tell the

panel with which Master it should be communicating.

Network Communication With a DHCP Address

In the Ethernet subpage:

1. Toggle the DHCP/Static field to open the DHCP/Static window. DHCP is the default

setting.This action causes all fields on the Ethernet subpage (other than Host Name)

to be greyed-out.

2. Select Host Name to open the Host Name window. Enter the new host name

and click OK.

Network Communication with a Static Address

In the Ethernet subpage:

1. Toggle the DHCP/Static field to open the DHCP/Static window.

2. Select Static in the window. This opens the Static IP editing window.

3. Click on any field to open either a keypad (for numeric entries) or keyboard (for alpha-

numeric entries). To minimize the keypad/keyboard, click the two downward-pointing

arrows at the bottom right corner of the screen.

4. Enter your network’s information in the Static IP editing window. To move from field to

field, simply press the next field you wish to edit.

5. When finished, click OK to save your changes and return to the subpage.Ethernet

FIG. 4 NetLinx power connector wiring diagram

PWR +

GND -

To the Touch Panel

Power Supply

Connection Modes

Mode Description Procedures

Auto The device connects to the first

master that responds.

This setting requires that you set

the System Number.

Setting the System Number:

1. Select Master System Number to open

the keypad.

2. Set your Master System Number and

select OK.

URL The device connects to the

specific IP of a master via a TCP

connection.

This setting requires that you set

the Master’s IP.

Setting the Master IP:

1. Select the Master IP number to open the

keyboard.

2. Set your Master IP and select OK.

Listen The device “listens” for the

Master to initiate contact.

This setting requires you provide

the master with the device’s IP.

Confirm device IP is on the Master URL list.

You can set the Host Name on the device

and use it to locate the device on the master.

Host Name is particularly useful in the DHCP

scenario where the IP address can change.

Produkt Specifikationer

Mærke:	AMX
Kategori:	overvåge
Model:	MXT-1901-PAN

Har du brug for hjælp?

Hvis du har brug for hjælp til AMX MXT-1901-PAN stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

overvåge AMX Manualer

AMX MXD-1001-P Manual

27 August 2024

27 August 2024

27 August 2024

27 August 2024

27 August 2024

27 August 2024

AMX MXT-1000-NC Manual

27 August 2024

AMX NXD-435 Manual

27 August 2024

AMX MXD-1901-PAN-L Manual

27 August 2024

AMX MXD-1900L-PAN-NC Manual

27 August 2024

overvåge Manualer

Nyeste overvåge Manualer

BenQ DesignVue PD2730S Manual

8 April 2025

Asus VA279QGS Manual

8 April 2025

Acer EV227Q Manual

8 April 2025

BenQ PD3226G Manual

7 April 2025

Philips 221V8LB Manual

4 April 2025

Extron TLS 1025M Manual

2 April 2025

PureTools PT-SCREEN-100 Manual

1 April 2025

Viewsonic VG2752-2K Manual

30 Marts 2025

Satco S13165 Manual

30 Marts 2025

Satco S16434 Manual

30 Marts 2025
