QR-GOLD
Installation Instructions
The Gold Mount
®
Battery System is an advanced design of the popular Anton/Bauer
®
Snap-On
®
Mounting System currently
being used by virtually every professional video camera manufacturer in the world.
FEATURES
CAUTION: Open + and – wires inside bracket. DO NOT attach battery without terminating wires.
1. Cam action latch for improved ease of battery loading and removal. Red label below latch indicates battery is not fully
latched, eliminating inadvertent battery unloading.
2. Safety lock provides user with a safety for the latch mechanism. Will allow battery to remain in the fully latched position in
the event the mounted battery is shocked or latch mechanism is accidentally depressed. Green label below safety
indicates locked “shoot” position.
(continued)

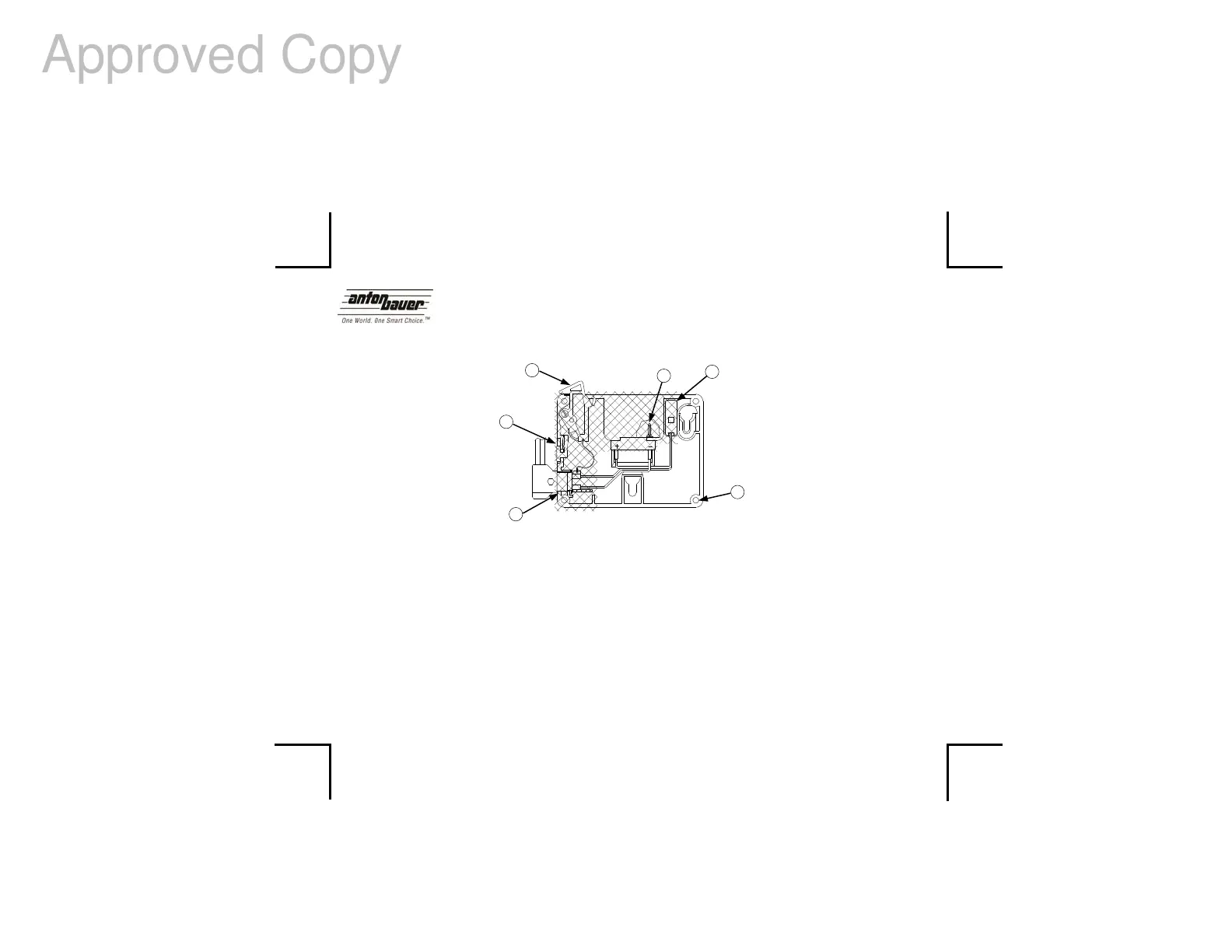

4
5
6
1
2
3
Approved Copy
Anton/Bauer Inc., 14 Progress Drive, Shelton, Connecticut 06484 USA • (203) 929-1100 • Fax (203) 925-4988 • support@antonbauer.com
Europe, B.V. Eurode Business Center, Eurode-Park 1-2, 6461 KB Kerkrade, The Netherlands • (+31) 45 5639220 • Fax (+31) 45 5639222 • eurosupport@antonbauer.com
Singapore Office - Anton/Bauer, 6 New Industrial Road, # 02-02 Hoe Huat Ind. Bld., Singapore 536199 • (+65) 62975784 • Fax (+65) 62825235
www.antonbauer.com 7595-0079 Rev N
3. PowerTap
®
Connector. A built-in fused 10 amp connector for powering Ultralight
®
portable camera light and
accessories. NOTE: Requires
PowerTap connector. The PowerTap connector is included on all Ultralight 2 light
assemblies and cable assemblies for the older Ultralight SINGLE or DUAL.
4. Mounting Pattern. The Snap-On Gold Mount bracket is fully compatible with all existing cameras and batteries using the
Anton/Bauer mounting
system. NOTE: When custom mounting the Gold Mount bracket system it is necessary to
support the shaded areas (see Fig. A) against a flat surface. A backplate is provided with each Gold Mount bracket for
this purpose.
5. PowerTap Fuse Holder. The fuse holder for the PowerTap connector. The fuse holder located in the bracket is press fit.
To remove the fuse holder, grasp the main fuse holder body and pull up.
To replace the fuse:
A. Remove the fuse from the fuse holder by pushing the assembly through
the square access opening in the main body.
B. Pull the press fit fuse caps from both ends of the spent fuse and replace with a new fuse. (Note: The replacement
fuse must be a 10 amp 250 volt 5 x 20mm fuse).
Manufacturer’s part numbers: Anton/Bauer (3713-1010)
Schurter (001.2514)
Little Fuse (218-010)
C. Replace both fuse caps onto the new fuse and press the fuse assembly back into the main body.
D.
Press the fuse holder back into its original location within the bracket.
6. Banana Pins. The Gold Mount Banana Pins are gold plated with eight contact points for ultra-low resistance and
optimum dependability. Both pins are externally removable with a 4mm hex nut driver for ease of serviceability.
NOTE: When reinstalling pins, caution should be taken not to over tighten the pin assembly. Replacement Banana pins
are available only through the Anton/Bauer Service Department. The Anton/Bauer part number is 3320-0105.
Use of unauthorized equipment in conjunction with Anton/Bauer products constitutes misuse under our warranties and
may limit or void those warranties. Anton/Bauer does not authorize, condone, recommend, or otherwise assume any
liability or responsibility resulting from the use of any battery, charger or accessory made by Anton/Bauer manufacture
with any battery, charger or accessory not manufactured, produced or sold by Anton/Bauer. Anton/Bauer only authorizes
the use of original Anton/Bauer product with this product. Use only original Anton/Bauer equipment with this product.
