Side 1/2

Vertical Exhaust Duct (VED)

System

AR7751, AR7751W, AR7752, AR7752W, AR7753, AR7753W,

AR7754, AR7754W, AR7755, AR7755W, AR7756, AR7756W

Customer support for this or any other Schneider Electric product

is available at www.schneider-electric.com.

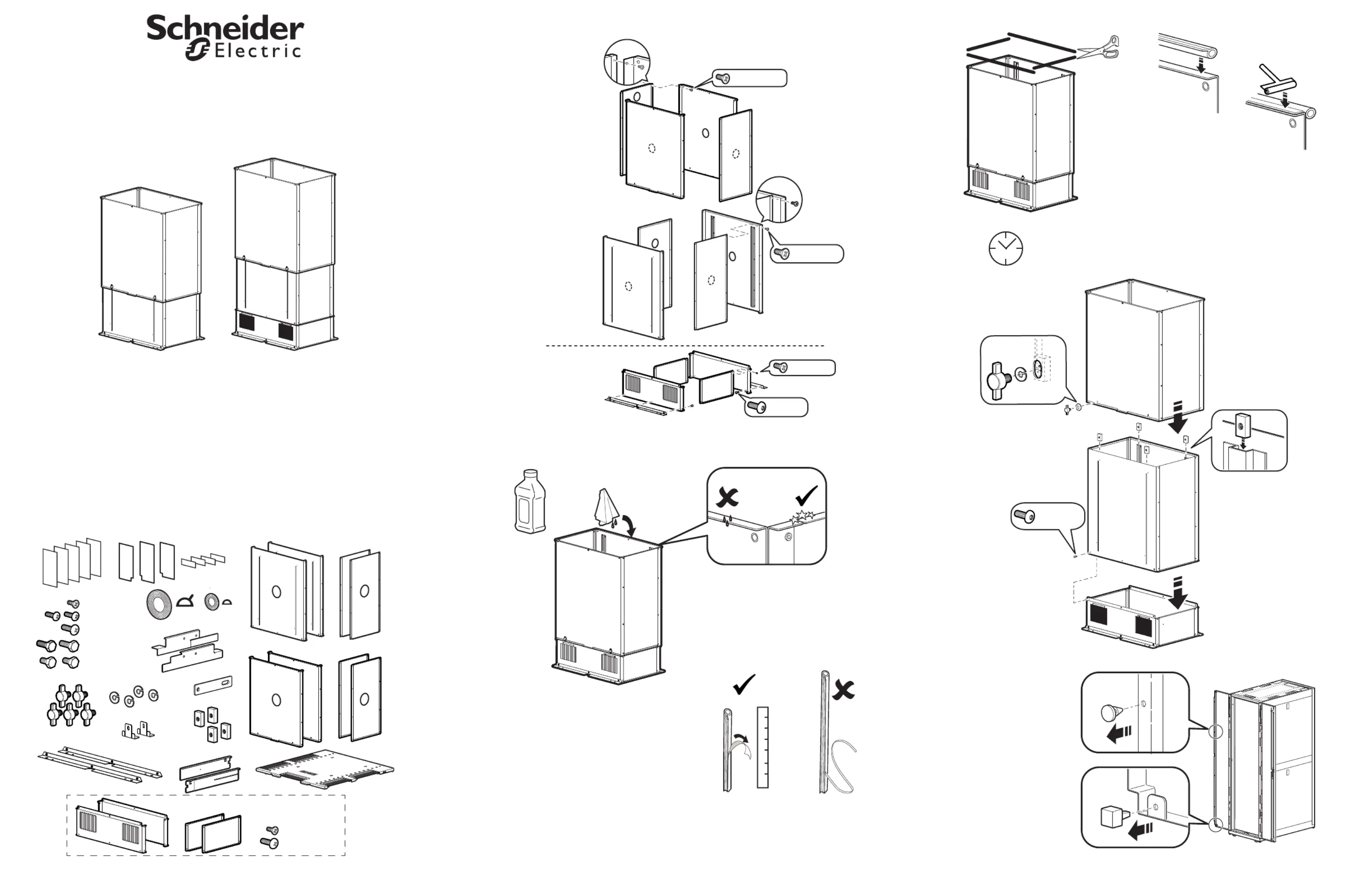

Inventory

Assembly

ns1804a

02/2018

990-3958C

BCD

M6 (X11)

M3.5 (X36)

M10

M3.5 (X36)

M6 (X11)

AR7755 & AR7756 ONLY

Vertical Exhaust Duct

M6 (X6)

M3.5 (X8)

AR7755 &

AR7756 ONLY

M3.5 (X16)

ns1800a



ns2829a

3 3H O



Thoroughly clean the surface receiving the

gasket material with a 50/50 water/alcohol

solution on a lint free cloth or a commercially

purchased alcohol wipe intended for this use.

Allow the surface to dry completely before

applying the gasket material.

ns2830a

Remove only a few inches of the backing tape

protecting the adhesive side of the gasket

when preparing for installation.

NOTE: Removal of too much of the backing

tape at one time risks contamination of the

adhesive which can cause adhesion failure.

NOTE: Discard any gasket material that is removed even if only to reposition it.

Clean the area again with the alcohol wipe and use a new piece of gasket material.



NOTE: A gasket installation video is available at

https://www.trrimlok.com/rsinstall

ns1793a

M6 (X6)



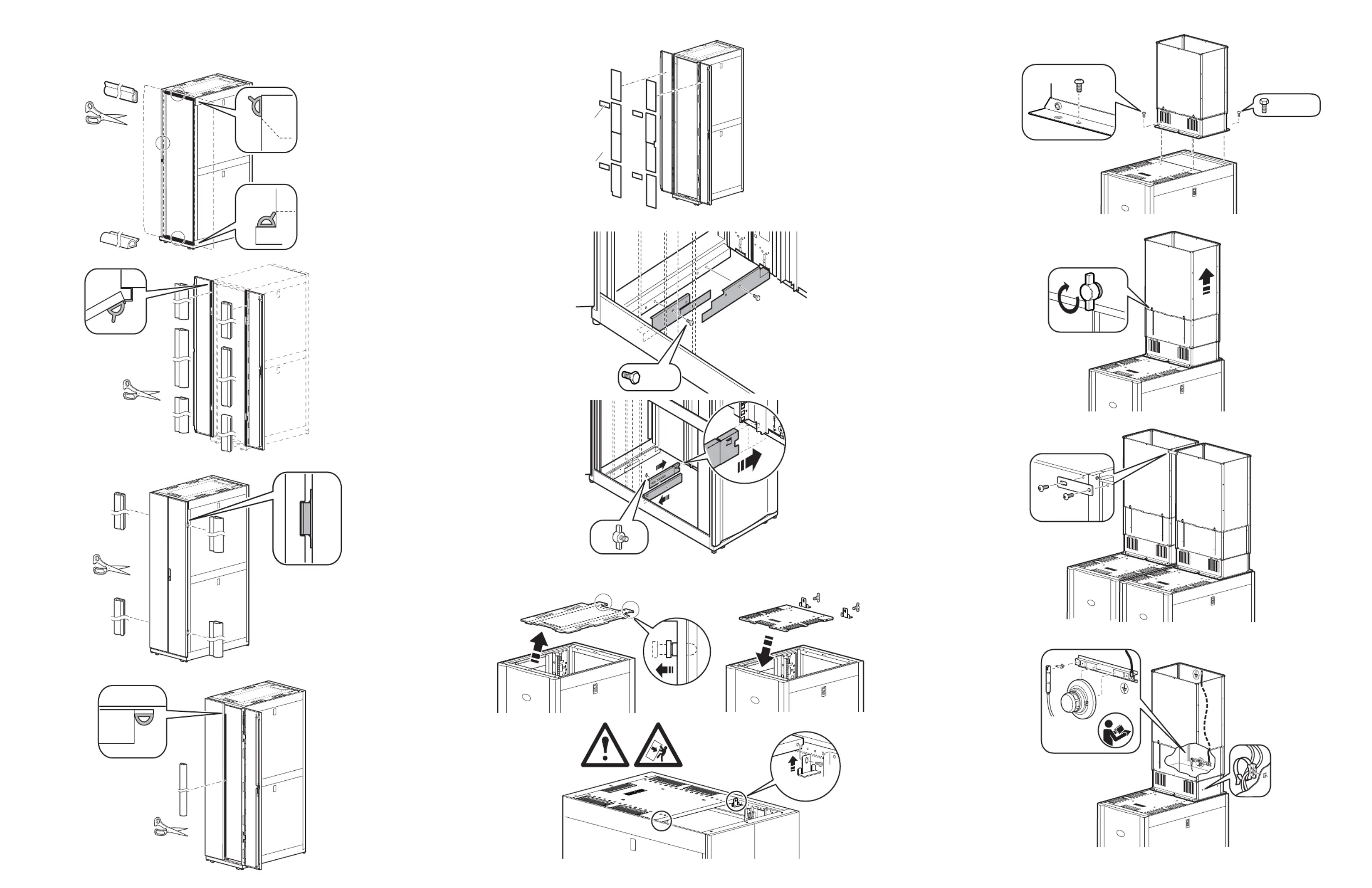

Installation

ns1820a



Door Seal

ns1819a



30#

ns2831a





Use a roller to press the gasket

into place. Press the roller down

firmly using about 30 lb/in of

applied pressure.

NOTE: Wait 24 hours for adhesive to set before

compressing or stressing the gasket.

SIDE VIEW

TOP VIEW

ns1841a

ns1842a

SIDE VIEW







TOP VIEW

ns1843a



NOTE: Be sure to use the gasket installation instructions from the Assembly section

when installing gasket material in the Installation section.



ns1822a

48U



Floor Seal

M8 (X2)

ns1835a

ns1836a

Roof

ns1806a

ns1809a



M4 (X2)

ns1808a







ns1805a

M10 (X2)

M6 (X2)

ns1815a

M6 (X2)

ns1840a

ns1844a

Accessories (not included)







Duct

Produkt Specifikationer

Mærke:	APC
Kategori:	Ikke kategoriseret
Model:	AR7752W
Type:	Luftkanal
Bredde:	571 mm
Dybde:	439 mm
Højde:	1524 mm
Vægt:	21150 g
Produktfarve:	Hvid
Pakkevægt:	28320 g
Pakkedybde:	914 mm
Pakkebredde:	686 mm
Pakkehøjde:	190 mm
Hurtig installationsvejledning:	Ja
Bæredygtighedscertifikater:	REACH, RoHS
Monteringssæt:	Ja
