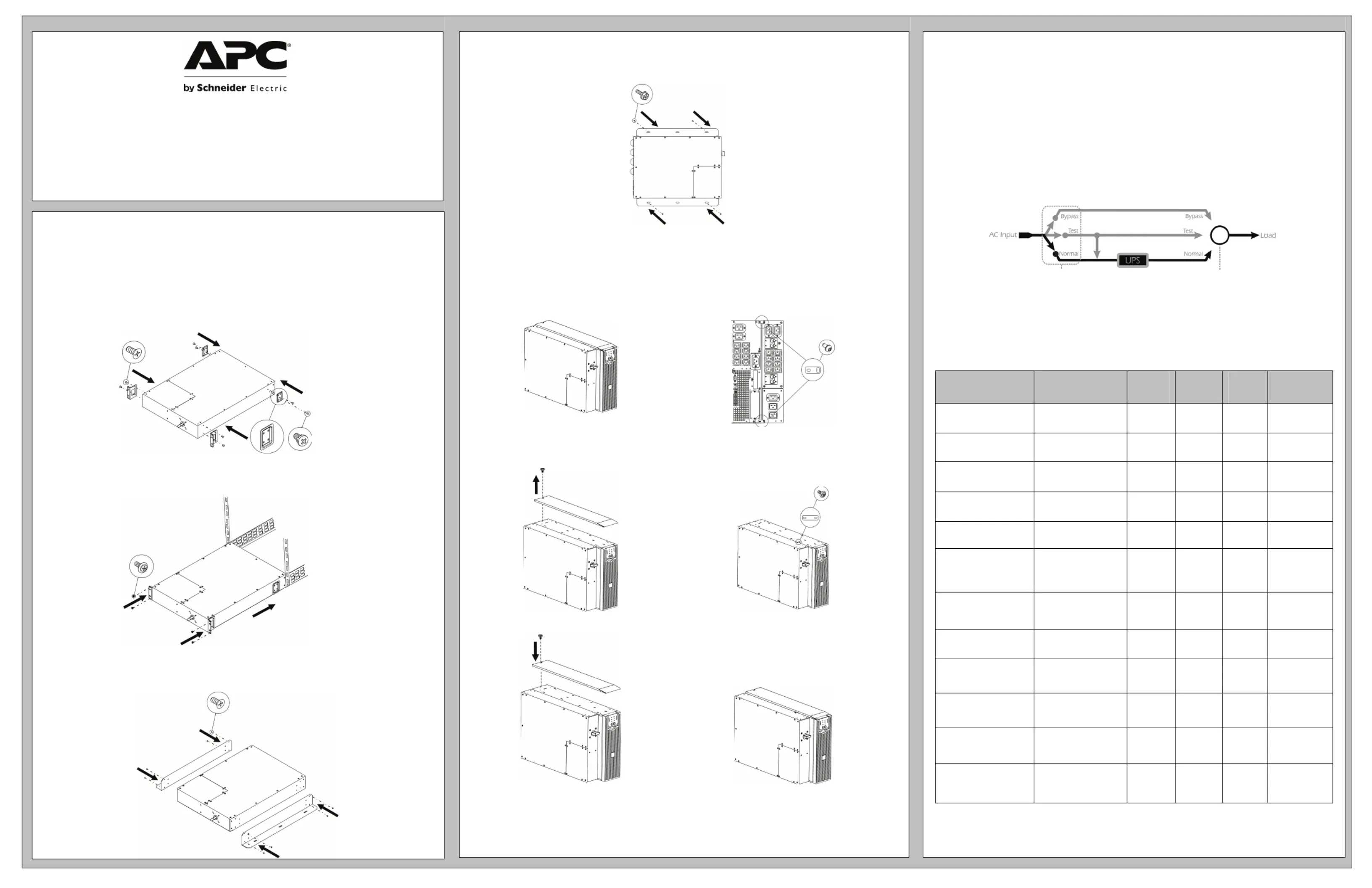

3-16kVA Service Bypass Panels

3-16kVA Service Bypass Panels 3-16kVA Service Bypass Panels

owned by Schneider Electric industries S.A.S American Power Conversion

Corporation, or their affiliated companies. All other trademarks are property

of their respective owners.

990-1530B

Note: Read the safety information sheet before installation.

Illustrations in this document may differ slightly from the actual hardware.

Attention: This product is for use in a controlled environment. Refer to product

specifications for environmental limits.

R MACK OUNTING

o Set SBP in the rack. If hardwiring is required, see Connecting Power

section before screwing into the rack.

W MALL OUNTING

o Whenever possible, attach one top screw and one bottom screw into a wall stud. If stud

mounting is not possible, use an expandable wall anchor. Screws are not included; .25” x

2” lag bolts are recommended.

T O ( SOWER PTION FOR MART-UPS RT SETUPS ONLY)

n Remove screw from the top and bottom rear of both the UPS and SBP. Install tie

brackets and reattach screws.

o Unscrew and remove top cover of the

UPS.

p Attach bracket to top of UPS and SBP.

q Reattach top cover of the UPS.

Note: The SBP5000RMI2U, when used in conjunction with an SURT3000XLI or SURT5000XLI UPS in a

tower configuration without an external battery pack (SURT192XLBP), is suitable for mounting on

concrete or other non-combustible smooth surfaces only.

U C SER ONFIGURABLE

Attention: When using an online UPS, put the UPS in automatic bypass mode before

rotating the SBP switch.

1. Normal: Power is directed from the utility outlet, through the Bypass Panel and UPS,

and to connected equipment. For use during normal UPS operation.

2. Test: Power supplied to the UPS is not output. Use when tests are being conducted on

the UPS, and connected equipment is not yet desired.

3. Bypass: Power from the utility outlet is filtered through the Bypass Panel, and to the

connected equipment. Use to bypass the UPS, when functioning improperly.

Note: While operating in ‘Test’ or ‘Bypass’ mode, power to the connected equipment is

not conditioned by the UPS. At this time, the “Equipment Protection Policy” is not valid.

I PDENTIFYING THE ANEL

Service Bypass Panels will differ. Refer to chart for unit specifications.

Note: HW= Hardwire

Service Bypass

Panel

Corresponding

UPS Systems

Bypass

Input

UPS

Input

UPS

Output

PDU

Panel

SBP3000RM2U

100-120V Smart-UPS

3kVA

L5-30P L5-30P L5-30R (2) 5-20R,

(6) 5-15R

SBP5000RMT2U

200/208/240V

Smart-UPS 3-4.5kVA

L6-30P L6-30P L6-30R (2) L6-20R,

(2) L6-30R

SBP5000RMI2U*

230V Smart-UPS

3-5kVA

C20/HW C19/HW C20/HW (2) C19,

(8) C13

SBP6KRMT2U**

200/208/240V

Symmetra 2-6kVA

L6-30P/

L6-30R/

L6-30P/

(1) L6-20R,

(2) L6-30R

SBP6KRMI2U

230V Symmetra

2-6kVA

HW HW HW (4) C19

SBP3000

100-240V Smart-UPS

3-5kVA with 30A HW

input/output

available

HW HW HW HW

SBP10KRMT4U

200/208/240V

Smart-UPS RT

7.5-10kVA

HW HW HW (3) L6-20R,

(3) L6-30R

SBP10KRMI4U

230V Smart-UPS RT

7.5-10kVA

HW (3Ph

or 1Ph)

HW (3Ph

or 1Ph)

HW (8) C13,

(2) C19

SBP16KP

200-240V

Symmetra LX

4-16kVA

HW (3Ph

or 1Ph)

HW (3Ph

or 1Ph)

HW HW

SBP16KRMI4U

220-240V

Symmetra LX

4-16kVA

HW (3Ph

or 1Ph)

HW (3Ph

or 1Ph)

HW (3) 30A HW

SBP16KRMP4U

200/208/240

Symmetra LX

4-16kVA

HW HW HW (6) L14-30R

SBP16KRMP4U-HW

200/208/240

Symmetra LX

4-16kVA

HW HW HW (1) L14-30R,

(3) L5-20R,

(1) 100A HW

*For loads exceeding 3kVA, hardwiring is necessary.

**For loads exceeding 5kVA, hardwiring is necessary.

Rea

Front

C P ONNECTING OWER

Warning: Do not modify inlets or outlets. The SBP and UPS plugs and receptacles

should match. For more information, contact APC.

1. Non-Hardwired Panels

1. Plug SBP UPS output cord into UPS PDU panel.*

2. Plug UPS input cord to SBP UPS input receptacle.*

3. Plug customer equipment into SBP PDU panel.

4. Plug SBP into utility power outlet.

*Units with IEC receptacles: Use jumper cables.

2. Hardwired Panels

Attention: Wiring must be performed by a qualified electrician.

1. Switch input circuit breaker off.

2. SBP units that will be rack-mounted: Set SBP in the rack.

3. Unscrew and remove top access panel.

4. If using SBP5000RMI2U or SBP6KRMT2U with a hardwired UPS: Unscrew

existing terminal block wiring. Do not touch factory wiring (see E).

5. If using SBP5000RMI2U or SBP6KRMT2U with a hardwired UPS: Unscrew and

remove rear input/output panel.

6. Remove circular knockouts from hardwiring input/output panel (see A, B, C, D:

UO= UPS Output; UI= UPS Input; AI= AC Input; LD= Load).

SBP3000 units: Also, remove PDU output panel knockout plate.

SBP16KP units: Also, remove circular knockouts from PDU output panel.

7. Connect wires to terminal blocks (see E, F, G, H, I). Adhere to all national and

local electrical codes.

8. Reinstall access panel.

9. Install hardwiring input/output panel.

10. SBP units that will be rack-mounted: Screw SBP into the rack.

E. 2U PANELS

F. SBP10KRMT4U

G. SBP16KRMP4U, SB16KRMP4U-HW

H. SBP16KP

I. SBP10KRMI4U, SBP16KRMI4U

T ROUBLESHOOTING

Use the chart below to solve minor SBP installation problems. Also, refer to the UPS User

Manual Troubleshooting section. For more complex issues, refer to www.apc.com.

Problem and

Possible Cause

Solution

UPS WILL NOT TURN ON AFTER ON BUTTON IS PUSHED

SBP handle is in ‘Bypass’ position. Rotate the SBP handle to the ‘Normal’ position.

There is no power at UPS input. Check that the power cables from the SBP to the utility power, and

from the SBP to the UPS Input are securely connected.

UPS is faulty or damaged. Rotate the SBP handle into the ‘Test’ position. If the connected

equipment becomes energized, the UPS may be faulty. To confirm

this, refer to UPS User Manual Troubleshooting.

There is no power at the utility

power outlet.

Rotate the SBP handle into the ‘Test’ position. If the connected

equipment fails to become energized, the utility power outlet may be

faulty. Check the utility power supply by plugging a table lamp into

the suspect outlet. If the utility outlet fails to power the lamp, contact

qualified service personnel to restore power.

UPS IS ONLINE; NOT POWERING ALL CONNECTED EQUIPMENT

SBP output circuit breaker tripped. Reduce the load by unplugging equipment. Reset the breaker.

There is no power at SBP output. Check that the power cable from the SBP to the UPS output is

securely connected.

R IEGULATORY NFORMATION
