ASRock 890FX Deluxe5 Motherboard

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Published January 2011

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

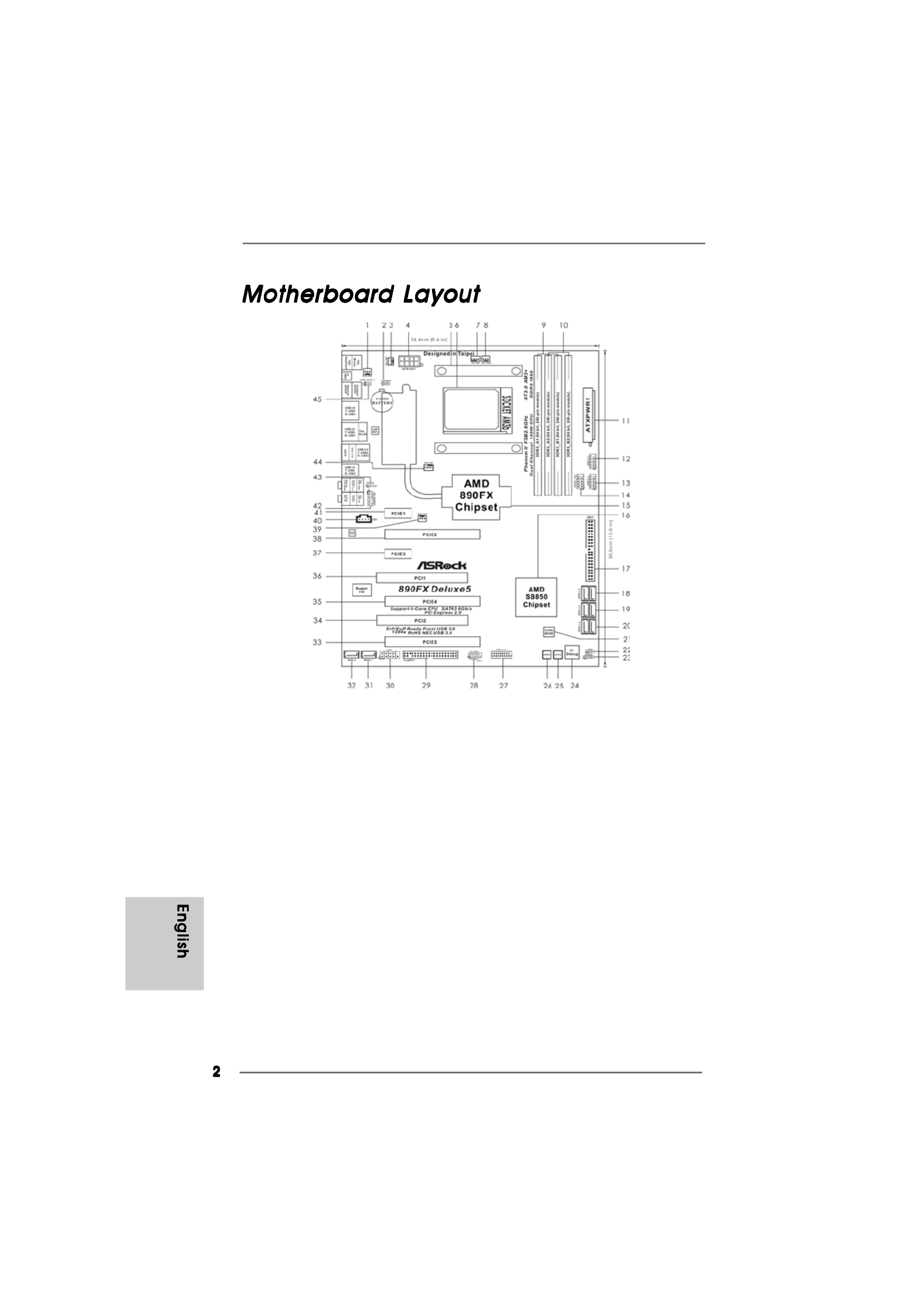

ASRock 890FX Deluxe5 Motherboard

1 Chassis Fan Connector (CHA_FAN3) 23 Chassis Speaker Header

2 Clear CMOS Jumper (CLRCMOS1) (SPEAKER 1, White)

3 Chassis Fan Connector (CHA_FAN2) 24 Dr. Debug (LED)

4 ATX 12V Power Connector (ATX12V1) 25 Reset Switch (RSTBTN)

5 CPU Heatsink Retention Module 26 Power Switch (PWRBTN)

6 AM3+ CPU Socket 27 USB 3.0 Header (USB3_1_2, Light Blue)

7 CPU Fan Connector (CPU_FAN1) 28 System Panel Header (PANEL1, White)

8 CPU Fan Connector (CPU_FAN2) 29 Floppy Connector (FLOPPY1)

9 2 x 240-pin DDR3 DIMM Slots 30 Serial Port Connector (COM1)

(Dual Channel A: DDR3_A1, DDR3_B1; Blue) 31 SATA3 Connector (SATA3_7, White)

10 2 x 240-pin DDR3 DIMM Slots 32 SATA3 Connector (SATA3_8, White)

(Dual Channel B: DDR3_A2, DDR3_B2; White) 33 PCI Express 2.0 x16 Slot (PCIE5; Blue)

11 ATX Power Connector (ATXPWR1) 34 PCI Slot (PCI2)

12 USB 2.0 Header (USB12_13, Blue) 35 PCI Express 2.0 x16 Slot (PCIE4; Blue)

13 USB 2.0 Header (USB10_11, Blue) 36 PCI Slot (PCI1)

14 Front Panel IEEE 1394 Header 37 PCI Express 2.0 p2-x1 Slot (PCIE3; White)

(FRONT_1394, White) 38 PCI Express 2.0 x16 Slot (PCIE2; Blue)

15 Northbridge Controller 39 Power Fan Connector (PWR_FAN1)

16 Southbridge Controller 40 Internal Audio Connector: CD1 (White)

17 Primary IDE Connector (IDE1, Blue) 41 PCI Express 2.0 p2-x1 Slot (PCIE1; White)

18 SATA3 Connector (SATA3_5_6, White) 42 Front Panel Audio Header

19 SATA3 Connector (SATA3_3_4, White) (HD_AUDIO1, White)

20 SATA3 Connector (SATA3_1_2, White) 43 Infrared Module Header (IR1)

21 SPI Flash Memory (32Mb) 44 Chassis Fan Connector (CHA_FAN1)

22 Power LED Header (PLED1) 45 HDMI_SPDIF Header (HDMI_SPDIF1, White)

Produkt Specifikationer

Mærke:	Asrock
Kategori:	Bundkort
Model:	890FX Deluxe5
Bredde:	305 mm
Dybde:	244 mm
Ethernet LAN-porte (RJ-45):	1
Antal USB 2.0-porte:	6
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte:	2
Digital akustisk og optisk udgang:	1
Udgange til hovedtelefoner:	4
Lyd-output kanaler:	7.1 kanaler
Certificering:	CC, CE, WHQL, ErP/EuP Ready
Strømkilde type:	ATX
Maksimal intern hukommelse:	32 GB
On-board grafikkort:	Ingen
Mikrofonindgang:	Ja
S/PDIF-udgang:	Ja
Medfølgende software:	AMD OverDrive Utility
Kompatible operativsystemer:	Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit
Processorproducent:	AMD
Drivere inkluderet:	Ja
Ethernet-grænsefladetype:	Gigabit Ethernet
Prøvesoftware:	AntiVirus,ASRock Suite
Komponent til:	PC
Netværksfunktioner:	10/100/1000Mbps
Antal PS/2-porte:	2
Processor sokkel:	Sokkel AM3
PCI Express slots version:	2.0
Processor front side bus:	2600 Mhz
Systembus-hastighed:	5.2 GT/s
FireWire-porte (IEEE 1394):	1
PCI Express x16 slots:	3
Understøttelse af parallel behandlingsteknologi:	3-Way SLI,Quad-GPU CrossFireX
Kompatibel processor serie:	AMD Phenom II X2,AMD Phenom II X4,AMD Phenom II X6
Bundkort chipsæt:	AMD 890FX
Lydchip:	Realtek ALC892
Antal hukommelsesstik:	4
Ikke-fejlkorrigerende kode:	Ja
Understøttede hukommelsesclock-hastigheder:	800,1066,1333,1600,1800,1866 Mhz
Antal SATA III-stik:	8
LAN Kontroller:	Realtek RTL8111E
Hukommelseskanaler:	Dual-channel
USB 2.0-stik:	2
USB 3.2 Gen 1 (3.1 Gen 1) stik:	1
S/PDIF-udgangsstik:	Ja
CPU-ventilatorstik:	Ja
Antal COM-stik:	1
ATX strømstrik (24 stikben):	Ja
Antal kabinetventilatorstik:	1
Lydstik på frontpanel:	Ja
Motherboard form faktor:	ATX
PCI Ekspres x1 slots:	2
BIOS-type:	AMI
BIOS-hukommelsesstørrelse:	32 Mbit
Antal IEEE1394-stik:	1
Wake-on-LAN klar:	Ja
Antal eSATA-porte:	1
RAID-niveauer:	0,1,0+1,5
Southbridge bundkort:	AMD SB850
Strømstik til ventilator:	Ja
CD/AUX lyd, indgående:	Ja
Floppy-drev, stik:	Ja
Controller-grænsefladetype:	SATA3
PCI-slots:	2
Antal parallelle ATA-stik:	1
EPS strømstik (8-pin):	Ja
