Asrock AD2550B-ITX Manual

Asrock Bundkort AD2550B-ITX

Læs gratis den danske manual til Asrock AD2550B-ITX (140 sider) i kategorien Bundkort. Denne vejledning er vurderet som hjælpsom af 45 personer og har en gennemsnitlig bedømmelse på 4.3 stjerner ud af 23 anmeldelser. Har du et spørgsmål om Asrock AD2550B-ITX, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/140

ASRock AD2550B-ITX Motherboard

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documentation

by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identica-

tion or explanation and to the owners’ benet, without intent to infringe.

Specications and information contained in this guide are furnished for informational use

only and subject to change without notice, and should not be constructed as a commit-

ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may

appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or condi-

tions of merchantability or tness for a particular purpose. In no event shall ASRock, its

directors, ofcers, employees, or agents be liable for any indirect, special, incidental, or

consequential damages (including damages for loss of prots, loss of business, loss of

data, interruption of business and the like), even if ASRock has been advised of the pos-

sibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published June 2013

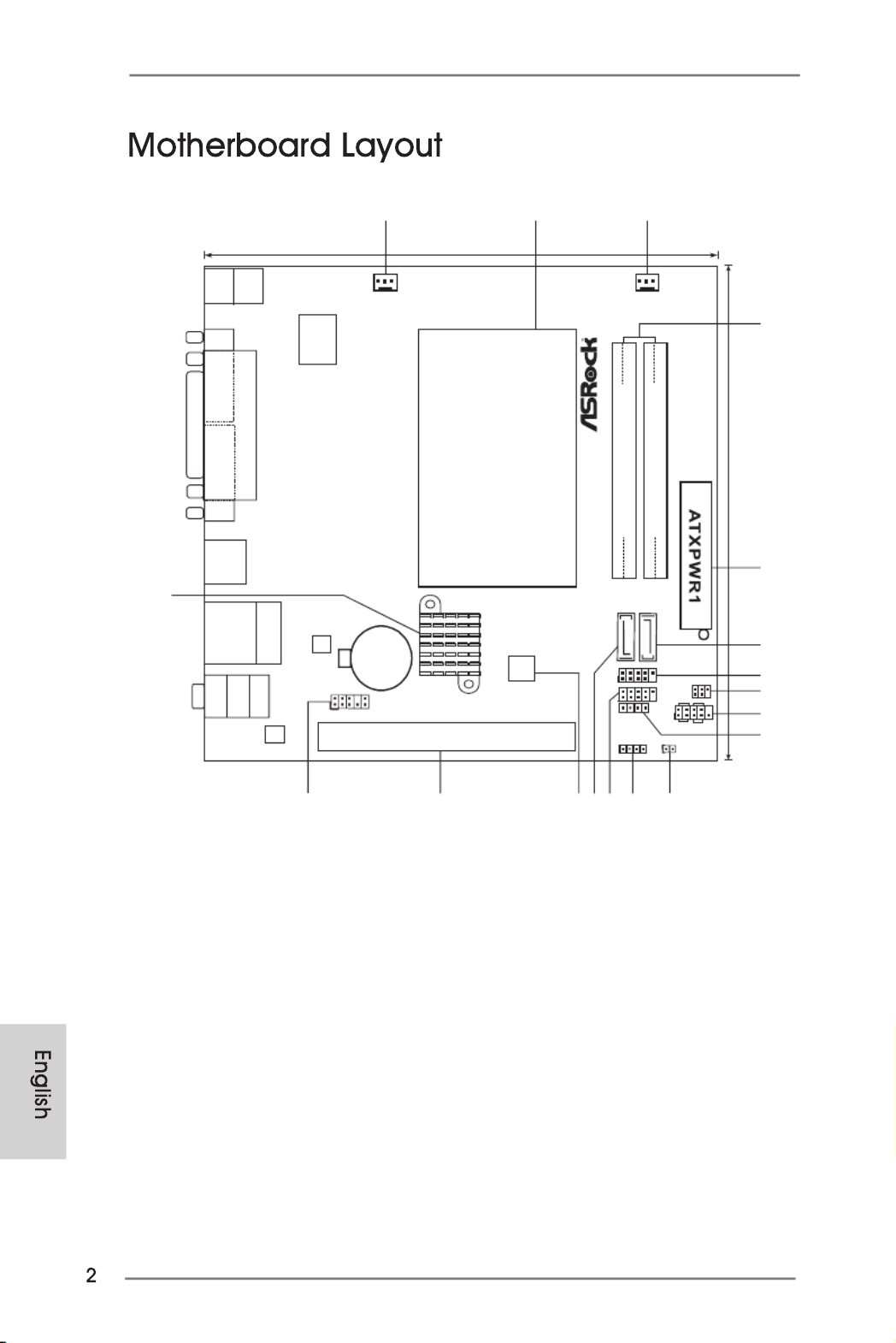

ASRock AD2550B-ITX Motherboard

1 CPU Fan Connector (CPU_FAN1) 11 Clear CMOS Jumper (CLRCMOS1)

2 CPU Heatsink 12 Chassis Speaker Header

3 Chassis Fan Connector (CHA_FAN1) (SPEAKER 1, White)

4 2 x 204-pin DDR3 SO-DIMM Slots 13 USB 2.0 Header (USB4_5, Blue)

(DDR3_A1, DDR3_A2, Black) 14 SATA2 Connector (SATAII_1, Blue)

5 ATX Power Connector (ATXPWR1) 15 16Mb SPI Flash

6 SATA2 Connector (SATAII_2, Blue) 16 PCI Slot (PCI1)

7 USB 2.0 Header (USB6_7, Blue) 17 Front Panel Audio Header

8 Infrared Module Header (IR1) (HD_AUDIO1, White)

9 System Panel Header (PANEL1, White) 18 Intel NM10 Express Chip

10 Consumer Infrared Module Header (CIR1)

SPE AKE R1

HD_ AUD IO 1

PANEL 1

HDL ED RES ET

PLE D P WRB T N

CMOS

Battery

16Mb

BIOS

AUDIO

COD EC

17.0cm (6.7 in)

17. 0c m (6.7 in )

Su pe r

1 2

121314 111516

DDR3_A1 (64 bit, 204-pi n module)

DDR3_A2 (64 bit, 204-pi n module)

SAT AII _ 1 SAT AII _ 2

LAN

PHY

RoHS

USB 2.0

T: USB0

B: USB1

Top :

RJ- 45

PAR ALL EL PORT

VGA1

Top:

Line In

Cent er:

Line Out

Bot t om:

Mic In

CPU _FA N1

USB 6_ 7

PCI 1

USB 4_ 5

ErP/EuP Ready

USB 2. 0

T: USB2

B: USB3

COM1

De si gn in Ta ip ei

PS2

Mo u se

PS 2

Key boa r d

CIR 1

IR1

CHA _FA N1

Fast LAN

Fast USB

DX10. 1

AD2550B-ITX

CLR CMO S1

Produkt Specifikationer

Mærke:	Asrock
Kategori:	Bundkort
Model:	AD2550B-ITX
Bredde:	170 mm
Dybde:	170 mm
Ethernet LAN-porte (RJ-45):	1
Antal USB 2.0-porte:	4
Ethernet LAN:	Ja
Maksimal opløsning:	1920 x 1200 pixel
Hurtig installationsvejledning:	Ja
Kabler inkluderet:	SATA
Lyd-output kanaler:	5.1 kanaler
Certificering:	FCC, CE, WHQL\r\nErP/EuP
Strømkilde type:	ATX
Maksimal intern hukommelse:	4 GB
On-board grafikkort:	Ja
Mikrofonindgang:	Ja
Processorproducent:	Intel
Processormodel:	D2550
Drivere inkluderet:	Ja
Antal VGA-porte (D-sub):	1
Ethernet-grænsefladetype:	Hurtigt ethernet
Prøvesoftware:	CyberLink MediaEspresso 6.5
Komponent til:	PC
Lydudgang:	3
Antal serielle porte:	1
Kølingstype:	Passiv
Antal PS/2-porte:	2
Processor sokkel:	NA (integreret CPU)
Understøttelse af parallel behandlingsteknologi:	Ikke understøttet
DirectX-version:	9.0
Kompatibel processor serie:	Intel Atom®
Bundkort chipset familie:	Intel
Bundkort chipsæt:	Intel® NM10 Express
Lydchip:	VIA VT1705
Understøttede hukommelsestyper:	DDR3-SDRAM
Antal hukommelsesstik:	2
Hukommelses slots type:	SO-DIMM
Ikke-fejlkorrigerende kode:	Ja
Understøttede hukommelsesclock-hastigheder:	800,1066 Mhz
Ikke-bufferet hukommelse:	Ja
LAN Kontroller:	Realtek RTL8105E
USB 2.0-stik:	2
Antal SATA stik:	2
CPU-ventilatorstik:	Ja
ATX strømstrik (24 stikben):	Ja
Indbrudsttik til kabinet:	Ja
Antal kabinetventilatorstik:	1
Lydstik på frontpanel:	Ja
Antal SATA II stik:	2
Motherboard form faktor:	mini ITX
Understøttede lagerdrev brugerflader:	SATA II
BIOS-type:	UEFI
BIOS-hukommelsesstørrelse:	16 Mbit
ACPI-version:	1.1
Antal parallelle porte:	1
Controller-grænsefladetype:	Intel® NM10
PCI-slots:	1
Maksimalt antal SMP-processorer:	1
Grafikadapter familie:	Intel
Diskret grafik support:	Ingen
Understøttede hukommelsesmodulkapaciteter:	1GB, 2GB, 512MB
