ASRock ALiveNF7G-HD720p Motherboard
No part of this installation guide may be reproduced, transcribed, transmitted, or trans-
lated in any language, in any form or by any means, except duplication of documen-
tation by the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this guide may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identifica-
tion or explanation and to the owners’ benefit, without intent to infringe.
Specifications and information contained in this guide are furnished for informational
use only and subject to change without notice, and should not be constructed as a
commitment by ASRock. ASRock assumes no responsibility for any errors or omissions
that may appear in this guide.
With respect to the contents of this guide, ASRock does not provide warranty of any kind,
either expressed or implied, including but not limited to the implied warranties or
conditions of merchantability or fitness for a particular purpose. In no event shall
ASRock, its directors, officers, employees, or agents be liable for any indirect, special,
incidental, or consequential damages (including damages for loss of profits, loss of
business, loss of data, interruption of business and the like), even if ASRock has been
advised of the possibility of such damages arising from any defect or error in the guide
or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Published July 2007
Copyright©2007 ASRock INC. All rights reserved.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic
substance controlled in Perchlorate Best Management Practices (BMP) regulations
passed by the California Legislature. When you discard the Lithium battery in
California, USA, please follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate”
ASRock Website: http://www.asrock.com

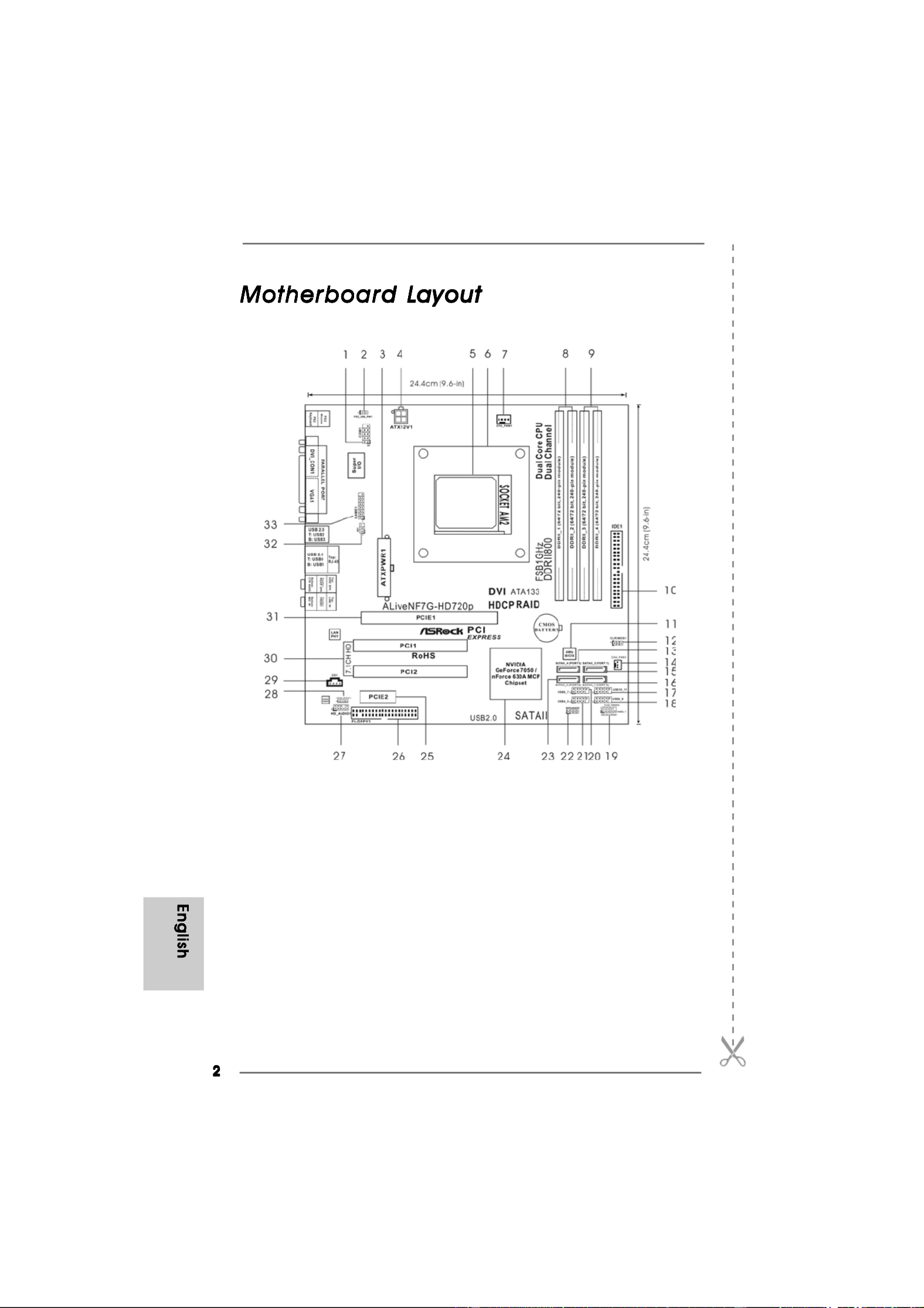

ASRock ALiveNF7G-HD720p Motherboard
1 Serial Port Connector (COM1) 17 USB 2.0 Header (USB10_11, Blue)
2 PS2_USB_PW1 Jumper 18 USB 2.0 Header (USB8_9, Blue)
3 ATX Power Connector (ATXPWR1) 19 System Panel Header (PANEL1)
4 ATX 12V Power Connector (ATX12V1) 20 USB 2.0 Header (USB6_7, Blue)
5 AM2 940-Pin CPU Socket 21 USB 2.0 Header (USB4_5, Blue)
6 CPU Heatsink Retention Module 22 Chassis Speaker Header (SPEAKER 1)
7 CPU Fan Connector (CPU_FAN1) 23 Third SATAII Connector (SATAII_3 (PORT2))
8 2 x 240-pin DDRII DIMM Slots 24 NVIDIA GeForce 7050 / nForce 630A MCP
(Dual Channel A: DDRII_1, DDRII_2; Yellow) 25 PCI Express p2-x1 Slot (PCIE2)
9 2 x 240-pin DDRII DIMM Slots 26 Floppy Connector (FLOPPY1)
(Dual Channel B: DDRII_3, DDRII_4; Orange) 27 Front Panel Audio Header (HD_AUDIO1)
10 Primary IDE Connector (IDE1, Blue) 28 HDMI_SPDIF Header (HDMI_SPDIF1)
11 SPI Flash Memory (4Mb) 29 Internal Audio Connector: CD1 (Black)
12 Clear CMOS Jumper (CLRCMOS1) 30 PCI Slots (PCI1- 2)
13 Fourth SATAII Connector (SATAII_4 (PORT3)) 31 PCI Express x16 Slot (PCIE1)
14 Chassis Fan Connector (CHA_FAN1) 32 Infrared Module Header (IR1)
15 Secondary SATAII Connector (SATAII_2 (PORT1)) 33 Game Port Header (GAME1)
16 Primary SATAII Connector (SATAII_1 (PORT0))

Produkt Specifikationer

Mærke: Asrock
Kategori: Bundkort
Model: ALiveNF7G-HD720p R3.0
