Step 2. Configurations

TH-PPA-18-25

Component Checklist

18-25” (457-635mm) Adjustable Projector Pole Accessory

! IMPORTANT - Install Telehook Adjuster Pole as per installation instruction.

! This product supports a maximum load of 454Kg (1000lbs.).

! The manufacturer accepts no responsibility for incorrect installation.

IMPORTANT INFORMATION:

Step 1. Check Components

Check you have received all parts against the component checklist and hardware above.

Adjuster Pole

Plastic Cover

HARDWARE

Security Set Screw

(x2)

Set Screw

(x2)

Standard Socket Pan Head

Screw (x1)

4mm Security Allen Key

Security Socket Pan Head

Screw (x1)

Extension Pole

Existing Ceiling

Plate Bracket.

(Sold seperately

and available from

ATDEC.)

2.5mm Allen Key

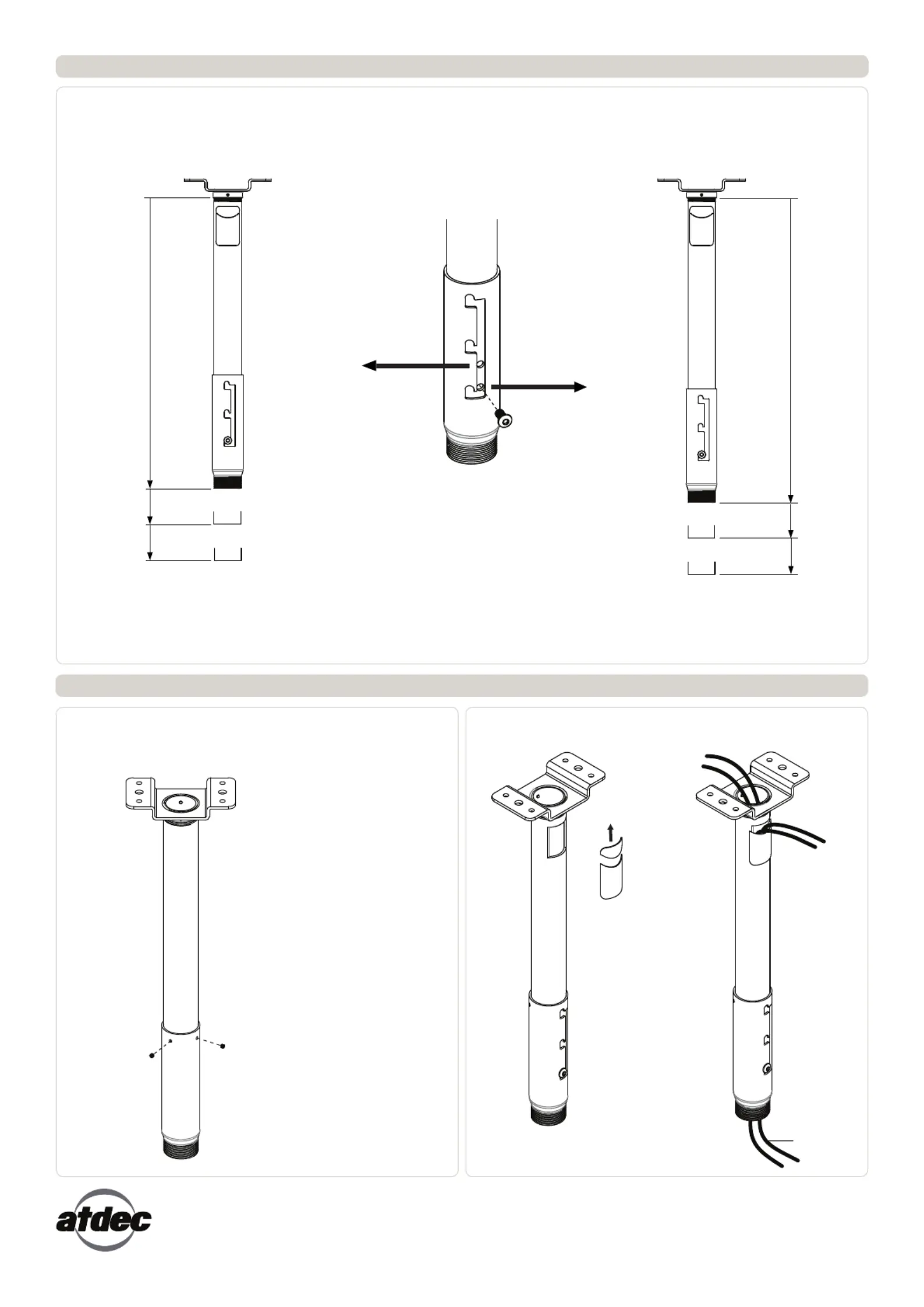

2.1. Configure components as per image below for a pole length of

18”.

2.2. Screw Extension Pole in a clockwise direction into Ceiling Plate

Bracket.

Extension Pole

2.3. Configure components as per

image below for a pole length range of

20-25”.

2.4. Screw Extension Pole in a

clockwise direction into Ceiling Plate

Bracket.

2.5. Locate Adjuster pole on extension

Pole aligning the holes with the slot.

Adjustor Pole

18” Range 20-25” Range

Existing Ceiling

Plate Bracket

Extension Pole

Slot

Holes

Installation Instructions

Step 3. Assemble to desired length

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 22.05.13 ©

Upper Hole

3.2. Insert the one Standard or Security Socket Head Pan Screw through the slot

in the Adjuster Pole into either of the 2 visible holes in the Extension Pole. Each

hole enables a different length range.

Step 4. Secure Position

4.1. When desired pole length has been selected use either the

Security or Set Standard Screws to secure position. Tighten with the

2.5mm Security Allen Key supplied.

4.2. Snap off bottom segment of cable cover for cable access.

Lower Hole

3.3. Move the extension pole to the desired length and rotate to locate in one of

the three slots. Adjust the tightness of the screw using the 4mm Security Allen Key

supplied.

20”

22”

24”

21”

23”

25”

Cable

Snap off

Produkt Specifikationer

Mærke:	Atdec
Kategori:	fladskærmsstøtte
Model:	TH-PPA-1825
Produktfarve:	Hvid
Monteringstype:	Loft
Maksimal vægtkapacitet:	454 kg
Justerbar:	Ja
Teleskopisk:	Ja
Loftsmontering rørlængde (maks.):	635 cm
Loftsmontering rørlængde (min.):	457 cm
Justerbar arm:	Ja
